2010 PEUGEOT 207 Owners Manual

60
Illuminated glove box *
This has an upper open storage com-
partment and locations for storing a
small bottle of water, the vehicle’s hand-
book, ...
Its lid has locations for storing a pen, to-
kens, cards, cans, ...
It may be fi tted with a lock.

 To open the glove box, raise the
handle.
It is illuminated when the lid is opened.
It houses the front passenger airbag de-
activation switch A .
 To connect a 12 V accessory (max
power: 120 Watts), lift the cover and
connect a suitable adaptor.
12 V accessories socket
If the vehicle is fi tted with digital air con-
ditioning, it provides access to the ven-
tilation nozzle B , which can be opened
or closed, distributing the same condi-
tioned air as the vents in the passenger
compartment.
It also gives access to the dashboard
fusebox (refer to the "Practical informa-
tion - § Changing a fuse" section).
* According to version.

61
BOOT FITTINGS (SALOON)

1. Rear parcel shelf
(see details on following page)

2. Hooks
(see details on following page)

i
62
Hooks

Rear parcel shelf (Saloon)
To remove the shelf:

 unhook the two cords,

 raise the shelf slightly, then remove it. The hooks can be used to secure shop-
ping bags.
When changing a wheel
The hooks facilitate access to the
spare wheel by holding up the boot
carpet by its cord.
You have two storage options:
- either upright behind the front seats,
- or upright behind the rear seats.

63

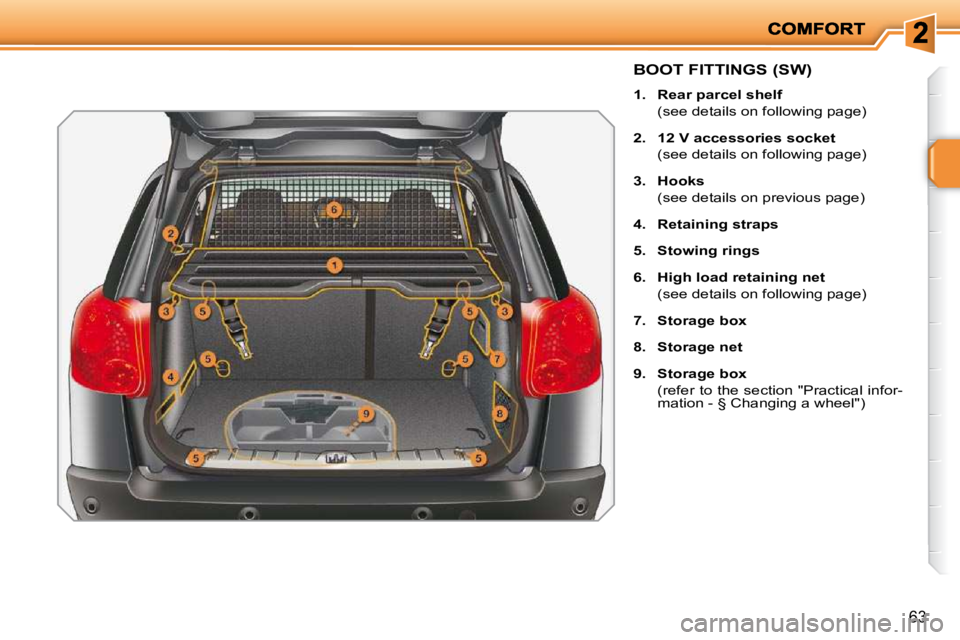

BOOT FITTINGS (SW)

1. Rear parcel shelf
(see details on following page)

2. 12 V accessories socket
(see details on following page)

3. Hooks
(see details on previous page)

4. Retaining straps

5. Stowing rings

6. High load retaining net
(see details on following page)

7. Storage box

8. Storage net

9. Storage box
(refer to the section "Practical infor- mation - § Changing a wheel")

i
64

Rear parcel shelf (SW)
This consists of three sections which
can be folded back on each other.
To store it, fold it on itself and place it
vertically at the back of the boot.
To fold it from the boot:

 take hold of the rear parcel shelf by
its strap A ,

 fold it concertina-style to the rear
seats.
To unfold it from the boot:

 take hold of the rear parel shelf by
its strap A ,

 unfold it to the boot pillars.
To gain access from the rear seats:

 raise the front section of the rear
parcel shelf using the handle B . 12 V accessories socket (SW)

 In order to connect a 12 V accessory
(max power: 120 Watts), remove
the cap and connect the appropriate
adaptor.
 Turn the key to the ignition position.
Maximum loads
7.5 kg, rear parcel shelf unfold-
ed with high load retaining net at
row 2.

i
65
High load retaining net (SW)
Hooked onto the upper fi xings and onto
the ISOFIX rings or the lugs, this per-
mits use of the entire loading volume up
to the roof:
- behind the rear seats (row 2),
- behind the front seats (row 1) when the rear seats are folded.
To use it in row 1:

 open the covers of the upper fi xings 1 ,

 unroll the high load retaining net,

 position one of the ends of the net's
metal bar in the corresponding
upper fi xing 1 , then do the same
with the other end,

 slacken the straps fully,

 fi x the snap hook of each of the straps
on the corresponding lug 3 , located
under the bench seat cushion,

 fold the rear seats,

 tighten the straps without raising the
bench seat,

 check that the net is hooked and
tightened correctly. To use it in row 2:

 fold or remove the load space cover,

 open the covers of the upper fi xings 2 ,

 unroll the high load retaining net,

 position one of the ends of the net's
metal bar in the corresponding upper
fi xing 2 , then do the same with the
other end,

 attach the hook of each of the net's
straps in the corresponding ISOFIX
ring 4 ,

 tighten the straps,
 check that the net is hooked and tightened correctly.
When positioning the net, check
that the strap loops are visible from
the boot; this will make slackening
or tightening easier.

i
ACCESS
66
REMOTE CONTROL KEY
System which permits central unlocking
or locking of the vehicle using the lock
or remotely. It also locates and starts
the vehicle, as well as providing protec-
tion against theft. Unfolding the key

 First press button A to unfold the key.
Unlocking the vehicle
Unlocking is confi rmed by rapid fl ashing
of the direction indicators for approxi-
mately two seconds.
According to version, the door mirrors
unfold at the same time. Locking the vehicle

 Press the open padlock to
unlock the vehicle.
Unlocking using the key

 Turn the key to the left in the driver's
door lock to unlock the vehicle. Normal locking using the key

 Turn the key to the right in the driver's
door lock to lock the vehicle.
Locking is confi rmed by fi xed lighting of
the direction indicators for approximately
two seconds.
According to version, the door mirrors
fold at the same time.
Unlocking using the remote control

 Press the closed padlock to
lock the vehicle.

 Press the closed padlock
for more than two seconds
to close the windows auto-
matically in addition to lock-
ing (with sequential electric
windows).
If one of the doors, the boot or the
rear screen is still open, the central
locking does not take place.
Normal locking using the remote
control

!i
i
67
Deadlocking renders the exterior
and interior door controls inoperative.
It also deactivates the manual cen-
tralised control button.
Therefore, do not leave anyone
inside the vehicle when it is dead-
locked.
Deadlocking using the remote
control

 Press the closed padlock to lock the
vehicle.

 Press the closed padlock again
within fi ve seconds to deadlock the
vehicle.
Deadlocking using the key

 Turn the key to the right in the driver's
door lock to lock the vehicle.

 Turn the key to the right again within
fi ve seconds to deadlock the vehicle.
Deadlocking is confi rmed by fi xed light-
ing of the direction indicators for ap-
proximately two seconds.
According to version, the door mirrors
fold at the same time.
The vehicle will relock automati-
cally after thirty seconds unless a
door is opened. This system pre-
vents unintentional unlocking.
The folding and unfolding of the
door mirrors can be deactivated by
a PEUGEOT dealer.
Folding the key

 First press button A to fold the key.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a malfunction,
you are informed by lighting of
this warning lamp, an audible
signal and a message on the
multifunction screen.
In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.
Unlocking and partial opening
of the rear screen (SW)

 Press this button for more
than two seconds to par-
tially open the rear screen.
This action will unlock the
vehicle fi rst.
The boot and the rear screen can-
not both be open at the same time.
