i
44
The condensation created by the
air conditioning results in a dis-
charge of water under the vehicle
which is perfectly normal.
In order for these systems to be fully effective, follow the operation and main-
tenance guidelines below:
To obtain an even air distribution, take care not to obst ruct the exterior air
intake grilles located at the base of the windscreen, the n ozzles, the vents
and the air outlets, as well as the air extractor located in the boot.
Do not cover the sunshine sensor, located on the dashboard ; this is used
for regulation of the air conditioning system.
Operate the air conditioning system for at least 5 to 10 mi nutes, once or
twice a month to keep it in perfect working order.
E n s u r e t h a t t h e p a s s e n g e r c o m p a r t m e n t fi l t e r i s i n g o o d c o n d i t i o n a n d
h a v e t h e fi l t e r e l e m e n t s r e p l a c e d r e g u l a r l y ( r e f e r t o t h e " C h e c k s " s e c t i o n ) .
W e r e c o m m e n d t h e u s e o f a c o m b i n e d p a s s e n g e r c o m p a r t m e n t fi l t e r .
T h a n k s t o i t s s p e c i a l a c t i v e a d d i t i v e , i t c o n t r i b u t e s t o t h e p u r i fi c a t i o n o f
the air breathed by the occupants and the cleanliness of the passenger
compartment (reduction of allergic symptoms, bad odours and greasy
deposits).
To guarantee correct operation of the air conditioning syste m, you are also
advised to have it checked regularly as recommended in the Warranty and
Maintenance Record.
If the system does not produce cold air, deactiva te it and contact a PEUGEOT
dealer.
When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning increases the available e ngine power and so
improves the towing ability.
I f a f t e r a n e x t e n d e d s t o p i n s u n s h i n e , t h e i n t e r i o r t e m p e r a t u r e i s v e r y h i g h , fi r s t
ventilate the passenger compartment for a few moments.
P u t t h e a i r fl o w c o n t r o l a t a s e t t i n g h i g h e n o u g h t o q u i c k l y c h a n g e t h e a i r i n t h e
passenger compartment.
The air conditioning system does not contain chlorine and do es not present
any danger to the ozone layer.
Page 113 of 218
!
!
i
117

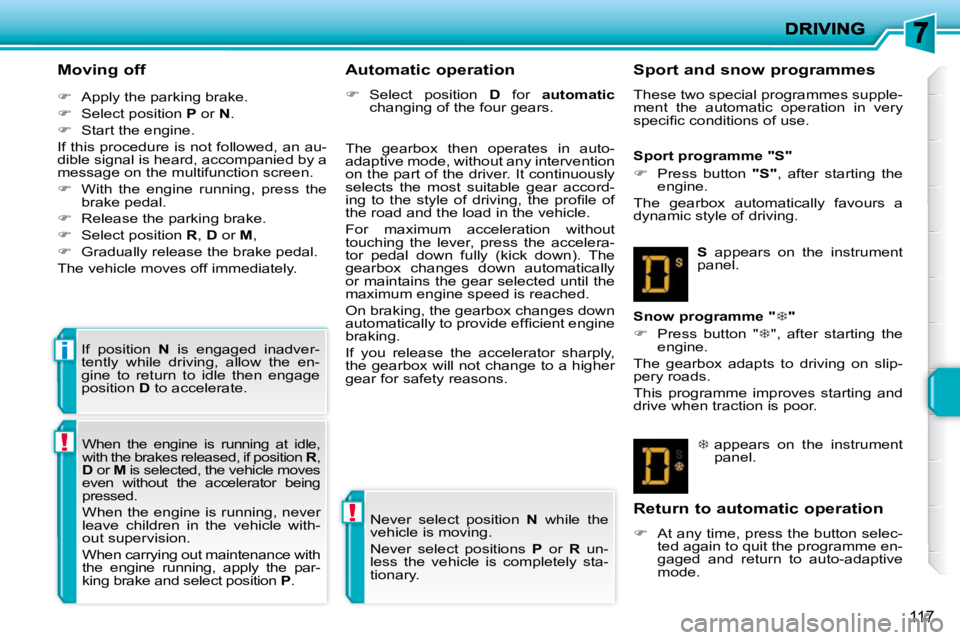

Moving off
Apply the parking brake.
Select position P or N .
Start the engine.
If this procedure is not followed, an au-
dible signal is heard, accompanied by a
message on the multifunction screen.
With the engine running, press the
brake pedal.
Release the parking brake.
Select position R , D or M ,
Gradually release the brake pedal.
The vehicle moves off immediately.
If position N is engaged inadver-
tently while driving, allow the en-
gine to return to idle then engage
position D to accelerate. The gearbox then operates in auto-
adaptive mode, without any intervention
on the part of the driver. It continuously
selects the most suitable gear accord-
i n g t o t h e s t y l e o f d r i v i n g , t h e p r o fi l e o f
the road and the load in the vehicle.
For maximum acceleration without
touching the lever, press the accelera-
tor pedal down fully (kick down). The
gearbox changes down automatically
or maintains the gear selected until the
maximum engine speed is reached.
On braking, the gearbox changes down
a u t o m a t i c a l l y t o p r o v i d e e f fi c i e n t e n g i n e
braking.
If you release the accelerator sharply,
the gearbox will not change to a higher
gear for safety reasons.
Automatic operation
Select position D for automatic
changing of the four gears.
appears on the instrument
panel.
Snow programme "
"
Press button " ", after starting the
engine.
The gearbox adapts to driving on slip-
pery roads.
This programme improves starting and
drive when traction is poor.
S appears on the instrument
panel.
Sport programme "S"
Press button "S" , after starting the
engine.
The gearbox automatically favours a
dynamic style of driving.
Never select position N while the
vehicle is moving.
Never select positions P or R un-
less the vehicle is completely sta-
tionary.
When the engine is running at idle,
with the brakes released, if position R ,
D or M is selected, the vehicle moves
even without the accelerator being
pressed.
When the engine is running, never
leave children in the vehicle with-
out supervision.
When carrying out maintenance with
the engine running, apply the par-
king brake and select position P . Sport and snow programmes
These two special programmes supple-
ment the automatic operation in very
s p e c i fi c c o n d i t i o n s o f u s e .
Return to automatic operation
At any time, press the button selec-
ted again to quit the programme en-
gaged and return to auto-adaptive
mode.
Page 124 of 218
129
CHECKING LEVELS
Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
I f a l e v e l d r o p s s i g n i fi c a n t l y , h a v e t h e
corresponding system checked by a
PEUGEOT dealer.
Take care when working under the bon-
net, as some parts of the engine can be
extremely hot (risk of burns). Brake fluid level
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.
Oil level The reading will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 15 minutes.
The check is carried out either when
the ignition is switched on using the oil
level indicator on the instrument panel,
or using the dipstick. T h e b r a k e fl u i d l e v e l s h o u l d b e
close to the "MAX" mark. If it is
not, check the brake pad wear.
C h a n g i n g t h e b r a k e fl u i d
Refer to the Warranty and Maintenance
Record for details of the interval for this
operation.
Coolant level The coolant level should be close
to the "MAX" mark but should
never exceed it.
When the engine is warm, the
temperature of the coolant is regulated by
the fan. This can operate with the ignition
off.
O n v e h i c l e s w h i c h a r e fi t t e d w i t h a p a r -
t i c l e e m i s s i o n fi l t e r , t h e f a n m a y o p e r -
ate after the vehicle has been switched
o f f , e v e n i f t h e e n g i n e i s c o l d .
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work. Screenwash and headlamp
wash fluid*
T h e m i n i m u m l e v e l o f t h i s fl u i d
is indicated by an audible sig-
nal and a message on the mul-
tifunction screen.
Top up the level when you stop the vehicle.
* According to country.
Changing the engine oil
Refer to the Warranty and Maintenance
Record for details of the interval for this
operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.
O i l s p e c i fi c a t i o n
The oil must correspond to your engine
and conform to the manufacturer's
recommendations. F l u i d s p e c i fi c a t i o n
T h e b r a k e fl u i d m u s t c o n f o r m t o t h e
manufacturer's recommendations and
f u l fi l t h e D O T 4 s t a n d a r d s .
Changing the coolant
The coolant does not have to be
changed.
F l u i d s p e c i fi c a t i o n
The coolant must conform to the manu-
facturer's recommendations.
F l u i d s p e c i fi c a t i o n
To guarantee optimum cleaning and
avoid freezing, plain water should not
b e u s e d t o t o p u p o r r e p l a c e t h i s fl u i d .
Page 125 of 218
!
i
130
Avoid any prolonged contact of
u s e d o i l o r fl u i d s w i t h t h e s k i n .
M o s t o f t h e s e fl u i d s a r e h a r m f u l t o
health or indeed very corrosive.
D o n o t d i s c a r d u s e d o i l o r fl u i d s
into sewers or onto the ground.
Take used oil to an authorised
waste disposal site or a PEUGEOT
dealer.
Diesel additive level (Diesel with
particle emission filter)
The minimum level of this additive is in-
dicated by lighting of the service warning
lamp, accompanied by an audible sig-
nal and a message on the multifunction
screen.
Used products
Unless otherwise indicated, check
these components in accordance with
the Warranty and Maintenance Record
and in relation to your engine.
Otherwise, have them checked by a
PEUGEOT dealer.
Battery The battery does not require
any maintenance.
H o w e v e r , c h e c k t h a t t h e t e r -
minals are clean and correctly
tightened, particularly in summer
and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.
Air filter and passenger
compartment filter
Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
vals for these components.
Depending on the environ-
ment (dusty atmosphere...) and the use
of the vehicle (city driving...), replace
them twice as often if necessary .
A c l o g g e d p a s s e n g e r c o m p a r t m e n t fi l t e r
may have an adverse effect on the per-
formance of the air conditioning system
and generate undesirable odours. Particle emission filter (Diesel)
It is imperative that the maintenance of
t h e p a r t i c l e e m i s s i o n fi l t e r i s c a r r i e d o u t
by a PEUGEOT dealer.
Oil filter
R e p l a c e t h e o i l fi l t e r e a c h t i m e
the engine oil is changed.
Refer to the Warranty and
Maintenance Record for details
of the replacement interval for
this component.
Following prolonged operation of
the vehicle at very low speed or at
idle, you may, exceptionally, notice
the emission of water vapour at the
exhaust on acceleration. This does
not have any adverse effect on the
performance of the vehicle or on
the environment.
Topping up
This additive must be topped up by a
PEUGEOT dealer without delay.
Page 126 of 218
!
i
130
Avoid any prolonged contact of
u s e d o i l o r fl u i d s w i t h t h e s k i n .
M o s t o f t h e s e fl u i d s a r e h a r m f u l t o
health or indeed very corrosive.
D o n o t d i s c a r d u s e d o i l o r fl u i d s
into sewers or onto the ground.
Take used oil to an authorised
waste disposal site or a PEUGEOT
dealer.
Diesel additive level (Diesel with
particle emission filter)
The minimum level of this additive is in-
dicated by lighting of the service warning
lamp, accompanied by an audible sig-
nal and a message on the multifunction
screen.
Used products
Unless otherwise indicated, check
these components in accordance with
the Warranty and Maintenance Record
and in relation to your engine.
Otherwise, have them checked by a
PEUGEOT dealer.
Battery The battery does not require
any maintenance.
H o w e v e r , c h e c k t h a t t h e t e r -
minals are clean and correctly
tightened, particularly in summer
and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.
Air filter and passenger
compartment filter
Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
vals for these components.
Depending on the environ-
ment (dusty atmosphere...) and the use
of the vehicle (city driving...), replace
them twice as often if necessary .
A c l o g g e d p a s s e n g e r c o m p a r t m e n t fi l t e r
may have an adverse effect on the per-
formance of the air conditioning system
and generate undesirable odours. Particle emission filter (Diesel)
It is imperative that the maintenance of
t h e p a r t i c l e e m i s s i o n fi l t e r i s c a r r i e d o u t
by a PEUGEOT dealer.
Oil filter
R e p l a c e t h e o i l fi l t e r e a c h t i m e
the engine oil is changed.
Refer to the Warranty and
Maintenance Record for details
of the replacement interval for
this component.
Following prolonged operation of
the vehicle at very low speed or at
idle, you may, exceptionally, notice
the emission of water vapour at the
exhaust on acceleration. This does
not have any adverse effect on the
performance of the vehicle or on
the environment.
Topping up
This additive must be topped up by a
PEUGEOT dealer without delay.
Page 127 of 218
!
131
Only use products recommended by
PEUGEOT or products of equivalent
q u a l i t y a n d s p e c i fi c a t i o n s .
In order to optimise the operation
of units as important as the braking
system, PEUGEOT selects and of-
f e r s v e r y s p e c i fi c p r o d u c t s .
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compartment
is strictly prohibited .
2 Tronic gearbox
The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the Warranty and
Maintenance Record for de-
tails of the level checking in-
tervals for this component. Brake disc and drum wear
For any information relating
to checking of the brake disc
and/or drum wear, contact a
PEUGEOT dealer.
Manual gearbox
The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the Warranty and
Maintenance Record for de-
tails of the level checking in-
tervals for this component. Brake pads
Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances. It
may be necessary to have the
condition of the brakes checked, even
between vehicle services.
Unless there is a leak on the circuit, a
d r o p i n t h e b r a k e fl u i d l e v e l i n d i c a t e s
that the brake pads are worn.
Parking brake
If the parking brake travel is
too long or if you notice a loss
of effectiveness of this sys-
tem, the parking brake must
be adjusted, even between
two services.
This system must be checked by a
PEUGEOT dealer.
Automatic gearbox
The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the Warranty and
Maintenance Record for de-
tails of the checking intervals
for this component.
Page 154 of 218
!
i
158
T h e fi t t i n g o f e l e c t r i c a l e q u i p m e n t
or accessories which are not re-
commended by PEUGEOT may
result in a failure of your vehicle's
electronic system.
P l e a s e n o t e t h i s s p e c i fi c w a r n i n g .
You are advised to contact a repre-
sentative of the Marque to be shown
the range of recommended equip-
ment and accessories.
ACCESSORIES
You can obtain a wide range of accesso-
ries and original parts from the PEUGEOT
dealer network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
b e n e fi t f r o m P E U G E O T ' s r e c o m m e n d a -
tion and warranty.
The product range offered by PEUGEOT
Accessories is structured around 5 catego-
r i e s : P R O T E C T I O N - T O U R I N G - I N - C A R
TECHNOLOGY - STYLING - UNIVERSAL.
"Protection":
"Touring":
"In-car technology":
"Styling":
"Universal":
You can obtain "Van" conversion kits to
transform a private vehicle into a van.
* To avoid any risk of jamming of the p e d a l s :
- ensure that the mat is positioned and secured correctly,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r . Depending on the country in which
the vehicle is sold, it is compulso-
ry to have a high visibility jacket,
warning triangle and spare bulbs
available in the vehicle.
anti-theft alarm, window en-
graving, wheel security bolts,
b r e a t h a l y z e r , fi r s t a i d k i t ,
warning triangle, high visibility
jacket, stolen vehicle tracking
system, temporary puncture
repair kit, snow chains, non-
slip covers. mats * , boot tray, luggage net,
fi x e d c o a t h o o k o n h e a d r e -
straint, lighter, aluminium or
PVC door sills.
F o r l e i s u r e p u r s u i t s : r o o f b a r s ,
bicycle carrier on towbar, bi-
cycle carrier on roof bars,
s k i c a r r i e r , r o o f b o x , b o o s t e r
seats and child seats, side blinds and
rear blind, front centre armrest, under
shelf storage.
T r a i l e r t o w b a r w h i c h m u s t b e fi t t e d b y
the PEUGEOT network.
audio systems, satellite
navigation systems, Blue-
tooth hands-free system,
CD changer, speakers, DVD
player, connection kit for MP3
player or portable CD player,
U S B B o x , f r o n t a n d r e a r p a r k -
ing sensors.
seat covers compatible with
lateral airbags, aluminium gear
lever knob, foglamps, door de-
fl e c t o r s , s p o i l e r , s t y l i n g s t r i p s ,
alloy wheels, trims, chromed
mirror shells, body kit. s c r e e n w a s h , i n t e r i o r a n d e x t e -
rior maintenance and cleaning
products.
