2010 Peugeot 207 CC Owner's Manual

i
i
COMFORT
48
When the engine is cold, to prevent
too great a distribution of cold air,
the air fl ow will only reach its opti-
mum level gradually.
In cold weather, it favours the dis-
tribution of warm air to the wind-
screen, the side windows and the
footwells only. On entering the vehicle, if the in-
terior temperature is much colder
or warmer than the comfort value,
there is no need to alter the value
displayed in order to obtain the re-
quired level of comfort. The system
corrects the temperature differ-
ence automatically and as quickly
as possible.

The air conditioning can only operate
with the engine running.

The driver and his front passen-
ger can each set the temperature
to suit their requirements.

 Turn dial 2 or 3 to the left to reduce
the value or to the right to increase it.
A setting around 21 enables you to ob-
tain an optimum level of comfort. De-
pending on your requirements, a setting
between 18 and 24 is usual.
In addition, it is recommended that you
avoid a left/right setting difference of
more than 3.
4. Automatic visibility programme The automatic comfort pro-
gramme may not be suffi cient
to quickly demist or defrost the
windscreen and side windows
(humidity, several passengers,
ice...).

 In this case, select the automatic
visibility programme.
The system automatically controls the
air conditioning, the air fl ow and the air
intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.
Automatic operation

 Press the "AUTO" button.
The "AUTO" symbol is
displayed. 2. Driver's side adjustment DUAL-ZONE DIGITAL AIR CONDITIONING
We recommend that you use this mode:
it provides optimised automatic control of
all of the functions, passenger compart-
ment temperature, air fl ow, air distribu-
tion and air recirculation, in accordance
with the comfort value that you have se-
lected.
This system is designed to operate ef-
fectively in all seasons, with the win-
dows closed. The value indicated on the display cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.
1. Automatic comfort programme
3. Passenger's side adjustment

!
!
i
COMFORT
49

 To exit this programme, press the "vis-
ibility" button again or the "AUTO"
button, the indicator lamp on the button
switches off and "AUTO" is displayed.

 Press this button to switch
the air conditioning off. 6. Air distribution adjustment

 Press this button several
times in succession to direct
the air fl ow in turn towards:
7. Air fl ow adjustment
 Press the "small fan" but-
ton to reduce the air fl ow.
8. Air intake/Air recirculation Deactivation of the system

 Press the "small fan" button until
the fan symbol disappears.
This action deactivates all of the func-
tions of the air conditioning system.
The temperature is no longer main-
tained at a comfortable level. However,
a slight fl ow of air, due to the movement
of the vehicle, can still be felt.

 Press the "large fan" button again
or the "AUTO" button to reactivate
the system with the values which
were set before it was deactivated.

 Press this button to recir-
culate the interior air. The
air recirculation symbol is
displayed.
5. Air conditioning On/Off
Avoid driving for too long with the
air conditioning deactivated.
Avoid prolonged operation in inte-
rior air recirculation mode (risk of
condensation and of deterioration
of the air quality).
- the windscreen, the side windows
and the footwells,
- the windscreen and side windows (demisting or defrosting),
- the central and side vents,
- the central vents, the side vents and the footwells,
- the footwells.

 Press the "large fan"
button to increase the air
fl ow.
The air fl ow symbol, the fan, is fi lled in
progressively in relation to the value re-
quired. Air recirculation prevents exterior odours
and smoke from entering the passenger
compartment.

 As soon as possible, press this button
again to permit the intake of exterior
air and prevent misting.
For maximum cooling or heating of
the passenger compartment, you
can exceed the minimum value of
14 or the maximum value of 28.

 Turn dial 2 or 3 to the left until

"LO" is displayed or to the right
until "HI" is displayed.
Resuming manual control
Depending on your requirements, you
can make a different selection from that
offered by the system by changing a
setting. The other functions will still be
controlled automatically.

 Press the "AUTO" button to return
to fully automatic operation.
Switching the system off may result in
discomfort (humidity, condensation).

 Press the button again to return to
automatic operation of the air con-
ditioning. The symbol " A/C " is dis-
played.

COMFORT
50
FRONT SEATS
Seat consisting of a seat cushion, seat
back and head restraint which can all
be adjusted to adapt your position for
maximum ease of driving and comfort.
1. Forwards-backwards adjustment

 Lift the control and slide the seat for-
wards or backwards. 2. Driver’s or passenger’s seat
height adjustment

 Pull the lever upwards or push it
downwards as many times as neces-
sary to obtain the required position. 3. Seat back angle adjustment

 Push the lever towards the rear.

!
!
COMFORT
51
No person or object must prevent
the seat runner from returning to
its initial position; return to this po-
sition is necessary for the seat to
lock in place.

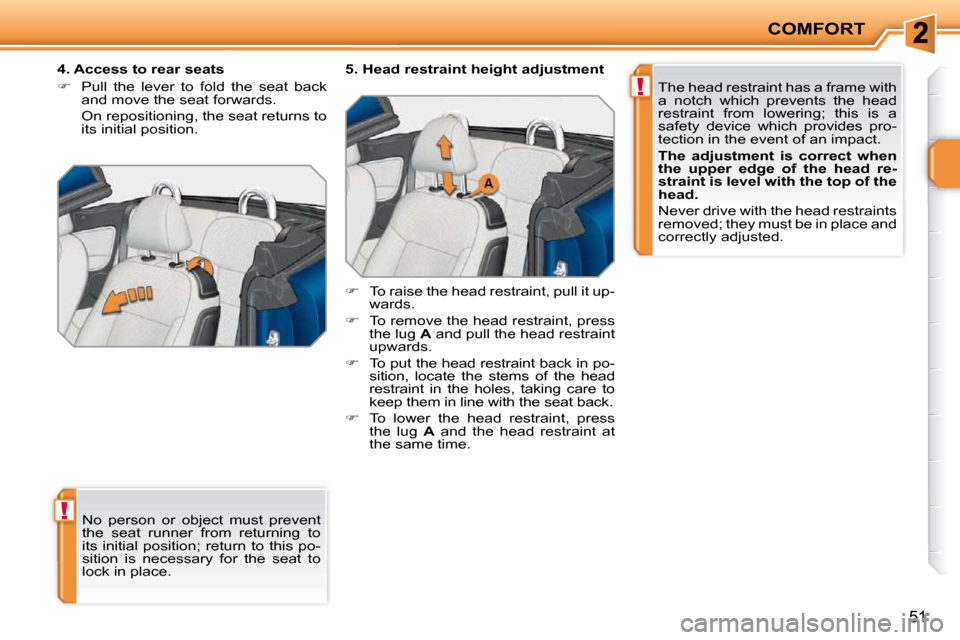

4. Access to rear seats

 Pull the lever to fold the seat back
and move the seat forwards.
On repositioning, the seat returns to its initial position. 5. Head restraint height adjustment

 To raise the head restraint, pull it up-
wards.

 To remove the head restraint, press
the lug A and pull the head restraint
upwards.

 To put the head restraint back in po-
sition, locate the stems of the head
restraint in the holes, taking care to
keep them in line with the seat back.

 To lower the head restraint, press
the lug A and the head restraint at
the same time. The head restraint has a frame with
a notch which prevents the head
restraint from lowering; this is a
safety device which provides pro-
tection in the event of an impact.

The adjustment is correct when
the upper edge of the head re-
straint is level with the top of the
head.
Never drive with the head restraints
removed; they must be in place and
correctly adjusted.

!!
COMFORT
52
REAR SEATS
Fixed two-seat bench fi tted with roll-
over bars to ensure your protection
should the vehicle roll over. Following an accident, have
the roll-over bars checked by a
PEUGEOT dealer.
STEERING WHEEL ADJUSTMENT

 When stationary , pull the control
lever to release the steering wheel.

 Adjust the height and reach to suit
your driving position.

 Push the control lever to lock the
steering wheel.
As a safety precaution, these op-
erations should only be carried out
while the vehicle is stationary.

!!
COMFORT
52
REAR SEATS
Fixed two-seat bench fi tted with roll-
over bars to ensure your protection
should the vehicle roll over. Following an accident, have
the roll-over bars checked by a
PEUGEOT dealer.
STEERING WHEEL ADJUSTMENT

 When stationary , pull the control
lever to release the steering wheel.

 Adjust the height and reach to suit
your driving position.

 Push the control lever to lock the
steering wheel.
As a safety precaution, these op-
erations should only be carried out
while the vehicle is stationary.

i
!
COMFORT
53
MIRRORS
Door mirrors
Adjustable mirror permitting the lateral
rearward vision necessary when over-
taking or parking. Adjustment

 Slide switch A to the right or to the
left to select the corresponding mirror.

 Move knob B in all four directions to
adjust.

 Return switch A to the centre position.
The folding and unfolding of the
door mirrors can be deactivated by
a PEUGEOT dealer.
Folding

 From outside: lock the vehicle using
the remote control or the key.

 From inside: with the ignition on, pull
switch A rearwards.
Unfolding

 From outside: unlock the vehicle using
the remote control or the key.

 From inside: with the ignition on, pull
switch A rearwards. The objects observed are, in real-
ity, closer than they appear.
Take this into account to correctly
judge the distance of vehicles ap-
proaching from behind.

!
i
COMFORT
54
Rear view mirror
Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
useful in poor light.
Adjustment


Adjust the mirror so that the glass is
directed correctly in the "day" position.
As a safety precaution, the mirrors
must be adjusted to reduce the
"blind spot". In order to guarantee optimum vis-
ibility during your manoeuvres, the
mirror lightens automatically when
reverse gear is engaged.

Automatic day/night model
Manual day/night model
Day/night position

 Pull the lever to change to the "night"
anti-dazzle position.

 Push the lever to change to the nor-
mal "day" position. By means of a sensor, which measures
the light from the rear of the vehicle, this
system automatically and progressively
changes between the day and night
uses.
It has an anti-dazzle system which dark-
ens the mirror glass: this reduces any
driver discomfort caused by the light
beam of following vehicles, the sun...
