2010 Peugeot 207 CC Dag Owner's Manual

i
FAMILIARISATION
Door mirror adjustment

A. Selecting the mirror.

B. Adjusting the position of the mirror.

C. De-selecting the mirror.

 53
Also...

D. Folding/Unfolding. Rear view mirror adjustment

1. Selecting the "day" position of the
mirror.

2. Adjusting the mirror.

 54 Front seat belts

A. Installing the strap.

B. Fastening the buckle.

C. Checking the fastening by pulling
the strap.

 95

i
FAMILIARISATION
Lighting Wipers
Ring B

 78 Front and rear foglamps.
Ring A
Stalk A: windscreen wipers

2. Fast wipe.

1. Normal wipe.

I. Intermittent wipe.

0. Park.

 Single wipe.
Screenwash: pull the stalk towards
you.

 81
Lighting off.
Automatic illumination of head-
lamps.
Sidelamps.
Dipped/main beam headlamps.

 77
Automatic wiping is not currently
available on the 207 CC.

–
FAMILIARISATION

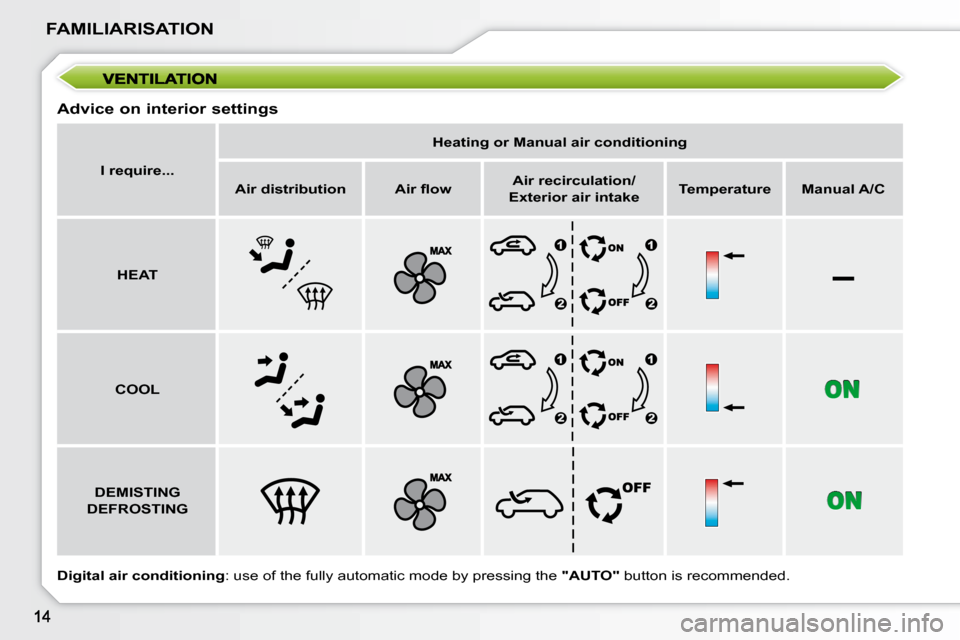

Advice on interior settings

Digital air conditioning : use of the fully automatic mode by pressing the "AUTO" button is recommended.

I require...
Heating or Manual air conditioning

Air distribution Air fl ow
Air recirculation/

Exterior air intake
Temperature Manual A/C

HEAT

COOL

DEMISTING

DEFROSTING

FAMILIARISATION
Instrument panel Switch panel

A. With the ignition on, the fuel gauge
needle should rise.

B. With the engine running, the associ-
ated low level warning lamp should
switch off.

C. With the ignition on, the oil level in-
dicator should display "OIL OK" for
a few seconds.
If the levels are not correct, top up the
level which is low.

 18 Lighting of the indicator lamp indicates
the status of the corresponding function.

A. Deactivation of the ESP/ASR system.

 94

B. Central locking.

 72

C. Deactivation of the interior volumetric
protection alarm.

 67

1. With the ignition on, the orange and
red warning lamps come on.

2. With the engine running, these
warning lamps should switch off.
If a warning lamp remains on, refer to
the page concerned.

 19
Warning lamps

!
FAMILIARISATION

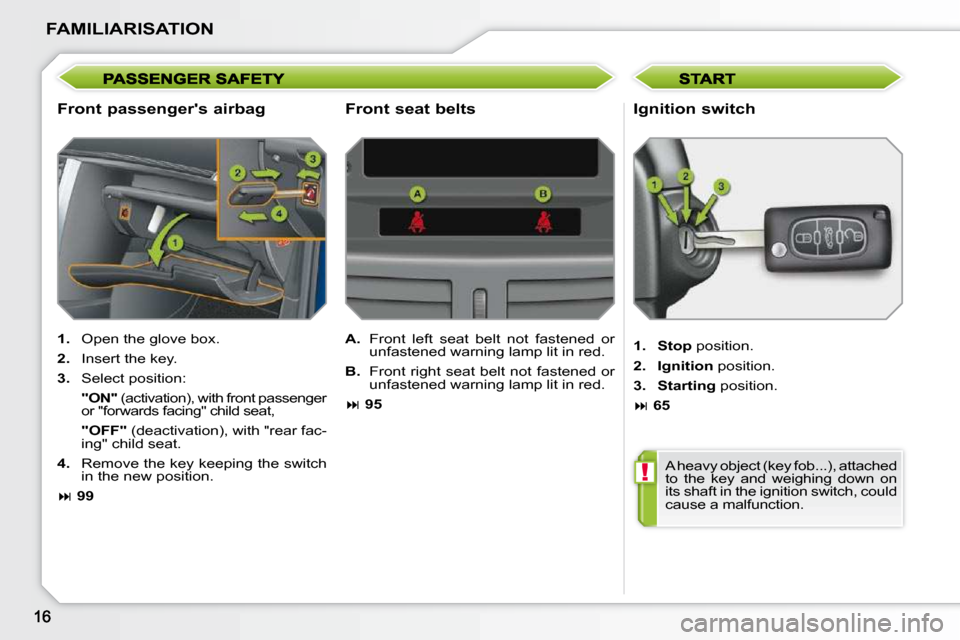

Front passenger's airbag Ignition switch

1. Open the glove box.

2. Insert the key.

3. Select position:
"ON" (activation), with front passenger
or "forwards facing" child seat,
"OFF" (deactivation), with "rear fac-
ing" child seat.

4. Remove the key keeping the switch
in the new position.

 99
1. Stop position.

2. Ignition position.

3. Starting position.

 65

A. Front left seat belt not fastened or
unfastened warning lamp lit in red.

B. Front right seat belt not fastened or
unfastened warning lamp lit in red.

 95
Front seat belts
A heavy object (key fob...), attached
to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.

FAMILIARISATION

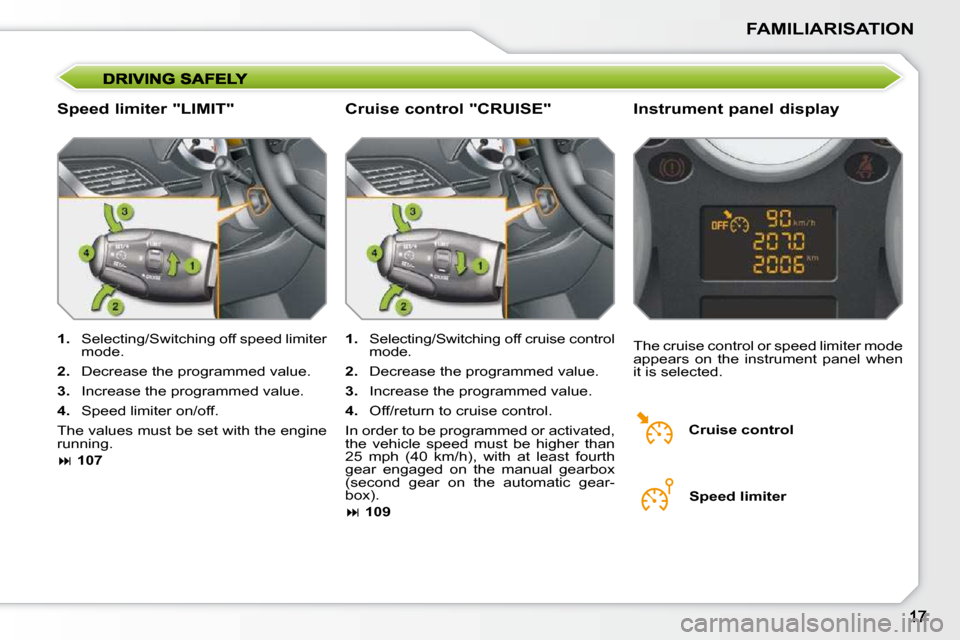

Speed limiter "LIMIT" Instrument panel display

1. Selecting/Switching off speed limiter
mode.

2. Decrease the programmed value.

3. Increase the programmed value.

4. Speed limiter on/off.
The values must be set with the engine
running.

 107 The cruise control or speed limiter mode
appears on the instrument panel when
it is selected.

1. Selecting/Switching off cruise control
mode.

2. Decrease the programmed value.

3. Increase the programmed value.

4. Off/return to cruise control.
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h), with at least fourth
gear engaged on the manual gearbox
(second gear on the automatic gear-
box).

 109
Cruise control "CRUISE"
Cruise control Speed limiter

INSTRUMENTS and CONTROLS
18
PETROL - DIESEL, MANUAL OR AUTOMATIC GEARBOX,
INSTRUMENT PANELS
Panel which groups together the vehicle
operation dials and indicator lamps.
5. Screen.

6. Display zero reset button.
Resets the selected function to zero (trip distance recorder or
service indicator).

7. Instrument panel lighting button.
Adjusts the brightness of the light- ing of the instruments and controls.

8. Automatic gearbox.
Indicates the programme selected and the gear engaged.
Dials

1. Rev counter.
Indicates the speed of rotation of the engine (x 1 000 rpm).

2. Fuel gauge.
Indicates the quantity of fuel re- maining in the tank.

3. Coolant temperature.
Indicates the temperature of the engine coolant (°Celsius).

4. Speedometer.
Indicates the current speed of the moving vehicle (mph or km/h).
A. Speed limiter
or
Cruise control.
(mph or km/h)

B. Trip distance recorder.
(miles or km/h)

C. Service indicator.
(miles or km/h) then,
Engine oil level indicator.
then
Distance recorder.
(km or miles)
These three functions are displayed in succession when the ignition is
switched on.
For more information, refer to the section
which corresponds to the function and to
the display associated with it.
Screen

!
INSTRUMENTS and CONTROLS
19
Indicator and warning lamps
Visual indicators informing the driver that a system is in operation (operation or
deactivation indicator lamps) or of the occurrence of a fault (wa rning lamp).
When the ignition is switched on
Certain warning lamps come on for a few seconds when the vehi cle's ignition is
switched on.
When the engine is started, these same warning lamps should switch off.
If they remain on, before moving off, refer to the informati on on the warning lamp
concerned.
Associated warnings
The switching on of certain warning lamps may be accompanied b y an audible
signal and a message on the multifunction screen. The warning lamps may come on
continuously (fi xed) or fl ash.
Certain warning lamps may come
on in two different modes. Only by
relating the type of lighting to the
operating status of the vehicle can
it be ascertained whether the situa-
tion is normal or whether a fault has
occurred.
Operation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the corresponding
system has come into operation.

Warning lamp is on Cause Action/Observations

Left-hand
direction
indicato
r fl ashing with
buzzer. The lighting stalk is pushed
down.

Right-hand
direction
indicator fl ashing with
buzzer. The lighting stalk is pushed
up.

Dipped beam
headlamps fi xed. The lighting stalk is in the
"Dipped beam headlamps"
position. Turn the control to the desired position

Main beam
headlamps fi xed. The lighting stalk is pulled
towards you. Pull the stalk to return to dipped beam
headlamps.
