2010 Peugeot 207 CC Dag Owner's Manual

!
ACCESS
68

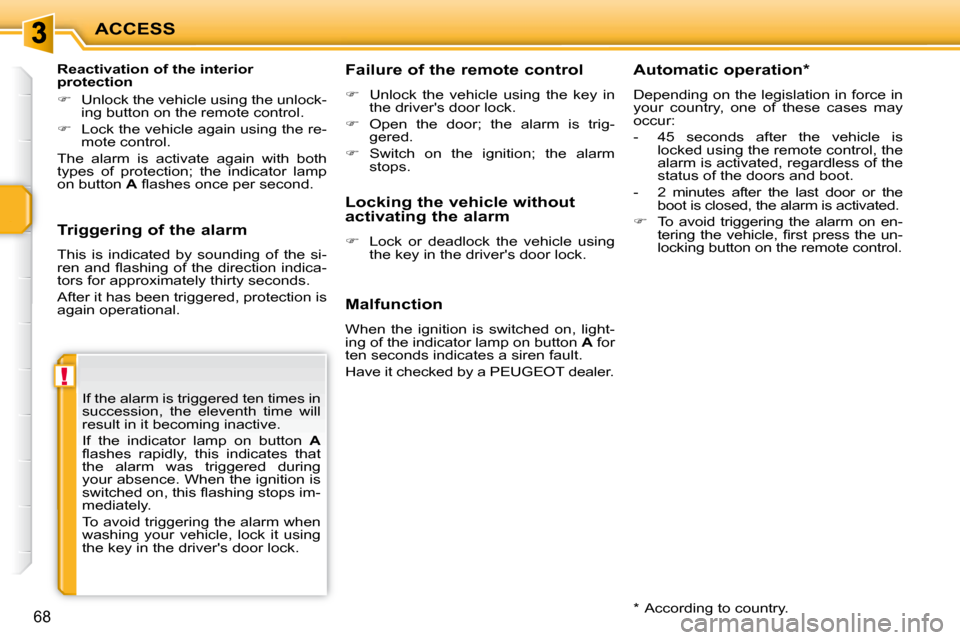

Triggering of the alarm
This is indicated by sounding of the si-
ren and fl ashing of the direction indica-
tors for approximately thirty seconds.
After it has been triggered, protection is
again operational. If the alarm is triggered ten times in
succession, the eleventh time will
result in it becoming inactive.
If the indicator lamp on button A
fl ashes rapidly, this indicates that
the alarm was triggered during
your absence. When the ignition is
switched on, this fl ashing stops im-
mediately.
To avoid triggering the alarm when
washing your vehicle, lock it using
the key in the driver's door lock. Failure of the remote control

 Unlock the vehicle using the key in
the driver's door lock.

 Open the door; the alarm is trig-
gered.

 Switch on the ignition; the alarm
stops.
* According to country.
Malfunction
When the ignition is switched on, light-
ing of the indicator lamp on button
A for
ten seconds indicates a siren fault.
Have it checked by a PEUGEOT dealer.
Locking the vehicle without
activating the alarm

 Lock or deadlock the vehicle using
the key in the driver's door lock. Automatic operation *
Depending on the legislation in force in
your country, one of these cases may
occur:
- 45 seconds after the vehicle is
locked using the remote control, the
alarm is activated, regardless of the
status of the doors and boot.
- 2 minutes after the last door or the boot is closed, the alarm is activated.

 To avoid triggering the alarm on en-
tering the vehicle, fi rst press the un-
locking button on the remote control.
Reactivation of the interior
protection

 Unlock the vehicle using the unlock-
ing button on the remote control.

 Lock the vehicle again using the re-
mote control.
The alarm is activate again with both
types of protection; the indicator lamp
on button A fl ashes once per second.

!
i
ACCESS
69
WINDOW CONTROLS
System which opens or closes a win-
dow manually or automatically. It is fi t-
ted with a system which controls all four
windows on all models.

1. Driver's electric windows switch.

2.
Passenger's electric windows switch.
Each window switch controls, on its
own side, the front window and the rear
quarter light. One-touch electric windows
You have two options:
The windows (except the driver's
window) do not have an automatic
mode or safety anti-pinch function
for closing.
For your safety, the windows rise
in several stages; however, always
be vigilant.
The window control switches re-
main operational for approximate-
ly 45 seconds after the ignition
is switched off or until a door is
opened.

 Press or pull switch 1 . The
window stops as soon as the
switch is released.
The rear quarter light only opens once the
front window has opened completely.
Electric windows
- manual mode

 Press or pull switch 1 gently. The
window stops as soon as the switch
is released.
The rear quarter light only opens once the
front window has opened completely.
- automatic mode

 Press switch 1 fully. The window
opens or closes completely when
the switch is released.

 Pressing the switch again stops the
movement of the window.

 If you continue to press the switch,
the rear quarter light will open or
close.

!
i
i
ACCESS
70
Switch for all four windows
This switch opens or closes all of the
windows. Reinitialisation
Following reconnection of the battery or
in the event of a malfunction you must
reinitialise the operation of the electric
windows:

 release the switch and pull it again
until it closes completely,

 hold the switch for approximately
one second after closing,

 press the switch to lower the win-
dow automatically,

 when the window has reached the
low position, press the switch again
for approximately one second. Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during
operation of the windows, you must
reverse the movement of the win-
dow. To do this, press the switch
concerned.
When the driver operates the pas-
senger electric window switches,
they must ensure that no one is
preventing correct closing of the
windows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when operat-
ing the windows.

 Press switch 3 and release it. The
windows open completely.

 Pressing the switch again stops the
movement of the windows.
or

 Pull switch 3 and hold it in this posi-
tion. The windows close completely.

 If you release the switch before the
windows have closed completely,
the windows stop.
This switch is operated under the
full responsibility of the driver. This procedure reinitialises the op-
eration of the electric windows and
the automatic partial opening of the
door windows

!i
i
!
ACCESS
71

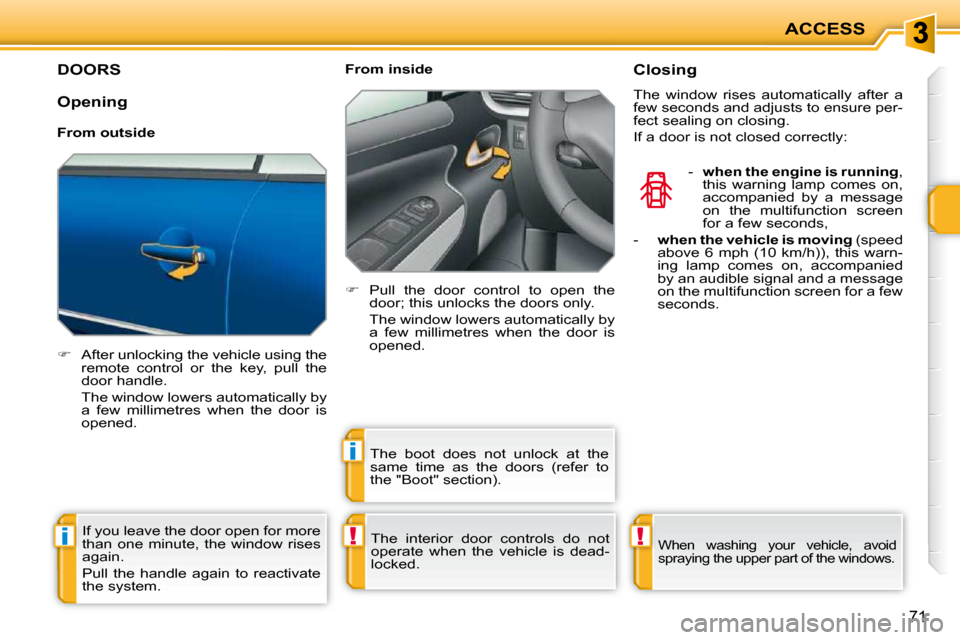

DOORS

 After unlocking the vehicle using the
remote control or the key, pull the
door handle.
The window lowers automatically by a few millimetres when the door is
opened. From inside

 Pull the door control to open the
door; this unlocks the doors only.
The window lowers automatically by a few millimetres when the door is
opened.
The interior door controls do not
operate when the vehicle is dead-
locked. Closing
The window rises automatically after a
few seconds and adjusts to ensure per-
fect sealing on closing.
If a door is not closed correctly:
- when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
on the multifunction screen for a few
seconds.
If you leave the door open for more
than one minute, the window rises
again.
Pull the handle again to reactivate
the system. The boot does not unlock at the
same time as the doors (refer to
the "Boot" section).
When washing your vehicle, avoid
spraying the upper part of the windows.
Opening
From outside

i
i
ACCESS
72
If the vehicle is locked or dead-
locked from the outside, the red
indicator lamp fl ashes and button A
is inactive.

 In this case, use the remote
control or the key to unlock the
vehicle.

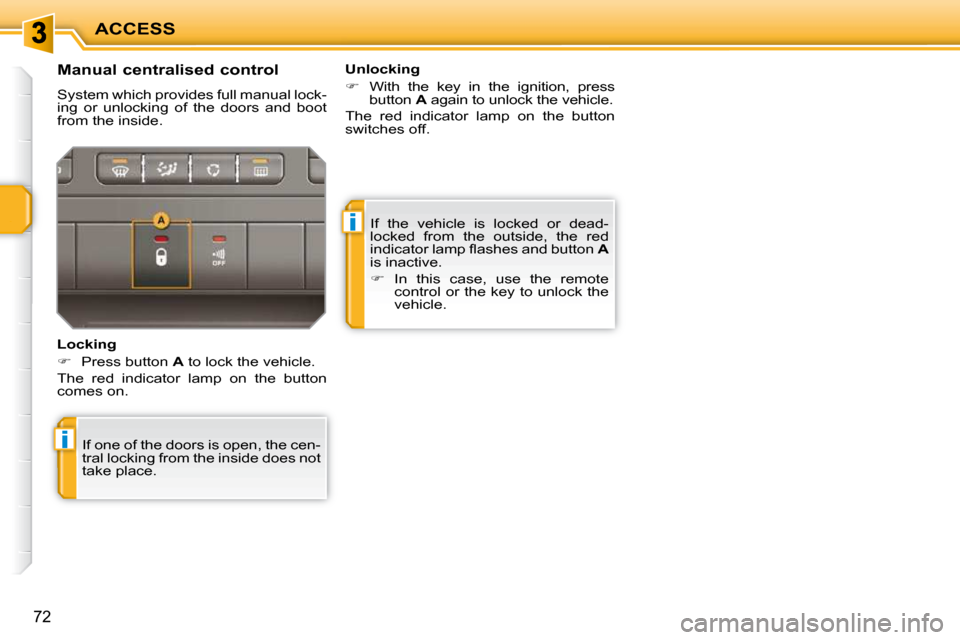

Manual centralised control
System which provides full manual lock-
ing or unlocking of the doors and boot
from the inside.
Locking

 Press button A to lock the vehicle.
The red indicator lamp on the button
comes on.
If one of the doors is open, the cen-
tral locking from the inside does not
take place. Unlocking

 With the key in the ignition, press
button A again to unlock the vehicle.
The red indicator lamp on the button
switches off.

!
ACCESS
73

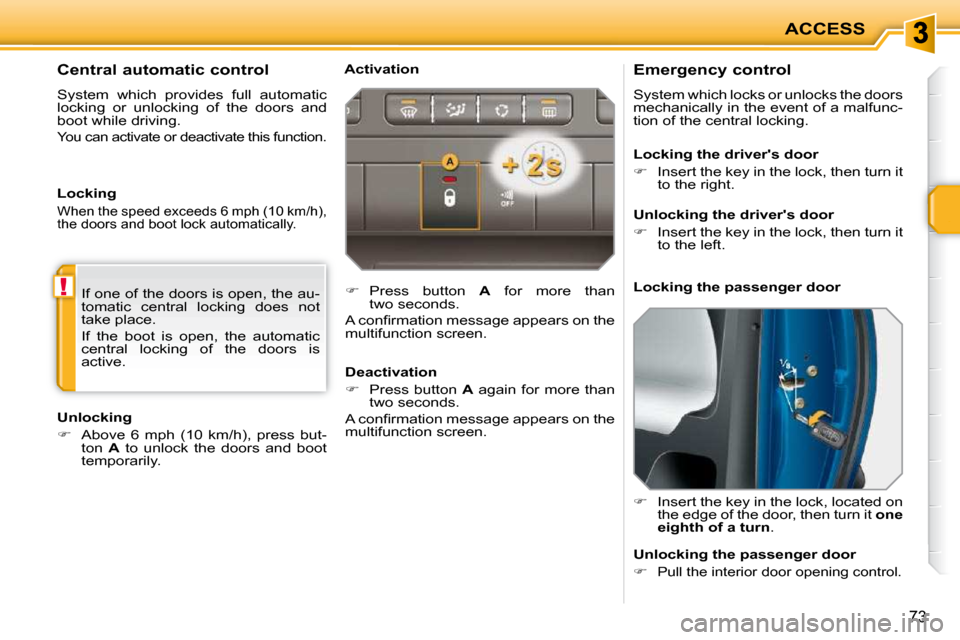

Emergency control
System which locks or unlocks the doors
mechanically in the event of a malfunc-
tion of the central locking.

 Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn .
Locking the driver's door

 Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door

 Insert the key in the lock, then turn it
to the left.
Locking the passenger door
Unlocking the passenger door


Pull the interior door opening control.
If one of the doors is open, the au-
tomatic central locking does not
take place.
If the boot is open, the automatic
central locking of the doors is
active.
Central automatic control
System which provides full automatic
locking or unlocking of the doors and
boot while driving.
You can activate or deactivate this function.
Activation

 Press button A for more than
two seconds.
A confi rmation message appears on the
multifunction screen.
Unlocking

 Above 6 mph (10 km/h), press but-
ton A to unlock the doors and boot
temporarily.
Locking
When the speed exceeds 6 mph (10 km/h),
the doors and boot lock automatically.
Deactivation

 Press button A again for more than
two seconds.
A confi rmation message appears on the
multifunction screen.

i
i
ACCESS
74
BOOT
Opening

 After unlocking the boot or the ve-
hicle using the remote control or the
key, pull the handle and raise the
boot lid.
Unlocking and partially opening
the boot

 Press the boot unlocking
button on the remote control
for more than two seconds.
The boot opens slightly.
If a battery failure occurs, the boot
is locked. Contact a PEUGEOT
dealer. Boot anti-theft protection
The boot is designed to remain secure,
even in the "cabriolet" confi guration.
So, when the vehicle is locked and the
roof is open, the boot cannot be un-
locked:
- by means of the interior door open-
ing control, when the key is not in
the ignition switch,
- by pressing the manual centralised control A , when the key is not in the
ignition switch.
- when the engine is running ,
this warning lamp comes on,
accompanied by a message
on the multifunction screen
for a few seconds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing lamp comes on, accompanied
by an audible signal and a message
on the multifunction screen for a few
seconds.
Closing

 Lower the boot lid using the interior
grab handle.
If the boot lid is not closed correctly: Automatic locking of the boot
In the "cabriolet" confi guration, with
the vehicle locked, if you unlock the
boot by pressing the boot unlock-
ing button on the remote control,
it will lock automatically when you
close it again.
In this case, if you inadvertently
leave the key in the boot, press the
manual centralised control
A im-
mediately to unlock the boot and
retrieve the key.

i
ACCESS
The key cannot be removed from
the lock until the cap is refi tted.
FUEL TANK

Fuel tank capacity: approximately
50 litres (petrol) or 48 litres (Diesel).
Opening the fi ller cap may create a
noise a caused by an inrush of air. This
vacuum is entirely normal, resulting
from the sealing of the fuel system.
To fi ll the tank in complete safety:

 the engine must be switched off,

 open the fuel fi ller fl ap,

 insert the key in the cap, then turn it
to the left,
When you have fi lled the tank:

 put the cap back in place,

 turn the key to the right, then remove
it from the cap,

 close the fl ap.

 remove the cap and hook it onto
the clip located on the inside of the
fl ap,

 fi ll the tank, but do not continue
after the 3rd cut-off of the pump ;
this could cause malfunctions.
Low fuel level
When the fuel tank minimum
level is reached this warning
lamp comes on on the instru-
ment panel. When it fi rst comes
on there remains approximate-
ly 5 litres of fuel in the tank.
You must refuel as soon as possible to
avoid running out of fuel.
If you run out of fuel (Diesel), refer also
to the "Checks" section.
Filling
A label affi xed to the inside of the fl ap
reminds you of the type of fuel to be
used depending on your engine.
Additions of fuel must be of at least
5 litres, in order to be taken into account
by the fuel gauge.
