2010 NISSAN TIIDA check engine

EC-356
< COMPONENT DIAGNOSIS >[HR16DE]
P0850 PNP SWITCH
P0850 PNP SWITCH
DescriptionINFOID:0000000005398520
When the shift lever position is Neutral, pa
rk/neutral position (PNP) switch is ON. (M/T)
When the shift lever position is P or N, transmission range switch is ON. (A/T)
ECM detects the position because the conti nuity of the line (the ON signal) exists.
DTC LogicINFOID:0000000005398521
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.INSPECTION START
Do you have CONSULT-III?
Do you have CONSULT-III?
YES >> GO TO 2.
NO >> GO TO 5.
2.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
>> GO TO 3.
3.CHECK PNP SWITCH (M/T) OR TRANSMI SSION RANGE SWITCH (A/T) FUNCTION
With CONSULT-III
1. Turn ignition switch ON.
2. Select “P/N POSI SW” in “DATA MONITOR” mode with CONSULT-III. Then check the “P/N POSI SW” sig-
nal under the following conditions.
Is the inspection result normal?
YES >> GO TO 4.
NO >> Go to EC-358, "
Diagnosis Procedure".
4.PERFORM DTC CONFIRMATION PROCEDURE
1. Select “DATA MONITOR” mode with CONSULT-III.
2. Start engine and warm it up to normal operating temperature.
3. Maintain the following conditions for at least 50 consecutive seconds. CAUTION:
Always drive vehicle at a safe speed.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0850 Park/neutral position
switch The signal of the park/neutral position (PNP)
switch (M/T) or transmis
sion range switch (A/T)
is not changed in the process of engine starting
and driving. • Harness or connectors
[The park/neutral position (PNP) switch
(M/T) or transmission range switch (A/T)
circuit is open or shorted.]
• Park/neutral position (PNP) switch (M/T)
• Transmission range switch (A/T)
Selector lever position Known-good signal
N or P position (A/T)
Neutral position (M/T) ON
Except above position OFF
Revision: January 20102010 Versa

EC-362
< COMPONENT DIAGNOSIS >[HR16DE]
P1217 ENGINE OVER TEMPERATURE
P1217 ENGINE OVER TEMPERATURE
DTC LogicINFOID:0000000005398526
DTC DETECTION LOGIC
NOTE:
•
If DTC P1217 is displayed with DTC UXXXX, first perform the trouble diagnosis for DTC UXXXX.
• If DTC P1217 is displayed with DTC P0607, first perform the trouble diagno sis for DTC P0607. Refer
to EC-351, "
DTC Logic".
If the cooling fan or another component in the cooling system malfunctions, engine coolant temperature will
rise.
When the engine coolant temperature reaches an abnorma lly high temperature condition, a malfunction is
indicated.
CAUTION:
When a malfunction is indicated, be su re to replace the coolant. Refer to CO-12, "
Changing Engine
Coolant". Also, replace the engine oil. Refer to LU-8, "Draining" and LU-8, "Refilling".
1. Fill radiator with coolant up to specified level with a filling speed of 2 liters per minute. Be sure to use coolant with the proper mixture ratio. Refer to MA-15, "
Anti-freeze Coolant Mixture Ratio".
2. After refilling coolant, run engine to en sure that no water-flow noise is emitted.
DTC CONFIRMATION PROCEDURE
1.PERFORM COMPONENT FUNCTION CHECK
Perform component function check. Refer to EC-362, "
Component Function Check".
NOTE:
Use component function check to check the overall function of the cooling fan. During this check, a DTC might
not be confirmed.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC-363, "
Diagnosis Procedure".
Component Function CheckINFOID:0000000005398527
1.PERFORM COMPONENT FUNCTION CHECK-I
WARNING:
Never remove the radiator cap when the engine is hot. Serious burns could be caused by high pres-
sure fluid escaping from the radiator.
Wrap a thick cloth around cap. Carefully remove the cap by turning it a quarter turn to allow built-up
pressure to escape. Then turn the cap all the way off.
DTC No. Trouble diagnosis name DTC detecting conditionPossible cause
P1217 Engine over temperature
(Overheat) • Cooling fan does not operate properly (Over-
heat).
• Cooling fan system does not operate properly (Overheat).
• Engine coolant was not added to the system using the proper filling method.
• Engine coolant is not within the specified range. • Harness or connectors
(The cooling fan circuit is open or
shorted.)
• IPDM E/R (Cooling fan relay-1)
• Cooling fan relays-2 and -3
• Cooling fan motor
•Radiator hose
•Radiator
•Radiator cap
• Reservoir tank
• Water pump
•Thermostat
• Water control valve
Revision: January 20102010 Versa

P1217 ENGINE OVER TEMPERATUREEC-363
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

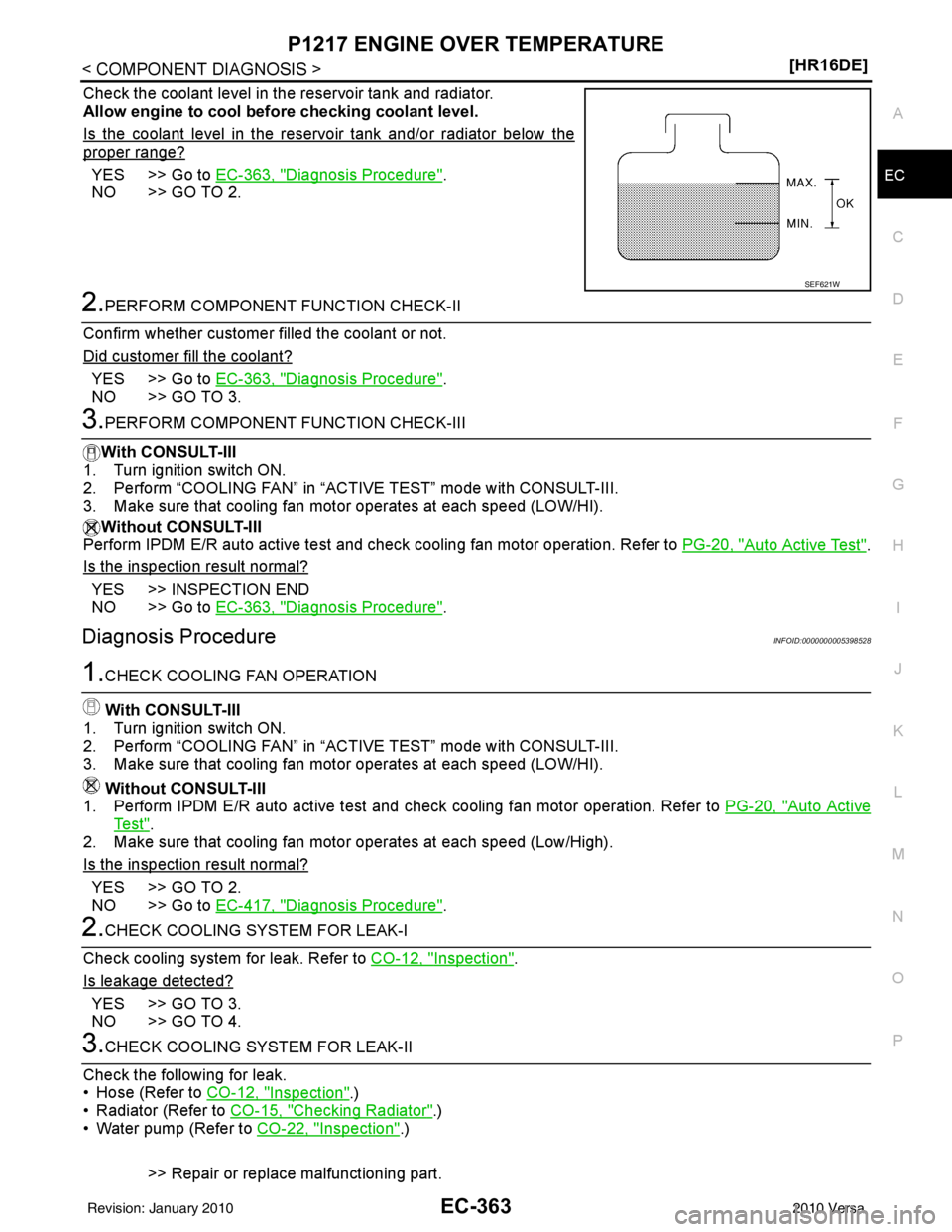

Check the coolant level in the reservoir tank and radiator.
Allow engine to cool befo
re checking coolant level.
Is the coolant level in the reservoir tank and/or radiator below the
proper range?
YES >> Go to EC-363, "Diagnosis Procedure".
NO >> GO TO 2.
2.PERFORM COMPONENT FUNCTION CHECK-II
Confirm whether customer filled the coolant or not.
Did customer fill the coolant?
YES >> Go to EC-363, "Diagnosis Procedure".
NO >> GO TO 3.
3.PERFORM COMPONENT FUNCTION CHECK-III
With CONSULT-III
1. Turn ignition switch ON.
2. Perform “COOLING FAN” in “ACTIVE TEST” mode with CONSULT-III.
3. Make sure that cooling fan motor operates at each speed (LOW/HI).
Without CONSULT-III
Perform IPDM E/R auto active test and check cooling fan motor operation. Refer to PG-20, "
Auto Active Test".
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC-363, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000005398528
1.CHECK COOLING FAN OPERATION
With CONSULT-III
1. Turn ignition switch ON.
2. Perform “COOLING FAN” in “ACTIVE TEST” mode with CONSULT-III.
3. Make sure that cooling fan motor operates at each speed (LOW/HI).
Without CONSULT-III
1. Perform IPDM E/R auto active test and c heck cooling fan motor operation. Refer to PG-20, "
Auto Active
Te s t".
2. Make sure that cooling fan motor operates at each speed (Low/High).
Is the inspection result normal?
YES >> GO TO 2.
NO >> Go to EC-417, "
Diagnosis Procedure".
2.CHECK COOLING SYSTEM FOR LEAK-I
Check cooling system for leak. Refer to CO-12, "
Inspection".
Is leakage detected?
YES >> GO TO 3.
NO >> GO TO 4.
3.CHECK COOLING SYSTEM FOR LEAK-II
Check the following for leak.
• Hose (Refer to CO-12, "
Inspection".)
• Radiator (Refer to CO-15, "
Checking Radiator".)
• Water pump (Refer to CO-22, "
Inspection".)
>> Repair or replace malfunctioning part.
SEF621W
Revision: January 20102010 Versa

EC-364
< COMPONENT DIAGNOSIS >[HR16DE]
P1217 ENGINE OVER TEMPERATURE
4.CHECK RADIATOR CAP
Check radiator cap. Refer to CO-15, "
Checking Radiator Cap".
Is the inspection result normal?
YES >> GO TO 5.
NO >> Replace radiator cap.
5.CHECK THERMOSTAT
Check thermostat. Refer to CO-24, "
Inspection".
Is the inspection result normal?
YES >> GO TO 6.
NO >> Replace thermostat.
6.CHECK WATER CONTROL VALVE
Check water control valve. Refer to CO-24, "
Inspection".
Is the inspection result normal?
YES >> GO TO 7.
NO >> Replace water control valve
7.CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer to EC-163, "
Component Inspection".
Is the inspection result normal?
YES >> GO TO 8.
NO >> Replace engine coolant temperature sensor.
8.CHECK MAIN 12 CAUSES
If the cause cannot be isolated, check the following.
Engine Step Inspection item EquipmentStandardReference page
OFF 1 • Blocked radiator • Blocked condenser
• Blocked radiator grille
• Blocked bumper • Visual
No blocking —
2 • Coolant mixture • Coolant tester MA-15, "
Anti-freeze Coolant Mixture Ratio"
3 • Coolant level• VisualCoolant up to MAX level in
reservoir tank and radiator
filler neck CO-12, "Inspection"
4 • Radiator cap
• Pressure testerCO-15, "Checking Radiator Cap"
ON*25 • Coolant leaks • VisualNo leaks CO-12, "Inspection"
ON*26 • Thermostat • Touch the upper and
lower radiator hoses Both hoses should be hot
CO-24, "Inspection"
ON*17 • Cooling fan motor • CONSULT-III OperatingEC-415, "Component
Function Check"
OFF 8 • Combustion gas leak • Color checker chemical
tester 4 Gas analyzerNegative —
ON*
39 • Coolant temperature gauge • Visual
Gauge less than 3/4 when
driving —
• Coolant overflow to res- ervoir tank • Visual
No overflow during driving
and idling CO-12, "
Inspection"
OFF*410 • Coolant return from res-
ervoir tank to radiator • Visual Should be initial level in
reservoir tank CO-26, "Inspection"
OFF 11 • Cylinder head
• Straight gauge feeler
gauge 0.1 mm (0.004 in) Maxi-
mum distortion (warping) EM-76, "Disassembly and
Assembly"
12 • Cylinder block and pis-
tons • Visual No scuffing on cylinder
walls or piston EM-97, "Inspection"
Revision: January 20102010 Versa

EC-370
< COMPONENT DIAGNOSIS >[HR16DE]
P1421 COLD START CONTROL
P1421 COLD START CONTROL
DescriptionINFOID:0000000005398537
ECM controls ignition timing and engine idle speed when engine is started with pre-warming up condition.
This control promotes the activation of three way catalyst by heating the catalyst and reduces emissions.
DTC LogicINFOID:0000000005398538
DTC DETECTION LOGIC
NOTE:
If DTC P1421 is displayed with ot
her DTC, first perform the trouble diagnosis for other DTC.
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11 V at idle.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
With CONSULT-III
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Turn ignition switch ON.
3. Select “DATA MONITOR” mode with CONSULT-III.
4. Check that the “COOLAN TEMP/S” indication is between 5 °C (41 °F) and 36 °C (97° F) (A/T) or 15 °C
(59 °F) and 36 °C (97° F) (M/T).
If “COOLAN TEMP/S” indication is within the specified value, go to the following step.
If “COOLAN TEMP/S” indication is out of the specified value, cool engine down or warm engine up and go
to step 1.
5. Start engine and let it idle for 5 minutes.
6. Check 1st trip DTC.
With GST
Follow the procedure “With CONSULT-III” above.
Is 1st trip DTC detected?
YES >> Go to EC-370, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000005398539
1.PERFORM IDLE AIR VOLUME LEARNING
Perform EC-26, "
IDLE AIR VOLUME LEARNING : Special Repair Requirement".
Is Idle Air Volume Learning carried out successfully?
YES >> GO TO 2.
NO >> Follow the instruction of Idle Air Volume Learning.
2.CHECK INTAKE SYSTEM
Check for the cause of intake air volume lacking. Refer to the following.
• Crushed intake air passage
DTC No. Trouble diagnosis name DTC detecting conditionPossible cause
P1421 Cold start emission reduction
strategy monitoring ECM does not control ignition timing and engine
idle speed properly when engine is started with
pre-warming up condition. • Lack of intake air volume
• Fuel injection system
•ECM
Revision: January 20102010 Versa

EC-372
< COMPONENT DIAGNOSIS >[HR16DE]
P1715 INPUT SPEED SENSOR
(PRIMARY SPEED SENSOR)
P1715 INPUT SPEED SENSOR (PRIMARY SPEED SENSOR)
DescriptionINFOID:0000000005398540
ECM receives input speed sensor signal from TCM via the CAN communication line. ECM uses this signal for
engine control.
DTC LogicINFOID:0000000005398541
DTC DETECTION LOGIC
NOTE:
• If DTC P1715 is displayed with DTC UXXXX, first perform the trouble diagnosis for DTC U1000,XXXX.
• If DTC P1715 is displayed with DTC P0335, first perform the trouble diagno sis for DTC P0335. Refer
to EC-257, "
DTC Logic".
• If DTC P1715 is displayed with DTC P0340, first perform the trouble diagno sis for DTC P0340. Refer
to EC-262, "
DTC Logic".
• If DTC P1715 is displayed with DTC P0605, first perform the trouble diagno sis for DTC P0605. Refer
to EC-349, "
DTC Logic".
• If DTC P1715 is displayed with DTC P0607, first perform the trouble diagno sis for DTC P0607. Refer
to EC-351, "
DTC Logic".
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Start engine and drive the vehicle at more t han 50 km/h (31 MPH) for at least 5 seconds.
CAUTION:
Always drive vehicle at a safe speed.
2. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Go to EC-372, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000005398542
1.CHECK DTC WITH TCM
Check DTC with TCM. Refer to AT-39, "
OBD-II Diagnostic Trouble Code (DTC)".
Is the inspection result normal?
YES >> GO TO 2.
NO >> Perform trouble shooting relevant to DTC indicated.
2.REPLACE TCM
Replace TCM.
>> INSPECTION END
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1715 Input speed sensor
(TCM output) Input speed sensor signal is different from
the theoretical value calculated by ECM
from secondary speed sensor signal and
engine rpm signal. • Harness or connectors
(The CAN communication line is open or short-
ed)
• Harness or connectors
(Input speed sensor circuit is open or shorted)
•TCM
Revision: January 20102010 Versa

P1805 BRAKE SWITCHEC-373
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P1805 BRAKE SWITCH
DescriptionINFOID:0000000005398543
Brake switch signal is applied to the ECM through t
he stop lamp switch when the brake pedal is depressed.
This signal is used mainly to decrease the engine speed when the vehicle is driving.
DTC LogicINFOID:0000000005398544
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Fully depress the brake pedal for at least 5 seconds.
3. Erase the DTC.
4. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Go to EC-374, "Diagnosis Procedure".
NO >> INSPECTION END
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1805 Brake switch A brake switch signal is not sent to ECM
for extremely long time while the vehicle is
driving. • Harness or connectors
(Stop lamp switch circuit is open or shorted.)
• Stop lamp switch
Revision: January 20102010 Versa

P2100, P2103 THROTTLE CONTROL MOTOR RELAYEC-377
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P2100, P2103 THROTTLE CONTROL MOTOR RELAY
DescriptionINFOID:0000000005398548
Power supply for the throttle control motor is provided to the ECM via throttle control motor relay. The throttle
control motor relay is ON/OFF controlled by the ECM. When the ignition switch is turned ON, the ECM sends
an ON signal to throttle control motor relay and batte
ry voltage is provided to the ECM. When the ignition
switch is turned OFF, the ECM sends an OFF signal to throttle control motor relay and battery voltage is not
provided to the ECM.
DTC LogicINFOID:0000000005398549
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, c onfirm that battery voltage is more than 8 V.
Witch DTC is detected?
P2100 >> GO TO 2.
P2103 >> GO TO 3.
2.PERFORM DTC CONFIRMATION PROCEDURE FOR DTC P2100
1. Turn ignition switch ON and wait at least 2 seconds.
2. Start engine and let it idle for 5 seconds.
3. Check DTC.
Is DTC detected?
YES >> Go to EC-378, "Diagnosis Procedure".
NO >> INSPECTION END
3.PERFORM DTC CONFIRMATION PROCEDURE FOR DTC P2103
1. Turn ignition switch ON and wait at least 1 second.
2. Check DTC.
Is DTC detected?
YES >> Go to EC-378, "Diagnosis Procedure".
NO >> INSPECTION END
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P2100 Throttle control motor
relay circuit open ECM detects a voltage of power source for
throttle control motor is excessively low. • Harness or connectors
(Throttle control motor relay circuit is
open)
• Throttle control motor relay
P2103 Throttle control motor
relay circuit short ECM detect the throttle control motor relay is
stuck ON. • Harness or connectors
(Throttle control motor relay circuit is
shorted)
• Throttle control motor relay
Revision: January 20102010 Versa
