EC-336
< COMPONENT DIAGNOSIS >[HR16DE]
P0460 FUEL LEVEL SENSOR
P0460 FUEL LEVEL SENSOR
DescriptionINFOID:0000000005398488
The fuel level sensor is mounted in the fuel level sensor unit.
The sensor detects a fuel level in the fuel tank and transmits a signal to the combination meter. The combina-
tion meter sends the fuel level sensor signal
to the ECM via the CAN communication line.
It consists of two parts, one is mechanical float and the ot her is variable resistor. Fuel level sensor output volt-
age changes depending on the movement of the fuel mechanical float.
DTC LogicINFOID:0000000005398489
DTC DETECTION LOGIC
NOTE:
• If DTC P0460 is displayed with DTC UXXXX, first perform the trouble diagnosis for DTC UXXXX.
• If DTC P0460 is displayed with DTC P0607, first perform the trouble diagno sis for DTC P0607. Refer
to EC-351, "
DTC Logic".
When the vehicle is parked, naturally the fuel level in the fuel tank is stable. It means that output signal of the
fuel level sensor does not change. If ECM senses sloshi ng signal from the sensor, fuel level sensor malfunc-
tion is detected.
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Start engine and wait maximum of 2 consecutive minutes.
2. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Go to EC-336, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000005398490
1.CHECK COMBINATION METER FUNCTION
Refer to DI-14, "
Trouble Diagnosis".
Is the inspection result normal?
YES >> GO TO 2.
NO >> Refer to DI-14, "
Trouble Diagnosis"
2.CHECK INTERMITTENT INCIDENT
Refer to EC-114, "
Diagnosis Procedure".
>> INSPECTION END
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0460 Fuel level sensor circuit
noise Even though the vehicle is parked, a signal be-
ing varied is sent from the fuel level sensor to
ECM. • Harness or connectors
(The CAN communication line is open or
shorted)
• Harness or connectors
(The sensor circuit is open or shorted)
• Combination meter
• Fuel level sensor
Revision: January 20102010 Versa

P0500 VSSEC-341
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0500 VSS
DescriptionINFOID:0000000005398498
The vehicle speed signal is sent to the combination meter from the “ABS actuator and electric unit (control
unit)” via the CAN communication line. The combinati
on meter then sends a signal to the ECM via the CAN
communication line.
DTC LogicINFOID:0000000005398499
DTC DETECTION LOGIC
NOTE:
• If DTC P0500 is displayed with DTC UXXXX, first perform the tr ouble diagnosis for DTC UXXXX.
• If DTC P0500 is displayed with DT C P0607, first perform the trouble diagnosis for DTC P0607. Refer
to EC-351, "
DTC Logic".
DTC CONFIRMATION PROCEDURE
1.INSPECTION START
Do you have CONSULT-III?
Do you have CONSULT-III?
YES >> GO TO 2.
NO >> GO TO 5.
2.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
>> GO TO 3.
3.CHECK VEHICLE SPEED SIGNAL
NOTE:
This procedure may be conducted with the drive wheels li fted in the shop or by driving the vehicle. If a
road test is expected to be easier, it is unnecessary to lift the vehicle.
With CONSULT-III
1. Start engine.
2. Read “VHCL SPEED SE” in “DATA MONITOR” m ode with CONSULT-III. The vehicle speed on CON-
SULT-III should exceed 10 km/h (6 mph) when rotating wheels with suitable gear position.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Go to EC-342, "
Diagnosis Procedure".
4.PERFORM DTC CONFIRMATION PROCEDURE
1. Select “DATA MONITOR” mode with CONSULT-III.
2. Warm engine up to normal operating temperature.
3. Maintain the following conditions for at least 50 consecutive seconds. CAUTION:
Always drive vehicle at a safe speed.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0500 Vehicle speed sensor The vehicle speed signal sent to ECM
is almost 0 km/h (0 MPH) even when
vehicle is being driven. • Harness or connectors
(The CAN communication line is open or shorted)
• Harness or connectors
(The vehicle speed signal circuit is open or shorted)
• Wheel sensor
• Combination meter
• ABS actuator and electric unit (control unit)
Revision: January 20102010 Versa

EC-342
< COMPONENT DIAGNOSIS >[HR16DE]
P0500 VSS
4. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Go to EC-342, "Diagnosis Procedure".
NO >> INSPECTION END
5.PERFORM COMPONENT FUNCTION CHECK
Perform component function check. Refer to EC-342, "
Component Function Check".
Use component function check to check the overall func tion of the vehicle speed signal circuit. During this
check, a 1st trip DTC might not be confirmed.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC-342, "
Diagnosis Procedure".
Component Function CheckINFOID:0000000005398500
1.PERFORM COMPONENT FUNCTION CHECK
With GST
1. Lift up drive wheels.
2. Start engine.
3. Read vehicle speed signal in Service $01 with GST. The vehicle speed signal on GST should be able to exceed 10 km/h (6 MPH) when rotating wheels with
suitable gear position.
Is the inspection result normal?
YES >> INSPECTION END
NO >> Go to EC-342, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000005398501
1.CHECK DTC WITH “ABS ACTUATOR A ND ELECTRIC UNIT (CONTROL UNIT)”
Refer to BRC-20, "
CONSULT-III Function (ABS)".
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair or replace.
2.CHECK COMBINATION METER
Refer to DI-13, "
CONSULT-III Function (METER/M&A)".
>> INSPECTION END
ENG SPEED A/T: 1,900 - 6,000 rpm
M/T: 2,500 - 6,000 rpm
COOLAN TEMP/S More than 70°C (158 °F)
B/FUEL SCHDL A/T: 4.8 - 31.8 msec
M/T: 3.8 - 31.8 msec
Selector lever Except P or N position (A/T)
Except Neutral position (M/T)
PW/ST SIGNAL OFF
Revision: January 20102010 Versa

P0506 ISC SYSTEMEC-343
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0506 ISC SYSTEM
DescriptionINFOID:0000000005398502
The ECM controls the engine idle speed to a specified level through the fine adjustment of the air, which is let
into the intake manifold, by operating the electric thrott
le control actuator. The operating of the throttle valve is
varied to allow for optimum control of the engine idli ng speed. The crankshaft position sensor (POS) detects
the actual engine speed and sends a signal to the ECM.
The ECM controls the electric throttle control actuator so that the engine speed coincides with the target value
memorized in the ECM. The target engine speed is the lowest speed at which the engine can operate steadily.
The optimum value stored in the ECM is determined by taking into consideration various engine conditions,
such as during warming up, deceleration, and engine load (air conditioner, power steering and cooling fan
operation, etc.).
DTC LogicINFOID:0000000005398503
DTC DETECTION LOGIC
NOTE:
If DTC P0506 is displayed with ot her DTC, first perform the trouble diagnosis for the other DTC.
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
If the target idle speed is ou t of the specified value, perform EC-26, "
IDLE AIR VOLUME LEARNING :
Special Repair Requirement", before conducting DTC Confirmation Procedure.
TESTING CONDITION:
• Before performing the following procedure, confirm that battery voltage is more than 11 V at idle.
• Always perform the test at a temperature above −10° C(14° F).
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Start engine and run it for at least 1 minute at idle speed.
4. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Go to EC-343, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000005398504
1.CHECK INTAKE AIR LEAK
1. Start engine and let it idle.
2. Listen for an intake air leak after the mass air flow sensor.
Is intake air leak detected?
YES >> Discover air leak location and repair.
NO >> GO TO 2.
2.REPLACE ECM
1. Stop engine.
2. Replace ECM.
DTC No. Trouble diagnosis name DTC detecting conditionPossible cause
P0506 Idle speed control system
RPM lower than expected The idle speed is less than the target idle
speed by 100 rpm or more. • Electric throttle control actuator
• Intake air leak
Revision: January 20102010 Versa

P0507 ISC SYSTEMEC-345
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0507 ISC SYSTEM
DescriptionINFOID:0000000005398505
The ECM controls the engine idle speed to a specified level through the fine adjustment of the air, which is let
into the intake manifold, by operating the electric thrott
le control actuator. The operating of the throttle valve is
varied to allow for optimum control of the engine idli ng speed. The crankshaft position sensor (POS) detects
the actual engine speed and sends a signal to the ECM.
The ECM controls the electric throttle control actuator so that the engine speed coincides with the target value
memorized in the ECM. The target engine speed is the lowest speed at which the engine can operate steadily.
The optimum value stored in the ECM is determined by taking into consideration various engine conditions,
such as during warming up, deceleration, and engine load (air conditioner, power steering and cooling fan
operation, etc.).
DTC LogicINFOID:0000000005398506
DTC DETECTION LOGIC
NOTE:
If DTC P0507 is displayed with ot her DTC, first perform the trouble diagnosis for the other DTC.
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
If the target idle speed is ou t of the specified value, perform EC-26, "
IDLE AIR VOLUME LEARNING :
Special Repair Requirement", before conducting DTC Confirmation Procedure.
TESTING CONDITION:
• Before performing the following procedure, confirm that battery voltage is more than 11 V at idle.
• Always perform the test at a temperature above −10° C(14° F).
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Start engine and run it for at least 1 minute at idle speed.
4. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Go to EC-345, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000005398507
1.CHECK PCV HOSE CONNECTION
Confirm that PCV hose is connected correctly.
Is the inspection result normal?
YES >> GO TO 2.
NO >> Repair or replace.
2.CHECK INTAKE AIR LEAK
1. Start engine and let it idle.
2. Listen for an intake air leak after the mass air flow sensor.
DTC No. Trouble diagnosis name DTC detecting conditionPossible cause
P0507 Idle speed control system
RPM higher than expected The idle speed is more than the target idle
speed by 200 rpm or more. • Electric throttle
control actuator
• Intake air leak
• PCV system
Revision: January 20102010 Versa

P0603 ECM POWER SUPPLYEC-347
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

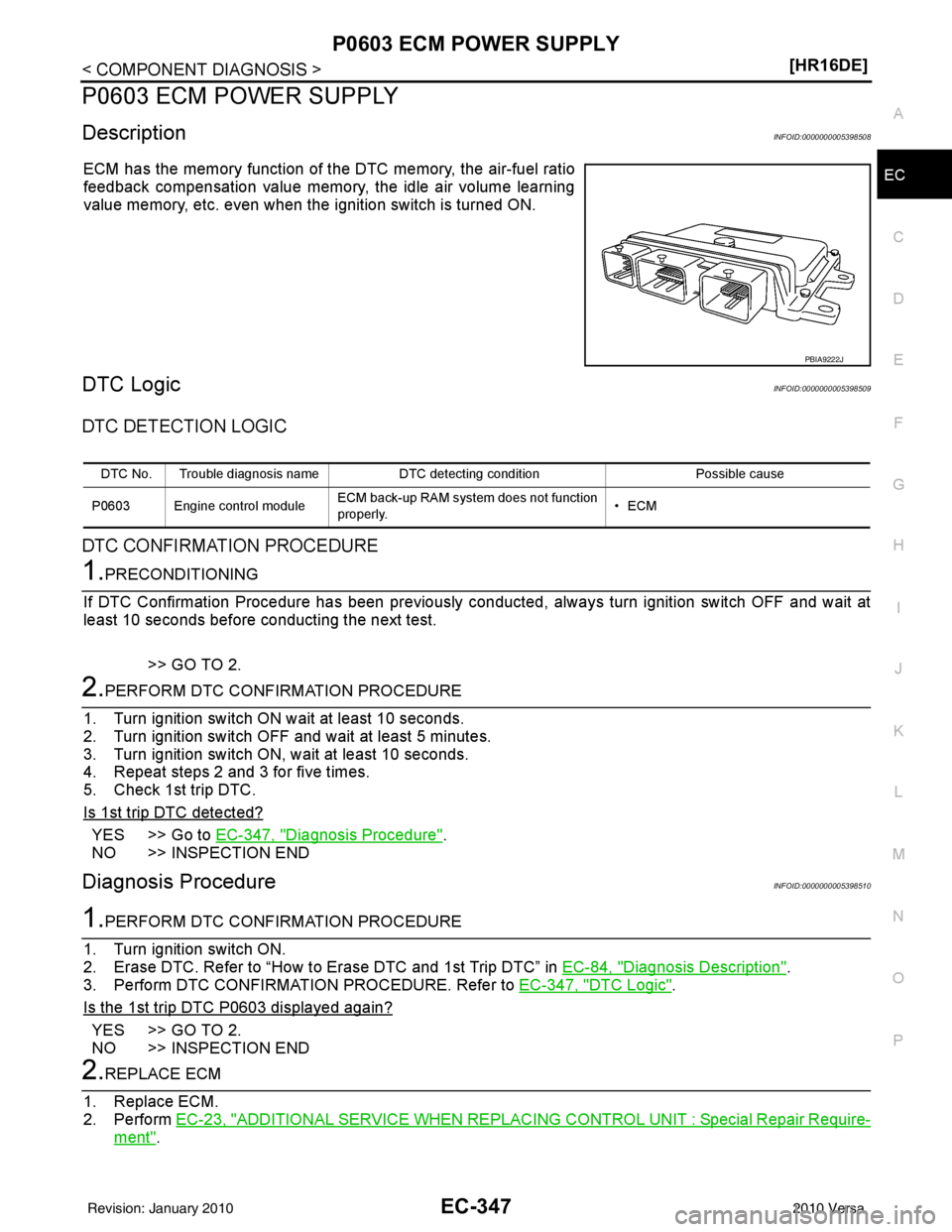

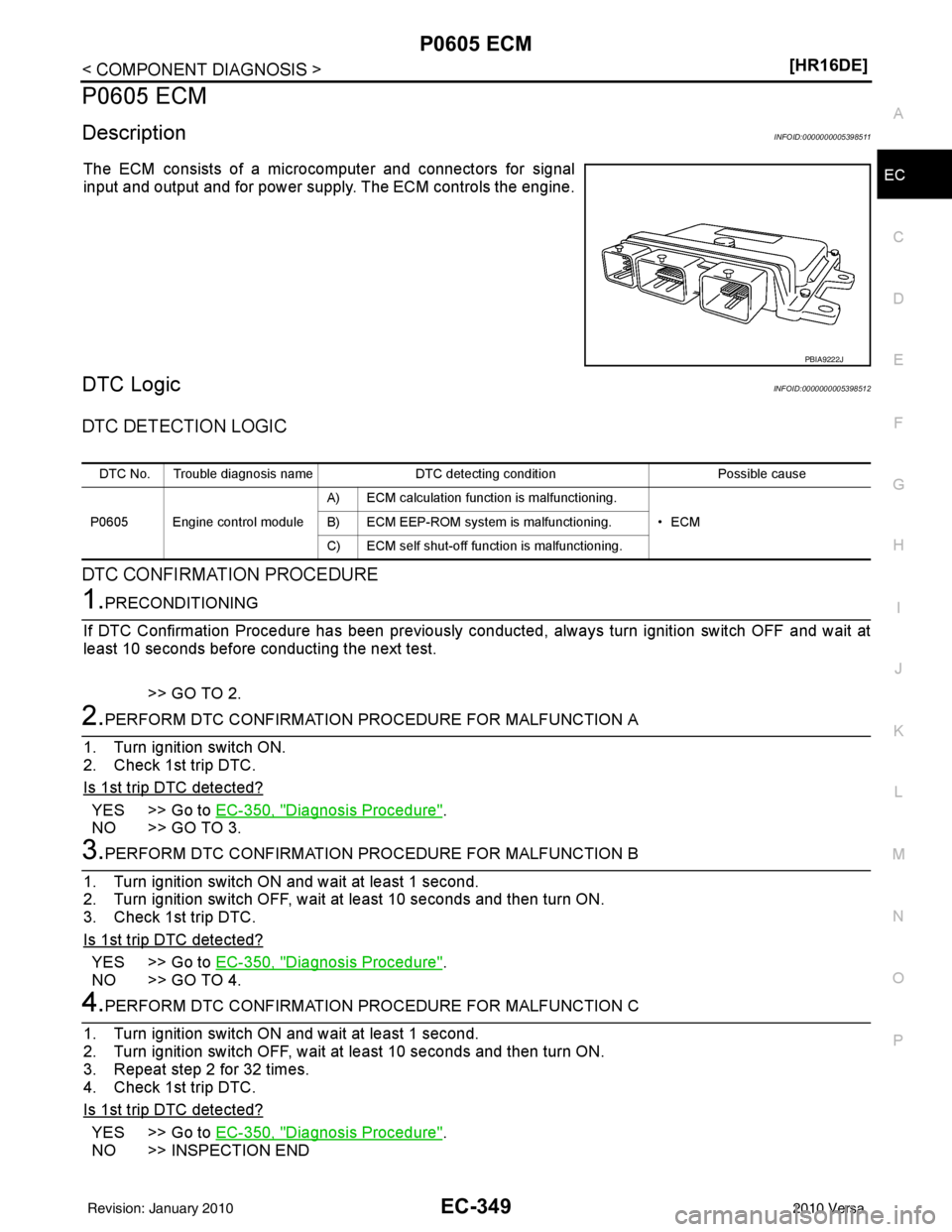

P0603 ECM POWER SUPPLY
DescriptionINFOID:0000000005398508
ECM has the memory function of the DTC memory, the air-fuel ratio
feedback compensation value memory, the idle air volume learning
value memory, etc. even when the ignition switch is turned ON.
DTC LogicINFOID:0000000005398509
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON wait at least 10 seconds.
2. Turn ignition switch OFF and wait at least 5 minutes.
3. Turn ignition switch ON, wait at least 10 seconds.
4. Repeat steps 2 and 3 for five times.
5. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Go to EC-347, "Diagnosis Procedure".
NO >> INSPECTION END
Diagnosis ProcedureINFOID:0000000005398510
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Erase DTC. Refer to “How to Erase DTC and 1st Trip DTC” in EC-84, "
Diagnosis Description".
3. Perform DTC CONFIRMATION PROCEDURE. Refer to EC-347, "
DTC Logic".
Is the 1st trip DTC P0603 displayed again?
YES >> GO TO 2.
NO >> INSPECTION END
2.REPLACE ECM
1. Replace ECM.
2. Perform EC-23, "
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Require-
ment".
PBIA9222J
DTC No. Trouble diagnosis name DTC detecting conditionPossible cause
P0603 Engine control module ECM back-up RAM system does not function
properly. •ECM
Revision: January 20102010 Versa

P0605 ECMEC-349
< COMPONENT DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0605 ECM
DescriptionINFOID:0000000005398511
The ECM consists of a microcomputer and connectors for signal
input and output and for power supply. The ECM controls the engine.
DTC LogicINFOID:0000000005398512
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION A
1. Turn ignition switch ON.
2. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Go to EC-350, "Diagnosis Procedure".
NO >> GO TO 3.
3.PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION B
1. Turn ignition switch ON and wait at least 1 second.
2. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
3. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Go to EC-350, "Diagnosis Procedure".
NO >> GO TO 4.
4.PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION C
1. Turn ignition switch ON and wait at least 1 second.
2. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
3. Repeat step 2 for 32 times.
4. Check 1st trip DTC.
Is 1st trip DTC detected?
YES >> Go to EC-350, "Diagnosis Procedure".
NO >> INSPECTION END
PBIA9222J
DTC No. Trouble diagnosis name DTC detecting conditionPossible cause
P0605 Engine control module A) ECM calculation function is malfunctioning.
•ECM
B) ECM EEP-ROM system is malfunctioning.
C) ECM self shut-off function is malfunctioning.
Revision: January 20102010 Versa

EC-352
< COMPONENT DIAGNOSIS >[HR16DE]
P0643 SENSOR POWER SUPPLY
P0643 SENSOR POWER SUPPLY
DTC LogicINFOID:0000000005398517
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8 V at idle.
>> GO TO 2.
2.PERFORM DTC CONFIRMATION PROCEDURE
1. Start engine and let it idle for 1 second.
2. Check DTC.
Is DTC detected?
YES >> Go to EC-353, "Diagnosis Procedure".
NO >> INSPECTION END
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0643 Sensor power supply
circuit short ECM detects a voltage of power source
for sensor is excessively low or high. • Harness or connectors
(APP sensor 1 circuit is shorted.)
(TP sensor circuit is shorted.)
(Battery current sensor circuit is shorted.)
(PSP sensor circuit is shorted.)
[Camshaft position sens or (PHASE) circuit is
shorted.]
• Accelerator pedal position sensor
• Throttle position sensor
• Battery current sensor
• Power steering pressure sensor
• Camshaft position sensor (PHASE)
Revision: January 20102010 Versa
