2010 NISSAN QASHQAI Owners Manual

Downloaded from www.Manualslib.com manuals search engine Unit: mm (in)

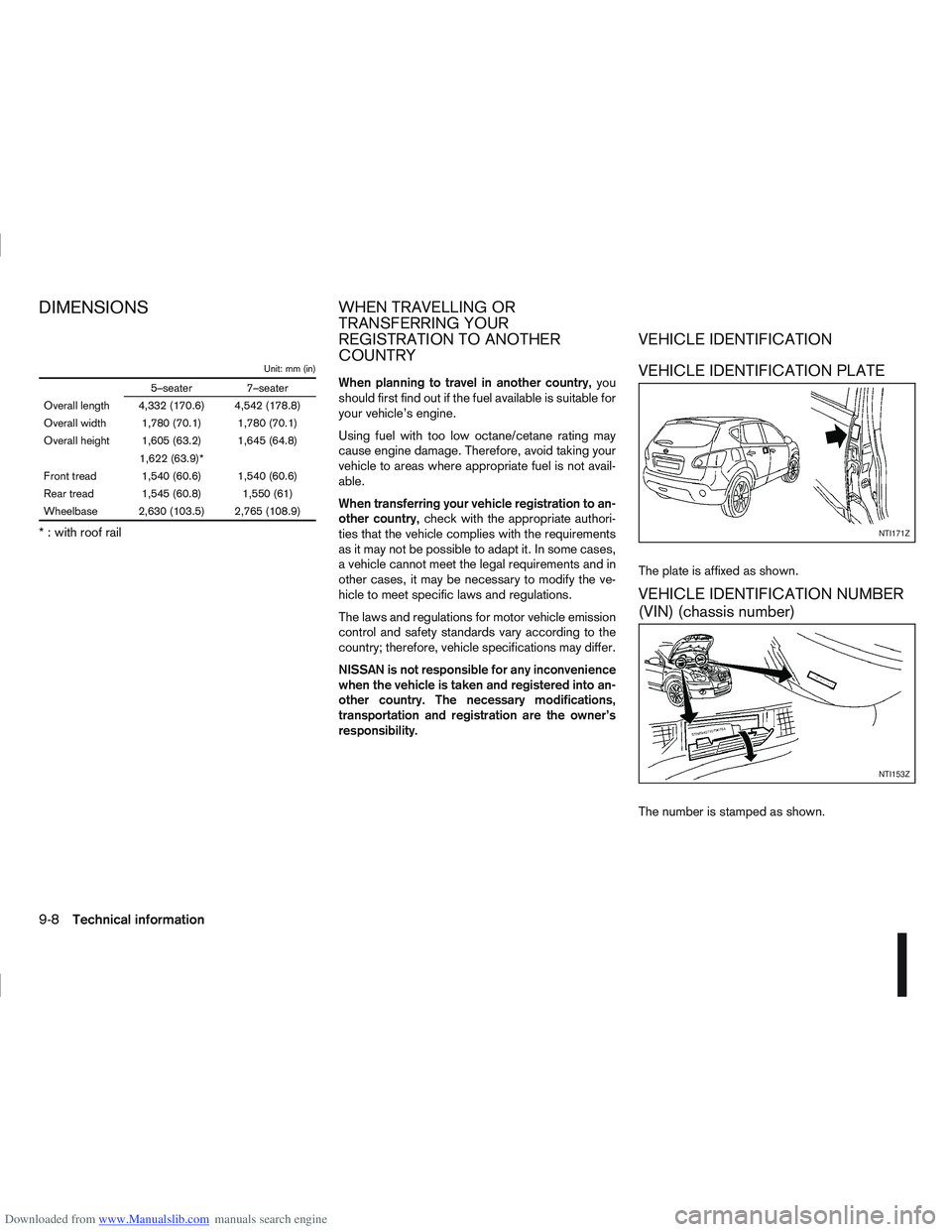

5–seater 7–seater
Overall length 4,332 (170.6) 4,542 (178.8)
Overall width 1,780 (70.1) 1,780 (70.1)
Overall height 1,605 (63.2) 1,645 (64.8) 1,622 (63.9)*
Front tread 1,540 (60.6) 1,540 (60.6)
Rear tread 1,545 (60.8) 1,550 (61)
Wheelbase 2,630 (103.5) 2,765 (108.9)
* : with roof rail When planning to travel in another country,
you
should first find out if the fuel available is suitable for
your vehicle’s engine.
Using fuel with too low octane/cetane rating may
cause engine damage. Therefore, avoid taking your
vehicle to areas where appropriate fuel is not avail-
able.
When transferring your vehicle registration to an-
other country, check with the appropriate authori-
ties that the vehicle complies with the requirements
as it may not be possible to adapt it. In some cases,
a vehicle cannot meet the legal requirements and in
other cases, it may be necessary to modify the ve-
hicle to meet specific laws and regulations.
The laws and regulations for motor vehicle emission
control and safety standards vary according to the
country; therefore, vehicle specifications may differ.
NISSAN is not responsible for any inconvenience
when the vehicle is taken and registered into an-
other country. The necessary modifications,
transportation and registration are the owner’s
responsibility.
VEHICLE IDENTIFICATION PLATE
The plate is affixed as shown.
VEHICLE IDENTIFICATION NUMBER
(VIN) (chassis number)
The number is stamped as shown.
NTI171Z
NTI153Z
DIMENSIONSWHEN TRAVELLING OR
TRANSFERRING YOUR
REGISTRATION TO ANOTHER
COUNTRY VEHICLE IDENTIFICATION
9-8Technical information

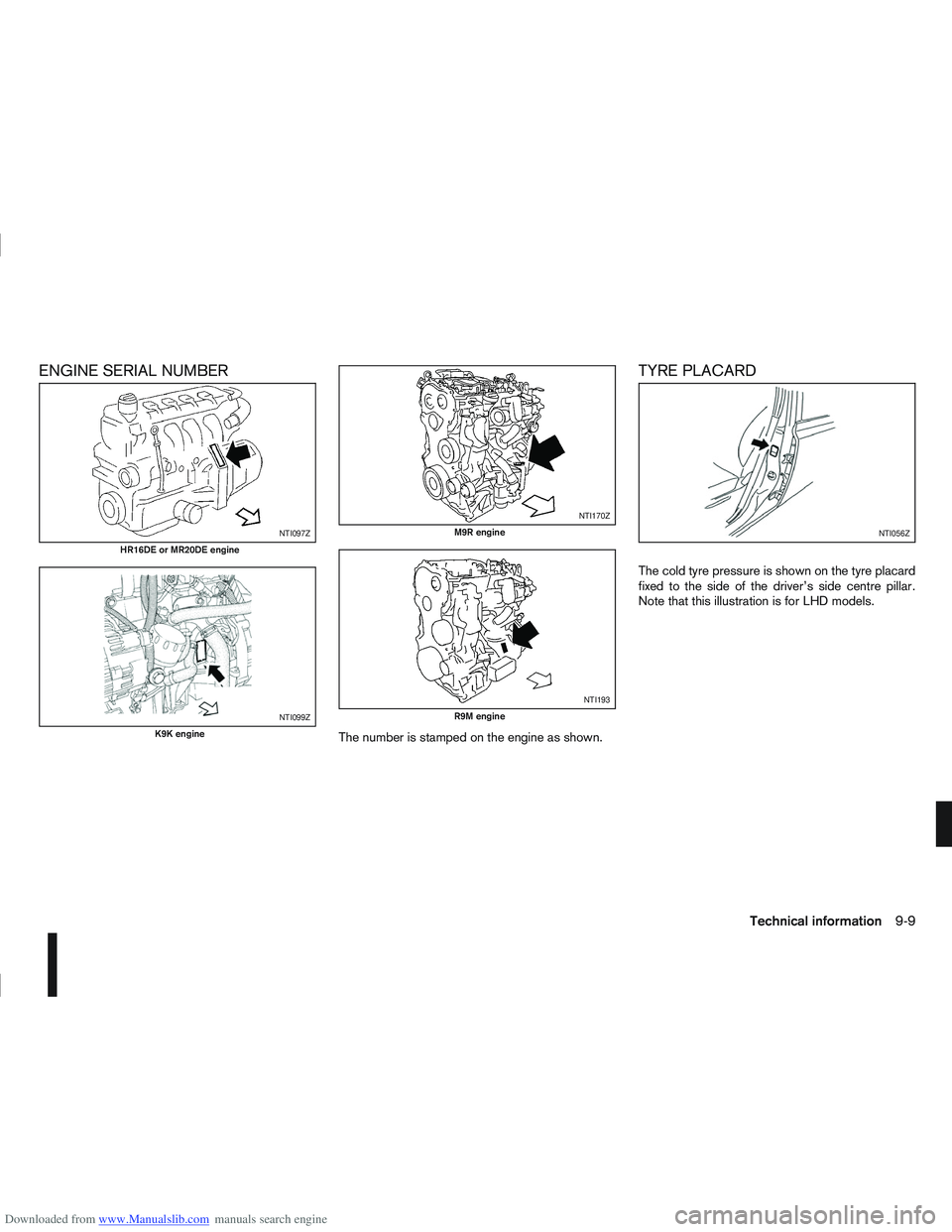

Downloaded from www.Manualslib.com manuals search engine ENGINE SERIAL NUMBER
The number is stamped on the engine as shown.
TYRE PLACARD
The cold tyre pressure is shown on the tyre placard
fixed to the side of the driver’s side centre pillar.
Note that this illustration is for LHD models.
NTI097Z
HR16DE or MR20DE engine
NTI099Z
K9K engine
NTI170Z
M9R engine
NTI193
R9M engine
NTI056Z
Technical information9-9

Downloaded from www.Manualslib.com manuals search engine AIR CONDITIONER SPECIFICATION
LABEL (where fitted) and AUTOMATIC
TRANSMISSION FLUID LABEL
(where fitted)
j
AAutomatic transmission label
jB Air conditioner specification label
The label is affixed as shown. Your vehicle is equipped with the NISSAN step 8
immobilizer system and the approval number is
e24*74/61*95/56*0103*00.All radio frequency or audio frequency products fit-
ted to the NISSAN range during production con-
form to the requirements of the R&TTE Directive.
Integrated keyfob: 5WK4 8763
Intelligent Key (where fitted):
e11*74/61*95/56*2014*2
– Manufacturer name:
ALPS ELECTRIC CO., LTD
– Model name: TFWD1G63, TFWB1G614
– Made in U.K.
Alarm (Siren) system (where fitted):
e24–116RA-000002 and
e24*72/245*2006/28*1212*00
NTI180Z
NTI157Z
NATS IMMOBILIZER RADIO
APPROVAL NUMBER APPROVAL NUMBERS
9-10Technical information

Downloaded from www.Manualslib.com manuals search engine NOTE
Technical information9-11

Downloaded from www.Manualslib.com manuals search engine NOTE
9-12Technical information

Downloaded from www.Manualslib.com manuals search engine NOTE
Technical information9-13

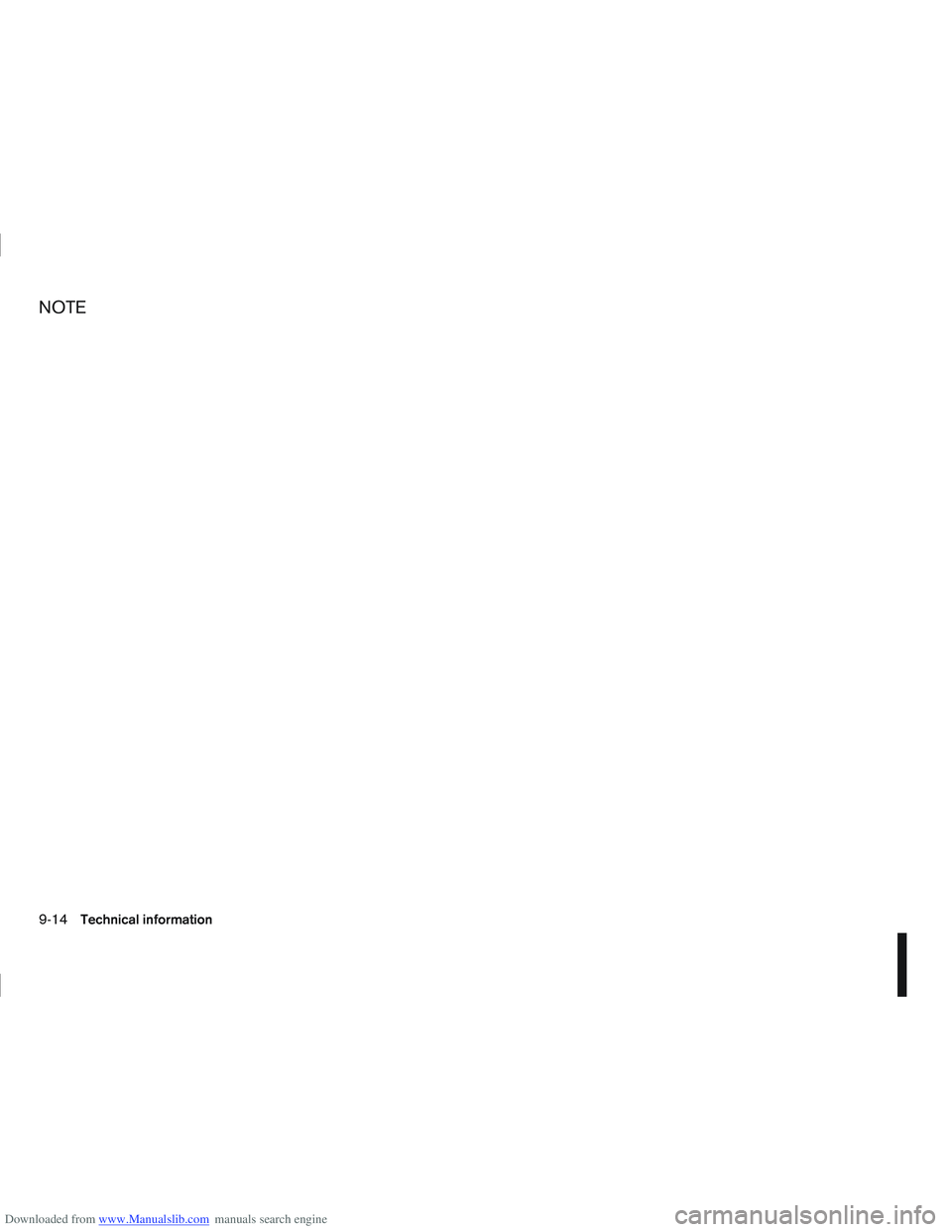

Downloaded from www.Manualslib.com manuals search engine NOTE
9-14Technical information

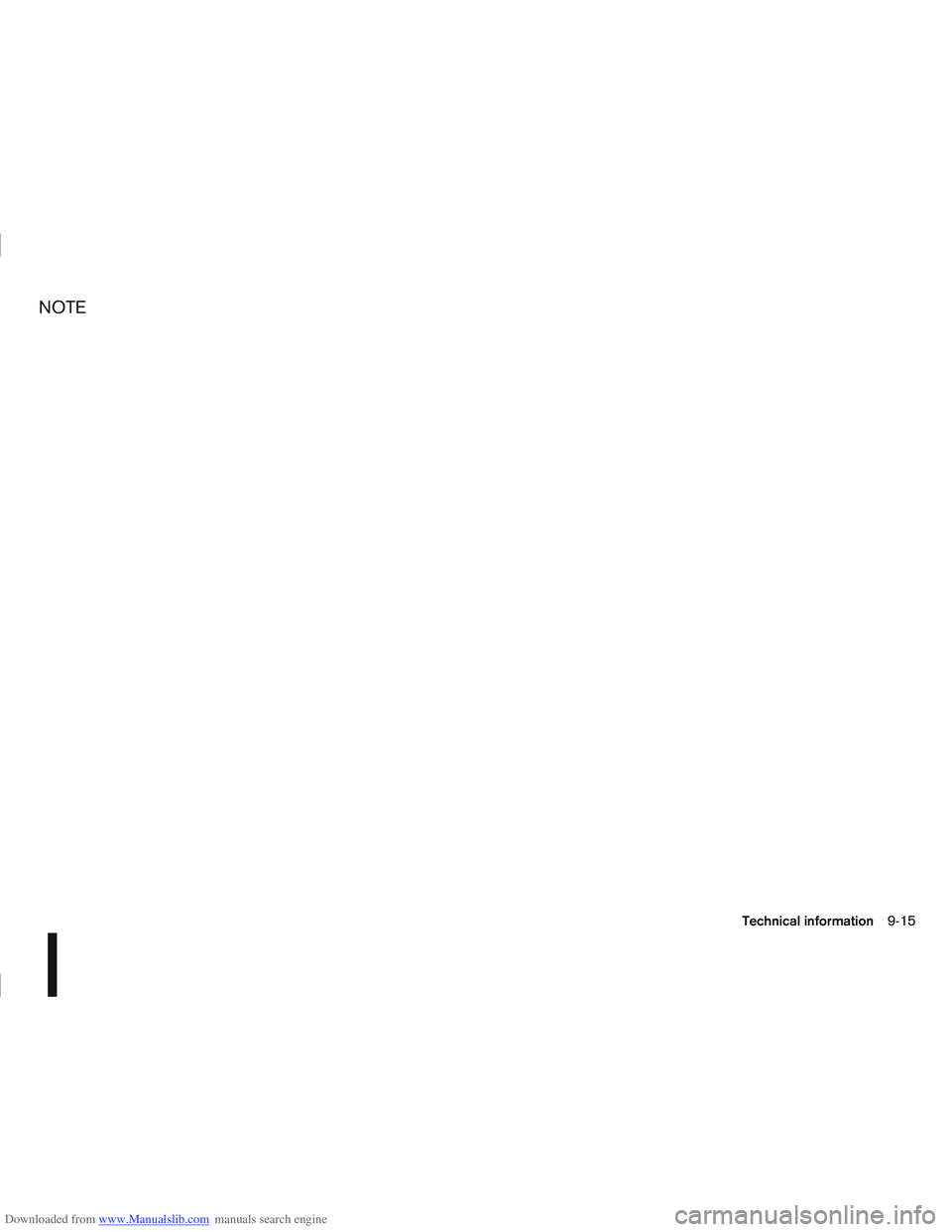

Downloaded from www.Manualslib.com manuals search engine NOTE
Technical information9-15
