CENTER CONSOLE ASSEMBLYIP-17
< DISASSEMBLY AND ASSEMBLY >
C
DE
F
G H
I
K L
M A
B
IP
N
O P
DISASSEMBLY AND ASSEMBLY
CENTER CONSOLE ASSEMBLY

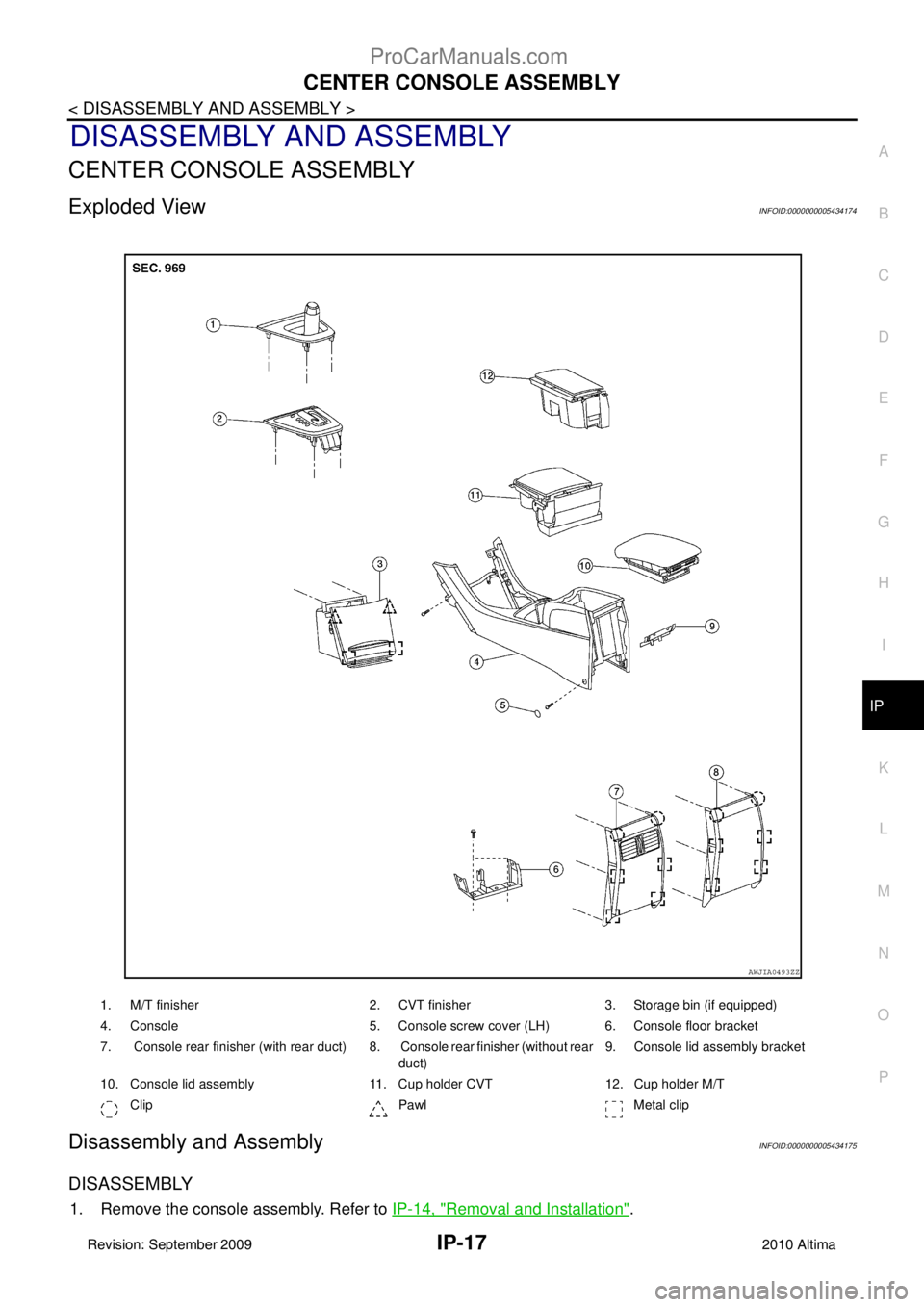

Exploded ViewINFOID:0000000005434174
Disassembly and AssemblyINFOID:0000000005434175
DISASSEMBLY
1. Remove the console assembly. Refer to IP-14, "Removal and Installation".
1. M/T finisher 2. CVT finisher 3. Storage bin (if equipped)
4. Console 5. Console screw cover (LH) 6. Console floor bracket
7. Console rear finisher (with rear duct) 8. Console rear finisher (without rear duct)9. Console lid assembly bracket
10. Console lid assembly 11. Cup holder CVT12. Cup holder M/T
Clip PawlMetal clip
AWJIA0493ZZ
Revision: September 20092010 Altima
ProCarManuals.com
IP-18
< DISASSEMBLY AND ASSEMBLY >
CENTER CONSOLE ASSEMBLY
2. Remove the cup holder screws and then remove the cup holder assembly.
3. Remove the console lid screws and remove the console lid.
4. Remove the console rear finisher.
5. Remove the console lid assembly bracket.
6. Remove the power socket from the console. Refer to PWO-5, "Removal and Installation"
.
ASSEMBLY
Assembly is in the reverse order of disassembly.
