2010 NISSAN 370Z COUPE Owners Manual

Black plate (387,1)
Model "Z34-D" EDITED: 2009/ 9/ 10

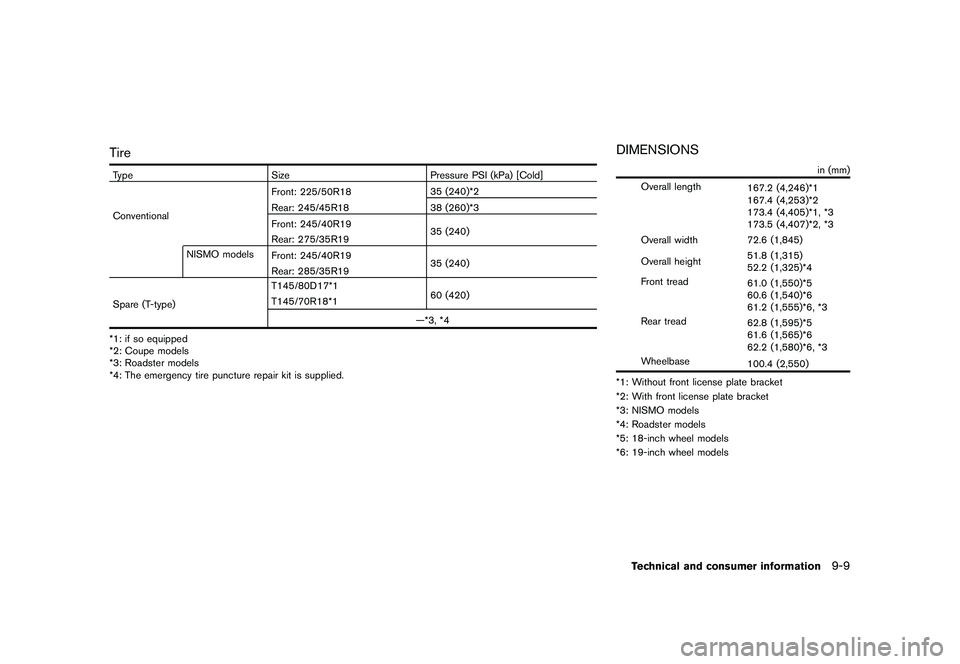

TireTypeSize Pressure PSI (kPa) [Cold]
Conventional Front: 225/50R18
35 (240)*2
Rear: 245/45R18 38 (260)*3
Front: 245/40R19 35 (240)
Rear: 275/35R19
NISMO models Front: 245/40R19
35 (240)
Rear: 285/35R19
Spare (T-type) T145/80D17*1
60 (420)
T145/70R18*1
—*3, *4
*1: if so equipped
*2: Coupe models
*3: Roadster models
*4: The emergency tire puncture repair kit is supplied.
DIMENSIONS
in (mm)
Overall length 167.2 (4,246)*1
167.4 (4,253)*2
173.4 (4,405)*1, *3
173.5 (4,407)*2, *3
Overall width 72.6 (1,845)
Overall height 51.8 (1,315)
52.2 (1,325)*4
Front tread 61.0 (1,550)*5
60.6 (1,540)*6
61.2 (1,555)*6, *3
Rear tread 62.8 (1,595)*5
61.6 (1,565)*6
62.2 (1,580)*6, *3
Wheelbase 100.4 (2,550)
*1: Without front license plate bracket
*2: With front license plate bracket
*3: NISMO models
*4: Roadster models
*5: 18-inch wheel models
*6: 19-inch wheel models
Technical and consumer information
9-9

Black plate (388,1)
Model "Z34-D" EDITED: 2009/ 9/ 10

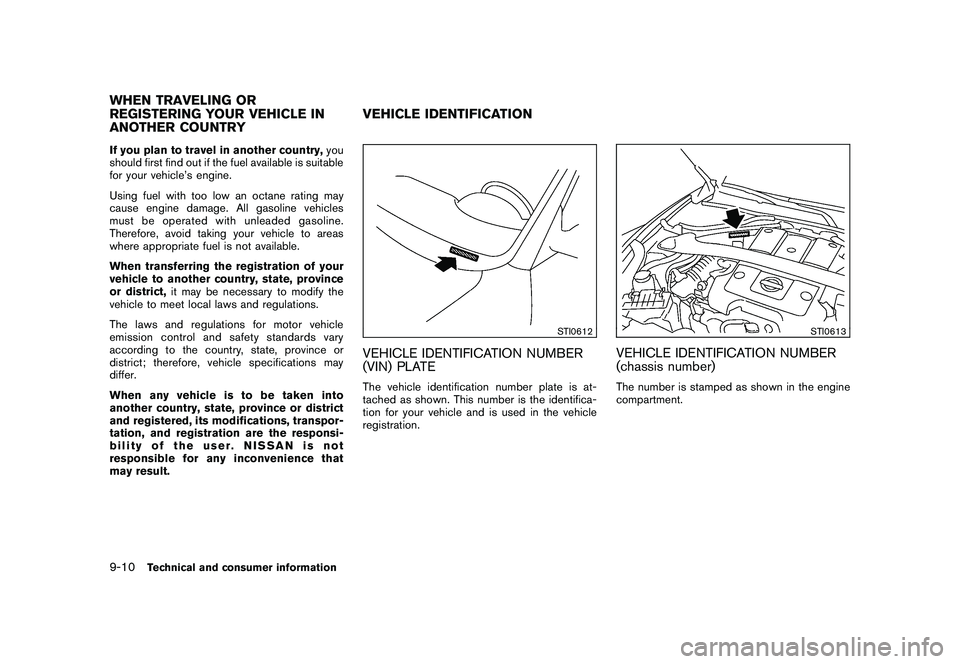

If you plan to travel in another country,you
should first find out if the fuel available is suitable
for your vehicle’s engine.
Using fuel with too low an octane rating may
cause engine damage. All gasoline vehicles
must be operated with unleaded gasoline.
Therefore, avoid taking your vehicle to areas
where appropriate fuel is not available.
When transferring the registration of your
vehicle to another country, state, province
or district, it may be necessary to modify the
vehicle to meet local laws and regulations.
The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, vehicle specifications may
differ.
When any vehicle is to be taken into
another country, state, province or district
and registered, its modifications, transpor-
tation, and registration are the responsi-
bility of the user. NISSAN is not
responsible for any inconvenience that
may result.
STI0612
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATEThe vehicle identification number plate is at-
tached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.
STI0613
VEHICLE IDENTIFICATION NUMBER
(chassis number)The number is stamped as shown in the engine
compartment.
WHEN TRAVELING OR
REGISTERING YOUR VEHICLE IN
ANOTHER COUNTRY VEHICLE IDENTIFICATION9-10
Technical and consumer information

Black plate (389,1)
Model "Z34-D" EDITED: 2009/ 9/ 10

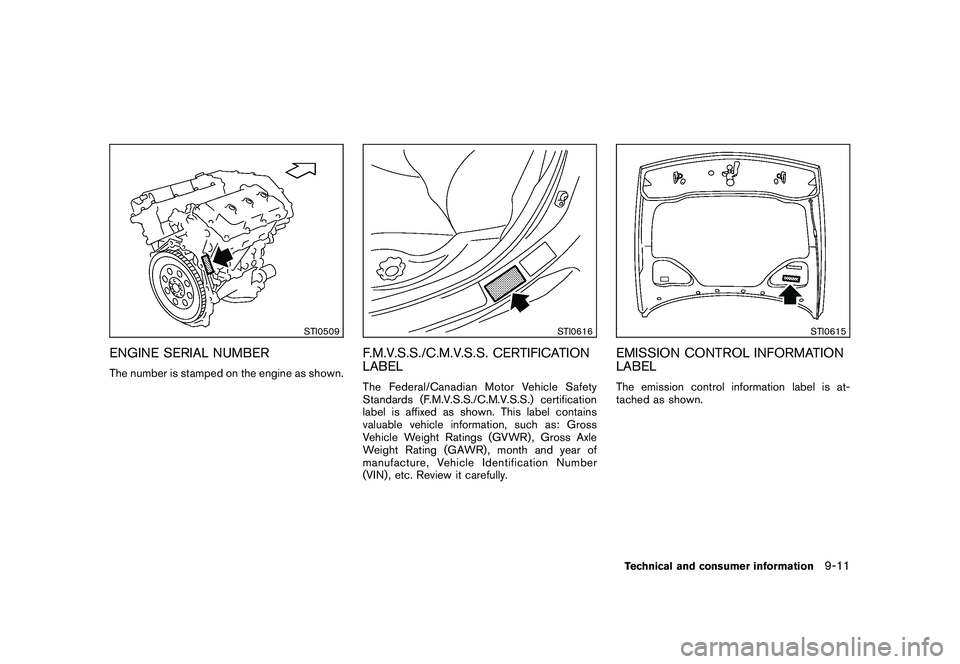

STI0509
ENGINE SERIAL NUMBERThe number is stamped on the engine as shown.
STI0616
F.M.V.S.S./C.M.V.S.S. CERTIFICATION
LABELThe Federal/Canadian Motor Vehicle Safety
Standards (F.M.V.S.S./C.M.V.S.S.) certification
label is affixed as shown. This label contains
valuable vehicle information, such as: Gross
Vehicle Weight Ratings (GVWR) , Gross Axle
Weight Rating (GAWR) , month and year of
manufacture, Vehicle Identification Number
(VIN) , etc. Review it carefully.
STI0615
EMISSION CONTROL INFORMATION
LABELThe emission control information label is at-
tached as shown.Technical and consumer information
9-11

Black plate (390,1)
Model "Z34-D" EDITED: 2009/ 9/ 10

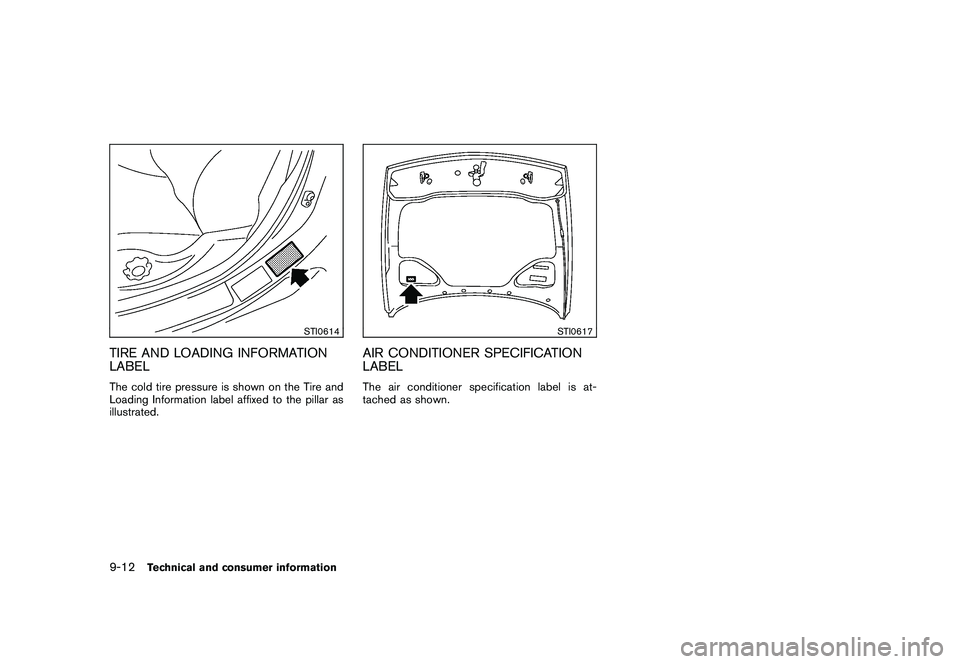

STI0614
TIRE AND LOADING INFORMATION
LABELThe cold tire pressure is shown on the Tire and
Loading Information label affixed to the pillar as
illustrated.
STI0617
AIR CONDITIONER SPECIFICATION
LABELThe air conditioner specification label is at-
tached as shown.
9-12
Technical and consumer information

Black plate (391,1)
Model "Z34-D" EDITED: 2009/ 9/ 10

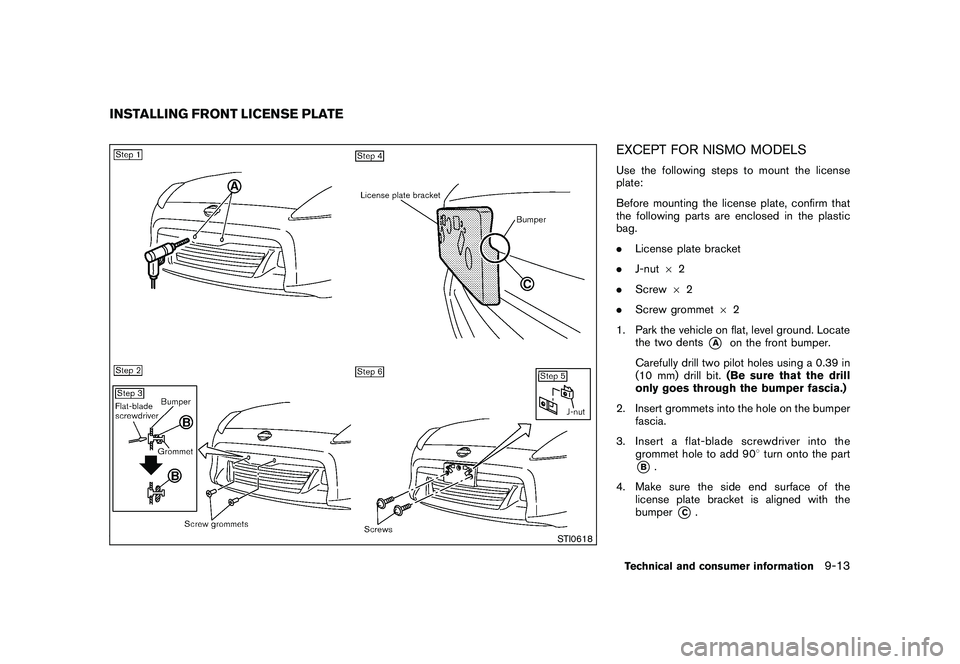

STI0618
EXCEPT FOR NISMO MODELSUse the following steps to mount the license
plate:
Before mounting the license plate, confirm that
the following parts are enclosed in the plastic
bag.
.License plate bracket
. J-nut 62
. Screw 62
. Screw grommet 62
1. Park the vehicle on flat, level ground. Locate the two dents
*A
on the front bumper.
Carefully drill two pilot holes using a 0.39 in
(10 mm) drill bit. (Be sure that the drill
only goes through the bumper fascia.)
2. Insert grommets into the hole on the bumper fascia.
3. Insert a flat-blade screwdriver into the grommet hole to add 90 8turn onto the part
*B.
4. Make sure the side end surface of the license plate bracket is aligned with the
bumper
*C.
INSTALLING FRONT LICENSE PLATE
Technical and consumer information
9-13

Black plate (392,1)
Model "Z34-D" EDITED: 2009/ 9/ 10

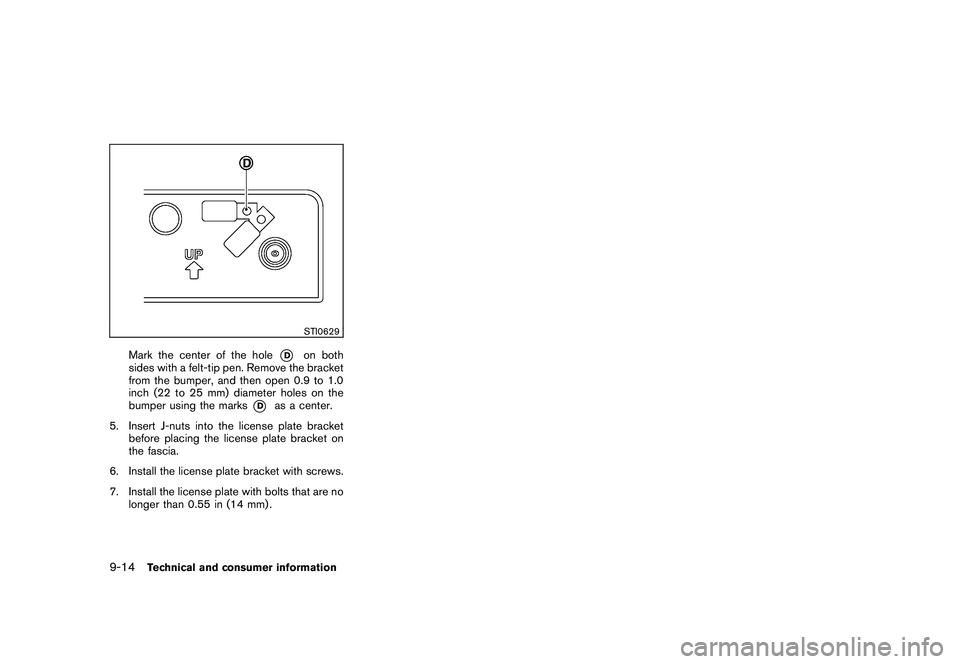

STI0629
Mark the center of the hole
*D
on both
sides with a felt-tip pen. Remove the bracket
from the bumper, and then open 0.9 to 1.0
inch (22 to 25 mm) diameter holes on the
bumper using the marks
*D
as a center.
5. Insert J-nuts into the license plate bracket before placing the license plate bracket on
the fascia.
6. Install the license plate bracket with screws.
7. Install the license plate with bolts that are no longer than 0.55 in (14 mm) .
9-14
Technical and consumer information

Black plate (393,1)
Model "Z34-D" EDITED: 2009/ 9/ 10

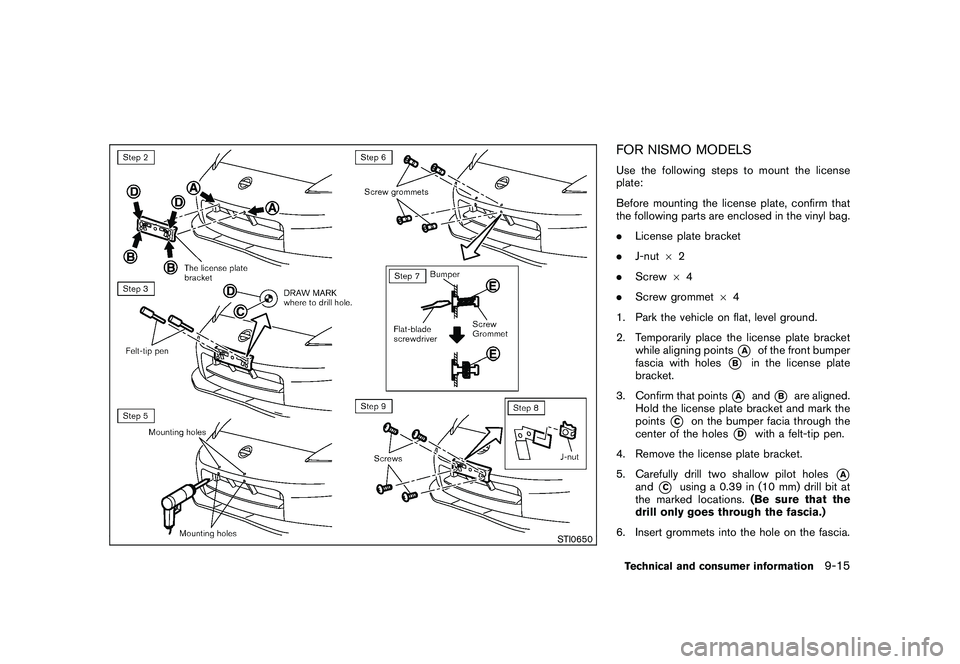

STI0650
FOR NISMO MODELSUse the following steps to mount the license
plate:
Before mounting the license plate, confirm that
the following parts are enclosed in the vinyl bag.
.License plate bracket
. J-nut 62
. Screw 64
. Screw grommet 64
1. Park the vehicle on flat, level ground.
2. Temporarily place the license plate bracket while aligning points
*A
of the front bumper
fascia with holes
*B
in the license plate
bracket.
3. Confirm that points
*A
and
*B
are aligned.
Hold the license plate bracket and mark the
points
*C
on the bumper facia through the
center of the holes
*D
with a felt-tip pen.
4. Remove the license plate bracket.
5. Carefully drill two shallow pilot holes
*A
and
*C
using a 0.39 in (10 mm) drill bit at
the marked locations. (Be sure that the
drill only goes through the fascia.)
6. Insert grommets into the hole on the fascia.
Technical and consumer information
9-15

Black plate (394,1)
Model "Z34-D" EDITED: 2009/ 9/ 10

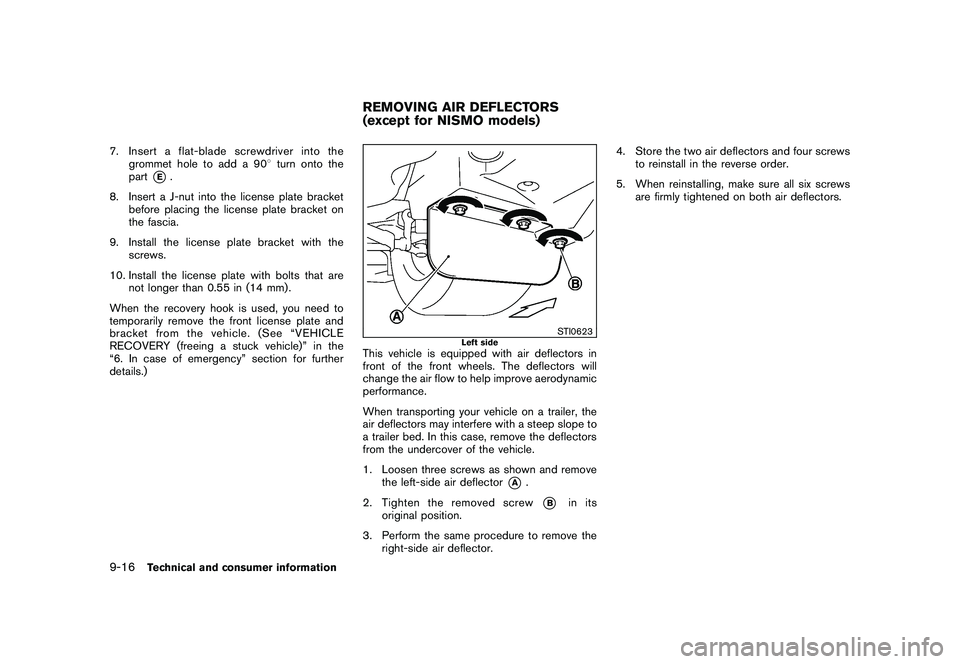

7. Insert a flat-blade screwdriver into thegrommet hole to add a 90 8turn onto the
part
*E.
8. Insert a J-nut into the license plate bracket before placing the license plate bracket on
the fascia.
9. Install the license plate bracket with the screws.
10. Install the license plate with bolts that are not longer than 0.55 in (14 mm) .
When the recovery hook is used, you need to
temporarily remove the front license plate and
bracket from the vehicle. (See “VEHICLE
RECOVERY (freeing a stuck vehicle)” in the
“6. In case of emergency” section for further
details.)
STI0623
Left side
This vehicle is equipped with air deflectors in
front of the front wheels. The deflectors will
change the air flow to help improve aerodynamic
performance.
When transporting your vehicle on a trailer, the
air deflectors may interfere with a steep slope to
a trailer bed. In this case, remove the deflectors
from the undercover of the vehicle.
1. Loosen three screws as shown and remove the left-side air deflector
*A
.
2. Tighten the removed screw
*B
in its
original position.
3. Perform the same procedure to remove the right-side air deflector. 4. Store the two air deflectors and four screws
to reinstall in the reverse order.
5. When reinstalling, make sure all six screws are firmly tightened on both air deflectors.
REMOVING AIR DEFLECTORS
(except for NISMO models)
9-16
Technical and consumer information
