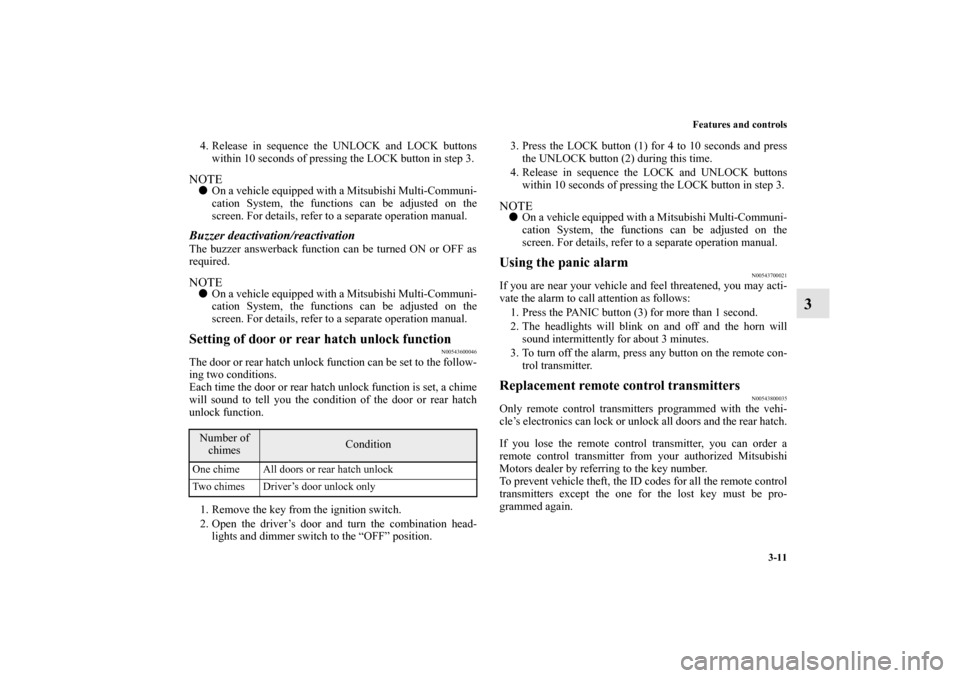

Page 106 of 658

MITSUBISHI LANCER SPORTBACK 2010 8.G Owners Manual Features and controls
3-11
3
4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the LOCK button in step 3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cat

Features and controls
3-11
3
4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the LOCK button in step 3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.
Buzzer deactivation/reactivationThe buzzer answerback function can be turned ON or OFF as
required.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.
Setting of door or rear hatch unlock function
N00543600046
The door or rear hatch unlock function can be set to the follow-
ing two conditions.
Each time the door or rear hatch unlock function is set, a chime
will sound to tell you the condition of the door or rear hatch
unlock function.
1. Remove the key from the ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 3.
NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.
Using the panic alarm
N00543700021
If you are near your vehicle and feel threatened, you may acti-
vate the alarm to call attention as follows:
1. Press the PANIC button (3) for more than 1 second.
2. The headlights will blink on and off and the horn will
sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote con-
trol transmitter.Replacement remote control transmitters
N00543800035
Only remote control transmitters programmed with the vehi-
cle’s electronics can lock or unlock all doors and the rear hatch.
If you lose the remote control transmitter, you can order a
remote control transmitter from your authorized Mitsubishi
Motors dealer by referring to the key number.
To prevent vehicle theft, the ID codes for all the remote control
transmitters except the one for the lost key must be pro-
grammed again.
Number of
chimes
Condition
One chime All doors or rear hatch unlock
Two chimes Driver’s door unlock only
BK0103001US.book 11 ページ２００９年８月２０日　木曜日　午前１０時４５分

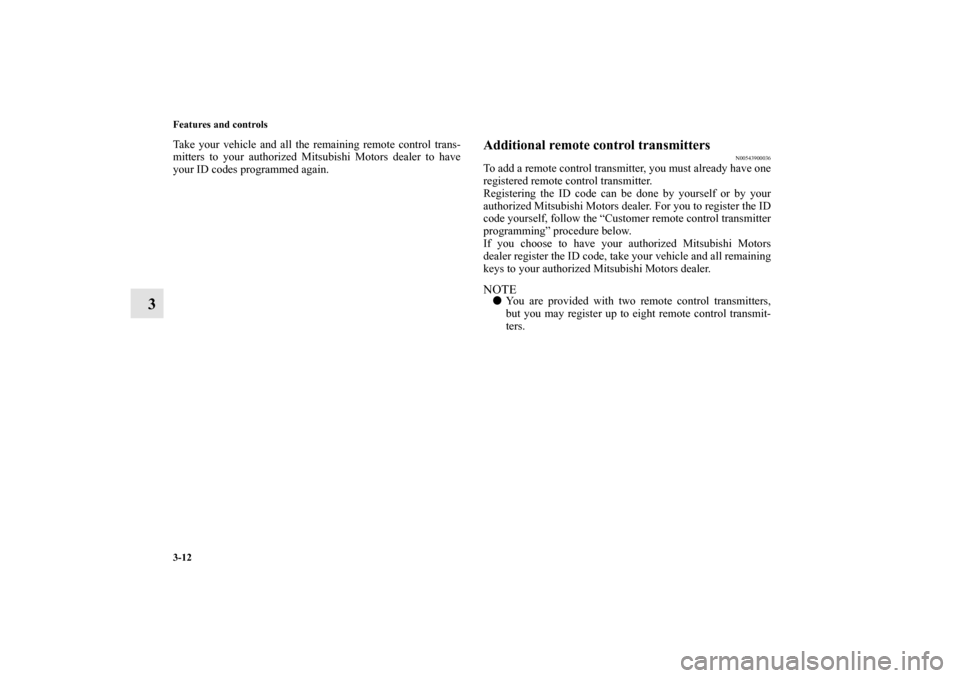

Page 107 of 658

MITSUBISHI LANCER SPORTBACK 2010 8.G Owners Manual 3-12 Features and controls
3
Take your vehicle and all the remaining remote control trans-
mitters to your authorized Mitsubishi Motors dealer to have
your ID codes programmed again.
Additional remote

Page 108 of 658

MITSUBISHI LANCER SPORTBACK 2010 8.G Owners Manual Features and controls
3-13
3
Customer remote control transmitter program-
ming
N00544000047
You can program new remote control transmitters to the system
if you have one valid (already registered) rem

Features and controls
3-13
3
Customer remote control transmitter program-
ming
N00544000047
You can program new remote control transmitters to the system
if you have one valid (already registered) remote control trans-
mitter by doing the following:
1. Have available all (current and new) remote control trans-
mitters you wish to register.
2. With a valid (already registered) remote control transmit-
ter, press the UNLOCK button (2) for 4 to 10 seconds.
Then press and hold the LOCK button (1).
3. Within 10 seconds of pressing the LOCK button, release
the LOCK and UNLOCK buttons in sequence.
At this time, ID codes for all remote control transmitters
except for the transmitter used in steps 2 and 3 are erased
and the answerback function (door or rear hatch is locked
and unlocked) informs you that the registration mode has
been activated.
4. Within 60 seconds after step 3, complete the following ID
code registration operation using the next remote control
transmitter you wish to register within 4 seconds.
i. Press both the LOCK and UNLOCK buttons for 2 sec-
onds.
ii. Release both the LOCK and UNLOCK buttons for 1
second.
iii. Press the UNLOCK button.
The answerback function informs you that the ID code
registration of the transmitter is completed.
5. To register the ID codes of additional remote control
transmitters, repeat step 4 within 60 seconds after step 4.6. If no ID code of a remote control transmitter is registered
within 60 seconds after step 4, the registration mode is
canceled and the normal mode returns.
NOTE
For verification purposes, try to lock and unlock the doors
and the rear hatch after the registration is completed.

The indicator light (4) comes on each time a button is
pressed.

The keyless entry system does not work if the key is in the
ignition switch.

The remote control transmitter can be used from about 40
feet (12 m) away. However, this distance may change if
your vehicle is near a TV transmitting tower, a power sta-
tion, or a radio station.

If the UNLOCK button (2) is pressed when all doors and
the rear hatch are locked and no doors or the rear hatch are
opened within about 30 seconds, the doors and the rear
hatch will automatically re-lock.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.

If the following conditions are observed after pressing the
buttons on the remote control transmitter, the battery in
the remote control transmitter may need to be replaced.
The doors and the rear hatch cannot be locked or
unlocked.
The panic alarm cannot be operated.
The indicator light (4) is dim or does not come on.

If you lose your remote control transmitter, please contact
an authorized Mitsubishi Motors dealer for a replacement.
BK0103001US.book 13 ページ２００９年８月２０日　木曜日　午前１０時４５分

Page 109 of 658

MITSUBISHI LANCER SPORTBACK 2010 8.G Owners Manual 3-14 Features and controls
3

If you wish to obtain an additional remote control trans-
mitter, please contact an authorized Mitsubishi Motors
dealer. A maximum of eight remote control transmitters
c

Page 110 of 658

MITSUBISHI LANCER SPORTBACK 2010 8.G Owners Manual Features and controls
3-15
3
2. Remove the remote control transmitter from the remote
control transmitter case. Then, open the remote control
transmitter using the method described in step 1.
3. Remov

Page 111 of 658

MITSUBISHI LANCER SPORTBACK 2010 8.G Owners Manual 3-16 Features and controls
3Free-hand Advanced Security Transmitter
(F.A.S.T.-key)
(if so equipped)
N00503100081
The Free-hand Advanced Security Transmitter (F.A.S.T.-key)
enables the doors and the

Page 112 of 658

MITSUBISHI LANCER SPORTBACK 2010 8.G Owners Manual Features and controls
3-17
3
The operations possible with the F.A.S.T.-key can be
modified as stated below. (Keyless entry operations are
possible.) For details, contact an authorized Mitsubishi
Motor

Page 113 of 658

MITSUBISHI LANCER SPORTBACK 2010 8.G Owners Manual 3-18 Features and controls
3
NOTE
The F.A.S.T.-key uses weak electromagnetic waves.
In cases such as the following, operation may be improper
or unstable.
The vehicle is near a facility that emits

3-18 Features and controls
3
NOTE
The F.A.S.T.-key uses weak electromagnetic waves.
In cases such as the following, operation may be improper
or unstable.
The vehicle is near a facility that emits strong electro-
magnetic waves, such as a TV transmitting tower, a
power station, a radio station or an airport
The key is carried together with other communication
devices such as cellular phones or radios, or electrical
appliances such as computers
The F.A.S.T.-key touches or is covered by a metal object
A keyless entry system is being used nearby
The battery of the F.A.S.T.-key is run down
The vehicle is in a location with strong electromagnetic
waves or noise
Use the emergency key in such circumstances.
Refer to “To operate using the emergency key” on page 3-
34.

The F.A.S.T.-key is constantly performing reception oper-
ations in its communication with the vehicle. This means
that the battery is always running down, regardless of how
often the F.A.S.T.-key is used. The battery life is about 1
to 3 years, depending on the usage conditions.

Since the F.A.S.T.-key is constantly performing reception
operations, the reception of strong electromagnetic waves
can accelerate the running down of the battery. Do not
place near electrical appliances such as televisions or
computers.
Operating range of the F.A.S.T.-key
N00503200079
When a person enters the operating range of the F.A.S.T.-key
while carrying the F.A.S.T.-key and operates a switch or handle
of a door or the rear hatch, verification of the ID code is per-
formed.
The F.A.S.T.-key enables the doors and the rear hatch to be
locked and unlocked and the engine to be started only when the
ID codes of the vehicle and F.A.S.T.-key match.NOTE
When the battery of the F.A.S.T.-key has run down or
there are strong electromagnetic waves or noise in the
area, the operating range could decrease or operations
could become unstable.
BK0103001US.book 18 ページ２００９年８月２０日　木曜日　午前１０時４５分
