3-174 Features and controls
3
System check screenWhen the ignition switch is turned to the “ON” position, the
system check screen is displayed for about 4 seconds. If there
is no fault, information screen (when the ignition switch is
“ON”) is displayed.
If there is a fault, the screen changes to warning display. Refer
to “Warning display list (when the ignition switch is “ON”)” on
page 3-207.NOTE

The system check screen display varies depending on
your equipment.
Service reminderWhen the time for periodic inspection arrives, the warning dis-
play is displayed for a few seconds after the screen that is ini-
tially displayed when the ignition switch is turned “ON”. Refer
to “Service reminder” on page 3-184.
Ty p e 1
Ty p e 2ACD control mode display screen
(if so equipped)
N00545900056
The operation status of the ACD control mode is displayed.
Refer to “ACD control mode” on page 3-128.
Ty p e 1 Ty p e 2BK0103001US.book 174 ページ ２００９年８月２０日　木曜日　午前１０時４５分

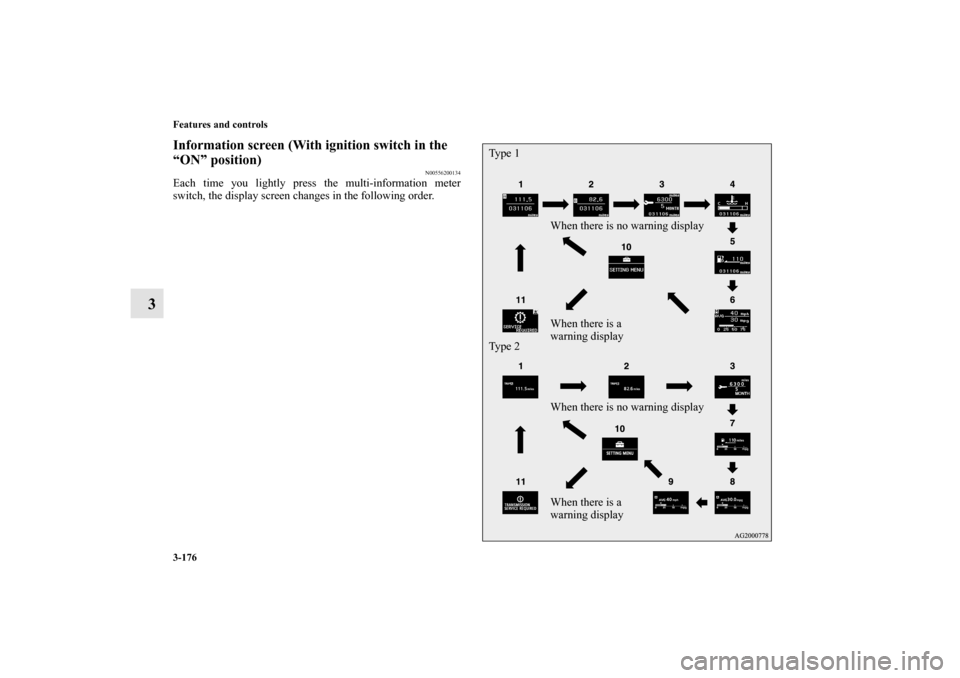

3-176 Features and controls
3
Information screen (With ignition switch in the
“ON” position)
N00556200134
Each time you lightly press the multi-information meter
switch, the display screen changes in the following order.
When there is no warning display
When there is a
warning display
When there is no warning display
When there is a
warning display Ty p e 1
Ty p e 2
BK0103001US.book 176 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-178 Features and controls
3
Driving range displayShows the approximate driving range (how many more miles
or kilometers you can drive) with the current fuel level. When
this driving range falls below 30 miles (50 km), “---” is dis-
played.
Refuel as soon as possible.NOTE

The driving range is determined based on the fuel con-
sumption data. This may vary depending on the driving
conditions and habits. Treat the distance displayed as just
a rough guideline.


When you refuel, the driving range display is automati-
cally updated.
However, if you only add a small amount of fuel, the cor-
rect value will not be displayed. Fill to a full tank when-
ever possible.


When your vehicle is stopped on an extremely steep hill,
the driving range value may change. This is due to the
movement of fuel in the tank and does not indicate any
problem.


The display setting can be changed to the preferred units
(miles or km).
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-187.
Average speed displayThis displays the average speed from the last reset to the
present.
There are 2 types of mode settings as follows.
For details on how to change the average speed display setting,
refer to “Changing the function settings (With ignition switch
in the “ON” position)” on page 3-187.
Manual reset mode

When the average speed is being displayed, if you hold
down the multi-information meter switch, the average
speed displayed at that time is reset.


When the ignition switch is turned to the “ON” position
from the “ACC” or “LOCK” position, the mode setting
changes automatically from manual to auto.
Switching to auto occurs automatically. If switching to
manual mode is done, however, the data from the last
reset is displayed.
Auto reset mode


When the average speed is being displayed, if you hold
down the multi-information meter switch, these calcula-
tions will be reset to zero.


When the ignition switch has been set to the “ACC” or
“LOCK” position for about 4 hours or more, the average
speed display will automatically reset.
NOTE

The average speed display and the average fuel consump-
tion display can be reset separately in both auto reset
mode and manual reset mode.


“---” is displayed when the average speed cannot be mea-
sured.
BK0103001US.book 178 ページ ２００９年８月２０日　木曜日　午前１０時４５分

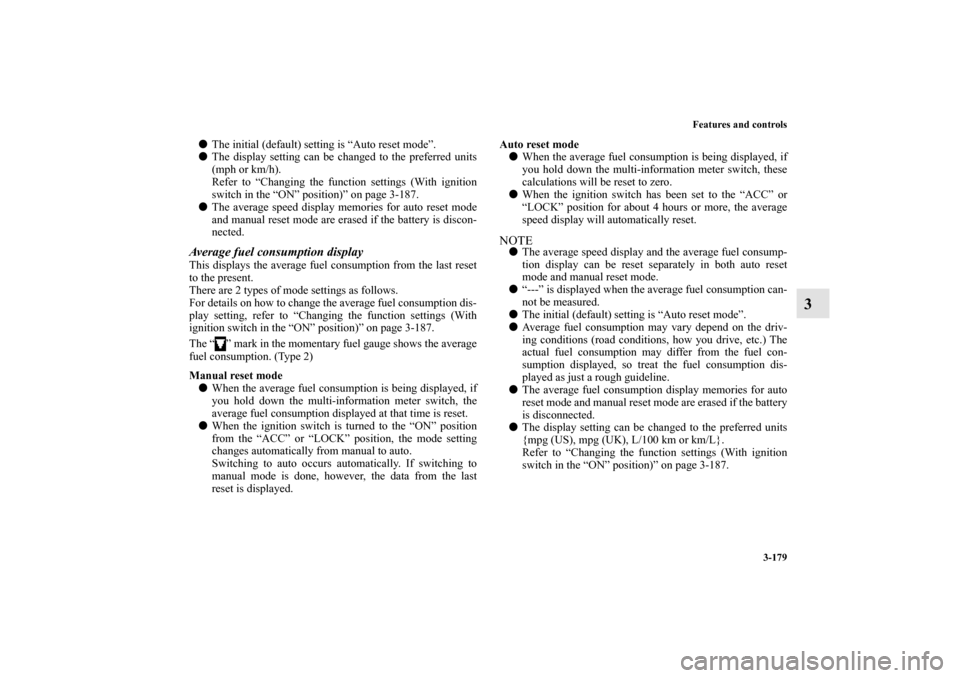

Features and controls
3-179
3


The initial (default) setting is “Auto reset mode”.


The display setting can be changed to the preferred units
(mph or km/h).
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-187.


The average speed display memories for auto reset mode
and manual reset mode are erased if the battery is discon-
nected.
Average fuel consumption displayThis displays the average fuel consumption from the last reset
to the present.
There are 2 types of mode settings as follows.
For details on how to change the average fuel consumption dis-
play setting, refer to “Changing the function settings (With
ignition switch in the “ON” position)” on page 3-187.
The “ ” mark in the momentary fuel gauge shows the average
fuel consumption. (Type 2)
Manual reset mode

When the average fuel consumption is being displayed, if
you hold down the multi-information meter switch, the
average fuel consumption displayed at that time is reset.


When the ignition switch is turned to the “ON” position
from the “ACC” or “LOCK” position, the mode setting
changes automatically from manual to auto.
Switching to auto occurs automatically. If switching to
manual mode is done, however, the data from the last
reset is displayed.Auto reset mode


When the average fuel consumption is being displayed, if
you hold down the multi-information meter switch, these
calculations will be reset to zero.


When the ignition switch has been set to the “ACC” or
“LOCK” position for about 4 hours or more, the average
speed display will automatically reset.
NOTE

The average speed display and the average fuel consump-
tion display can be reset separately in both auto reset
mode and manual reset mode.


“---” is displayed when the average fuel consumption can-
not be measured.


The initial (default) setting is “Auto reset mode”.


Average fuel consumption may vary depend on the driv-
ing conditions (road conditions, how you drive, etc.) The
actual fuel consumption may differ from the fuel con-
sumption displayed, so treat the fuel consumption dis-
played as just a rough guideline.


The average fuel consumption display memories for auto
reset mode and manual reset mode are erased if the battery
is disconnected.


The display setting can be changed to the preferred units
{mpg (US), mpg (UK), L/100 km or km/L}.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-187.
BK0103001US.book 179 ページ ２００９年８月２０日　木曜日　午前１０時４５分

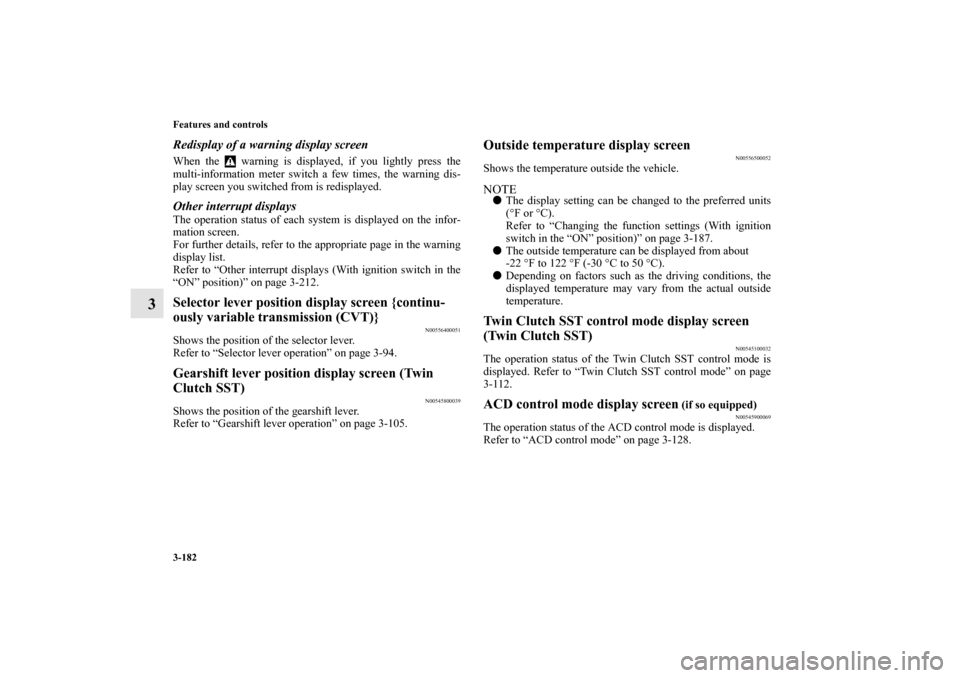

3-182 Features and controls
3
Redisplay of a warning display screenWhen the warning is displayed, if you lightly press the
multi-information meter switch a few times, the warning dis-
play screen you switched from is redisplayed.Other interrupt displaysThe operation status of each system is displayed on the infor-
mation screen.
For further details, refer to the appropriate page in the warning
display list.
Refer to “Other interrupt displays (With ignition switch in the
“ON” position)” on page 3-212.Selector lever position display screen {continu-
ously variable transmission (CVT)}
N00556400051
Shows the position of the selector lever.
Refer to “Selector lever operation” on page 3-94.Gearshift lever position display screen (Twin
Clutch SST)
N00545800039
Shows the position of the gearshift lever.
Refer to “Gearshift lever operation” on page 3-105.
Outside temperature display screen
N00556500052
Shows the temperature outside the vehicle.NOTE

The display setting can be changed to the preferred units
(°F or °C).
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-187.


The outside temperature can be displayed from about
-22 °F to 122 °F (-30 °C to 50 °C).


Depending on factors such as the driving conditions, the
displayed temperature may vary from the actual outside
temperature.
Twin Clutch SST control mode display screen
(Twin Clutch SST)
N00545100032
The operation status of the Twin Clutch SST control mode is
displayed. Refer to “Twin Clutch SST control mode” on page
3-112.ACD control mode display screen
(if so equipped)
N00545900069
The operation status of the ACD control mode is displayed.
Refer to “ACD control mode” on page 3-128.
BK0103001US.book 182 ページ ２００９年８月２０日　木曜日　午前１０時４５分

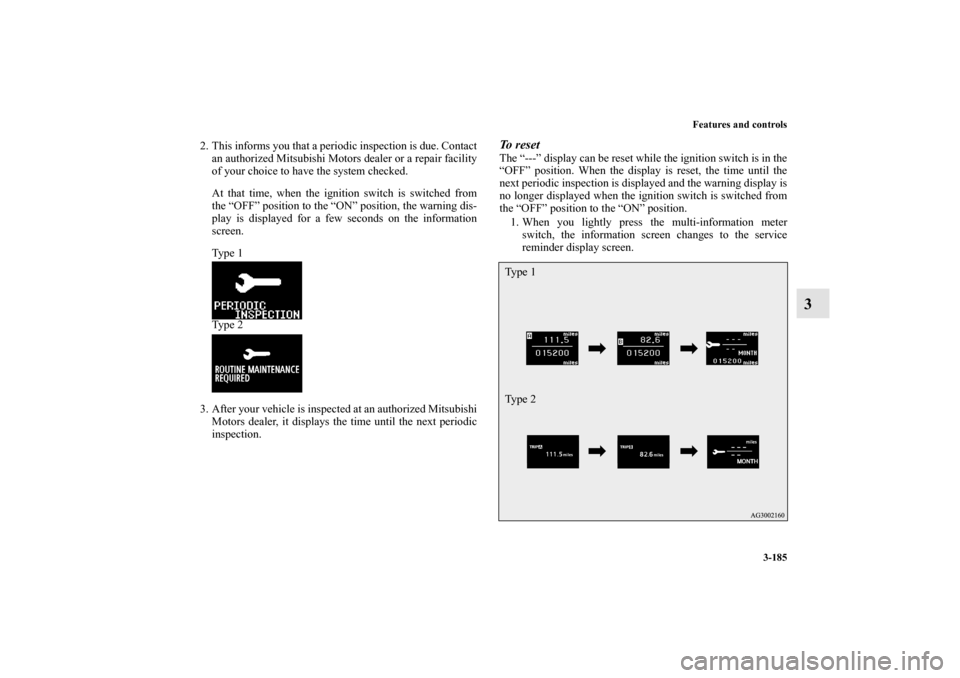

Features and controls
3-185
3
2. This informs you that a periodic inspection is due. Contact
an authorized Mitsubishi Motors dealer or a repair facility
of your choice to have the system checked.
At that time, when the ignition switch is switched from
the “OFF” position to the “ON” position, the warning dis-
play is displayed for a few seconds on the information
screen.
Ty p e 1
Ty p e 2
3. After your vehicle is inspected at an authorized Mitsubishi
Motors dealer, it displays the time until the next periodic
inspection.
To reset The “---” display can be reset while the ignition switch is in the
“OFF” position. When the display is reset, the time until the
next periodic inspection is displayed and the warning display is
no longer displayed when the ignition switch is switched from
the “OFF” position to the “ON” position.
1. When you lightly press the multi-information meter
switch, the information screen changes to the service
reminder display screen.Ty p e 1
Ty p e 2
BK0103001US.book 185 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-187
3
Door ajar warning display (With ignition switch
in the “ON” position)
N00555700103
Ty p e 1
Ty p e 2
If any of the doors or the rear hatch is not completely closed,
this displays the open door or rear hatch.
If the speed increases to about 5 mph (8 km/h) or higher with a
door or rear hatch ajar, a buzzer will sound 4 times to inform
you that a door or rear hatch is ajar.
Changing the function settings (With ignition
switch in the “ON” position)
N00556800039
1. Park your vehicle in a safe place.
Fully apply the parking brake and move the gearshift lever
(manual transaxle) into the “N” (Neutral) position, the
selector lever {continuously variable transmission
(CVT)} or the gearshift lever (Twin Clutch SST) into the
“P” (PARK) position.
2. When you lightly press the multi-information meter
switch, the information screen changes to the function set-
ting screen.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-176.
CAUTION
!

Always make sure that the warning display goes out
before beginning to drive.
Type 1 Type 2
BK0103001US.book 187 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-188 Features and controls
3
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
NOTE

To return the menu screen to the function setting screen,
press and hold the multi-information meter switch (for
about 2 seconds or more).


If no operations are made within about 15 seconds of the
menu screen being displayed, the display returns to the
function setting screen.
4. Select the item to change on the menu screen and change
to the desired setting. For further details on the operation
methods, refer to the following sections.
Refer to “Changing the reset mode for average fuel con-
sumption and average speed” on page 3-189.
Refer to “Changing the fuel consumption display unit” on
page 3-190.
Refer to “Changing the temperature unit” on page 3-192.
Refer to “Changing the display language” on page 3-193.
Refer to “Changing the language on Mitsubishi Multi-
Communication System or the Hands-free Bluetooth
®
system to match the multi-information display (if so
equipped)” on page 3-194.
Refer to “Operation sound setting” on page 3-196.
Refer to “Changing the amount of time until “REST
REMINDER” is displayed” on page 3-197.
Refer to “Changing the turn-signal sound” on page 3-198.
Refer to “Changing the momentary fuel consumption dis-
play” on page 3-199.
Refer to “Returning to the factory settings” on page 3-
200.
CAUTION
!

For safety, stop the vehicle before operating.
While driving, even if you operate the multi-infor-
mation meter switch, the function setting screen is
not displayed.
Ty p e 1
Ty p e 2BK0103001US.book 188 ページ ２００９年８月２０日　木曜日　午前１０時４５分
