3-256 Features and controls
3
5. After the voice guide says “Calling at tion>,” the Hands-free Bluetooth
® cellular phone inter-
face system with voice recognition will make the call.
When the confirmation function is on, the system will
confirm whether or not the name of the recipient of the
call is correct. Answer “Yes” to use that name.
If you want to change the name or location to call, answer
“No.” The system will return to Step 3.
Redialing
N00507800028
You can redial the last number called, based on the history of
dialed calls in the paired cellular phone.
Use the following procedure to redial.
1. Press the SPEECH button.
2. Say “Redial.”
Emergency calls
N00507900045
You can make quick calls to “911” in the event of an emer-
gency. The simple process to call “911” is described below.
1. Press the SPEECH button.
2. Say “Emergency.”
The Hands-free Bluetooth
® cellular phone interface sys-
tem with voice recognition will automatically dial “911.”
At this time, the system will confirm whether it should
call “911.” Answer “Yes” if it is ok to call “911.”
If you answer “No,” the voice recognition mode will be
deactivated without making the call.
NOTE

Depending on the region (country) in which the call is
made, emergency calls may not go through.
SEND function
N00508000027
During a call, press the SPEECH button to enter the voice rec-
ognition mode and then say “{number string} SEND” to gener-
ate a DTMF tone.
For example, if during a call you need to simulate the press of a
phone button as a response to an automated system, press the
SPEECH button and speak “1 2 3 4 pound SEND” and the
1234# will be sent on your cellular phone.
BK0103001US.book 256 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-261
3
4. When the deletion of the telephone number is completed,
the voice guide will say “ deleted”
and then the system will return to the main menu. NOTE

If you delete all telephone numbers registered for the 4
locations of an entry, the entry itself will be deleted from
the phonebook.
Erasing the Phonebook
N00511800058
You can delete all registered information in the phonebook by
saying “Erase all” on the Phonebook Main menu.
1. For confirmation purposes, the voice guide will ask “Are
you sure you want to erase everything from your phone-
book?” Answer “Yes.”
Answer “No” to cancel the deletion of all registered infor-
mation in the phonebook and return to the main menu.
2. The system will confirm one more time. Answer “Yes” to
continue.
Answer “No” to cancel the deletion of all registered infor-
mation in the phonebook and return to the main menu.
3. When the deletion of all information in the phonebook is
completed, the voice guide will say “Phonebook Erased”
and then return to the main menu.
General information
N00511900062
MODEL: MMC FCC ID: CB2MBLUEC07 IC: 279B-
MBLUEC07
Your Hands-free Bluetooth
® cellular phone interface system
with voice recognition operates on a radio frequency subject to
Federal Communications Commission (FCC) Rules (For vehi-
cles sold in U.S.A.) and Industry Canada Rules (For vehicles
sold in Canada). This device complies with Part 15 of the FCC
Rules and RSS-210 of the Industry Canada Rules. Operation is
subject to the following two conditions:


This device may not cause interference.


This device must accept any interference received, includ-
ing interference that may cause undesired operation.
The term “IC:” before the radio certification number only sig-
nifies that Industry Canada technical specifications were met.
The antenna used for this transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
End-users and installers must be provided with installation
instructions and transmitter operating conditions for satisfying
RF exposure compliance.
CAUTION
!

Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0103001US.book 261 ページ ２００９年８月２０日　木曜日　午前１０時４５分

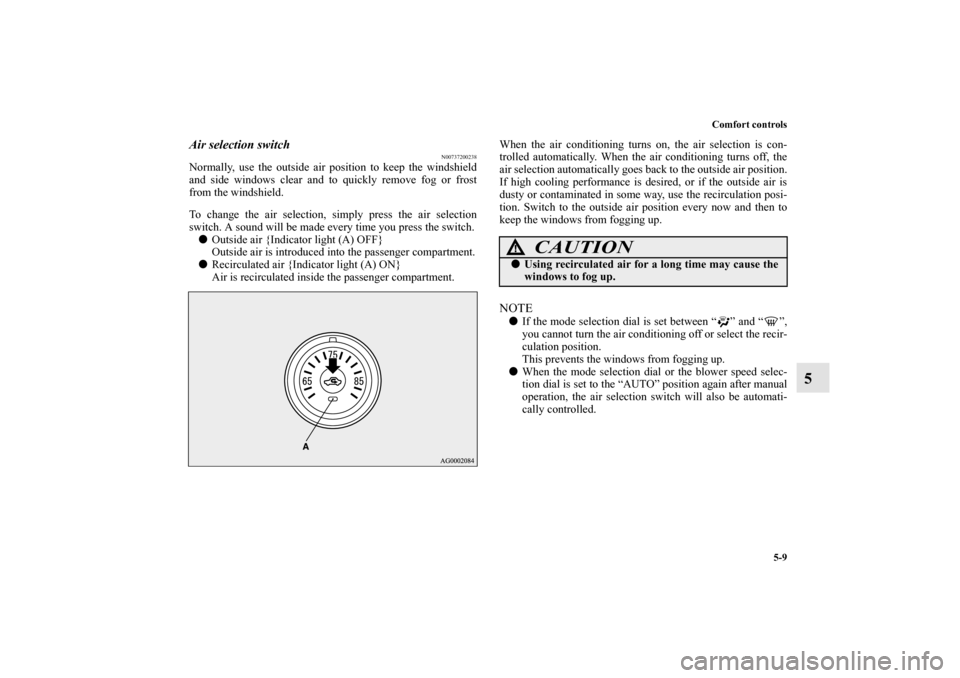

Comfort controls
5-9
5
Air selection switch
N00737200238
Normally, use the outside air position to keep the windshield
and side windows clear and to quickly remove fog or frost
from the windshield.
To change the air selection, simply press the air selection
switch. A sound will be made every time you press the switch.

Outside air {Indicator light (A) OFF}
Outside air is introduced into the passenger compartment.


Recirculated air {Indicator light (A) ON}
Air is recirculated inside the passenger compartment.When the air conditioning turns on, the air selection is con-
trolled automatically. When the air conditioning turns off, the
air selection automatically goes back to the outside air position.
If high cooling performance is desired, or if the outside air is
dusty or contaminated in some way, use the recirculation posi-
tion. Switch to the outside air position every now and then to
keep the windows from fogging up.
NOTE

If the mode selection dial is set between “ ” and “ ”,
you cannot turn the air conditioning off or select the recir-
culation position.
This prevents the windows from fogging up.


When the mode selection dial or the blower speed selec-
tion dial is set to the “AUTO” position again after manual
operation, the air selection switch will also be automati-
cally controlled.
CAUTION
!

Using recirculated air for a long time may cause the
windows to fog up.
BK0103001US.book 9 ページ ２００９年８月２０日　木曜日　午前１０時４５分

5-10 Comfort controls
5
Personalizing the air selection (Changing the function
setting)
N00760000063
You can change the following functions to match your prefer-
ence.

Enable automatic air control:
When the mode selection dial or the blower speed selec-
tion dial is set to the “AUTO” position, the air selection
switch will also be automatically controlled.


Disable automatic air control:
Even when the mode selection dial or the blower speed
selection dial is set to the “AUTO” position, the air selec-
tion switch will not be automatically controlled.


Changing the settings:
Press the air selection switch for about 10 seconds or
longer.
When the setting has changed, the system will beep and
the indicator light will flash.
 When the setting has changed from enabled to disabled,
the system will beep three times and the indicator will
flash three times.
 When the setting has changed from disabled to enabled,
the system will beep two times and the indicator light
will flash three times.
NOTE

The factory setting is “Enable automatic air control”.


While the mode selection dial is set between “ ” and
“ ” position, the air selection will automatically change
to the outside air position, even if the system is set to
“Disable automatic air control”, in order to prevent win-
dows from fogging up.
BK0103001US.book 10 ページ ２００９年８月２０日　木曜日　午前１０時４５分

5-12 Comfort controls
5
Personalizing the air conditioning switch (Changing
the function setting)
N00759800074
You can change the following functions to match your prefer-
ence.

Enable automatic air conditioning control:
When the mode selection dial or blower speed selection
dial has been set to the “AUTO” position or when the tem-
perature control dial has been set to the minimum temper-
ature, the air conditioning switch is automatically
controlled.


Disable automatic air conditioning control:
The air conditioning switch is not automatically con-
trolled, unless the air conditioning switch is used.


Changing the settings:
Press the air conditioning switch for about 10 seconds or
longer.
When the setting has changed, the system will beep and
the indicator light will flash.
 When the setting has changed from enabled to disabled,
the system will beep three times and the indicator will
flash three times.
 When the setting has changed from disabled to enabled,
the system will beep two times and the indicator light
will flash three times.
NOTE

The factory setting is “Enable automatic air conditioning
control”.


While the mode selection dial is set between “ ” and
“ ” position, the air conditioning will run automatically,
even if the system is set to “Disable automatic air condi-
tioning control”, in order to prevent windows from fog-
ging up.
BK0103001US.book 12 ページ ２００９年８月２０日　木曜日　午前１０時４５分

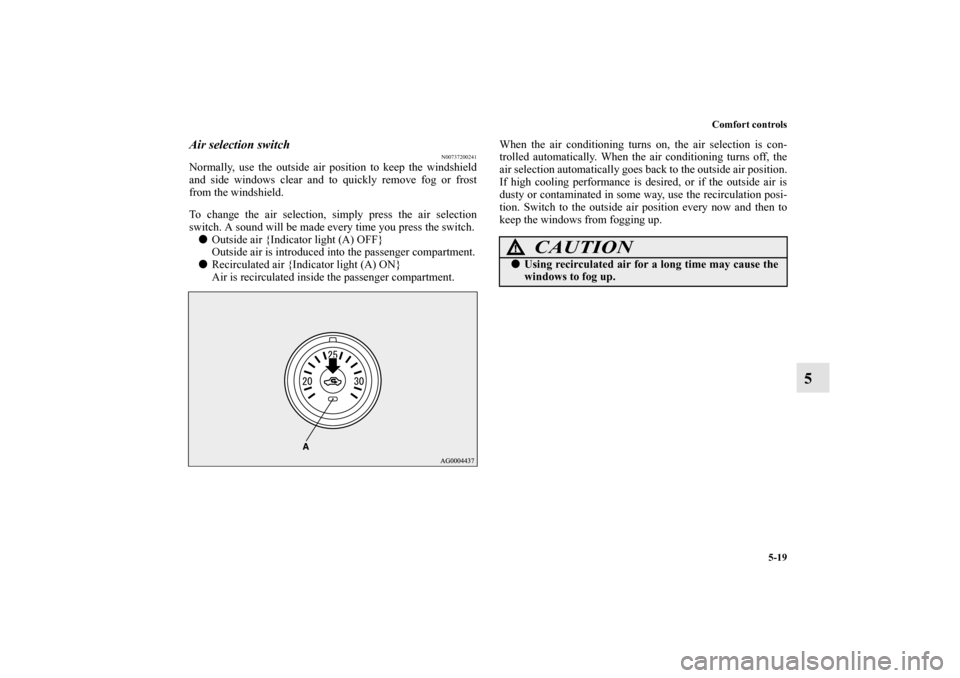

Comfort controls
5-19
5
Air selection switch
N00737200241
Normally, use the outside air position to keep the windshield
and side windows clear and to quickly remove fog or frost
from the windshield.
To change the air selection, simply press the air selection
switch. A sound will be made every time you press the switch.

Outside air {Indicator light (A) OFF}
Outside air is introduced into the passenger compartment.


Recirculated air {Indicator light (A) ON}
Air is recirculated inside the passenger compartment.When the air conditioning turns on, the air selection is con-
trolled automatically. When the air conditioning turns off, the
air selection automatically goes back to the outside air position.
If high cooling performance is desired, or if the outside air is
dusty or contaminated in some way, use the recirculation posi-
tion. Switch to the outside air position every now and then to
keep the windows from fogging up.
CAUTION
!

Using recirculated air for a long time may cause the
windows to fog up.
BK0103001US.book 19 ページ ２００９年８月２０日　木曜日　午前１０時４５分

5-20 Comfort controls
5
Personalizing the air selection (Changing the function
setting)
N00760000076
You can change the following functions to match your prefer-
ence.

Enable automatic air control:
When the mode selection dial or the blower speed selec-
tion dial is set to the “AUTO” position, the air selection
switch will also be automatically controlled.


Disable automatic air control:
Even when the mode selection dial or the blower speed
selection dial is set to the “AUTO” position, the air selec-
tion switch will not be automatically controlled.


Changing the settings:
Press the air selection switch for about 10 seconds or
longer.
When the setting has changed, the system will beep and
the indicator light will flash.
 When the setting has changed from enabled to disabled,
the system will beep three times and the indicator will
flash three times.
 When the setting has changed from disabled to enabled,
the system will beep two times and the indicator light
will flash three times.
NOTE

The factory setting is “Enable automatic air control”.


While the mode selection dial is set to the “ ” position,
the air selection will automatically change to the outside
air position, even if the system is set to “Disable auto-
matic air control”, in order to prevent windows from fog-
ging up.
BK0103001US.book 20 ページ ２００９年８月２０日　木曜日　午前１０時４５分

5-22 Comfort controls
5
Personalizing the air conditioning switch (Changing
the function setting)
N00759800087
You can change the following functions to match your prefer-
ence.

Enable automatic air conditioning control:
When the mode selection dial or blower speed selection
dial has been set to the “AUTO” position or when the tem-
perature control dial has been set to the minimum temper-
ature, the air conditioning switch is automatically
controlled.


Disable automatic air conditioning control:
The air conditioning switch is not automatically con-
trolled, unless the air conditioning switch is used.


Changing the settings:
Press the air conditioning switch for about 10 seconds or
longer.
When the setting has changed, the system will beep and
the indicator light will flash.
 When the setting has changed from enabled to disabled,
the system will beep three times and the indicator will
flash three times.
 When the setting has changed from disabled to enabled,
the system will beep two times and the indicator light
will flash three times.
NOTE

The factory setting is “Enable automatic air conditioning
control”.


While the mode selection dial is set to the “ ” position,
the air conditioning will run automatically, even if the sys-
tem is set to “Disable automatic air conditioning control”,
in order to prevent windows from fogging up.
BK0103001US.book 22 ページ ２００９年８月２０日　木曜日　午前１０時４５分
