3-208 Features and controls
3

Immobilizer is registered.
Refer to “Electronic immobilizer
(Anti-theft starting system)” on page
3-7, 3-43.

The brake fluid level is low.

There is a fault in the brake system.
Park the vehicle in a safe place and
contact an authorized Mitsubishi
Motors dealer or a repair facility of
your choice for assistance.
Refer to “Brake warning display” on
page 3-217.

There is a fault in the Anti-lock brak-
ing system.
Avoid sudden braking and high-speed
driving, park the vehicle in a safe
place, and take corrective measures.
Refer to “Anti-lock braking system
warning light/display” on page 3-136.

The tire pressure in one of the tires
(except spare tire) is low.
Refer to “Tire Pressure Monitoring
System” on page 3-153.

There is a fault in the Tire Pressure
Monitoring System.
Refer to “Tire Pressure Monitoring
System” on page 3-153.
Screen type 1
Screen type 2
Cause
Do this (Reference)
BK0103001US.book 208 ページ ２００９年８月２０日　木曜日　午前１０時４５分

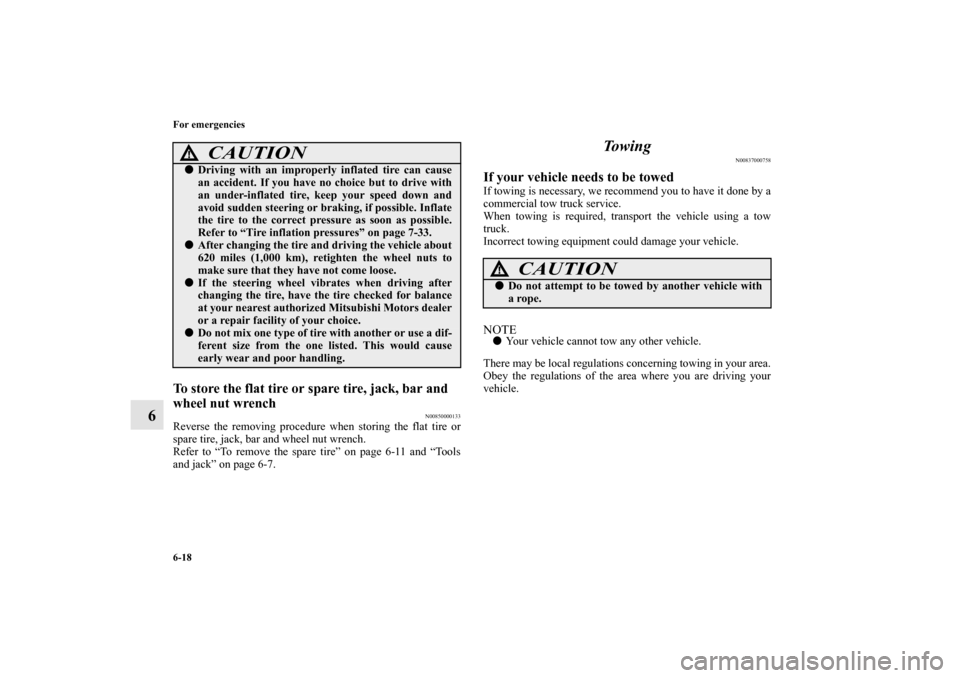

6-18 For emergencies
6
To store the flat tire or spare tire, jack, bar and
wheel nut wrench
N00850000133
Reverse the removing procedure when storing the flat tire or
spare tire, jack, bar and wheel nut wrench.
Refer to “To remove the spare tire” on page 6-11 and “Tools
and jack” on page 6-7.
To w i n g
N00837000758
If your vehicle needs to be towedIf towing is necessary, we recommend you to have it done by a
commercial tow truck service.
When towing is required, transport the vehicle using a tow
truck.
Incorrect towing equipment could damage your vehicle.NOTE

Your vehicle cannot tow any other vehicle.
There may be local regulations concerning towing in your area.
Obey the regulations of the area where you are driving your
vehicle.
CAUTION
!

Driving with an improperly inflated tire can cause
an accident. If you have no choice but to drive with
an under-inflated tire, keep your speed down and
avoid sudden steering or braking, if possible. Inflate
the tire to the correct pressure as soon as possible.
Refer to “Tire inflation pressures” on page 7-33.


After changing the tire and driving the vehicle about
620 miles (1,000 km), retighten the wheel nuts to
make sure that they have not come loose.


If the steering wheel vibrates when driving after
changing the tire, have the tire checked for balance
at your nearest authorized Mitsubishi Motors dealer
or a repair facility of your choice.


Do not mix one type of tire with another or use a dif-
ferent size from the one listed. This would cause
early wear and poor handling.
CAUTION
!

Do not attempt to be towed by another vehicle with
a rope.
BK0103001US.book 18 ページ ２００９年８月２０日　木曜日　午前１０時４５分

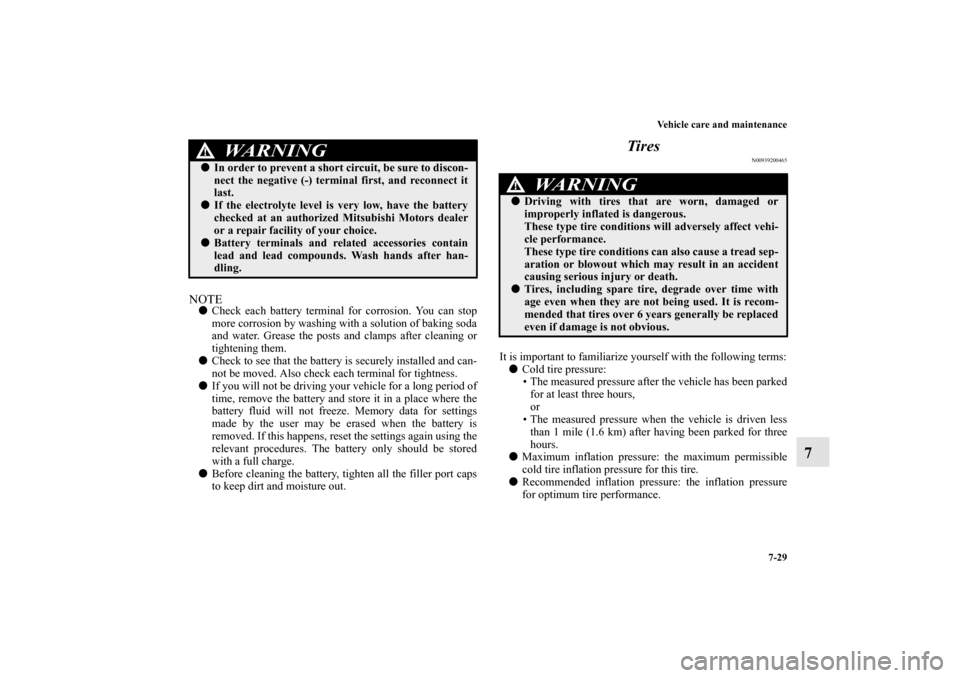

Vehicle care and maintenance
7-29
7
NOTE

Check each battery terminal for corrosion. You can stop
more corrosion by washing with a solution of baking soda
and water. Grease the posts and clamps after cleaning or
tightening them.


Check to see that the battery is securely installed and can-
not be moved. Also check each terminal for tightness.


If you will not be driving your vehicle for a long period of
time, remove the battery and store it in a place where the
battery fluid will not freeze. Memory data for settings
made by the user may be erased when the battery is
removed. If this happens, reset the settings again using the
relevant procedures. The battery only should be stored
with a full charge.


Before cleaning the battery, tighten all the filler port caps
to keep dirt and moisture out.
Tires
N00939200465
It is important to familiarize yourself with the following terms:

Cold tire pressure:
 The measured pressure after the vehicle has been parked
for at least three hours,
or
 The measured pressure when the vehicle is driven less
than 1 mile (1.6 km) after having been parked for three
hours.


Maximum inflation pressure: the maximum permissible
cold tire inflation pressure for this tire.


Recommended inflation pressure: the inflation pressure
for optimum tire performance.


In order to prevent a short circuit, be sure to discon-
nect the negative (-) terminal first, and reconnect it
last.


If the electrolyte level is very low, have the battery
checked at an authorized Mitsubishi Motors dealer
or a repair facility of your choice.


Battery terminals and related accessories contain
lead and lead compounds. Wash hands after han-
dling. WA R N I N G
!
WA R N I N G
!

Driving with tires that are worn, damaged or
improperly inflated is dangerous.
These type tire conditions will adversely affect vehi-
cle performance.
These type tire conditions can also cause a tread sep-
aration or blowout which may result in an accident
causing serious injury or death.


Tires, including spare tire, degrade over time with
age even when they are not being used. It is recom-
mended that tires over 6 years generally be replaced
even if damage is not obvious.
BK0103001US.book 29 ページ ２００９年８月２０日　木曜日　午前１０時４５分

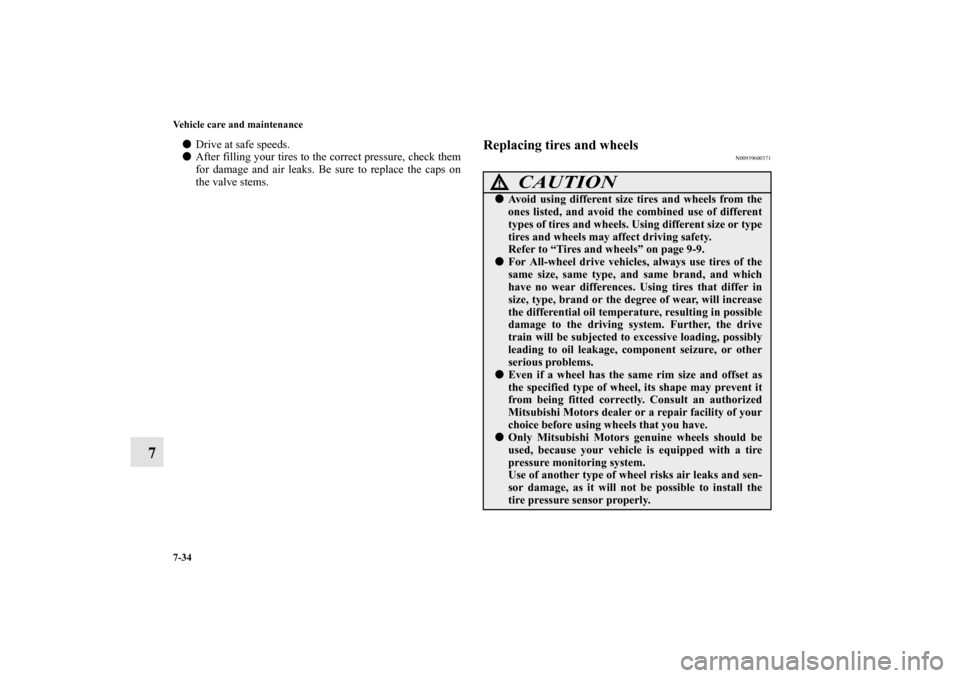

7-34 Vehicle care and maintenance
7


Drive at safe speeds.


After filling your tires to the correct pressure, check them
for damage and air leaks. Be sure to replace the caps on
the valve stems.
Replacing tires and wheels
N00939600371
CAUTION
!

Avoid using different size tires and wheels from the
ones listed, and avoid the combined use of different
types of tires and wheels. Using different size or type
tires and wheels may affect driving safety.
Refer to “Tires and wheels” on page 9-9.


For All-wheel drive vehicles, always use tires of the
same size, same type, and same brand, and which
have no wear differences. Using tires that differ in
size, type, brand or the degree of wear, will increase
the differential oil temperature, resulting in possible
damage to the driving system. Further, the drive
train will be subjected to excessive loading, possibly
leading to oil leakage, component seizure, or other
serious problems.


Even if a wheel has the same rim size and offset as
the specified type of wheel, its shape may prevent it
from being fitted correctly. Consult an authorized
Mitsubishi Motors dealer or a repair facility of your
choice before using wheels that you have.


Only Mitsubishi Motors genuine wheels should be
used, because your vehicle is equipped with a tire
pressure monitoring system.
Use of another type of wheel risks air leaks and sen-
sor damage, as it will not be possible to install the
tire pressure sensor properly.
BK0103001US.book 34 ページ ２００９年８月２０日　木曜日　午前１０時４５分

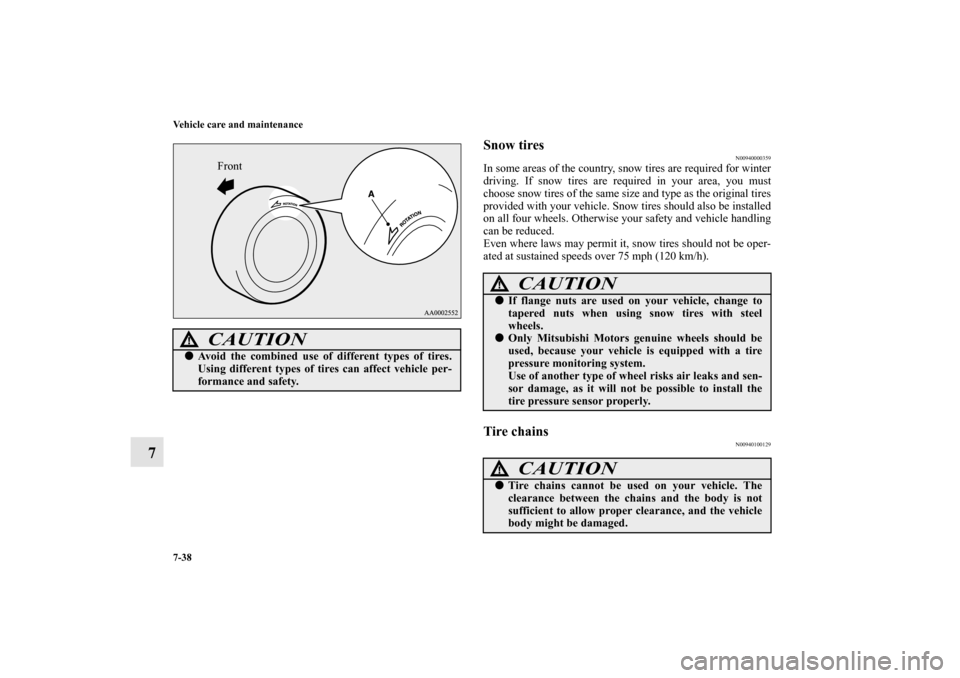

7-38 Vehicle care and maintenance
7
Snow tires
N00940000359
In some areas of the country, snow tires are required for winter
driving. If snow tires are required in your area, you must
choose snow tires of the same size and type as the original tires
provided with your vehicle. Snow tires should also be installed
on all four wheels. Otherwise your safety and vehicle handling
can be reduced.
Even where laws may permit it, snow tires should not be oper-
ated at sustained speeds over 75 mph (120 km/h).Tire chains
N00940100129
CAUTION
!

Avoid the combined use of different types of tires.
Using different types of tires can affect vehicle per-
formance and safety.
Front
CAUTION
!

If flange nuts are used on your vehicle, change to
tapered nuts when using snow tires with steel
wheels.


Only Mitsubishi Motors genuine wheels should be
used, because your vehicle is equipped with a tire
pressure monitoring system.
Use of another type of wheel risks air leaks and sen-
sor damage, as it will not be possible to install the
tire pressure sensor properly.CAUTION
!

Tire chains cannot be used on your vehicle. The
clearance between the chains and the body is not
sufficient to allow proper clearance, and the vehicle
body might be damaged.
BK0103001US.book 38 ページ ２００９年８月２０日　木曜日　午前１０時４５分

7-44 Vehicle care and maintenance
7General maintenance
N00941500159
The next pages list the maintenance service recommended by
Mitsubishi Motors Corporation. In addition to the general
maintenance that needs to be performed at the times listed,
there are other parts which do not usually need regular mainte-
nance.
But, if any of these parts stops working properly, your vehicle
performance could suffer. Have these items checked if you
notice a problem with them.
See your authorized Mitsubishi Motors dealer for assistance, if
you have any questions.Disc brake pads
N00941600075
Good brakes are essential to safe driving. Check the brake pads
for wear. For good braking performance, replace the brake pads
with the same type pads as the originals.Brake hoses
N00941700047
Brake hoses and tubing should be checked for:

Severe surface cracking, scuffing or worn spots. If the
fabric casing of the hose is showing through any cracks or
worn spots in the rubber hose cover, the hose should be
replaced. The brakes can fail if the hose wears through.


Improper installation may cause twisting, or wheel, tire or
chassis interference.
Ball joint, steering linkage seals and drive shaft
boots
N00941800077
Check the following parts for damage and grease leaks:

Ball joint boots of the front suspension and steering link-
age


Bellows on both ends of the drive shaft
BK0103001US.book 44 ページ ２００９年８月２０日　木曜日　午前１０時４５分

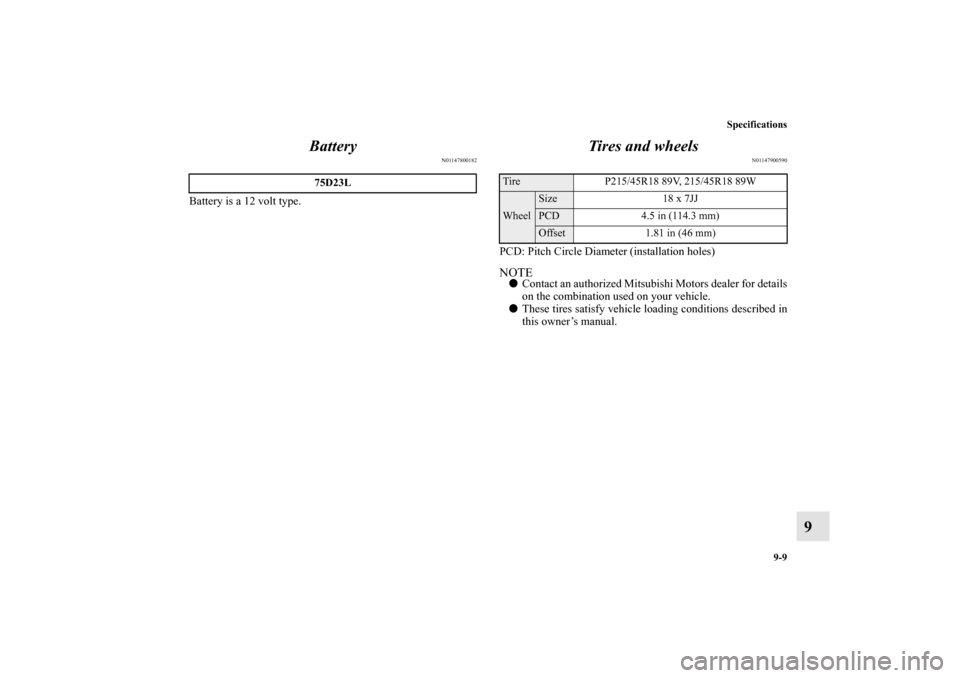

Specifications
9-9
9 Battery
N01147800182
Battery is a 12 volt type.
Tires and wheels
N01147900590
PCD: Pitch Circle Diameter (installation holes)NOTE

Contact an authorized Mitsubishi Motors dealer for details
on the combination used on your vehicle.


These tires satisfy vehicle loading conditions described in
this owner’s manual.
75D23L
Tire P215/45R18 89V, 215/45R18 89WWheel
Size 18 x 7JJPCD 4.5 in (114.3 mm)Offset 1.81 in (46 mm)
