2010 MITSUBISHI LANCER SPORTBACK ignition

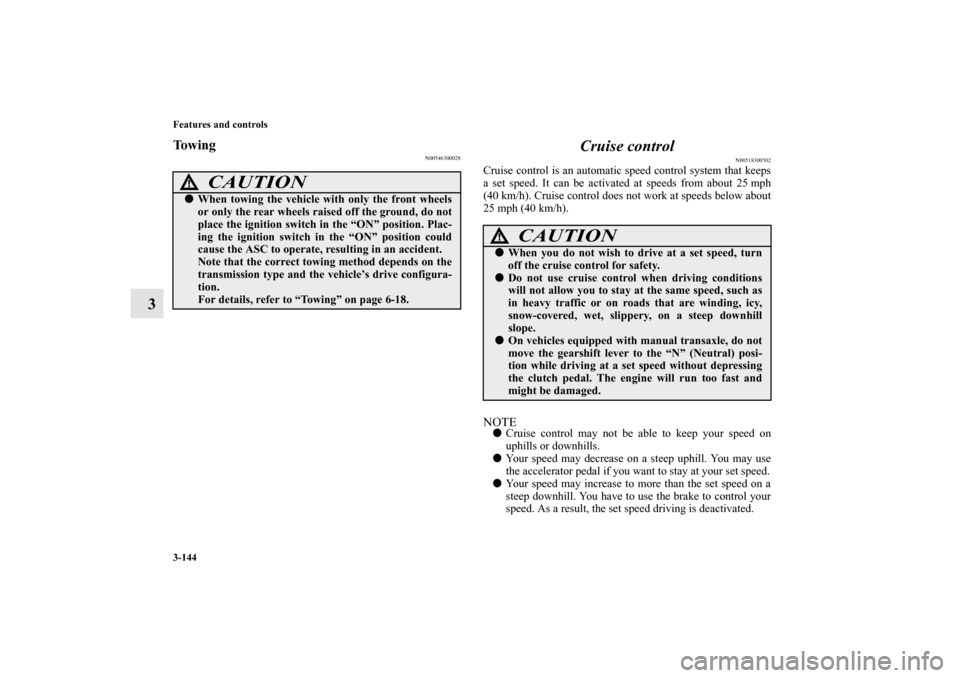

3-144 Features and controls
3
To w i n g
N00546300028
Cruise control
N00518300502
Cruise control is an automatic speed control system that keeps
a set speed. It can be activated at speeds from about 25 mph
(40 km/h). Cruise control does not work at speeds below about
25 mph (40 km/h).NOTE

Cruise control may not be able to keep your speed on
uphills or downhills.


Your speed may decrease on a steep uphill. You may use
the accelerator pedal if you want to stay at your set speed.


Your speed may increase to more than the set speed on a
steep downhill. You have to use the brake to control your
speed. As a result, the set speed driving is deactivated.
CAUTION
!

When towing the vehicle with only the front wheels
or only the rear wheels raised off the ground, do not
place the ignition switch in the “ON” position. Plac-
ing the ignition switch in the “ON” position could
cause the ASC to operate, resulting in an accident.
Note that the correct towing method depends on the
transmission type and the vehicle’s drive configura-
tion.
For details, refer to “Towing” on page 6-18.
CAUTION
!

When you do not wish to drive at a set speed, turn
off the cruise control for safety.


Do not use cruise control when driving conditions
will not allow you to stay at the same speed, such as
in heavy traffic or on roads that are winding, icy,
snow-covered, wet, slippery, on a steep downhill
slope.


On vehicles equipped with manual transaxle, do not
move the gearshift lever to the “N” (Neutral) posi-
tion while driving at a set speed without depressing
the clutch pedal. The engine will run too fast and
might be damaged.
BK0103001US.book 144 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-146 Features and controls
3
To activate
N00518400314
1. With the ignition switch in the “ON” position, press the
“ON OFF” switch (A) to turn on the cruise control. The
“CRUISE” indicator light in the meter cluster will come
on.
NOTE

If the cruise control is on when the ignition switch is
turned to “LOCK” or “ACC” position, cruise control will
be on automatically the next time you start the engine.
The “CRUISE” indicator light will also be on.


If the battery voltage is insufficient, the memory data for
the cruise control may be erased.
As a result, the “CRUISE” indicator light may not come
on when you restart the engine.
If this happens, press the “ON OFF” switch once again to
turn on the cruise control.
Ty p e 1
Ty p e 2
BK0103001US.book 146 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-153
3
Under either of the following conditions, however, using the
switch does not allow you to resume the previously set speed.
In these situations, repeat the speed setting procedure:

The “ON OFF” switch is pressed.


The ignition switch is turned OFF.


“CRUISE” indicator light is turned OFF.
Tire pressure monitoring system
N00530200309
The tire pressure monitoring system uses tire inflation pressure
sensors (A) on the wheels to monitor the tire inflation pres-
sures. The system only indicates when a tire is significantly
under-inflated.
WA R N I N G
!

The spare wheel does not have a tire inflation pres-
sure sensor.
When the spare tire is used, the tire pressure moni-
toring system will not work properly.
See an authorized Mitsubishi Motors dealer as soon
as possible to replace or repair the original tire.
BK0103001US.book 153 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-154 Features and controls
3
NOTE

The tire pressure monitoring system is not a substitute for
regularly checking tire inflation pressures.
Be sure to check the tire inflation pressures as described in
“Tires” on page 7-29.


Each of the grommets (A) and washers (B) where the tire
inflation pressure sensors (C) are mounted should be
replaced with new ones when the tire is replaced.
For details, contact your authorized Mitsubishi Motors
dealer.
The tire pressure monitoring system warning
light/display
N00532700265
When the ignition switch is turned to the “ON” position, the
tire pressure monitoring system warning light normally illumi-
nates and goes off a few seconds later.
If one or more of the vehicle tires (except for the spare tire) is
significantly under-inflated, however, the warning light will
remain illuminated while the ignition switch is in the “ON”
position.
Refer to “If the warning light illuminates while driving” on
page 3-157 and take the necessary measures.NOTE

In addition, the warning display is displayed on the infor-
mation screen in the multi-information display.
BK0103001US.book 154 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-155
3
NOTE

In addition, the warning display is displayed on the infor-
mation screen in the multi-information display.
CAUTION
!

The tire pressure monitoring system warning light
does not illuminate when the ignition switch is
turned to the “ON” position, it means that the tire
pressure monitoring system is not working properly.
Have the system inspected by an authorized Mitsub-
ishi Motors dealer.
In such situations, a malfunctioning of the system
may be preventing the monitoring of the tire pres-
sure. Avoid sudden braking, sharp turning and
high-speed driving.


If a malfunction is detected in the tire pressure mon-
itoring system, the tire pressure monitoring system
warning light will blink for approximately 1 minute
and then remain continuously illuminated. The
warning light will issue further warnings each time
the engine is restarted as long as the malfunction
exists.
Check to see whether the warning light goes off after
few minutes driving.
If it then goes off during driving, there is no prob-
lem.
However, if the warning light does not go off, or if it
blinks again when the engine is restarted, have the
vehicle inspected by an authorized Mitsubishi
Motors dealer.
In such situations, a malfunctioning of the system
may be preventing the monitoring of the tire pres-
sure. For safety reasons, when the warning light
appears while driving, avoid sudden braking, sharp
turning and high-speed driving.
BK0103001US.book 155 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-163
3
NOTE

You can adjust to 8 different levels respectively for when
the tail lights are illuminated and when they are not.


If the vehicle is equipped with the automatic light control,
when the light switch is in the “AUTO” position, the
meter illumination switches automatically to the adjusted
brightness, depending on the brightness outside the vehi-
cle.


The brightness level of the instruments is stored in mem-
ory when the ignition switch is turned off.


If you press and hold the button for longer than about 1
second, the brightness automatically scrolls through its
different levels, and stops scrolling when you release the
button. Select your desired level of brightness. (except for
vehicles equipped with the color multi information dis-
play)


If you press and hold the button for longer than about 1
second when the parking lights are illuminated, the bright-
ness level changes to the maximum level. Pressing and
holding the button for longer than about 1 second again
returns the brightness level to the previous level. (for
vehicles equipped with the color multi information dis-
play)
BK0103001US.book 163 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-164 Features and controls
3Multi-information display
N00555000148
[Except for vehicles equipped with Twin Clutch SST]Always stop the vehicle in a safe place before operating.
The multi-information display displays warnings, the odometer/trip odometer, service reminder, engine coolant temperature, fuel
remaining, outside temperature, selector lever position, average and momentary fuel consumption, driving range, average speed,
instrument brightness, etc.
It is also possible to change elements such as the language and units used on the multi-information display.
With ignition switch is
“OFF” positionWith ignition switch is “ON” position
{Continuously variable transmission (CVT)}With ignition switch is “ON”
position (Manual transaxle)
Type 1 Type 2 Type 1 Type 1Type 2 Type 2
1-
warning display screen (With ignition switch in the
“OFF” position) → P.3-168
2- Information screen (With ignition switch in the “OFF” posi-
tion) → P.3-168
Interrupt display screen (With ignition switch in the “OFF”
position) → P.3-171
3- Door ajar warning display screen (With ignition switch in the
“OFF” position) → P. 3 - 1 7 2
4-
warning display screen (With ignition switch in the “ON”
position) → P.3-175
5- Active stability control (ASC) OFF display screen (if so
equipped) → P.3-175
BK0103001US.book 164 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-165
3
6- Information screen (With ignition switch in the “ON” posi-
tion) → P.3-176
Interrupt display screen (With ignition switch in the “ON”
position) → P.3-180
7- Fuel remaining display screen → P.3-183
8- Outside temperature display screen → P.3-182
9- Selector lever position display screen (CVT) → P.3-182
