2010 MITSUBISHI LANCER Setting

Map Screen 2-5
Basic Operation
Map Screen
The current position of your vehicle is
displayed on the “Current Location Screen”.
Current Location Screen
eng_a006
1) Maneuver Icon
When a route is set, displays whether to turn left or
right at the next intersection of the guidance, and
the distance to this intersection.
2) Direction Box
When a route is set, displays the route number or street
name of the next street to turn onto.3) Vehicle Mark
Shows the position of the vehicle being driven.
4) Guidance Route
When a route is set, shows the route to the
destination.
5) [Route]
[Route] is displayed only while setting route. When
touched, shows Route Menu
(page 2-4)
.
6) Street Name
Displays the name of the street currently being
traveled.7) Destination/Way Point Information
When a route is set, shows the distance and time
to the destination or way point.
8) Map Scale
Shows the scale of the displayed map.
9) Destination/Way Point Direction Icon

Shows the direction to the destination or way point. Only displayed when a route has been set.
10) Orientation Mark
Shows the orientation of the displayed map.
1)
10) 2)
9)
8)
7)
6) 3)
4)
5)









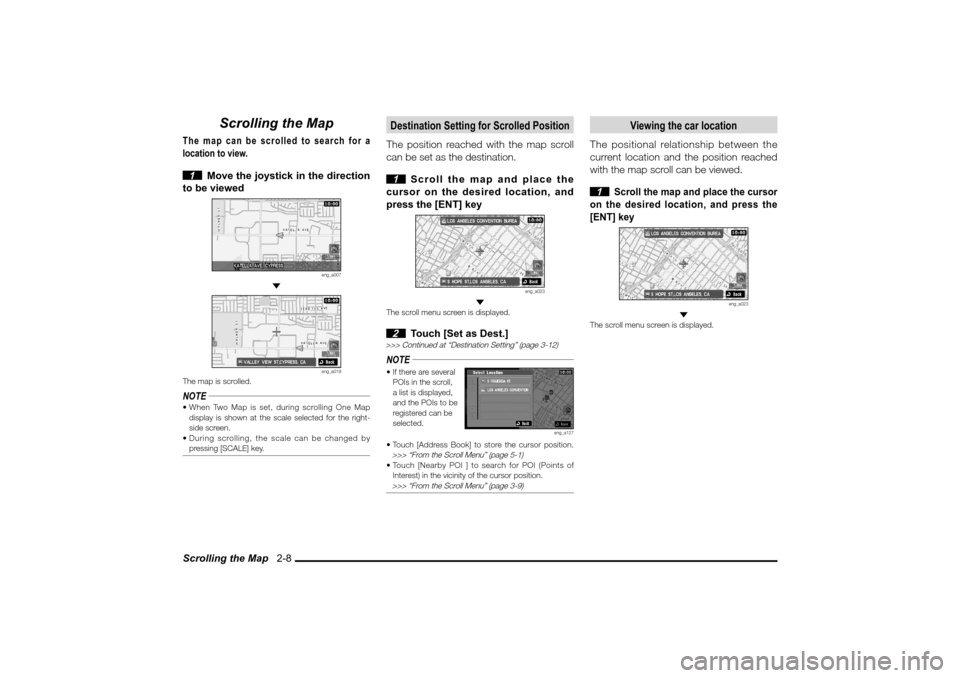

Scrolling the Map 2-8
Scrolling the Map
The map can be scrolled to search for a
location to view.
1 Move the joystick in the direction
to be viewed
eng_a007

eng_a019
The map is scrolled.NOTE When Two Map is set, during scrolling One Map
display is shown at the scale selected for the right-
side screen.
 During scrolling, the scale can be changed by
pressing [SCALE] key.
Destination Setting for Scrolled PositionThe position reached with the map scroll
can be set as the destination.
1 Scroll the map and place the
cursor on the desired location, and
press the [ENT] key
eng_a023

The scroll menu screen is displayed. 2 Touch [Set as Dest.]
>>> Continued at “Destination Setting” (page 3-12)NOTE If there are several
POIs in the scroll,
a list is displayed,
and the POIs to be
registered can be
selected.
eng_a127
 Touch [Address Book] to store the cursor position. >>> “From the Scroll Menu” (page 5-1) Touch [Nearby POI
] to search for POI (Points of
Interest) in the vicinity of the cursor position.
>>> “From the Scroll Menu” (page 3-9)
Viewing the car location
The positional relationship between the
current location and the position reached
with the map scroll can be viewed.
1
Scroll the map and place the cursor
on the desired location, and press the
[ENT] key
eng_a023

The scroll menu screen is displayed.









Intersection Guidance 2-10
Intersection Guidance
An enlarged intersection map is displayed
when an intersection is approached.
The guidance mode can be changed with the
settings.
NOTE Refer to
“Guidance Mode” (page 10-14)
for details on
how to change the guidance mode.
Guidance Map
The screen changes from the normal map
screen to the intersection guidance map.
eng_a025
NOTE The ferry mark is displayed when
there is a ferry terminal.
eng_a030

eng_a026
Turn List
The screen changes from the turn list to
the intersection guidance map.
eng_a027
NOTE The toll booth mark is displayed
when there is a toll booth.
eng_a207
 The ferry mark is displayed when
there is a ferry terminal.
eng_a029

eng_a026









Listening to the Voice Guide 2-12Listening to the Voice GuideThe voice guide provides information
regarding the distance to the next intersection
on the route and the direction you should turn.
The voice guide comes on automatically
when approaching in intersection, but can
be activated at any time by the following
operation:
1 Touch the [Maneuver icon]
Maneuver Icon
eng_a032

eng_a033
The intersection guidance map is displayed, and voice
guidance is performed.NOTE The voice guidance volume and male or female voice
selection can be changed.
>>> “Other Settings” (page 10-5)









How to Enter Text 2-13
Basic Operation
How to Enter Text
The text input keyboard is displayed when
searching for a location or for the name of a
stored location.
Capital letters, small letters, and symbols can
be input depending on the function.
NOTE The examples in this section all show the screen
for editing stored locations, but operations for other
input keyboards are performed in the same way.
 The keyboard layout can be changed between
[Alphabet] and [PC] using “Keyboard Layout” in
“Other Settings”
(page 10-6)
eng_a036
Entering a letter
1 Touch the letters

eng_a036
The touched letters are input.
Entering a Symbol
1 Touch [More]
2 Touch the symbols
eng_a038

eng_a039
The touched symbols are input.
Deleting Text
1 Touch [
]
eng_a039

eng_a036
The letters are deleted one by one.









Basic Method 3-1
Destination
Destination
Navigation operations start with the location
search.
If a map of the destination can be displayed,
the route to the destination can be set and the
location can be stored in the address book.
The following search methods are available
to search for locations according to various
conditions.
Basic Method
From Address/Intersection (page 3-2)Used when the address or intersection of 2 streets at
the destination is known.Points of Interest (POI) Name (page 3-5)Used when the name of the desired POI is known.Previous 20 (page 3-7)A new destination can be set from the 20 destinations
that have been previously set.Address Book (page 3-7)If a location has already been stored
(page 5-1)
in
the address book, it can be called up and set as the
destination.
Go Home (page 3-7)If the home location has already been stored
(page
5-3)
, the route to go home can be set.
“POI”=Points of Interest
Advanced Search
Nearby POI
(page 3-8)
Searching for POI in the vicinity of the current location.POI along Rout
e (page 3-9)
Searching for POI along the set route.POI by Dest./Way Point (page 3-9)Searching for POI in the vicinity of the set destination/
way point.POI along a Street (page 3-10)Searching for POI along a speci ed street.POI by Freeway (page 3-10)Searching for POI along a freeway or in the vicinity of
the exit.
Can only be used when driving on a freeway.Map Point (page 3-11)Searching for a location by scrolling
(page 2-8)
the
map.
Return Trip (page 3-11)The starting position when setting a route can be set
as a new destination.Latitude/Longitude (page 3-11)The destination can be set by specifying the latitude/
longitude.









Basic Method 3-4 8 Touch [Set]
eng_a056
>>> Continued at “Destination Setting” (page 3-12)NOTEThe house number or intersection name can then be
speci ed to set a more detailed address. Both cannot
be speci ed.
 Touch [All House Numbers] to set a detailed address
by inputting the house number.
>>> “House Number Input” (page 3-4) Touch [All Intersections] to set a detailed address by
inputting the intersection name.
>>> “Intersection Input” (page 3-5)
House Number InputThe house number can be input to set a detailed
address. 1
Input the “State”, “City” and
“Street” in
“From Address/Intersection”
(page 3-2)
2 Touch the “House #” button
3 Input the house number
>>> “How to Enter Text” (page 2-13)
eng_a057
NOTE Letters can also be
input by touching
[Keyboard].
eng_a058
Touch [Numeric Input] to return to the original
numeric input screen.
4 Touch [Set]
eng_a059
5 Touch [Set]
eng_a060
>>> Continued at “Destination Setting” (page 3-12)









Basic Method 3-5
Destination
Intersection InputThe intersection name can be input to set a detailed
address. 1
Input the “State”, “City” and “Street”
in
“From Address/Intersection” (page 3-2) 2 Touch the “Intersection” button
3 Touch the intersection to be set
as the destination
eng_a061
4 Touch [Set]
eng_a062
>>> Continued at “Destination Setting” (page 3-12)
Points of Interest (POI) Name
Used when the name of the desired POI is
known.
1 Display the Navi Menu and touch
[Point of Interest]
2 Input the “State” and “City”
Input the “State” and “City” with the same operations
as in
“From Address/Intersection” (page 3-2).
eng_a063-1
3 Touch the “Category” button
The “POI Category” screen is displayed.
The operation in step 5 can be performed even if a
category is not selected. 4 Touch the category of the desired
POI
eng_a064
NOTE Touch [My Categories] to select frequently used
categories that have already been stored. Refer to “Editing My Categories” (page 3-6)
for details on
storing a category.
 One of the five most recently selected categories
can be selected by touching [Last 5].
 Touch [All] to select from all categories.
5 Touch category type to select
6 Touch the “Point of Interest”
button
7 Input the POI name
>>> “How to Enter Text” (page 2-13)
eng_a065
NOTE If there is only one candidate when a character is
input for the POI name, go to step 7.
 If there are five
candidates or less
when a character is
input for the POI name,
a list is displayed
and a POI can be
selected from the list.
eng_a066
 For large facilities such as airports, will be shown
and you can select the related facility.
