2010 MITSUBISHI L200 Owners Manual

Exterior - front (Single cab)
E00100503952 1. Wiper and washers p. 3-36
2.
Antenna p. 5-50
3. Outside rear-view mirrors p. 4-10
4. Fuel tank filler door p. 02
5. Locking and unlocking p. 1-02
6. Side turn-signal lamps p. 3-33, 8-24, 8-28
7. Front turn-signal lamps p. 3-33, 8-24, 8-27
8. Headlamps p. 3-30, 8-24, 3-31 Position lamps p. 3-30, 8-24, 8-27
9. Headlamp washers* p. 3-39
10. Engine compartment p. 9-22 Bonnet p. 8-03 Overview12
3
45
6
7
8
9
10
OCRE12E1

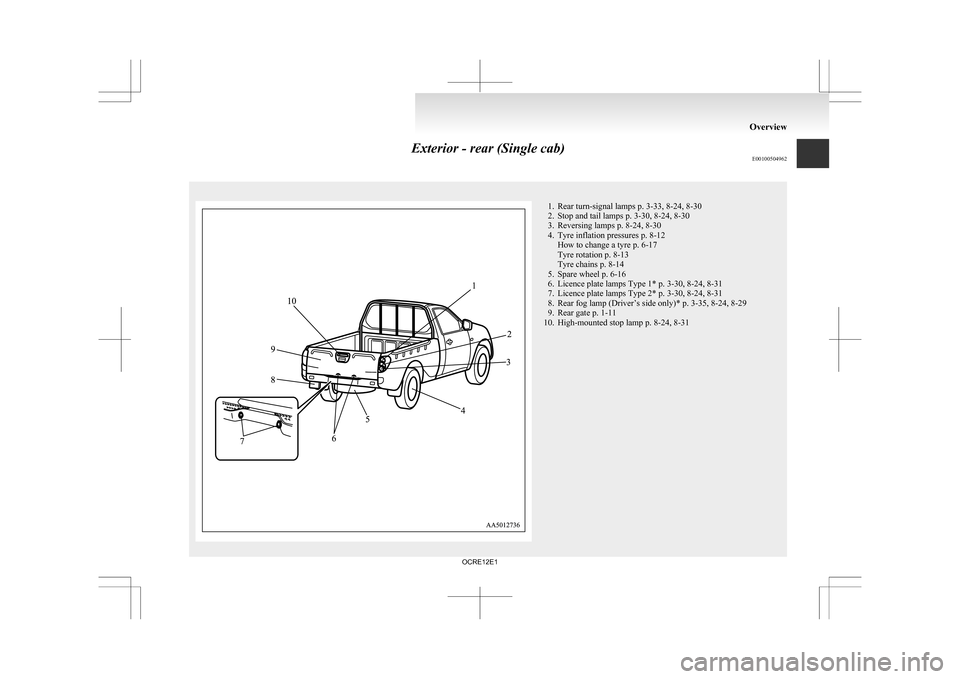

Exterior - rear (Single cab)
E00100504962 1. Rear turn-signal lamps p. 3-33, 8-24, 8-30
2.
Stop and tail lamps p. 3-30, 8-24, 8-30
3. Reversing lamps p. 8-24, 8-30
4. Tyre inflation pressures p. 8-12 How to change a tyre p. 6-17
Tyre rotation p. 8-13
Tyre chains p. 8-14
5. Spare wheel p. 6-16
6. Licence plate lamps Type 1* p. 3-30, 8-24, 8-31
7. Licence plate lamps Type 2* p. 3-30, 8-24, 8-31
8. Rear fog lamp (Driver’s side only)* p. 3-35, 8-24, 8-29
9. Rear gate p. 1-11
10. High-mounted stop lamp p. 8-24, 8-31 Overview
OCRE12E1

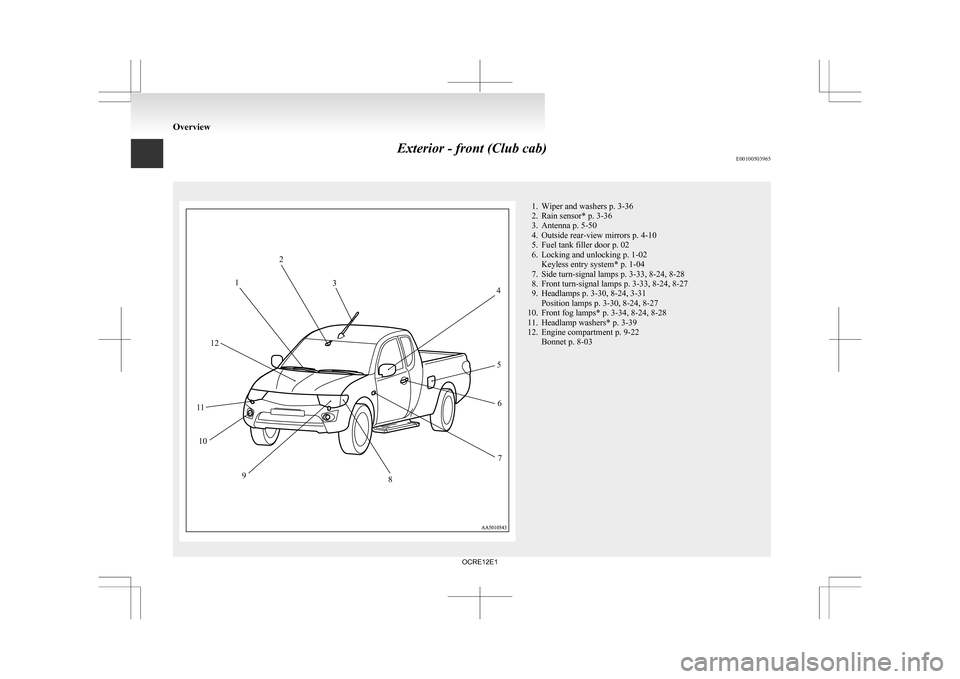

Exterior - front (Club cab)
E00100503965 1. Wiper and washers p. 3-36
2.
Rain sensor* p. 3-36
3. Antenna p. 5-50
4. Outside rear-view mirrors p. 4-10
5. Fuel tank filler door p. 02
6. Locking and unlocking p. 1-02 Keyless entry system* p. 1-04
7. Side turn-signal lamps p. 3-33, 8-24, 8-28
8. Front turn-signal lamps p. 3-33, 8-24, 8-27
9. Headlamps p. 3-30, 8-24, 3-31 Position lamps p. 3-30, 8-24, 8-27
10. Front fog lamps* p. 3-34, 8-24, 8-28
11. Headlamp washers* p. 3-39
12. Engine compartment p. 9-22 Bonnet p. 8-03 Overview12
3 4
5 6
7
8
9
10
11 12
OCRE12E1

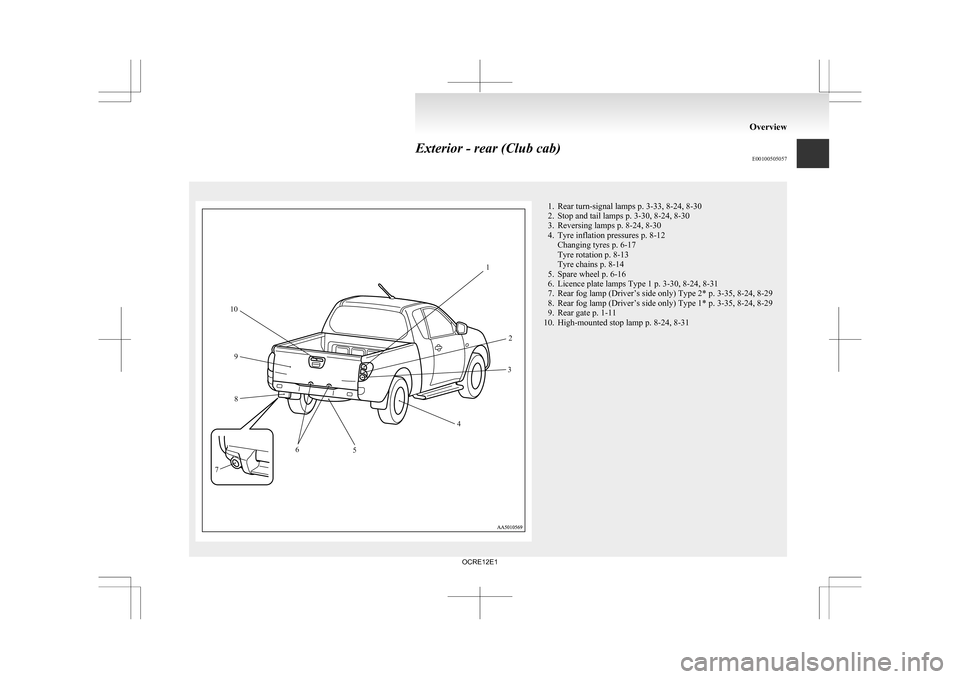

Exterior - rear (Club cab)
E00100505057 1. Rear turn-signal lamps p. 3-33, 8-24, 8-30
2.
Stop and tail lamps p. 3-30, 8-24, 8-30
3. Reversing lamps p. 8-24, 8-30
4. Tyre inflation pressures p. 8-12 Changing tyres p. 6-17
Tyre rotation p. 8-13
Tyre chains p. 8-14
5. Spare wheel p. 6-16
6. Licence plate lamps Type 1 p. 3-30, 8-24, 8-31
7. Rear fog lamp (Driver’s side only) Type 2* p. 3-35, 8-24, 8-29
8. Rear fog lamp (Driver’s side only) Type 1* p. 3-35, 8-24, 8-29
9. Rear gate p. 1-11
10. High-mounted stop lamp p. 8-24, 8-31 Overview12
3
4
5
6
7 8
9
10
OCRE12E1

Exterior - front (Double cab)
E00100503981 1. Wiper and washers p. 3-36
2.
Rain sensor* p. 3-36
3. Antenna* p. 5-50
4. Sunroof* p. 1-13
5. Antenna* p. 5-50
6. Outside rear-view mirrors p. 4-10
7. Fuel tank filler door p. 02
8. Locking and unlocking p. 1-02 Keyless entry system* p. 1-04
9. Side turn-signal lamps p. 3-33, 8-24, 8-28
10. Front turn-signal lamps p. 3-33, 8-24, 8-27
11. Headlamps p. 3-30, 8-24, 3-31 Position lamps p. 3-30, 8-24, 8-27
12. Front fog lamps* p. 3-34, 8-24, 8-28
13. Headlamp washers* p. 3-39
14. Engine compartment p. 9-22 Bonnet p. 8-03 Overview12
3 4 5
6 7
8
9
10
11
13
14
12
OCRE12E1

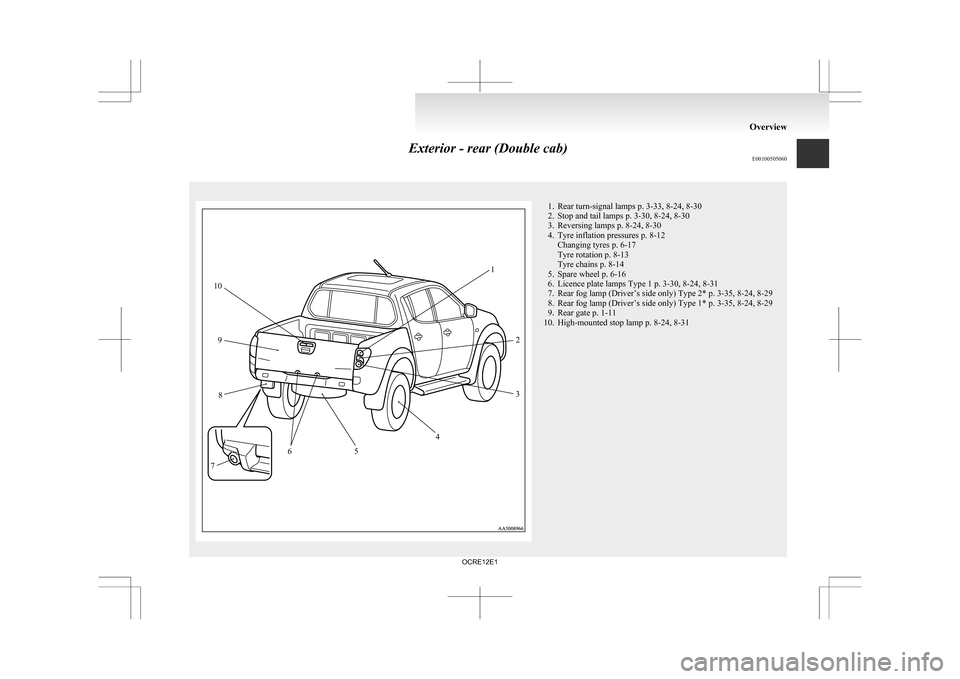

Exterior - rear (Double cab)
E00100505060 1. Rear turn-signal lamps p. 3-33, 8-24, 8-30
2.
Stop and tail lamps p. 3-30, 8-24, 8-30
3. Reversing lamps p. 8-24, 8-30
4. Tyre inflation pressures p. 8-12 Changing tyres p. 6-17
Tyre rotation p. 8-13
Tyre chains p. 8-14
5. Spare wheel p. 6-16
6. Licence plate lamps Type 1 p. 3-30, 8-24, 8-31
7. Rear fog lamp (Driver’s side only) Type 2* p. 3-35, 8-24, 8-29
8. Rear fog lamp (Driver’s side only) Type 1* p. 3-35, 8-24, 8-29
9. Rear gate p. 1-11
10. High-mounted stop lamp p. 8-24, 8-31 Overview12
3
4
5
6
7 8
9
10
OCRE12E1

OCRE12E1

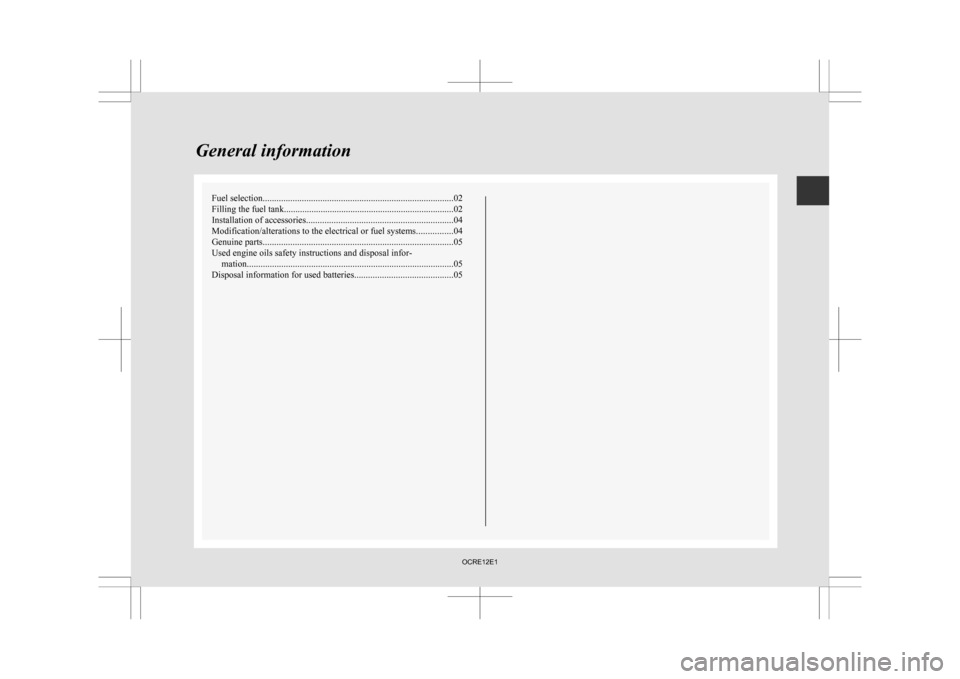

Fuel selection
................................................................................... 02
Filling the fuel tank .......................................................................... 02
Installation of accessories ................................................................ 04
Modification/alterations to the electrical or fuel systems ................04
Genuine parts................................................................................... 05
Used engine oils safety instructions and disposal infor- mation .......................................................................................... 05
Disposal information for used batteries ...........................................05General information
