2010 MITSUBISHI L200 Owners Manual

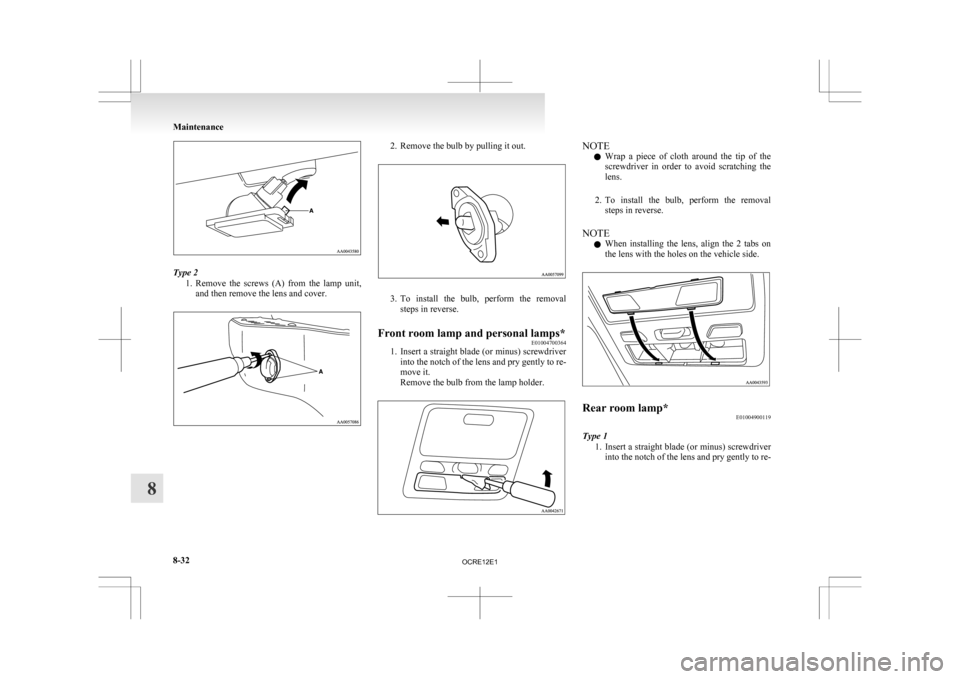

Type 2
1. Remove the screws (A) from the lamp unit,
and then remove the lens and cover. 2. Remove the bulb by pulling it out.
3. To
install the bulb, perform the removal
steps in reverse.
Front room lamp and personal lamps* E01004700364
1. Insert
a straight blade (or minus) screwdriver
into the notch of the lens and pry gently to re-
move it.
Remove the bulb from the lamp holder. NOTE
l Wrap

a piece of cloth around the tip of the
screwdriver in order to avoid scratching the
lens.
2. To install the bulb, perform the removal steps in reverse.
NOTE l When installing the lens, align the 2 tabs on
the lens with the holes on the vehicle side. Rear room lamp*
E01004900119
Type 1 1. Insert
a straight blade (or minus) screwdriver
into the notch of the lens and pry gently to re- Maintenance
8-32
8
OCRE12E1

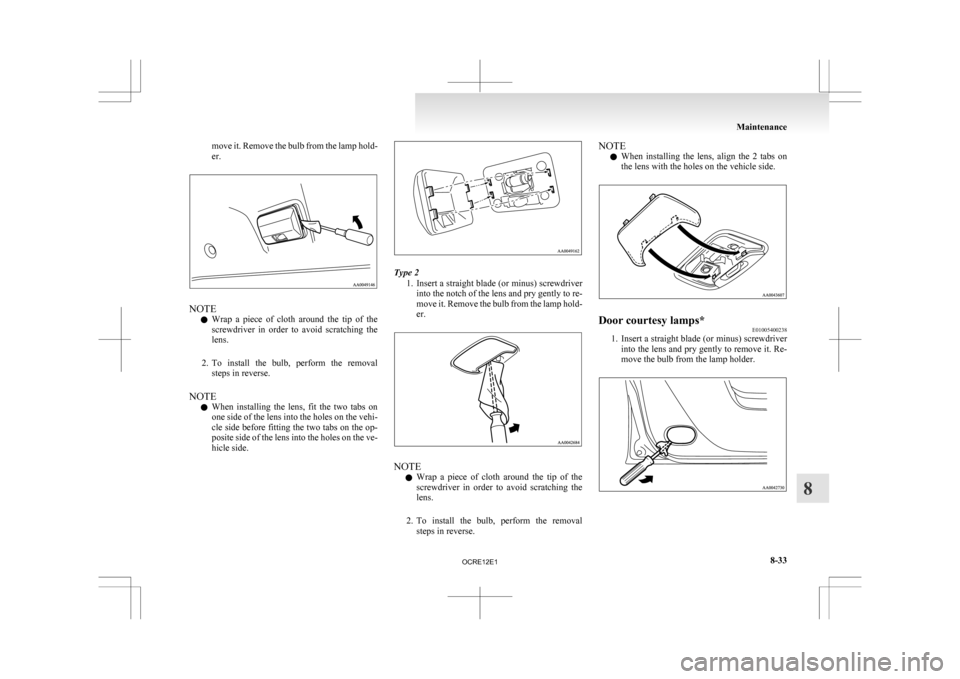

move it. Remove the bulb from the lamp hold-
er.
NOTE
l Wrap
a piece of cloth around the tip of the
screwdriver in order to avoid scratching the
lens.
2. To install the bulb, perform the removal steps in reverse.
NOTE l When installing the lens, fit the two tabs on
one side of the lens into the holes on the vehi-
cle side before fitting the two tabs on the op-
posite side of the lens into the holes on the ve-
hicle side. Type 2
1. Insert
a straight blade (or minus) screwdriver
into the notch of the lens and pry gently to re-
move it. Remove the bulb from the lamp hold-
er. NOTE
l Wrap

a piece of cloth around the tip of the
screwdriver in order to avoid scratching the
lens.
2. To install the bulb, perform the removal steps in reverse. NOTE
l When

installing the lens, align the 2 tabs on
the lens with the holes on the vehicle side. Door courtesy lamps*
E01005400238
1. Insert
a straight blade (or minus) screwdriver
into the lens and pry gently to remove it. Re-
move the bulb from the lamp holder. Maintenance
8-33 8
OCRE12E1

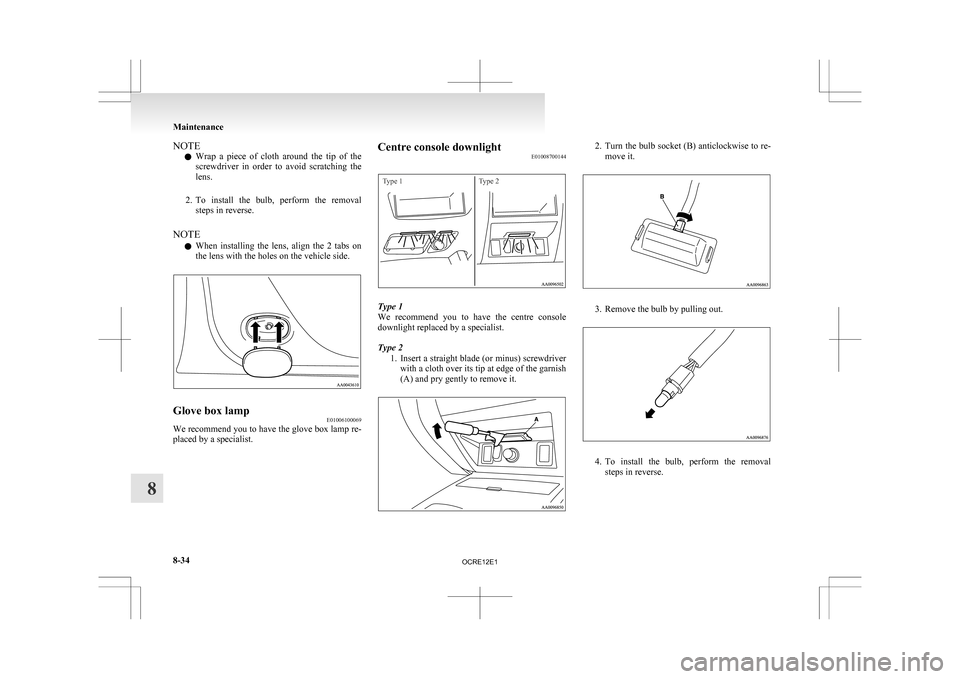

NOTE
l Wrap
a piece of cloth around the tip of the
screwdriver in order to avoid scratching the
lens.
2. To install the bulb, perform the removal steps in reverse.
NOTE l When installing the lens, align the 2 tabs on
the lens with the holes on the vehicle side. Glove box lamp
E01006100069
We recommend you to have the glove box lamp re-
placed by a specialist. Centre console downlight
E01008700144
Type 1Type 2 Type 1
We

recommend you to have the centre console
downlight replaced by a specialist.
Type 2
1. Insert a straight blade (or minus) screwdriverwith a cloth over its tip at edge of the garnish
(A) and pry gently to remove it. 2. Turn
the bulb socket (B) anticlockwise to re-
move it. 3. Remove the bulb by pulling out.
4. To
install the bulb, perform the removal
steps in reverse. Maintenance
8-34
8
OCRE12E1

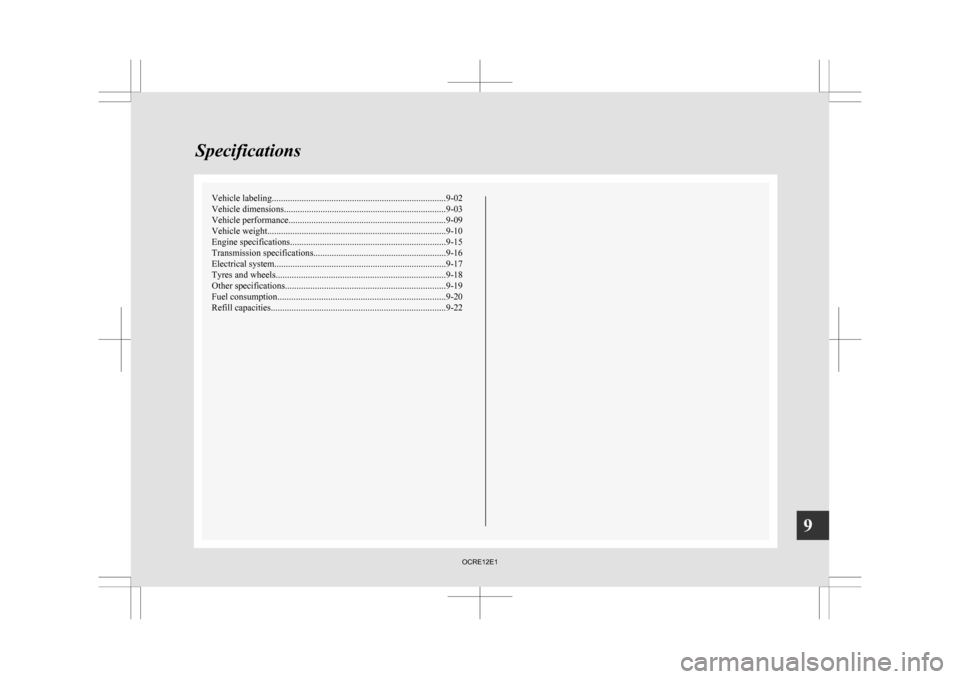

Vehicle labeling
............................................................................ 9-02
Vehicle dimensions....................................................................... 9-03
Vehicle performance.....................................................................9-09
Vehicle weight .............................................................................. 9-10
Engine specifications .................................................................... 9-15
Transmission specifications .......................................................... 9-16
Electrical system ........................................................................... 9-17
Tyres and wheels.......................................................................... 9-18
Other specifications ...................................................................... 9-19
Fuel consumption ......................................................................... 9-20
Refill capacities ............................................................................ 9-22Specifications
9
OCRE12E1

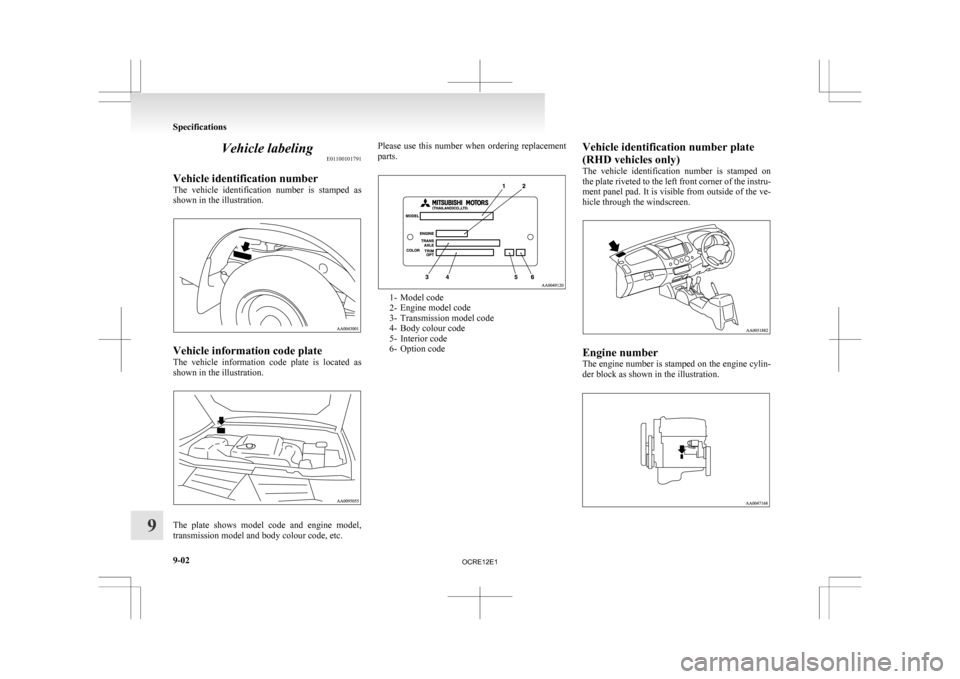

Vehicle labeling
E01100101791
Vehicle identification number
The
vehicle identification number is stamped as
shown in the illustration. Vehicle information code plate
The

vehicle information code plate is located as
shown in the illustration. The plate shows model code and engine model,
transmission model and body colour code, etc. Please use this number when ordering replacement
parts.
1- Model code
2-

Engine model code
3- Transmission model code
4- Body colour code
5- Interior code
6- Option code Vehicle identification number plate
(RHD vehicles only)
The

vehicle identification number is stamped on
the plate riveted to the left front corner of the instru-
ment panel pad. It is visible from outside of the ve-
hicle through the windscreen. Engine number
The

engine number is stamped on the engine cylin-
der block as shown in the illustration. Specifications
9-02
9
OCRE12E1

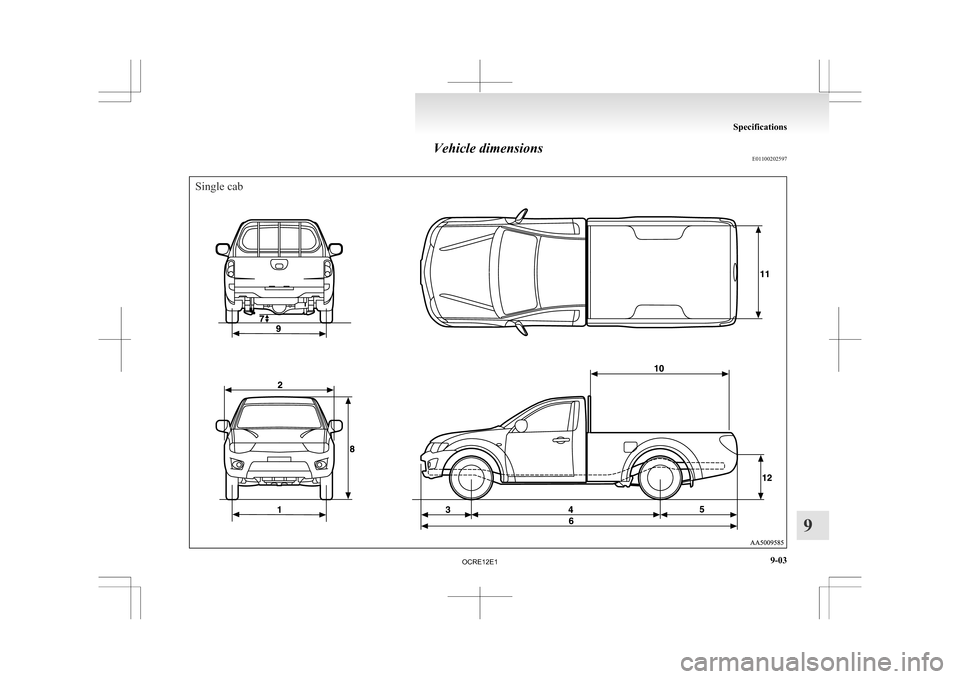

Vehicle dimensions
E01100202597Single cab Specifications
9-03 9
OCRE12E1

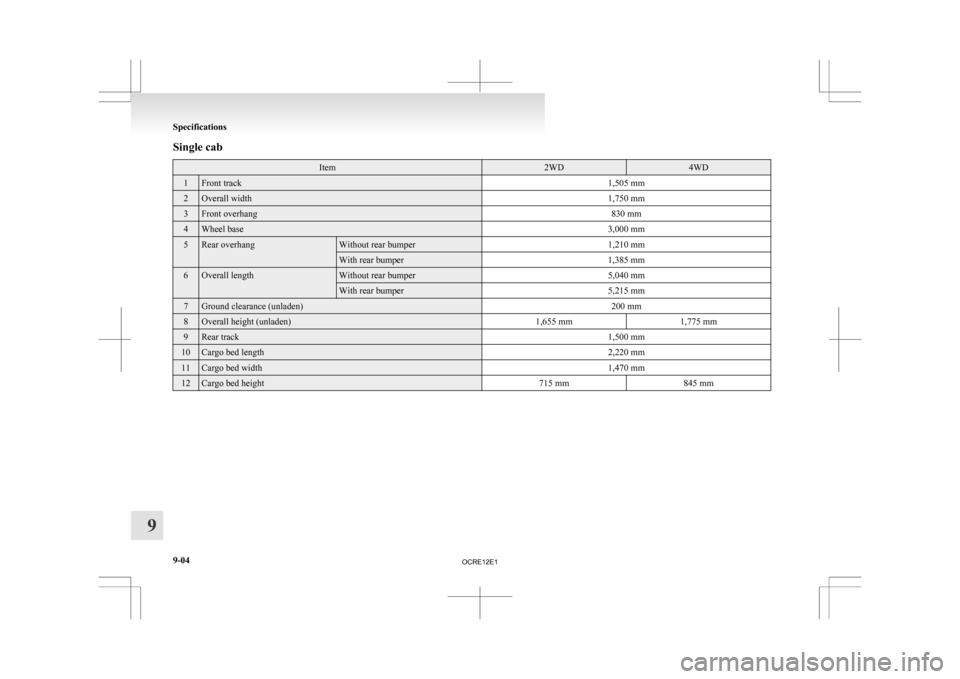

Single cab
Item 2WD 4WD
1 Front track
1,505 mm2 Overall width
1,750 mm3 Front overhang
830 mm4 Wheel base
3,000 mm5 Rear overhang Without rear bumper
1,210 mmWith rear bumper
1,385 mm6 Overall length Without rear bumper
5,040 mmWith rear bumper
5,215 mm7 Ground clearance (unladen)
200 mm8 Overall height (unladen)
1,655 mm1,775 mm9 Rear track
1,500 mm10 Cargo bed length
2,220 mm11 Cargo bed width
1,470 mm12 Cargo bed height
715 mm845 mmSpecifications
9-04
9
OCRE12E1

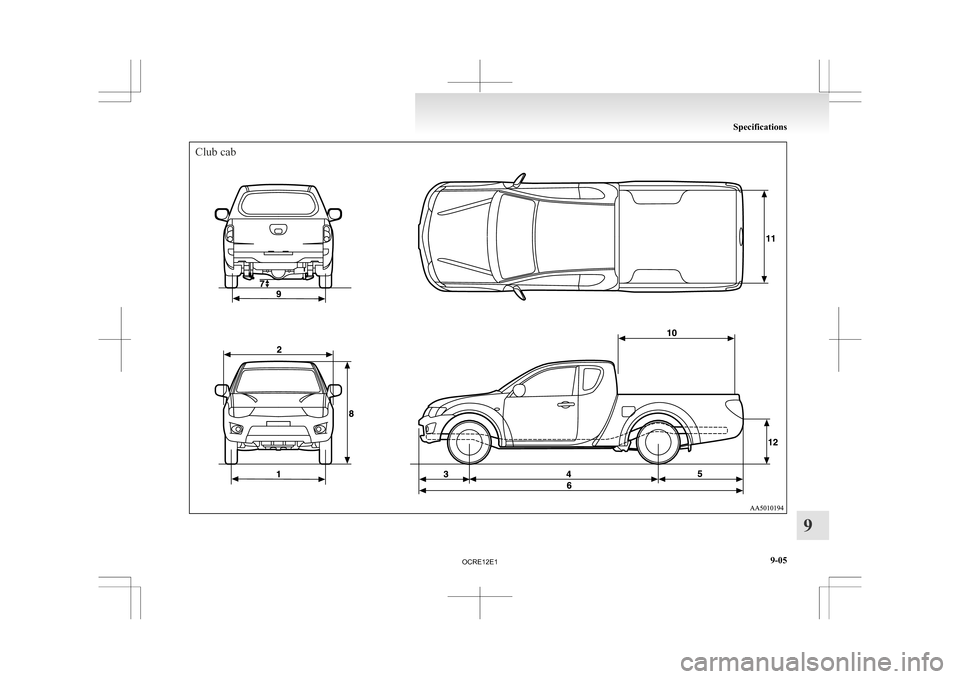

Club cabSpecifications
9-05 9
OCRE12E1
