4. Insert a new fuse of the same capacity by us-
ing the fuse puller and insert the fuse at the
same place in the fuse block. CAUTION
l
If
the newly inserted fuse blows again af-
ter a short time, we recommend you to
have the electrical system checked to find
the cause and rectify it.
l Never use a fuse with a capacity larger
than that specified or any substitute, such
as wire, foil, etc.; doing so will cause the
circuit wiring to heat up and could cause
a fire. Replacement of lamp bulbs
E01003100622
Before

replacing a bulb, ensure the lamp is off. Do
not touch the glass part of the new bulb with your
bare fingers; the skin oil left on the glass will evap-
orate when the bulb gets hot and the vapour will
condense on the reflector and dim the surface. CAUTION
l
Bulbs
are extremely hot immediately af-
ter being turned off.
When replacing a bulb, wait for it to cool
sufficiently before touching it. You could
otherwise be burnt.
NOTE l If

you are unsure of how to carry out the
work as required, we recommend you to con-
sult a specialist.
l Be careful not to scratch the vehicle body
when removing a lamp and lens.
l When it rains or when the vehicle has been
washed, the inside of the lens sometimes be-
comes foggy. This is the same phenomenon
as when window glass mists up on a humid
day, and does not indicate a functional prob-
lem.
When the lamp is switched on, the heat will
remove the fog. However, if water gathers in-
side the lamp, we recommend you to have it
checked.
Bulb capacity E01003200043
When replacing a bulb, use a new bulb with the
same wattage and colour. Outside
E01003302051 1- Front turn-signal lamps: 21 W (W21W)
2-

Headlamps, high-beam: 65 W (H9)
3- Front fog lamps: 51 W (HB4)
4- Headlamps, low beam without discharge lamp: 55 W (H1)
Headlamps, low beam with discharge lamp:
35 W (D2R)
5- Position lamps: 5 W (W5W)
6- Side turn-signal lamps

Codes in parentheses indicate bulb types. Maintenance
8-25 8
Presented by http://mmc-manuals.ru/ \251

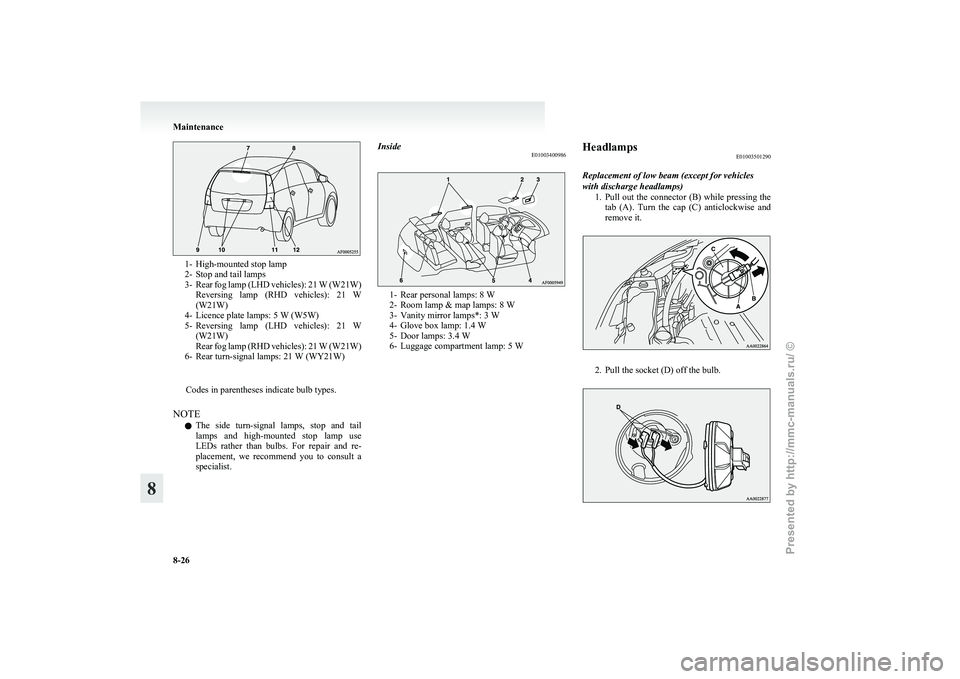

1- High-mounted stop lamp
2-
Stop and tail lamps
3- Rear fog lamp (LHD vehicles): 21 W (W21W) Reversing lamp (RHD vehicles): 21 W
(W21W)
4- Licence plate lamps: 5 W (W5W)
5- Reversing lamp (LHD vehicles): 21 W (W21W)
Rear fog lamp (RHD vehicles): 21 W (W21W)
6- Rear turn-signal lamps: 21 W (WY21W)

Codes in parentheses indicate bulb types.
NOTE l The side turn-signal lamps, stop and tail
lamps and high-mounted stop lamp use
LEDs rather than bulbs. For repair and re-
placement, we recommend you to consult a
specialist. Inside
E01003400986 1- Rear personal lamps: 8 W
2-

Room lamp & map lamps: 8 W
3- Vanity mirror lamps*: 3 W
4- Glove box lamp: 1.4 W
5- Door lamps: 3.4 W
6- Luggage compartment lamp: 5 W Headlamps
E01003501290
Replacement of low beam (except for vehicles
with discharge headlamps) 1. Pull

out the connector (B) while pressing the
tab (A). Turn the cap (C) anticlockwise and
remove it. 2. Pull the socket (D) off the bulb.Maintenance
8-26
8
Presented by http://mmc-manuals.ru/ \251

3. Unhook the spring (E), which secures the
bulb, and remove the bulb. 4. To
install the bulb, perform the removal
steps in reverse. CAUTION
l
Handle
halogen lamp bulbs with care.
The gas inside halogen lamp bulbs is high-
ly pressurized, so dropping, knocking, or
scratching a halogen lamp bulb can cause
it to shatter.
l Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the
bulb to break the next time the head-
lamps are operated.
If the glass surface is dirty, it must be
cleaned with alcohol, paint thinner, etc.,
and refit it after drying it thoroughly. Replacement of low beam (for vehicles with dis-
charge headlamps)
Do

not attempt to disassemble or repair discharged
headlamps, and do not attempt to replace their bulbs. CAUTION
l
A high voltage is present in the power cir-
cuit

and in the bulbs and bulb terminals.
To avoid the risk of an electric shock, con-
tact a MITSUBISHI MOTORS Author-
ized Service Point whenever repair or re-
placement is necessary. Replacement of high-beam
1. For
diesel-powered vehicles, remove the
bolts (A) to remove the power steering reser-
voir tank (B). 2. Pull
out the connector (D) while pressing the
tab (C). Turn the cap (E) anticlockwise and
remove it. Maintenance
8-27 8
Presented by http://mmc-manuals.ru/ \251
