2010 MITSUBISHI GRANDIS check engine

l
To cancel the unit setting procedure before
completion, press the button (A). l
The
outside temperature and digital clock are
not shown during the unit selecting procedure.
l If the “SET” button is not pressed for about
15 seconds or longer in the middle of the se-
lection, the currently selected unit is set auto-
matically. The display will return to the orig-
inal display item. Combination headlamps and
dipper switch E00506000776
Headlamps
Rotate the switch to turn on the lamps. OFF All lamps off
Position, tail, licence plate and instrument
panel lamps on
Headlamps and other lamps go on
NOTE
l Do

not leave the headlamps and other lamps
on for a long while the engine is stationary.
A run-down battery could result. l
When
it rains or when the vehicle has been
washed, the inside of the lens sometimes be-
comes foggy. This is the same phenomenon
as when window glass mists up on a humid
day, and does not indicate a functional prob-
lem. When the lamp is switched on, the heat
will remove the fog. However, if water gath-
ers inside the lamp, we recommend you to
have it checked.
[Vehicles with Daytime Running Lamp]
When the ignition switch is in the “ON” position
and the lamp switch is set to the “OFF” position,
the low beam of the headlamps, tail lamps, etc.,
will illuminate.
Lamps (headlamps, fog lamp, etc.) au-
to-cutout function l If the key is turned to the “LOCK” or
“ACC” position or removed from the igni-
tion switch and the lamps will stay on for
about 3 minutes without opening the driver’s
door while the lamp switch in the “ ” posi-
tion, automatically turn off.
l If

the key is turned to the “LOCK” or
“ACC” position or removed from the igni-
tion switch and the driver’s door is opened
within 3 minutes while the lamp switch in
the “ ”
position, a buzzer will sound to
warn the driver that the lamps have not been
turned off, and these lamps will automatical-
ly turn off.
NOTE l The lamp auto-cutout will not function when
the lamp switch is in the “ ” position.Instruments and controls
3-18
3
Presented by http://mmc-manuals.ru/ \251

Precautions to observe when using wip-
ers and washers
E00507600014
l If
the moving wipers become blocked by ice
or other deposits on the glass, the motor may
burn out even if the wiper switch is turned to
OFF. If obstruction occurs, park your vehicle
in a safe place, turn off the ignition, and
clean the deposits from the glass so that the
wipers operate smoothly.
l Do not use the wipers when the glass is dry.
They may scratch the glass surface or the
blades may prematurely wear out.
l Before using the wipers in cold weather,
check that the wiper blades are not frozen on-
to the glass. The motor may burn out if the
wipers are used with the blades frozen onto
the glass.
l Avoid using the washer continuously for
more than 20 seconds. Do not operate the
washer when the fluid reservoir is empty.
Otherwise, the motor may burn out.
l Periodically check the level of washer fluid
in the reservoir and refill if required.
During cold weather, add a recommended
washer solution that will not freeze in the
washer reservoir. Failure to do so could re-
sult in loss of washer function and frost dam-
age to the system components. Headlamp washer switch*
E00507800218
The
headlamp washer can be operated when the ig-
nition switch is in the “ON” or “ACC” position and
the headlamps are on.

Push the button once and the washer fluid will be
sprayed on to the headlamps. NOTE
l If

the ignition switch is in the “ON” or
“ACC” position and the headlamps are on,
the headlamp washer operates together with
the windscreen washer the first time the wind-
screen washer lever is pulled. Rear window demister switch
E00507901144
The

rear window demister switch can be operated
with the ignition switch in the “ON” position.
Push the switch to turn on the rear window demis-
ter. It will be turned off automatically in about 20
minutes. To turn off the demister within about 20
minutes, push the switch again.
The indication lamp (A) will illuminate while the
demister is on. NOTE
l When

the rear window demister switch is
pressed, the outside rear-view mirrors are de-
fogged or defrosted. Refer to “Heated mir-
ror” on page 4-08.
l The demister switch is not to melt snow but
to clear mist. Remove snow before use of the
demister switch.
l To avoid unnecessary discharge of the bat-
tery, do not use the rear window demister dur-
ing starting of the engine or when the engine
is not running. Turn the demister off immedi-
ately after the window is clear. Instruments and controls
3-25 3
Presented by http://mmc-manuals.ru/ \251

Economical driving
E00600100372
For
economical driving, there are some technical re-
quirements that have to be met. The prerequisite
for low fuel consumption is a properly adjusted en-
gine. In order to achieve longer life of the vehicle
and the most economical operation, we recommend
you to have the vehicle checked at regular intervals
in accordance with the service standards.
Fuel economy and generation of exhaust gas and
noise are highly influenced by personal driving hab-
its as well as the particular operating conditions.
The following points should be observed in order
to minimize wear of brakes, tyres and engine as
well as to reduce environmental pollution.
Starting
Avoid rapid acceleration and sudden starts; such op-
eration will result in higher fuel consumption.
Shifting
Shift only at an appropriate speed and engine
speed. Always use the highest gear possible.
City traffic
Frequent starting and stopping increases the aver-
age fuel consumption. Use roads with smooth traf-
fic flow whenever possible. When driving on con-
gested roads, avoid use of a low gear at high en-
gine speeds.
Idling
The vehicle consumes fuel even during idling.
Avoid extended idling whenever possible. Speed
At
higher vehicle speed, more fuel is consumed.
Avoid driving at full speed. Even a slight release of
the accelerator pedal will save a significant amount
of fuel.
Tyre inflation pressure
Check the tyre inflation pressures at regular inter-
vals. Low tyre inflation pressure increases road re-
sistance and fuel consumption. In addition, low
tyre pressures adversely affect tyre wear and driv-
ing stability.
Load
Do not drive with unnecessary articles in the lug-
gage compartment. Especially during city driving
where frequent starting and stopping is necessary,
the increased weight of the vehicle will greatly af-
fect fuel consumption.
Also avoid driving with unnecessary luggage, etc.,
on the roof; the increased air resistance will in-
crease fuel consumption.
Cold engine starting
Starting of a cold engine consumes more fuel.
Unnecessary fuel consumption is also caused by
keeping a hot engine running. After the engine is
started, commence driving as soon as possible.
Air conditioning
The use of the air conditioning will increase the
fuel consumption. Driving, alcohol and drugs
E00600200012
Driving
after drinking alcohol is one of the most fre-
quent causes of accidents.
Your driving ability can be seriously impaired even
with blood alcohol levels far below the legal mini-
mum. If you have been drinking, don’t drive. Ride
with a designated non-drinking driver, call a cab or
a friend, or use public transportation.
Drinking coffee or taking a cold shower will not
make you sober.
Similarly, prescription and nonprescription drugs af-
fect your alertness, perception and reaction time.
Consult with your doctor or pharmacist before driv-
ing while under the influence of any of these medi-
cations. WARNING
l NEVER DRINK AND DRIVE.
Your

perceptions are less accurate, your
reflexes are slower and your judgment is
impaired. Starting and driving
4-02
4
Presented by http://mmc-manuals.ru/ \251

CAUTION
l
If the brake warning lamp does not extin-
guish when the parking brake is fully re-
leased, the brake system may be abnormal.
Have your vehicle checked immediately.
For details, refer to “Brake warning
lamp” on page 3-06. Parking
E00600601433
Parking on a hill
To

prevent the vehicle from rolling, follow these
procedures:
Parking on a downhill slope
Turn the front wheels towards the kerb and move
the vehicle forward until the kerb side wheel gently
touches the kerb.
Apply the parking brake and place the gearshift lev-
er into the “R” (Reverse) position (with M/T) or
the selector lever into the “P” (PARK) position
(with A/T).
If necessary, apply chocks to wheels.
Parking on an uphill slope
Turn the front wheels away from the kerb and
move the vehicle back until the kerb side wheel gen-
tly touches the kerb.
Apply the parking brake and place the gearshift lev-
er into the 1 st
position (with M/T) or the selector lev-
er into the “P” (PARK) position (with A/T).
If necessary, apply chocks to wheels.
NOTE
l If your vehicle is equipped with A/T, be sure
to apply the parking brake before moving the
selector lever to the “P” (PARK) position. If
you move the selector lever to the “P”
(PARK) position before applying the parking
brake, it may be difficult to disengage the se-
lector lever from the “P” (PARK) position
when next you drive the vehicle, requiring ap-
plication of a strong force to the selector lev-
er to move from the “P” (PARK) position. Parking with the engine running
Never
leave the engine running while you take a
short sleep/rest. Also, never leave the engine run-
ning in a closed or poorly ventilated place. WARNING
l Leaving
the engine running risks injury
or death from accidentally moving the
gearshift lever (M/T) or selector lever
(A/T) or the accumulation of toxic ex-
haust fumes on the passenger compart-
ment.
Where you park
Your
front bumper can be damaged if you scrape it
over kerbs or parking stop blocks. Be careful when
travelling up or down steep slopes where your bump-
er can scrape the road. WARNING
l Do
not park your vehicle in areas where
combustible materials such as dry grass
or leaves can come in contact with a hot
exhaust, since a fire could occur.
When leaving the vehicle
Always
remove the key from the ignition switch
and lock all doors and the tailgate when leaving the
vehicle unattended.
Always try to park your vehicle in a well lit area. Starting and driving
4-05 4
Presented by http://mmc-manuals.ru/ \251

NOTE
l A
ticking noise may be heard after starting
the engine. This is not an abnormal condi-
tion. The noise will disappear after a short
time of engine running.
If the ticking noise continues after the engine
is warmed up, we recommend you to have
your vehicle checked. Diesel particulate filter (DPF)*
E00619800069
The
diesel particulate filter (DPF) is a device that
captures most of the particulate matter (PM) in the
exhaust emissions of the diesel engine. The DPF au-
tomatically burns away trapped PM during vehicle
operation. Under certain driving conditions, howev-
er, the DPF is not able to burn away all of the trap-
ped PM and, as a result, an excessive amount of
PM accumulates inside it. WARNING
l The DPF reaches very high temperatures.
Do

not park your vehicle in areas where
combustible materials such as dry grass
or leaves can come in contact with a hot
exhaust system since a fire could occur. CAUTION
l
Do
not use any type of fuel or engine oil
that is not specified for your vehicle. Al-
so, do not use any moisture-removing
agent or other fuel additive. Such substan-
ces could have a detrimental effect on the
DPF.
Refer to “Fuel selection” on page 02 and
“Engine oil” on page 8-06.
NOTE l To

minimize the likelihood of excessive ac-
cumulation of PM, try to avoid driving for
long periods at low speeds and repeatedly
driving short distances. DPF warning lamp
The DPF warning lamp comes on in the event of an
abnormality

in the DPF system. Provided the DPF
system is working normally, the DPF warning
lamp comes on when the ignition switch is turned
to the “ON” position and goes off a few seconds later. If the DPF warning lamp comes on dur-
ing vehicle operation
Steady

illumination of the DPF warning lamp
shows that the DPF has not been able to burn away
all of the trapped PM and that, as a result, an exces-
sive amount of PM has accumulated inside it. To en-
able the DPF to burn away the PM, try to drive the
vehicle as follows:
l With the gearshift lever in the 4 th
gear posi-
tion or 5 th
gear position, drive more than 15
minutes at a speed of at least 60 km/h
(37 mph) and an engine revolutions of at
least 2,000 rpm.
If the DPF warning lamp subsequently stays on, con-
tact your MITSUBISHI MOTORS Authorized Serv-
ice Point. Starting and driving
4-12
4
Presented by http://mmc-manuals.ru/ \251

CAUTION
l
You do not have to continuously drive ex-
actly as indicated above. Always strive to
drive safely in accordance with road con-
ditions.
If the DPF warning lamp and check en-
gine warning lamp come on during ve-
hicle operation
When

the DPF warning lamp and check engine
warning lamp come on, this indicates an abnormal-
ity in the DPF system. Have the system inspected
by a MITSUBISHI MOTORS Authorized Service
Point. CAUTION
l
Continuing
to drive when the DPF warn-
ing lamp and check engine warning lamp
remain on could result in engine trouble
and DPF damage. Manual transmission*
E00602000492
The

shift pattern is shown on the gearshift lever
knob. Be sure to always fully depress the clutch ped-
al before attempting to shift the lever. CAUTION
l
Do
not move the gearshift lever into re-
verse while the vehicle is moving for-
ward; doing so will damage the transmis-
sion.
l Do not rest your foot on the clutch pedal
while driving as this will cause premature
clutch wear or damage.
NOTE l If

it is hard to shift into 1 st
, depress the
clutch pedal again; the shift will then be eas-
ier to make. Moving the gearshift lever to the “R”
(Reverse) position CAUTION
l
Do
not move the gearshift lever to the
“R” (Reverse) position while the vehicle
is moving forward. This could damage
the transmission.
Vehicles equipped with 5-speed man-
ual transmission
To
shift into the “R” (Reverse) position from 5 th
gear, move the gearshift lever to the “N” (Neutral)
position, and then move it to the “R” (Reverse) po-
sition.
Vehicles equipped with 6-speed man-
ual transmission
Pull up the pull-ring (A), then move the gearshift
lever to the “R” (Reverse) position with the pull-
ring still pulled. Starting and driving
4-13 4 5 M/T
6 M/T
Presented by http://mmc-manuals.ru/ \251

NOTE
l To
avoid erroneous operation, move the se-
lector lever firmly into each position and brief-
ly hold it there. Always check the position
shown by the selector lever position indica-
tion lamp after moving the selector lever.
l If the brake pedal is not depressed and held,
the shift-lock device activates to prevent the
selector lever from being moved from the
“P” (PARK) position.
l For a shift indicated by in the illustration,
depress

the brake pedal before moving the se-
lector lever. If you attempt to move the selec-
tor lever before depressing the brake pedal,
the selector lever may become immovable. Selector lever position indication
lamps/“N” indication lamp
E00603500452 A- Selector lever position indication lamps
When
the ignition switch is turned to the
“ON” position, the indication lamps in the
instrument panel illuminate to show the po-
sition of the selector lever (i.e. “PARK”,
“DRIVE”, “REVERSE”, etc.).
B- “N” indication lamp When
the “N” indication lamp blinks with
the “D” (DRIVE) position or “Sports
mode” being selected, the A/T may be mal-
functioning. CAUTION
l
If
a malfunction occurs in the A/T while
driving, the “N” indication lamp will blink.
In this case, immediately park your vehi-
cle in a safe place and follow these proce-
dures:
(The “N” indication lamp warning func-
tion does not operate with the selector lev-
er in the “P” (PARK), “R” (REVERSE)
or “N” (NEUTRAL) position.)
[The “N” indication lamp blinks rapidly
(twice per second)]
The automatic transmission fluid is over-
heating.
Park your vehicle in a safe place but do
not turn off the engine. Move the selector
lever to the “P” (PARK) position and
open the bonnet. Keep the engine idling.
After a while, move the selector lever to
the “D” (DRIVE) position and confirm
that the “N” indication lamp stops blink-
ing. It is safe to continue driving if the
“N” indication lamp no longer is no lon-
ger blinking.
If the “N” indication lamp continues blink-
ing or blinks intermittently, we recom-
mend you to have your vehicle inspected.
[The “N” indication lamp blinks slowly
(once per second)]
The A/T safety device may be operating
due to a malfunction.
We recommend you to have your vehicle
inspected as soon as possible. Starting and driving
4-16
4
Presented by http://mmc-manuals.ru/ \251

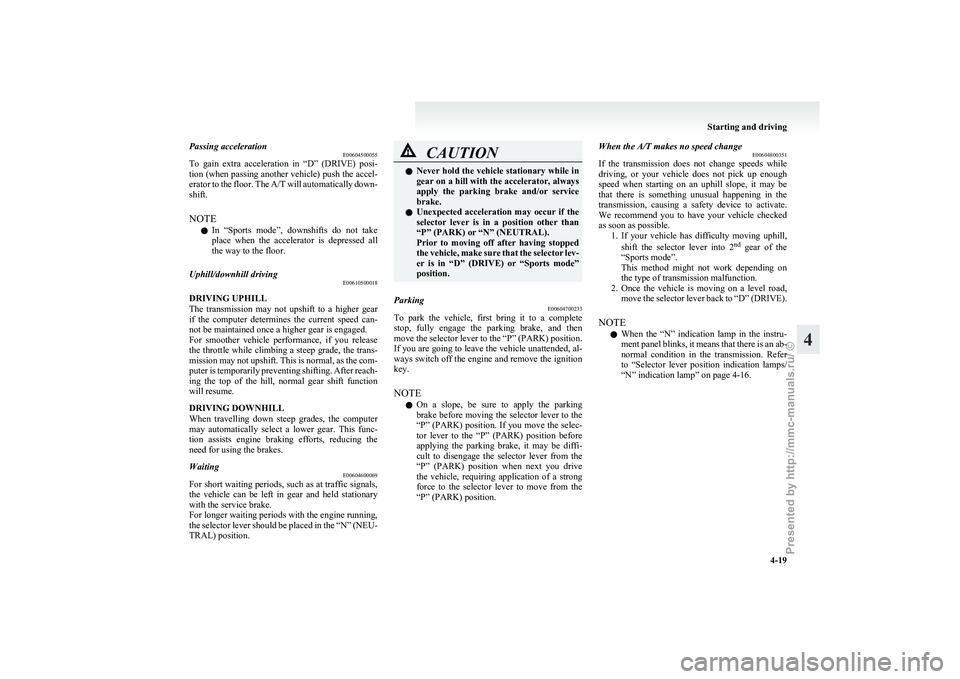

Passing acceleration
E00604500055
To
gain extra acceleration in “D” (DRIVE) posi-
tion (when passing another vehicle) push the accel-
erator to the floor. The A/T will automatically down-
shift.
NOTE
l In “Sports mode”, downshifts do not take
place when the accelerator is depressed all
the way to the floor.
Uphill/downhill driving E00610500018
DRIVING UPHILL
The
transmission may not upshift to a higher gear
if the computer determines the current speed can-
not be maintained once a higher gear is engaged.
For smoother vehicle performance, if you release
the throttle while climbing a steep grade, the trans-
mission may not upshift. This is normal, as the com-
puter is temporarily preventing shifting. After reach-
ing the top of the hill, normal gear shift function
will resume.
DRIVING DOWNHILL
When travelling down steep grades, the computer
may automatically select a lower gear. This func-
tion assists engine braking efforts, reducing the
need for using the brakes.
Waiting E00604600069
For short waiting periods, such as at traffic signals,
the

vehicle can be left in gear and held stationary
with the service brake.
For longer waiting periods with the engine running,
the selector lever should be placed in the “N” (NEU-
TRAL) position. CAUTION
l
Never
hold the vehicle stationary while in
gear on a hill with the accelerator, always
apply the parking brake and/or service
brake.
l Unexpected acceleration may occur if the
selector lever is in a position other than
“P” (PARK) or “N” (NEUTRAL).
Prior to moving off after having stopped
the vehicle, make sure that the selector lev-
er is in “D” (DRIVE) or “Sports mode”
position.
Parking E00604700233
To park the vehicle, first bring it to a complete
stop,

fully engage the parking brake, and then
move the selector lever to the “P” (PARK) position.
If you are going to leave the vehicle unattended, al-
ways switch off the engine and remove the ignition
key.
NOTE
l On a slope, be sure to apply the parking
brake before moving the selector lever to the
“P” (PARK) position. If you move the selec-
tor lever to the “P” (PARK) position before
applying the parking brake, it may be diffi-
cult to disengage the selector lever from the
“P” (PARK) position when next you drive
the vehicle, requiring application of a strong
force to the selector lever to move from the
“P” (PARK) position. When the A/T makes no speed change
E00604800351
If

the transmission does not change speeds while
driving, or your vehicle does not pick up enough
speed when starting on an uphill slope, it may be
that there is something unusual happening in the
transmission, causing a safety device to activate.
We recommend you to have your vehicle checked
as soon as possible. 1. If your vehicle has difficulty moving uphill,
shift the selector lever into 2 nd
gear of the
“Sports mode”.
This method might not work depending on
the type of transmission malfunction.
2. Once the vehicle is moving on a level road, move the selector lever back to “D” (DRIVE).
NOTE l When the “N” indication lamp in the instru-
ment panel blinks, it means that there is an ab-
normal condition in the transmission. Refer
to “Selector lever position indication lamps/
“N” indication lamp” on page 4-16. Starting and driving
4-19 4
Presented by http://mmc-manuals.ru/ \251
