CAUTION!
Failure to follow these cautions may cause interior
water damage, stains or mildew on the top material:
•Avoid high-pressure car washes, as they can dam-
age the top material. Also, increased water pres-
sure may force past the weather strips.
•It is recommended that the top be free of water
prior to opening it. Operating the top, opening a
door or lowering a window while the top is wet
may allow water to drip into the vehicle’s interior.
•Use care when washing the vehicle, water pressure
directed at the weather strip seals may cause water
to leak into the vehicle’s interior.
•Careless handling and storage of the removable
roof panels may damage the seals, causing water to
leak into the vehicle’s interior.(Continued)
CAUTION! (Continued)
•The front panel(s) must be positioned properly to
ensure sealing. Improper installation can cause
water to leak into the vehicle’s interior.
Care of Fabric Top Windows
CAUTION!
Your vehicle’s fabric top has pliable plastic windows
which can be scratched unless special care is taken by
following these directions:
1. Never use a dry cloth to remove dust. Instead, use a
microfiber towel or soft cotton cloth moistened with
cold or warm, clean water, and wipe across the window,
not up and down. MOPARJeep Soft Glass Window
488 MAINTAINING YOUR VEHICLE

Cleaner or equivalent will safely clean all plastic win-
dows without scratching. It removes fine scratches to
improve visibility and provides UV protection to help
prevent yellowing.
2. When washing,never use hot water or anything
stronger than a mild soap. Never use solvents such as
alcohol or harsh cleaning agents.
3. Always rinse thoroughly with cold water, then wipe
with a soft and slightly moist, clean cloth.
4. When removing frost, snow or ice, never use a scraper
or de-icing chemicals. Use warm water only if you must
clean the window quickly.
5. Debris (sand, mud/dirt, dust, or salt) from off-road
driving will have a major impact on zipper operation.
Even normal on-road driving and vehicle washing will
eventually impact window zipper operation. To maintain
ease of use of the window zippers, each window zipper should be cleaned and lubricated regularly. Use MO-
PA R
Soft Top Zipper Cleaner and Lubricant or equiva-
lent to ease zipper operation. Before applying, make sure
the zipper teeth are clear of sand, mud, and other
materials. Clean both sides of the zipper, not just one
side. Rinse both zipper halves with fresh water and allow
to dry. Aggressively work the MOPAR Soft Top Zipper
Cleaner and Lubricant or equivalent into the zipper teeth.
If a stuck zipper slide is experienced, work the MOPAR
Soft Top Zipper Cleaner and Lubricant or equivalent into
the zipper slide. Several applications may be required
before the zipper comes free.
6. Never paste stickers, gummed labels or any tape to the
windows. Adhesives are hard to remove and may dam-
age the windows.
7
MAINTAINING YOUR VEHICLE 489

FUSES
Totally Integrated Power Module
The Totally Integrated Power Module (TIPM) is located
in the engine compartment near the battery. This center
contains cartridge fuses, mini fuses and relays. A label
that identifies each component is printed on the inside of
the cover.
Cavity CartridgeFuse Mini
Fuse Description
J1 — —
J2 30 Amp Pink Transfer Case Module
J3 — —
J4 25 Amp Natural Driver Door Node
J5 25 Amp Natural Passenger Door Node
J6 40 Amp Green Anti-Lock Brake Sys-
tem (ABS) Pump
Feed/ESP
J7 30 Amp Pink Anti-Lock Brake Sys-
tem (ABS) Valve Feed/
ESP
J8 — —
Totally Integrated Power Module (TIPM)
490 MAINTAINING YOUR VEHICLE

Cavity CartridgeFuse Mini
Fuse Description
J9 40 Amp Green PZEV Sec Motor
Feed/Flex Fuel
J10 30 Amp Pink Headlamp Wash
Relay/Manifold Tun-
ing Valve
J11 30 Amp Pink Sway Bar
J13 60 Amp Yellow Ignition Off Draw
(IOD) – Main
J14 40 Amp Green EBL (Rear Window
Defogger)
J15 30 Amp Pink Rear Blower
J17 40 Amp Green Starter SolenoidCavity Cartridge
Fuse Mini
Fuse Description
J18 20 Amp Blue Powertrain Control
Module (PCM) Trans
Range
J19 60 Amp Yellow Radiator Fan
J20 30 Amp Pink Front Wiper LO/HI
J21 20 Amp Blue Front/Rear Washer
J22 — Spare
M1 15 Amp
BlueCenter High-Mounted
Stop Light (CHMSL)/
Switch Stop Lamp
Feed
M2 20 Amp
YellowRelay Trailer Lighting
(Stop)
7
MAINTAINING YOUR VEHICLE 491

Cavity CartridgeFuse Mini
Fuse Description
M3 20 Amp
YellowFrt/Rear Axle Locker
Relay
M4 — —
M5 — —
M6 20 Amp
YellowPower Outlet #1/Rain
Sensor
M7 20 Amp
YellowPower Outlet #2
(BATT/ACC SELECT)
M8 20 Amp
YellowFront Heated Seat
M9 20 Amp
YellowRear Heated Seat – If
EquippedCavity Cartridge
Fuse Mini
Fuse Description
M10 20 Amp
YellowIgnition Off Draw –
Vehicle Entertainment
System (IOD-VES),
Satellite Digital Audio
Receiver (SDARS),
DVD, Hands-Free
Module (HFM), RA-
DIO, Antenna (ANT),
Universal Garage Door
Opener (UGDO), Van-
ity Lamp (VANITY LP)
M11 10 Amp
Red(Ignition Off Draw)
IOD-HVAC/ATC, MW
SENSR, Underhood
Lamp (UH LMP)
M12 30 Amp
GreenAmplifier (AMP)
492 MAINTAINING YOUR VEHICLE

Cavity CartridgeFuse Mini
Fuse Description
M13 20 Amp
YellowIgnition Off Draw –
Cabin Compartment
Node (IOD-CCN),
Wireless Control Mod-
ule (WCM), SIREN,
Multifunction Control
Switch (MULTIFCTN
SW)
M14 20 Amp
YellowTrailer Tow (Export
Only)Cavity Cartridge
Fuse Mini
Fuse Description
M15 20 Amp
YellowCOL MOD, IR SNS,
Heater Ventilation, Air
Conditioning/
Automatic Tempera-
ture Control (HVAC/
ATC), Rear View
Mirror (RR VW MIR),
Cabin Compartment
Node (CCN), Transfer
Case Switch (T-CASE
SW), RUN/ST, Multi-
Function Control
Switch (MULTIFTCN
SW), Tire Pressure
Monitor (TPM), Glow
Plug Module (GLW
PLG MOD) – Export
Diesel Only
7
MAINTAINING YOUR VEHICLE 493

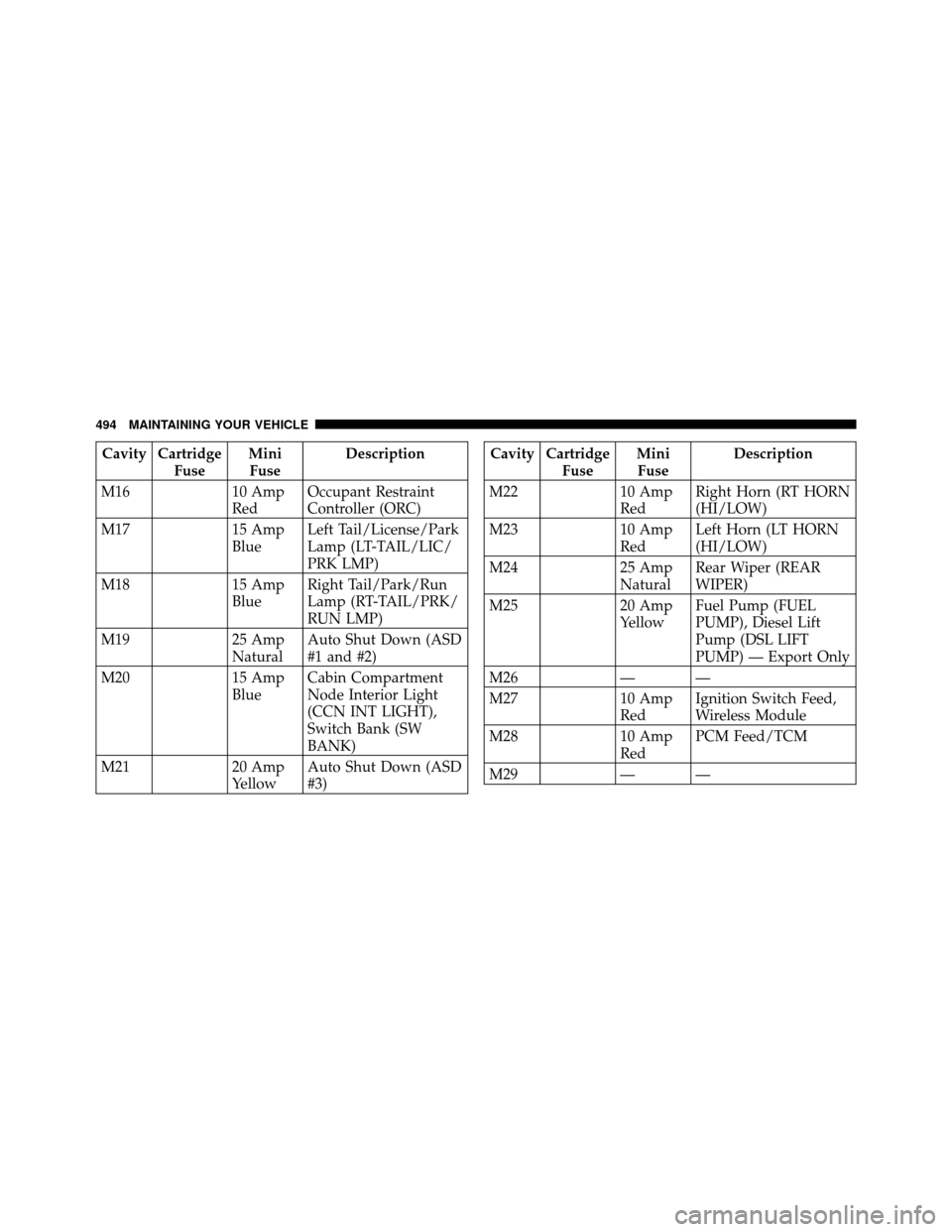

Cavity CartridgeFuse Mini
Fuse Description
M16 10 Amp
RedOccupant Restraint
Controller (ORC)
M17 15 Amp
BlueLeft Tail/License/Park
Lamp (LT-TAIL/LIC/
PRK LMP)
M18 15 Amp
BlueRight Tail/Park/Run
Lamp (RT-TAIL/PRK/
RUN LMP)
M19 25 Amp
NaturalAuto Shut Down (ASD
#1 and #2)
M20 15 Amp
BlueCabin Compartment
Node Interior Light
(CCN INT LIGHT),
Switch Bank (SW
BANK)
M21 20 Amp
YellowAuto Shut Down (ASD
#3)Cavity Cartridge
Fuse Mini
Fuse Description
M22 10 Amp
RedRight Horn (RT HORN
(HI/LOW)
M23 10 Amp
RedLeft Horn (LT HORN
(HI/LOW)
M24 25 Amp
NaturalRear Wiper (REAR
WIPER)
M25 20 Amp
YellowFuel Pump (FUEL
PUMP), Diesel Lift
Pump (DSL LIFT
PUMP) — Export Only
M26 — —
M27 10 Amp
RedIgnition Switch Feed,
Wireless Module
M28 10 Amp
RedPCM Feed/TCM
M29 — —
494 MAINTAINING YOUR VEHICLE

Cavity CartridgeFuse Mini
Fuse Description
M30 15 Amp
BlueWiper Motor Frt, J1962
Diagnostic Feed
M31 20 Amp
YellowBackup Lamps (B/U
LAMPS)
M32 10 Amp
RedOccupant Restraint
Controller (ORC), TT
EUROPE
M33 10 Amp
RedNext Generation Con-
troller (NGC), Global
Powertrain Engine
Controller (GPEC)Cavity Cartridge
Fuse Mini
Fuse Description
M34 10 Amp
RedPark Assist (PRK
ASST), Heater Ventila-
tion, Air Conditioning
Module (HVAC MOD),
Headlamp Wash
(HDLP WASH), Com-
pass (COMPAS)
M35 10 Amp
RedHeated Mirrors
M36 20 Amp
YellowPower Outlet
M37 10 Amp
RedAnti-Lock Brake Sys-
tem (ABS), Electronic
Stability Program
(ESP), Stop Lamp
Switch (STP LP SW),
Fuel Pump Rly Hi
Control
7
