5. Before unzipping the rear window, release the first 3 in
(7.6 cm) of both sail panels from the channel. Remove the
swing gate bar by pulling it straight rearward out of the
swing gate brackets.•Unzip the rear window starting at the right lower
corner of the window. Pull the zipper up, across the
top and down to the left lower corner.Zipper pulls
will stay on the rear window. Pull down on the rear
window to disengage it from the zipper on the top
cover. Stow the windows carefully to avoid scratch-
ing.
216 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

6. Undo the Velcrothat runs along the top and rear
edge of the side window.
7. Beginning from the rear lower corner, completely
unzip the window.
8. Once unzipped, remove the side window retainers
from the door channel and body side channel. Repeat this
step on the opposite side. 9. Finish releasing the sail panel retainers from the body
side channel at the rear corners of the vehicle.
NOTE:
When releasing the sail panel retainers, it is
helpful to pull down on the rear roof bow.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 217

10. Fold the sail panels so that they rest on top of the soft
top.11. The swing gate brackets do not need to be removed
unless the hard top is being installed. To remove the
swing gate brackets, pull the front of the bracket forward
while rolling the entire bracket back in toward the vehicle
to disengage.
218 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

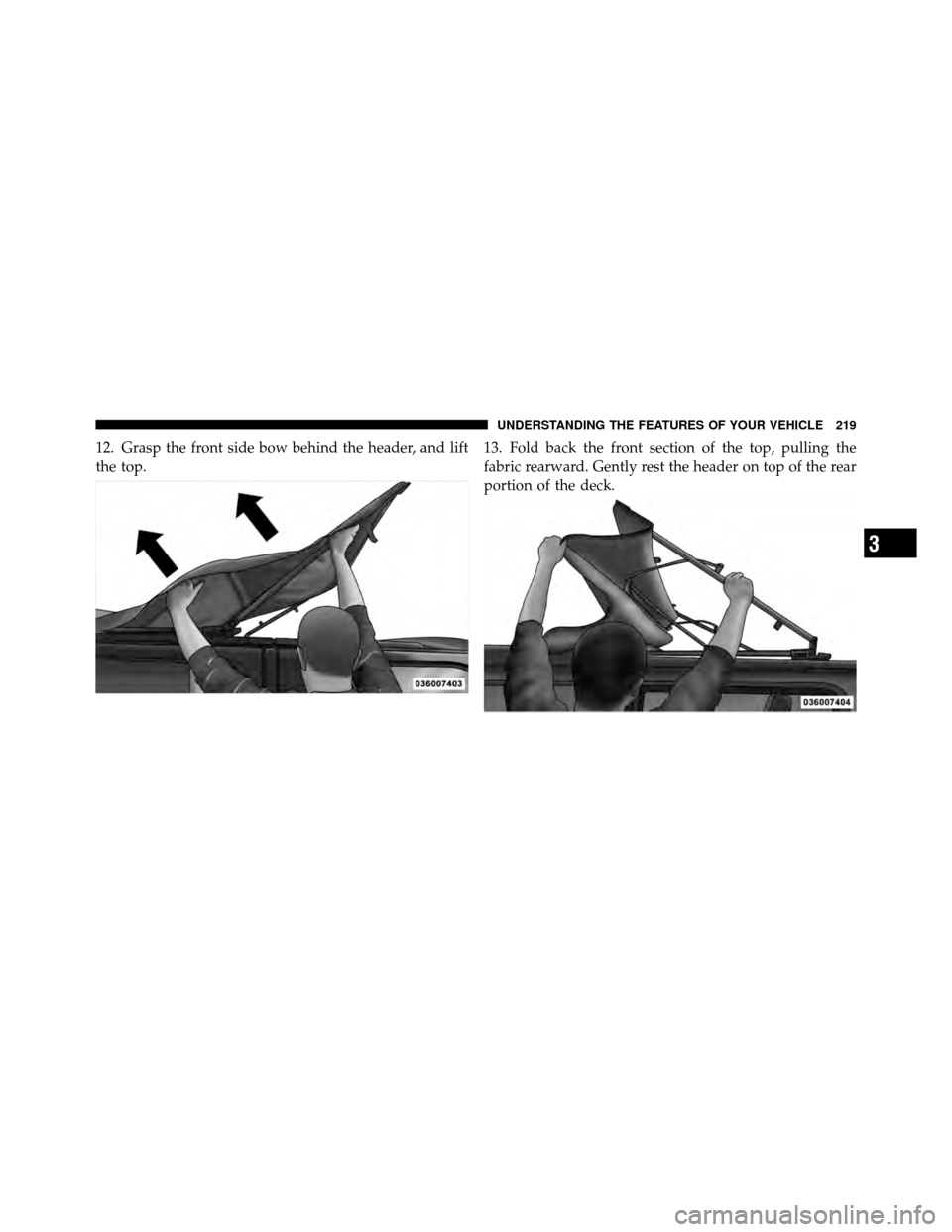

12. Grasp the front side bow behind the header, and lift
the top.13. Fold back the front section of the top, pulling the
fabric rearward. Gently rest the header on top of the rear
portion of the deck.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 219

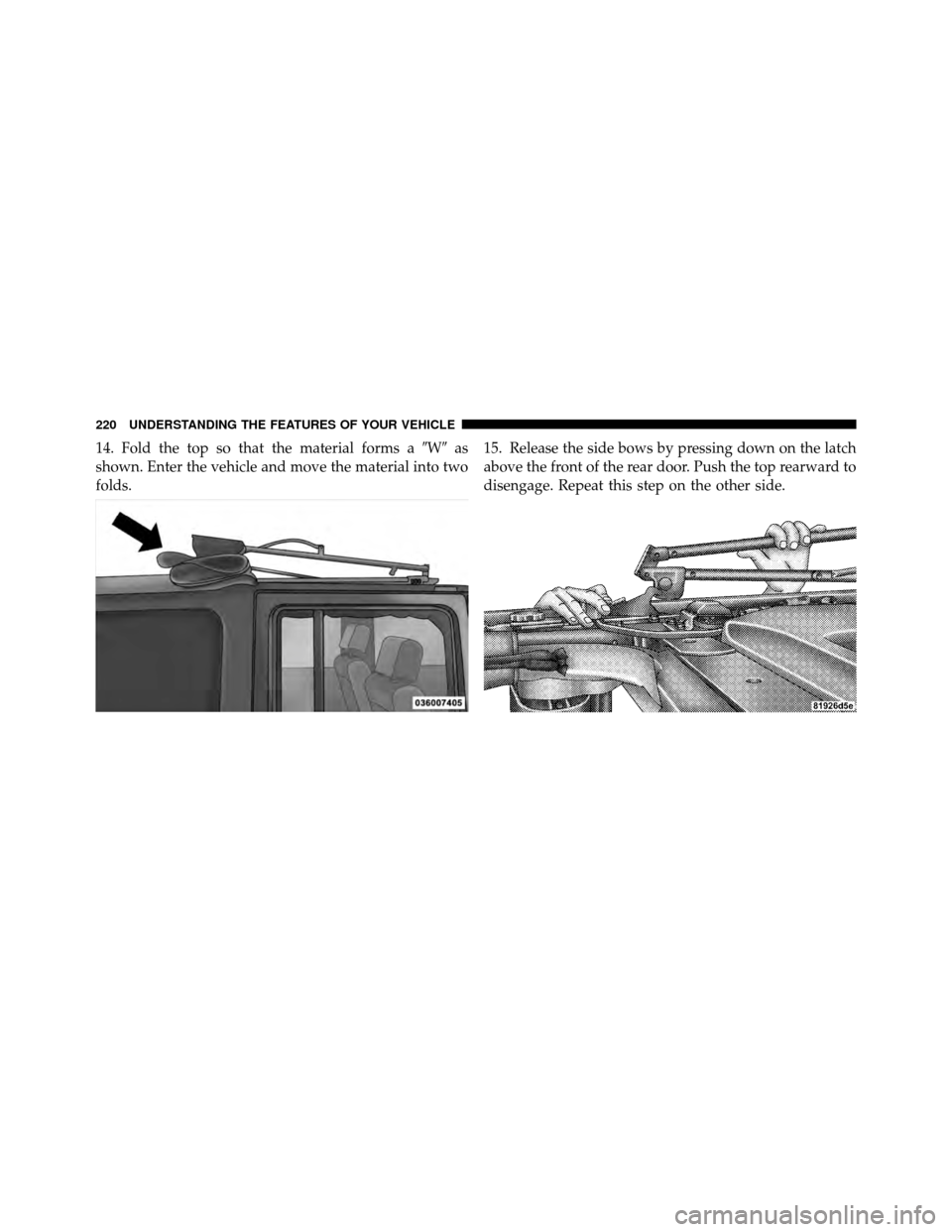

14. Fold the top so that the material forms aWas
shown. Enter the vehicle and move the material into two
folds. 15. Release the side bows by pressing down on the latch
above the front of the rear door. Push the top rearward to
disengage. Repeat this step on the other side.
220 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

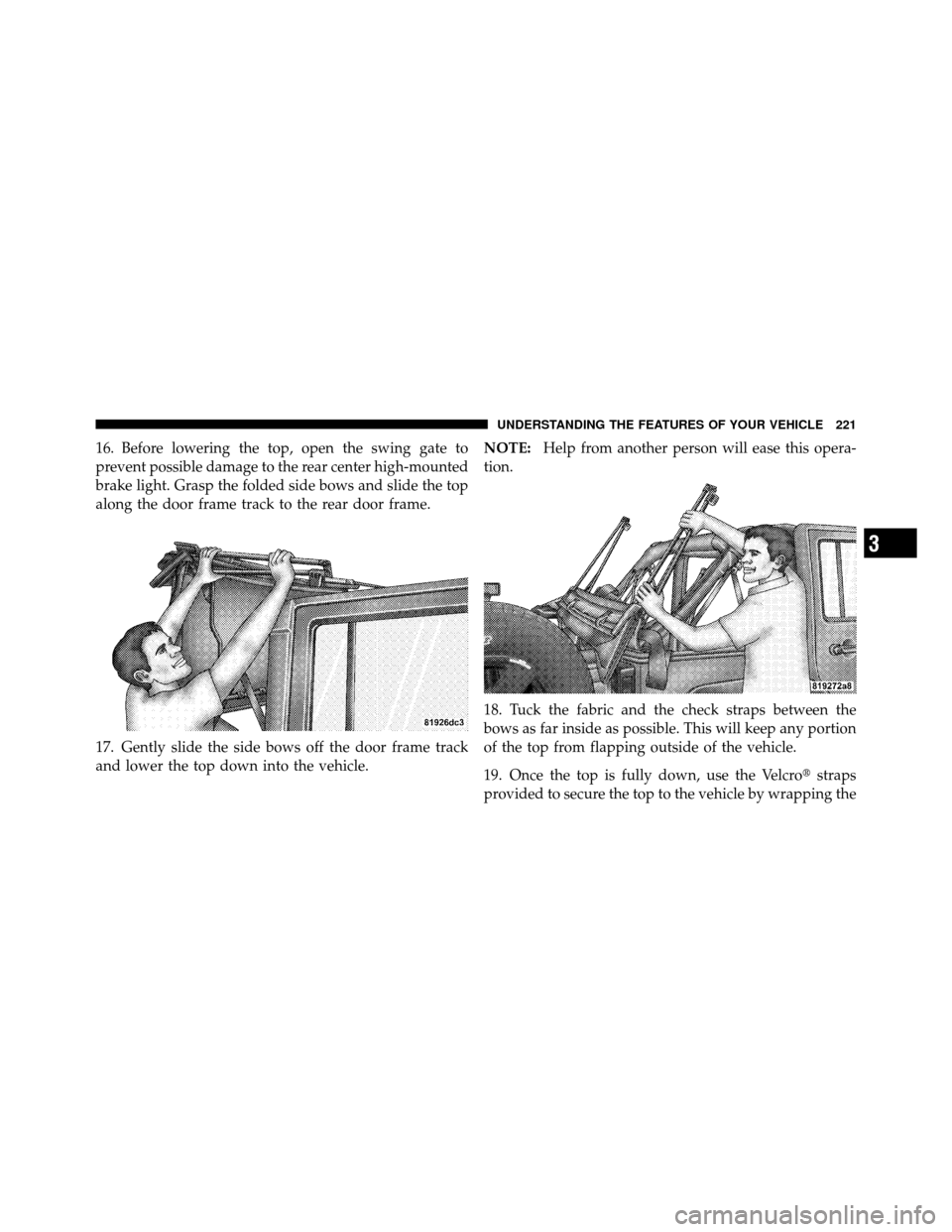

16. Before lowering the top, open the swing gate to
prevent possible damage to the rear center high-mounted
brake light. Grasp the folded side bows and slide the top
along the door frame track to the rear door frame.
17. Gently slide the side bows off the door frame track
and lower the top down into the vehicle.NOTE:
Help from another person will ease this opera-
tion.
18. Tuck the fabric and the check straps between the
bows as far inside as possible. This will keep any portion
of the top from flapping outside of the vehicle.
19. Once the top is fully down, use the Velcro straps
provided to secure the top to the vehicle by wrapping the
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 221

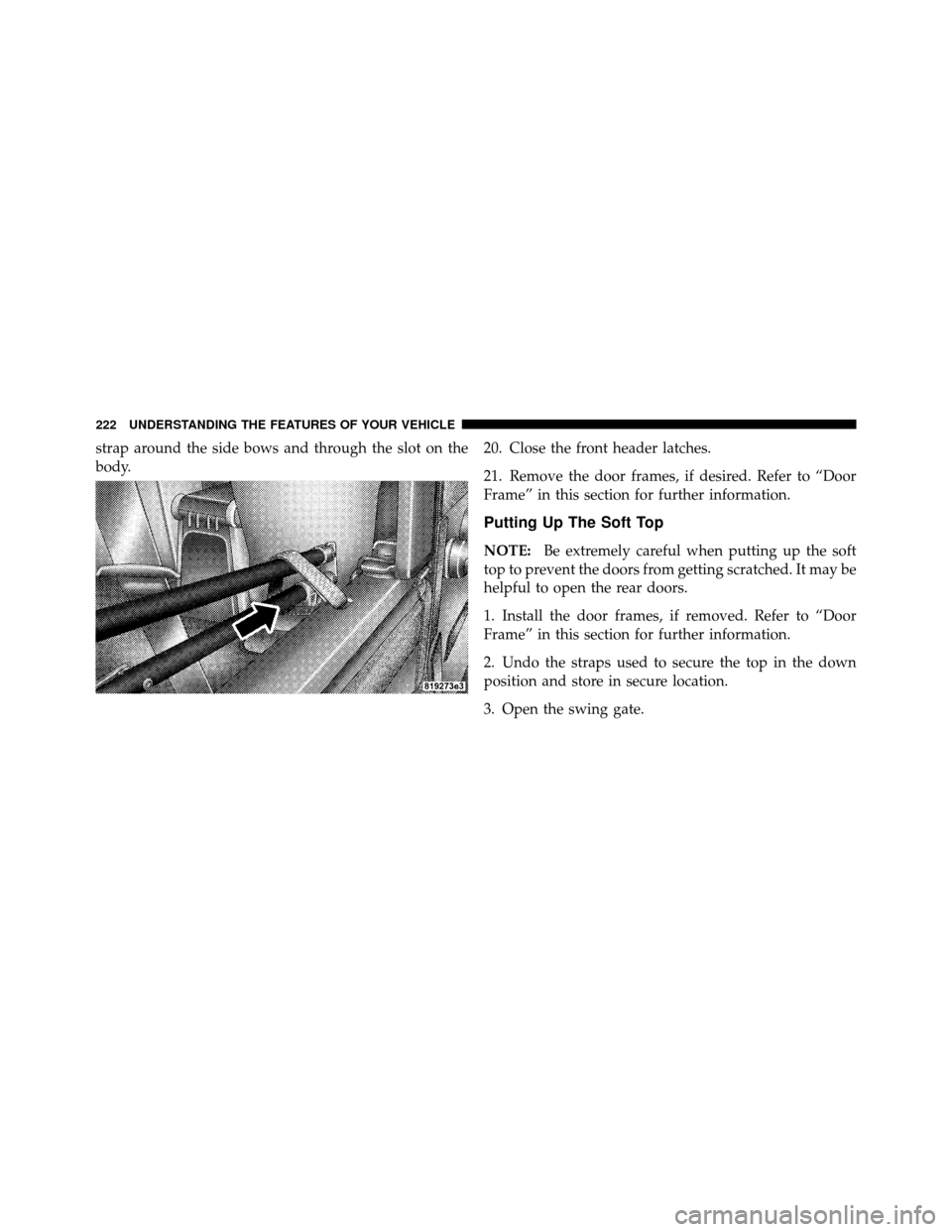

strap around the side bows and through the slot on the
body.20. Close the front header latches.
21. Remove the door frames, if desired. Refer to “Door
Frame” in this section for further information.
Putting Up The Soft Top
NOTE:
Be extremely careful when putting up the soft
top to prevent the doors from getting scratched. It may be
helpful to open the rear doors.
1. Install the door frames, if removed. Refer to “Door
Frame” in this section for further information.
2. Undo the straps used to secure the top in the down
position and store in secure location.
3. Open the swing gate.
222 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

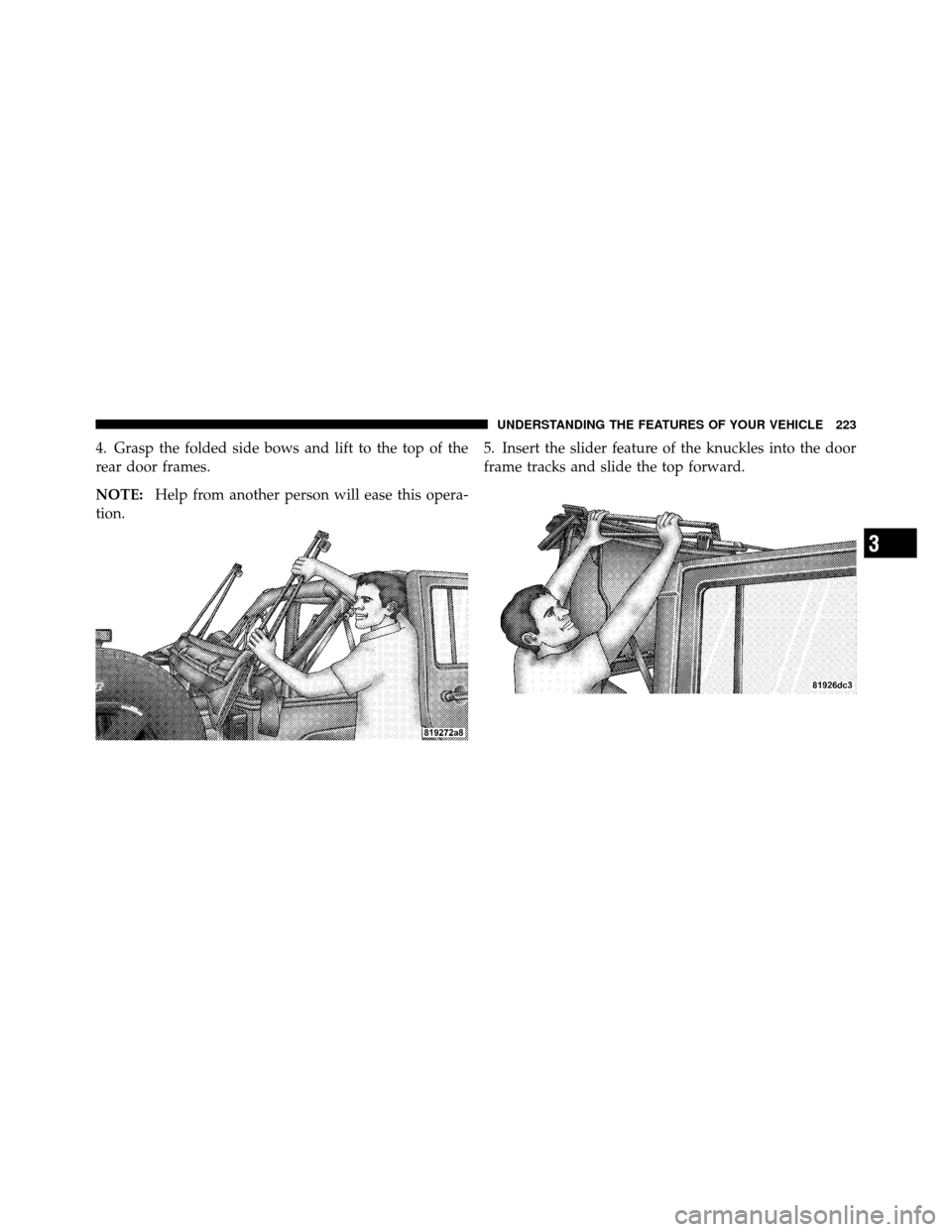

4. Grasp the folded side bows and lift to the top of the
rear door frames.
NOTE:Help from another person will ease this opera-
tion. 5. Insert the slider feature of the knuckles into the door
frame tracks and slide the top forward.
3
