2. Place one hand on the upper rear and one hand on the
upper front of the front door frame.
3. Pull the frame toward you with your front hand to
remove the frame from the vehicle.4. Unscrew and remove the remaining door frame at-
tachment knob on the rear door frame.
176 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

5. Place one hand on the upper rear and one hand on the
upper front of the rear door frame. Pull the frame toward
you with your rear hand to remove the frame from the
vehicle.
6. Screw the knob back into the door frame and fold for
storage. Store in a secure location.
WARNING!
Never store the door frames in your vehicle. In an
event of an accident, a loose door frame many cause
personal injury. If removed, always store the door
frames outside of the vehicle.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 177

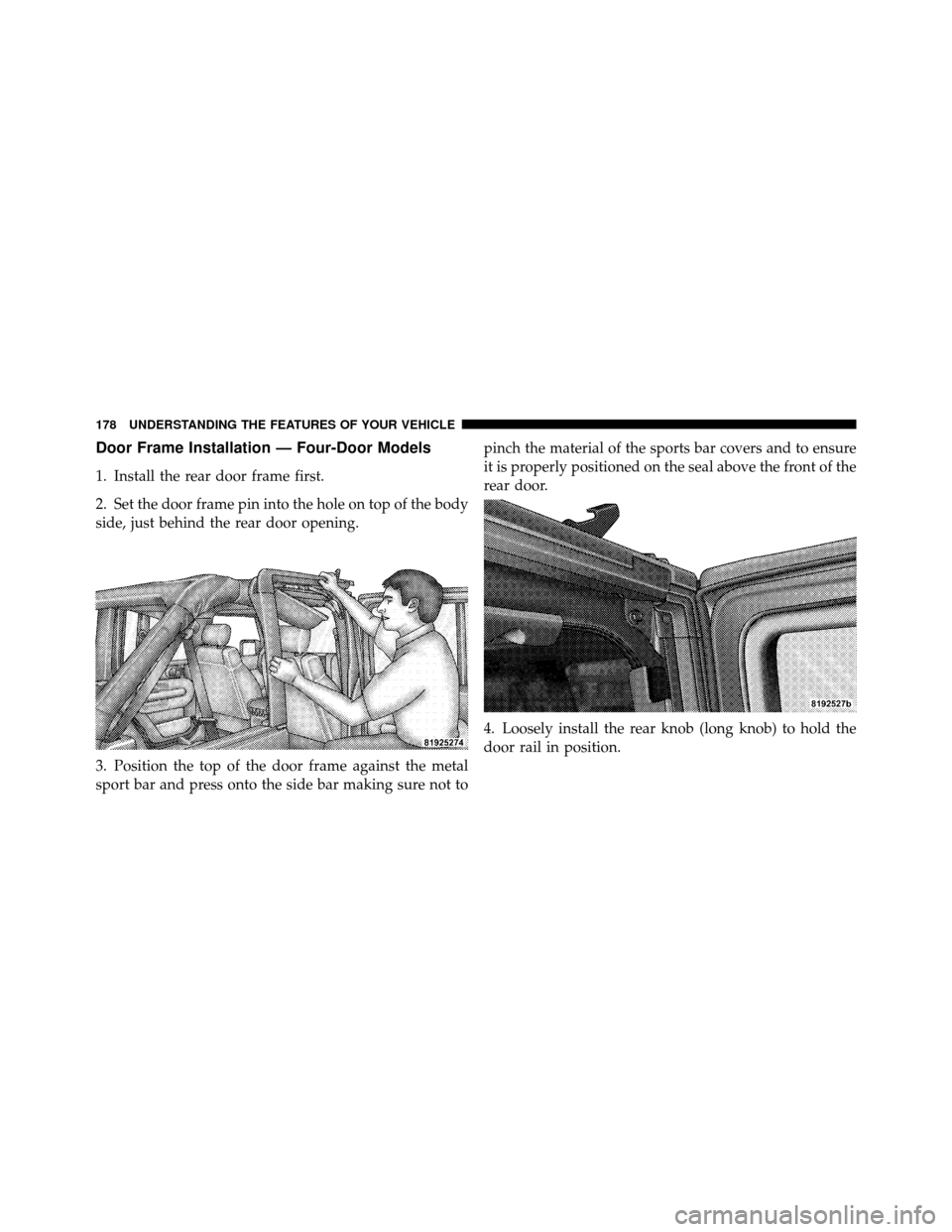

Door Frame Installation — Four-Door Models
1. Install the rear door frame first.
2. Set the door frame pin into the hole on top of the body
side, just behind the rear door opening.
3. Position the top of the door frame against the metal
sport bar and press onto the side bar making sure not topinch the material of the sports bar covers and to ensure
it is properly positioned on the seal above the front of the
rear door.
4. Loosely install the rear knob (long knob) to hold the
door rail in position.
178 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

5. Carefully set the front of the front door frame in the
rubber seal at the top of the windshield. Then, clip the
front of the door rail over the side bar making sure that
the material for the side bar cover is not pinched by the
door frame. Position the rear of the front door frame to
lay on top of the front of the rear door frame.6. Loosely install both knobs beginning with the front
knob (long knob). Then, install the middle knob (short
knob) through the front and rear door frames and screw
into the top of the B-pillar.
7. Tighten the front knob, then the rear most knob, and
then the middle knob. Repeat this procedure for the other
side.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 179

SOFT TOP — TWO DOOR MODELS
Please visit the owners section of Jeep.com for instruc-
tional videos.
CAUTION!
The soft top is not designed to carry any additional
loads such as roof racks, spare tires, building, hunt-
ing, or camping supplies, and/or luggage, etc. Also, it
was not designed as a structural member of the
vehicle and, thus, cannot properly carry any addi-
tional loads other than environmental (rain, snow,
etc.).
If the temperature is below 72°F (24°C) and/or the top
has been folded down for a period of time, the top will
appear to have shrunk when you raise it, making it
difficult to put up. This is caused by a natural contraction
of the vinyl coating on the fabric top. Place the vehicle in a warm area. Pull steadily on the top
fabric. The vinyl will stretch back to its original size and
the top can then be installed.
If the temperature is 41°F
(5°C) or below, do not attempt to put the top down or
roll the rear or side curtains.CAUTION!
•Do not run a fabric top through an automatic car
wash. Window scratches and wax build up may
result.
•Do not lower the top when the temperature is
below 41°F (5°C). Damage to the top may result.
•Do not move your vehicle until the top has been
either fully attached to the windshield frame, or
fully lowered.
•Do not lower the top with the windows installed.
Window and top damage may occur.
(Continued)
180 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION! (Continued)
•Refer to “Appearance Care for Fabric Top Models”
in “Maintaining Your Vehicle” for further infor-
mation. It contains important information on
cleaning and caring for your vehicle’s fabric top.
•Do not use any tools (screwdrivers, etc.) to pry or
force any of the clamps, clips, or retainers securing
the soft top. Do not force or pry the soft top
framework when opening or closing. Damage to
the top may result.
WARNING!
•Do not drive the vehicle with the rear window
curtain up unless the side curtains are also re-
moved. Dangerous exhaust gases could enter the
vehicle causing harm to the driver and passengers.(Continued)
WARNING! (Continued)
•The fabric upper doors and fabric top are designed
only for protection against the elements. Do not
rely on them to contain occupants within the
vehicle or to protect against injury during an
accident. Remember, always wear seat belts.
CAUTION!
Failure to follow these cautions may cause interior
water damage, stains or mildew on the top material:
•It is recommended that the top be free of water
prior to opening it. Operating the top, opening a
door or lowering a window while the top is wet
may allow water to drip into the vehicle’s interior.(Continued)
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 181

CAUTION! (Continued)
•Careless handling and storage of the soft top may
damage the seals, causing water to leak into the
vehicle’s interior.
•The soft top must be positioned properly to ensure
sealing. Improper installation can cause water to
leak into the vehicle’s interior.
Quick Steps to Lowering the Soft Top
Refer to “Lowering the Soft Top” in this section for
further information.
1. Remove the side and back windows.
182 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

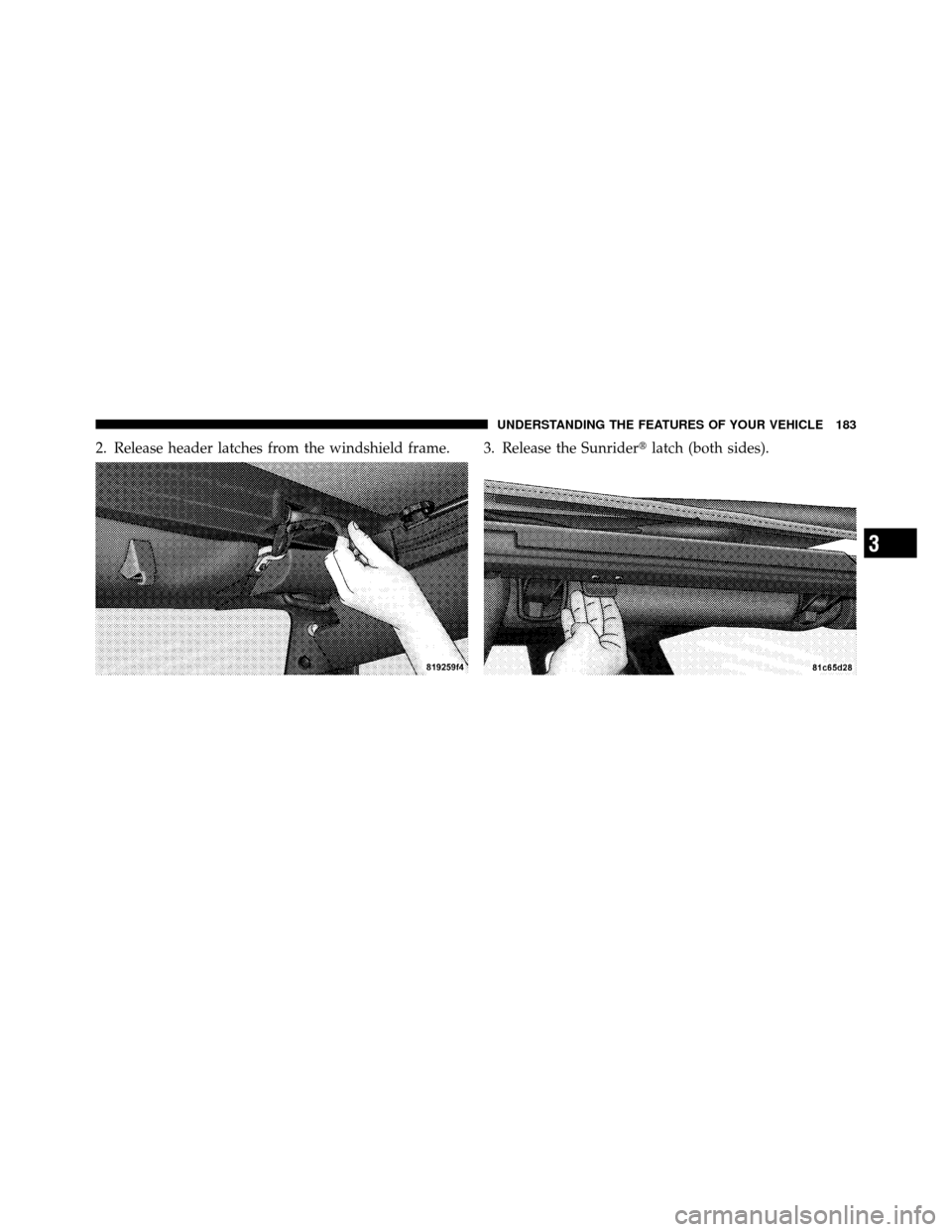

2. Release header latches from the windshield frame. 3. Release the Sunriderlatch (both sides).
3
