2010 JEEP LIBERTY warning light

addition, the EVIC will display aCHECK TPM SYS-
TEM message for three seconds and then display dashes
(- -) in place of the pressure value.
4. For each subsequent ignition key cycle, a chime will
sound, the “TPMS Telltale Light” will flash on and off for
75 seconds and then remain on solid, and the EVIC will
display a CHECK TPM SYSTEM message for three
seconds and then display dashes (- -) in place of the
pressure value.
5. Once you repair or replace the original road tire and
reinstall it on the vehicle in place of the compact spare,
the TPMS will update automatically. In addition, the
“TPMS Telltale Light” will turn off and the graphic in the
EVIC will display a new pressure value instead of dashes
(- -), as long as no tire pressure is below the low-pressure
warning limit in any of the four active road tires. The vehicle may need to be driven for up to 20 minutes above
15 mph (25 km/h) in order for the TPMS to receive this
information.
General Information
This device complies with Part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
•This device may not cause harmful interference.
•This device must accept any interference received,
including interference that may cause undesired
operation.
The tire pressure sensors are covered under one of the
following licenses:
United States ..................... KR5S120123
Canada ........................ 2671-S120123
372 STARTING AND OPERATING

WARNING!
•Do not connect trailer brakes to your vehicle’s
hydraulic brake lines. It can overload your brake
system and cause it to fail. You might not have
brakes when you need them and could have an
accident.
•Towing any trailer will increase your stopping
distance. When towing you should allow for addi-
tional space between your vehicle and the vehicle
in front of you. Failure to do so could result in an
accident.
Towing Requirements — Trailer Lights And Wiring
Whenever you pull a trailer, regardless of the trailer size,
stoplights and turn signals on the trailer are required for
motoring safety.The Trailer Tow Package may include a four and seven-
pin wiring harness. Use a factory approved trailer har-
ness and connector.
NOTE:
Do not cut or splice wiring into the vehicles
wiring harness.
The electrical connections are all complete to the vehicle
but you must mate the harness to a trailer connector.
Refer to the following illustrations.
394 STARTING AND OPERATING

WARNING!
Raising the vehicle higher than necessary can make
the vehicle less stable and cause an accident. It could
slip off the jack and hurt someone near it. Raise the
vehicle only enough to remove the tire.
6. Remove the lug nuts and wheel.
7. Position the spare wheel/tire on the vehicle and install
lug nuts with the cone-shaped end toward the wheel.
Lightly tighten the nuts. To avoid the risk of forcing the
vehicle off the jack, do not tighten the nuts fully until the
vehicle has been lowered.
8. Lower the vehicle by turning the jack screw to the left,
and remove the jack and wheel blocks. 9. Finish tightening the lug nuts. Push down on the
wrench while tightening for increased leverage. Alternate
nuts until each nut has been tightened twice. The correct
wheel nut tightness is 95 ft lb (130 N·m). If in doubt about
the correct tightness, have them checked with a torque
wrench by your authorized dealer or at a service station.
10. Lower the jack to it’s fully closed position.
WARNING!
A loose tire or jack, thrown forward in a collision or
hard stop, could endanger the occupants of the ve-
hicle. Always stow the jack parts and the spare tire in
the places provided.
11. Secure the tire, jack, and tools in their proper
locations.
6
WHAT TO DO IN EMERGENCIES 411

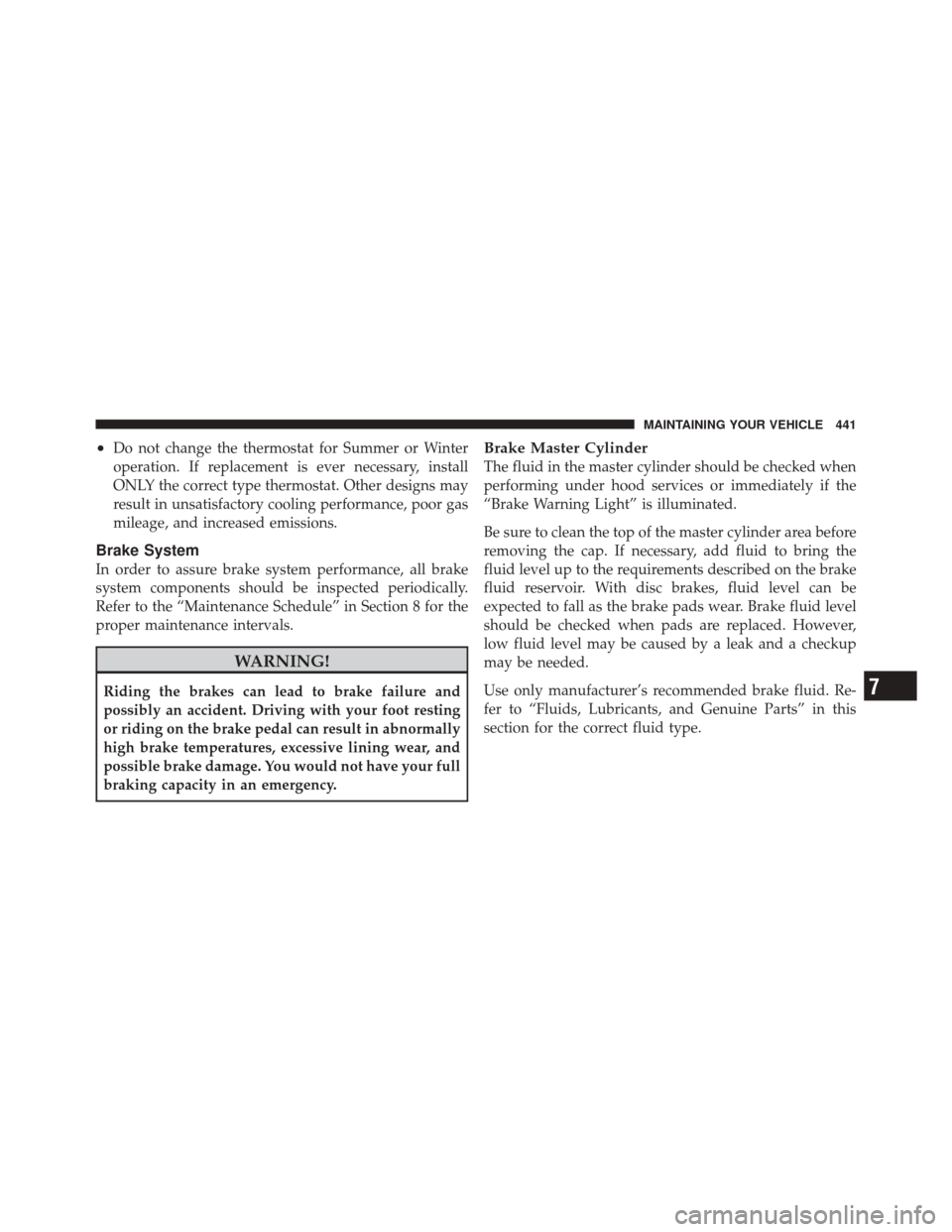

•Do not change the thermostat for Summer or Winter
operation. If replacement is ever necessary, install
ONLY the correct type thermostat. Other designs may
result in unsatisfactory cooling performance, poor gas
mileage, and increased emissions.
Brake System
In order to assure brake system performance, all brake
system components should be inspected periodically.
Refer to the “Maintenance Schedule” in Section 8 for the
proper maintenance intervals.
WARNING!
Riding the brakes can lead to brake failure and
possibly an accident. Driving with your foot resting
or riding on the brake pedal can result in abnormally
high brake temperatures, excessive lining wear, and
possible brake damage. You would not have your full
braking capacity in an emergency.
Brake Master Cylinder
The fluid in the master cylinder should be checked when
performing under hood services or immediately if the
“Brake Warning Light” is illuminated.
Be sure to clean the top of the master cylinder area before
removing the cap. If necessary, add fluid to bring the
fluid level up to the requirements described on the brake
fluid reservoir. With disc brakes, fluid level can be
expected to fall as the brake pads wear. Brake fluid level
should be checked when pads are replaced. However,
low fluid level may be caused by a leak and a checkup
may be needed.
Use only manufacturer’s recommended brake fluid. Re-
fer to “Fluids, Lubricants, and Genuine Parts” in this
section for the correct fluid type.
7
MAINTAINING YOUR VEHICLE 441

Cleaning Interior Trim
Clean interior trim with a damp cloth and MOPARTotal
Clean or equivalent, and if necessary, follow with MO-
PAR Spot & Stain Remover or equivalent. Do not use
harsh cleaners or Armor All. Use MOPAR Total Clean
or equivalent to clean vinyl upholstery.
Cleaning Leather Upholstery
MOPAR Total Clean or equivalent is specifically recom-
mended for leather upholstery.
Your leather upholstery can be best preserved by regular
cleaning with a damp soft cloth. Small particles of dirt
can act as an abrasive and damage the leather upholstery
and should be removed promptly with a damp cloth.
Stubborn soils can be removed easily with a soft cloth
and MOPAR Total Clean or equivalent. Care should be
taken to avoid soaking leather upholstery with any
liquid. Please do not use polishes, oils, cleaning fluids,
solvents, detergents, or ammonia-based cleaners to clean leather upholstery. Application of a leather conditioner is
not required to maintain the original condition.
WARNING!
Do not use volatile solvents for cleaning purposes.
Many are potentially flammable, and if used in
closed areas they may cause respiratory harm.
Cleaning Headlights
Your vehicle has plastic headlights that are lighter and
less susceptible to stone breakage than glass headlights.
Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.
To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
452 MAINTAINING YOUR VEHICLE

has also made a major investment in facilities, tools, and
training to assure that you are absolutely delighted with
the ownership experience. You’ll be pleased with their
sincere efforts to resolve any warranty issues or related
concerns.
WARNING!
Engine exhaust, some of its constituents, and certain
vehicle components contain, or emit, chemicals
known to the State of California to cause cancer and
birth defects, or other reproductive harm. In addi-
tion, certain fluids contained in vehicles and certain
products of component wear contain, or emit, chemi-
cals known to the State of California to cause cancer
and birth defects, or other reproductive harm.
WARRANTY INFORMATION (U.S. Vehicles Only)
See the Warranty Information Booklet, located on the
DVD, for the terms and provisions of Chrysler Group
LLC warranties applicable to this vehicle.
MOPARPARTS
MOPAR fluids, lubricants, parts, and accessories are
available from an authorized dealer. They are recom-
mended for your vehicle in order to help keep the vehicle
operating at its best.
REPORTING SAFETY DEFECTS
In the 50 United States and Washington, D.C.
If you believe that your vehicle has a defect that could
cause a crash or cause injury or death, you should
immediately inform the National Highway Traffic Safety
Administration (NHTSA) in addition to notifying the
manufacturer.
494 IF YOU NEED CONSUMER ASSISTANCE

About Your Brakes....................... 327
ABS (Anti-Lock Brake System) ............329,332
Adding Engine Coolant (Antifreeze) .......... 437
Adding Fuel ........................... 378
Additives, Fuel ......................... 375
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 427
Air Conditioner Maintenance ............... 429
Air Conditioning ........................ 281
Air Conditioning Controls ................. 281
Air Conditioning Filter .................293,430
Air Conditioning, Operating Tips ............ 294
Air Conditioning Refrigerant .............429,430
Air Conditioning System .............281,285,429
Air Filter .............................. 427
Air Pressure, Tires ....................... 353
Airbag ................................ 56
Airbag Deployment ....................... 70
Airbag Light ....................... 73,87,222
Airbag Maintenance ....................... 72 Airbag, Window (Side Curtain)
............... 60
Alarm, Panic ............................ 24
Alarm (Security Alarm) .................17,222
Alarm System (Security Alarm) ............... 17
Alterations/Modifications, Vehicle ............. 8
Antenna, Satellite Radio ................... 275
Antifreeze (Engine Coolant) ...........436,437,465
Disposal ............................ 439
Anti-Lock Brake System (ABS) ............329,332
Anti-Lock Warning Light .................. 213
Anti-Theft Security Alarm (Theft Alarm) ........ 17
Anti-Theft System ....................... 222
Appearance Care ........................ 448
Arming Theft System (Security Alarm) ......... 17
Assist, Hill Start ........................ 334
Assistance Towing ....................... 112
Auto Down Power Windows ................ 35
Auto Unlock, Doors ....................... 31
Automatic Dimming Mirror ................. 94
500 INDEX

Automatic Door Locks................... 30,31
Automatic Headlights .................... 149
Automatic Oil Change Indicator ..........220,226
Automatic Temperature Control (ATC) ......... 285
Automatic Transaxle ...................... 302
Special Additives ...................... 444
Automatic Transmission ................305,443
Adding Fluid ...................... 443,467
Fluid and Filter Changes ................. 443
Fluid Change ......................... 443
Fluid Level Check ..................... 443
Fluid Type ........................... 467
Gear Ranges ......................... 305
Special Additives ...................... 444
Torque Converter ...................... 309
Auxiliary Electrical Outlet (Power Outlet) ...... 189
Auxiliary Power Outlet ................... 189
Axle Fluid ............................. 467
Axle Lubrication (Axle Fluid) ............... 467Battery
............................... 428
Emergency Starting ..................... 412
Gas Caution .......................... 428
Jump Starting ......................... 412
Keyless Transmitter Replacement (RKE) ....... 25
Belts, Seat ............................ 42,87
Body Mechanism Lubrication ............... 431
B-Pillar Location ........................ 348
Brake Assist System ...................... 333
Brake Control System, Electronic ............. 331
Brake Fluid ............................ 467
Brake, Parking .......................... 327
Brake System ........................... 441
Anti-Lock (ABS) .................... 329,332
Fluid Check ....................... 441,467
Master Cylinder ....................... 441
Parking ............................. 327
Warning Light ........................ 221
Brakes ............................... 441
10
INDEX 501
