THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

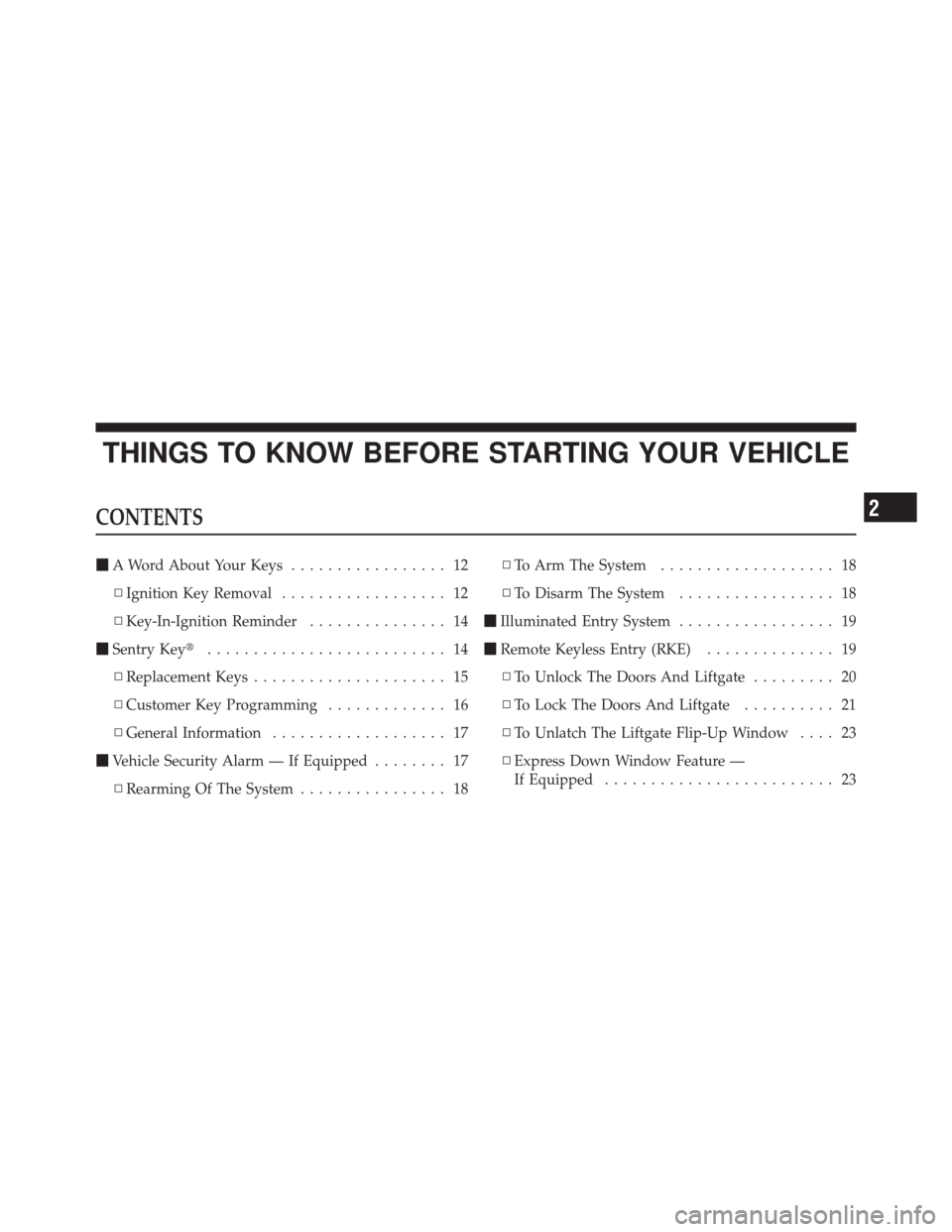

CONTENTS
A Word About Your Keys ................. 12
▫ Ignition Key Removal .................. 12
▫ Key-In-Ignition Reminder ............... 14
 Sentry Key .......................... 14
▫ Replacement Keys ..................... 15
▫ Customer Key Programming ............. 16
▫ General Information ................... 17
 Vehicle Security Alarm — If Equipped ........ 17
▫ Rearming Of The System ................ 18 ▫
To Arm The System ................... 18
▫ To Disarm The System ................. 18
 Illuminated Entry System ................. 19
 Remote Keyless Entry (RKE) .............. 19
▫ To Unlock The Doors And Liftgate ......... 20
▫ To Lock The Doors And Liftgate .......... 21
▫ To Unlatch The Liftgate Flip-Up Window .... 23
▫ Express Down Window Feature —
If Equipped ......................... 23
2

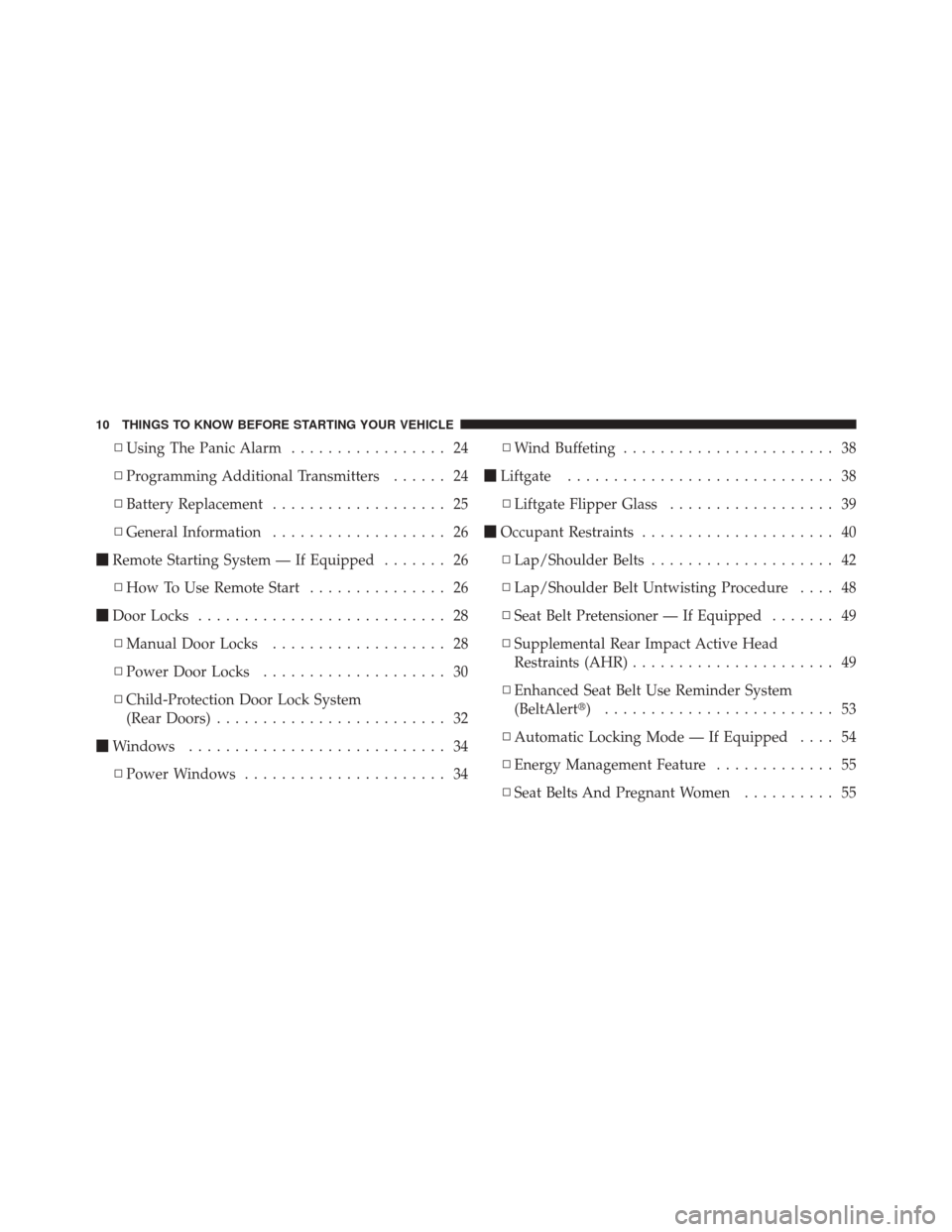

▫Using The Panic Alarm ................. 24
▫ Programming Additional Transmitters ...... 24
▫ Battery Replacement ................... 25
▫ General Information ................... 26
 Remote Starting System — If Equipped ....... 26
▫ How To Use Remote Start ............... 26
 Door Locks ........................... 28
▫ Manual Door Locks ................... 28
▫ Power Door Locks .................... 30
▫ Child-Protection Door Lock System
(Rear Doors) ......................... 32
 Windows ............................ 34
▫ Power Windows ...................... 34 ▫
Wind Buffeting ....................... 38
 Liftgate ............................. 38
▫ Liftgate Flipper Glass .................. 39
 Occupant Restraints ..................... 40
▫ Lap/Shoulder Belts .................... 42
▫ Lap/Shoulder Belt Untwisting Procedure .... 48
▫ Seat Belt Pretensioner — If Equipped ....... 49
▫ Supplemental Rear Impact Active Head
Restraints (AHR) ...................... 49
▫ Enhanced Seat Belt Use Reminder System
(BeltAlert) ......................... 53
▫ Automatic Locking Mode — If Equipped .... 54
▫ Energy Management Feature ............. 55
▫ Seat Belts And Pregnant Women .......... 55
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

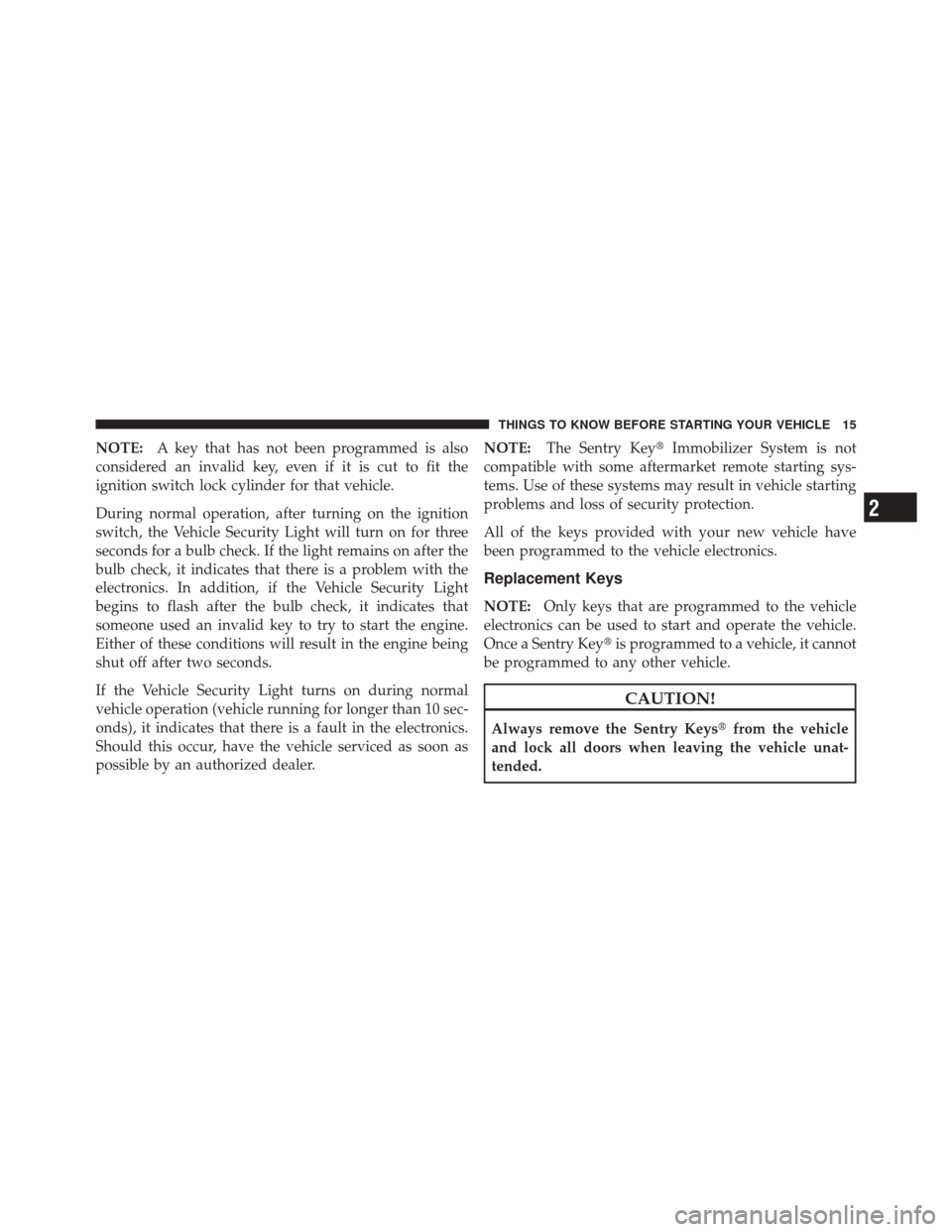

NOTE:A key that has not been programmed is also
considered an invalid key, even if it is cut to fit the
ignition switch lock cylinder for that vehicle.
During normal operation, after turning on the ignition
switch, the Vehicle Security Light will turn on for three
seconds for a bulb check. If the light remains on after the
bulb check, it indicates that there is a problem with the
electronics. In addition, if the Vehicle Security Light
begins to flash after the bulb check, it indicates that
someone used an invalid key to try to start the engine.
Either of these conditions will result in the engine being
shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer. NOTE:
The Sentry Key Immobilizer System is not
compatible with some aftermarket remote starting sys-
tems. Use of these systems may result in vehicle starting
problems and loss of security protection.
All of the keys provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only keys that are programmed to the vehicle
electronics can be used to start and operate the vehicle.
Once a Sentry Key is programmed to a vehicle, it cannot
be programmed to any other vehicle.
CAUTION!
Always remove the Sentry Keys from the vehicle
and lock all doors when leaving the vehicle unat-
tended.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

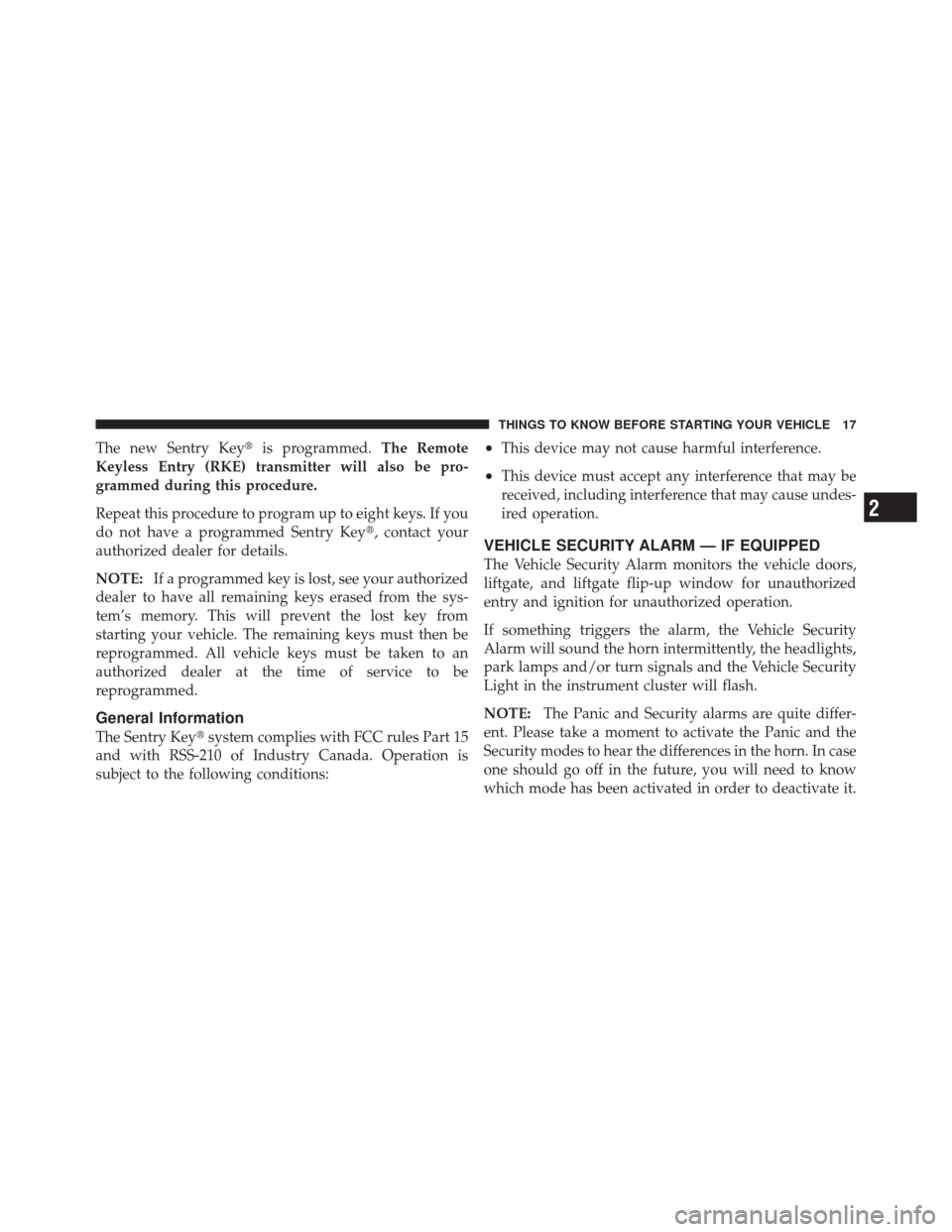

The new Sentry Keyis programmed.The Remote
Keyless Entry (RKE) transmitter will also be pro-
grammed during this procedure.
Repeat this procedure to program up to eight keys. If you
do not have a programmed Sentry Key, contact your
authorized dealer for details.
NOTE: If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tem’s memory. This will prevent the lost key from
starting your vehicle. The remaining keys must then be
reprogrammed. All vehicle keys must be taken to an
authorized dealer at the time of service to be
reprogrammed.
General Information
The Sentry Key system complies with FCC rules Part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
VEHICLE SECURITY ALARM — IF EQUIPPED
The Vehicle Security Alarm monitors the vehicle doors,
liftgate, and liftgate flip-up window for unauthorized
entry and ignition for unauthorized operation.
If something triggers the alarm, the Vehicle Security
Alarm will sound the horn intermittently, the headlights,
park lamps and/or turn signals and the Vehicle Security
Light in the instrument cluster will flash.
NOTE: The Panic and Security alarms are quite differ-
ent. Please take a moment to activate the Panic and the
Security modes to hear the differences in the horn. In case
one should go off in the future, you will need to know
which mode has been activated in order to deactivate it.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17

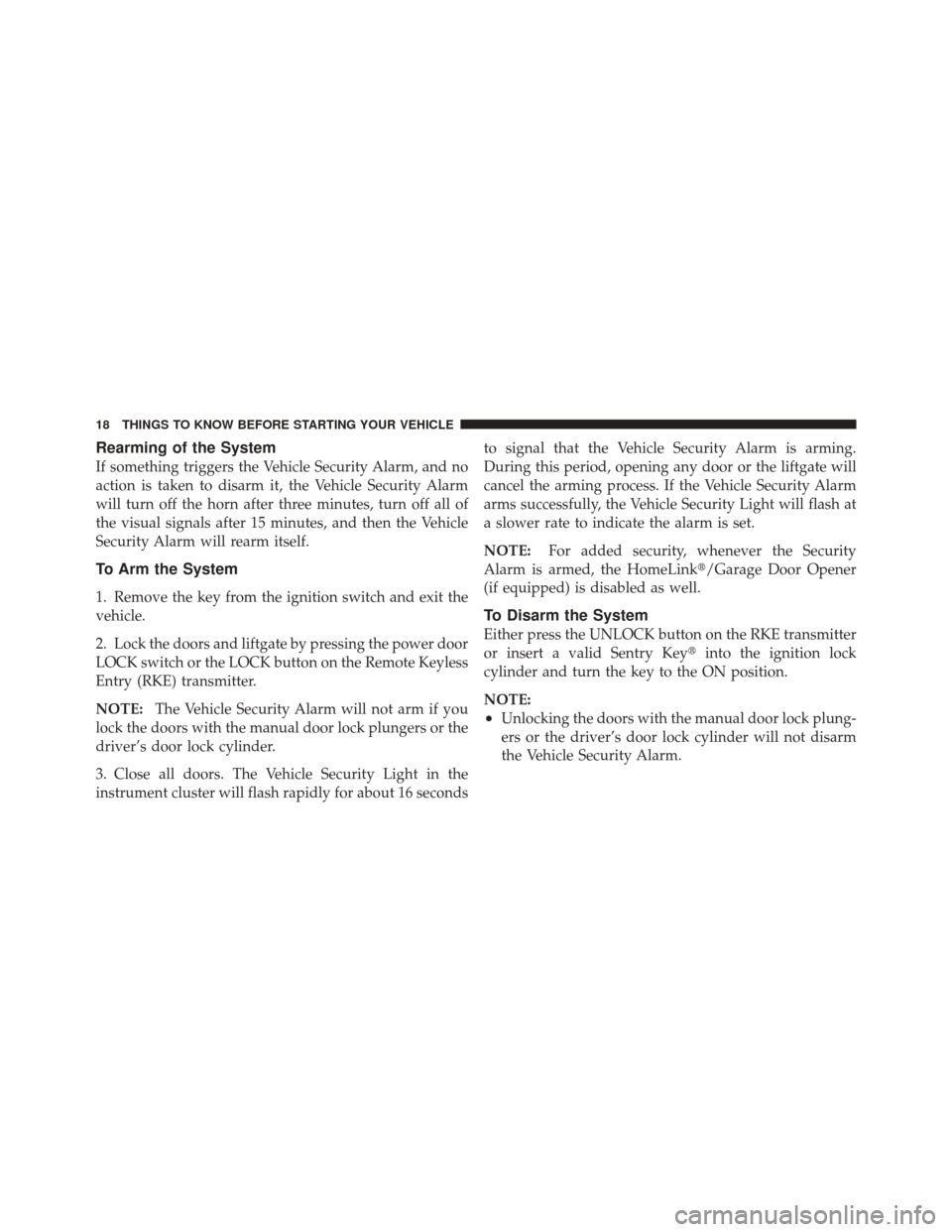

Rearming of the System
If something triggers the Vehicle Security Alarm, and no
action is taken to disarm it, the Vehicle Security Alarm
will turn off the horn after three minutes, turn off all of
the visual signals after 15 minutes, and then the Vehicle
Security Alarm will rearm itself.
To Arm the System
1. Remove the key from the ignition switch and exit the
vehicle.
2. Lock the doors and liftgate by pressing the power door
LOCK switch or the LOCK button on the Remote Keyless
Entry (RKE) transmitter.
NOTE:The Vehicle Security Alarm will not arm if you
lock the doors with the manual door lock plungers or the
driver’s door lock cylinder.
3. Close all doors. The Vehicle Security Light in the
instrument cluster will flash rapidly for about 16 seconds to signal that the Vehicle Security Alarm is arming.
During this period, opening any door or the liftgate will
cancel the arming process. If the Vehicle Security Alarm
arms successfully, the Vehicle Security Light will flash at
a slower rate to indicate the alarm is set.
NOTE:
For added security, whenever the Security
Alarm is armed, the HomeLink/Garage Door Opener
(if equipped) is disabled as well.
To Disarm the System
Either press the UNLOCK button on the RKE transmitter
or insert a valid Sentry Key into the ignition lock
cylinder and turn the key to the ON position.
NOTE:
•Unlocking the doors with the manual door lock plung-
ers or the driver’s door lock cylinder will not disarm
the Vehicle Security Alarm.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

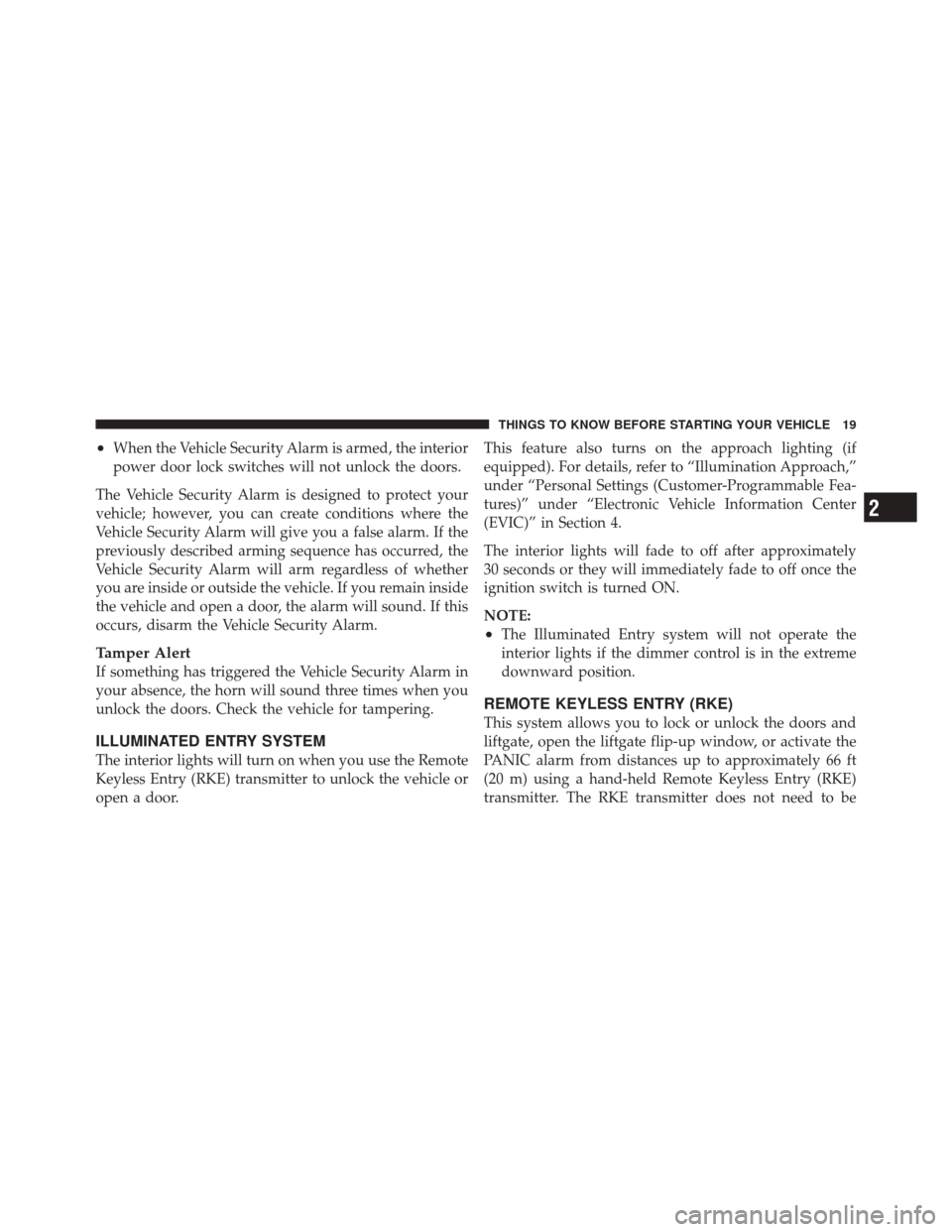

•When the Vehicle Security Alarm is armed, the interior
power door lock switches will not unlock the doors.
The Vehicle Security Alarm is designed to protect your
vehicle; however, you can create conditions where the
Vehicle Security Alarm will give you a false alarm. If the
previously described arming sequence has occurred, the
Vehicle Security Alarm will arm regardless of whether
you are inside or outside the vehicle. If you remain inside
the vehicle and open a door, the alarm will sound. If this
occurs, disarm the Vehicle Security Alarm.
Tamper Alert
If something has triggered the Vehicle Security Alarm in
your absence, the horn will sound three times when you
unlock the doors. Check the vehicle for tampering.
ILLUMINATED ENTRY SYSTEM
The interior lights will turn on when you use the Remote
Keyless Entry (RKE) transmitter to unlock the vehicle or
open a door. This feature also turns on the approach lighting (if
equipped). For details, refer to “Illumination Approach,”
under “Personal Settings (Customer-Programmable Fea-
tures)” under “Electronic Vehicle Information Center
(EVIC)” in Section 4.
The interior lights will fade to off after approximately
30 seconds or they will immediately fade to off once the
ignition switch is turned ON.
NOTE:
•The Illuminated Entry system will not operate the
interior lights if the dimmer control is in the extreme
downward position.
REMOTE KEYLESS ENTRY (RKE)
This system allows you to lock or unlock the doors and
liftgate, open the liftgate flip-up window, or activate the
PANIC alarm from distances up to approximately 66 ft
(20 m) using a hand-held Remote Keyless Entry (RKE)
transmitter. The RKE transmitter does not need to be
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19

pointed at the vehicle to activate the system. However,
the line of transmission must not be blocked with metal
objects when using the RKE transmitter.
NOTE:Inserting the key into the ignition switch dis-
ables all buttons on the RKE transmitter.To Unlock the Doors and Liftgate
Press and release the UNLOCK button on the RKE
transmitter once to unlock the driver’s door or twice to
unlock all doors and the liftgate. The turn signal lights
will flash to acknowledge the unlock signal. The illumi-
nated entry system will also turn on.
Remote Key Unlock, Driver Door/All Doors First
This feature lets you program the system to unlock either
the driver’s door or all doors and the liftgate on the first
press of the UNLOCK button on the RKE transmitter. To
change the current setting, proceed as follows:
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Remote Key
Unlock,” under “Personal Settings (Customer-
Programmable Features),” under “Electronic Vehicle
Information Center (EVIC)” in Section 4.
Vehicle Key
20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

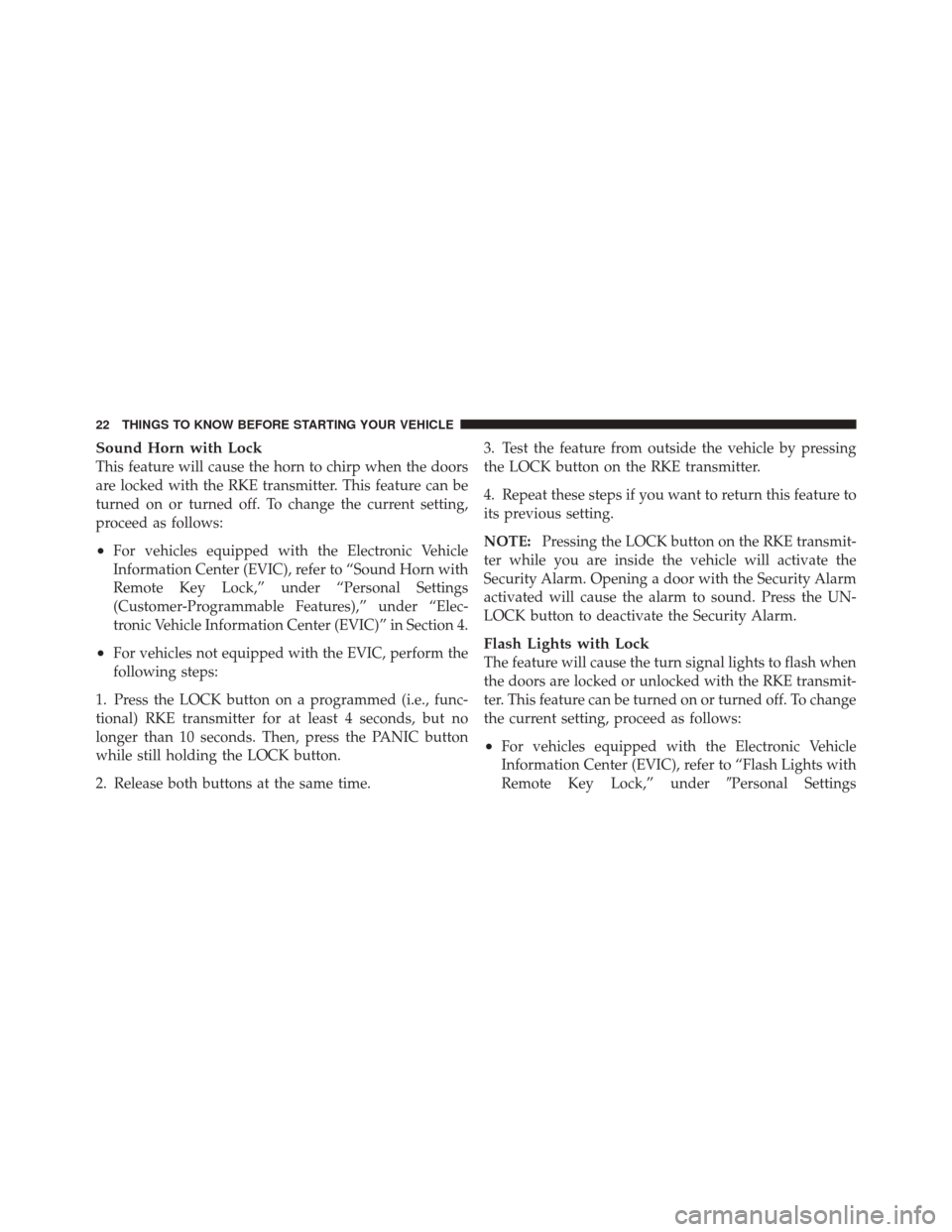

Sound Horn with Lock
This feature will cause the horn to chirp when the doors
are locked with the RKE transmitter. This feature can be
turned on or turned off. To change the current setting,
proceed as follows:
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Sound Horn with
Remote Key Lock,” under “Personal Settings
(Customer-Programmable Features),” under “Elec-
tronic Vehicle Information Center (EVIC)” in Section 4.
•For vehicles not equipped with the EVIC, perform the
following steps:
1. Press the LOCK button on a programmed (i.e., func-
tional) RKE transmitter for at least 4 seconds, but no
longer than 10 seconds. Then, press the PANIC button
while still holding the LOCK button.
2. Release both buttons at the same time. 3. Test the feature from outside the vehicle by pressing
the LOCK button on the RKE transmitter.
4. Repeat these steps if you want to return this feature to
its previous setting.
NOTE:
Pressing the LOCK button on the RKE transmit-
ter while you are inside the vehicle will activate the
Security Alarm. Opening a door with the Security Alarm
activated will cause the alarm to sound. Press the UN-
LOCK button to deactivate the Security Alarm.Flash Lights with Lock
The feature will cause the turn signal lights to flash when
the doors are locked or unlocked with the RKE transmit-
ter. This feature can be turned on or turned off. To change
the current setting, proceed as follows:
•For vehicles equipped with the Electronic Vehicle
Information Center (EVIC), refer to “Flash Lights with
Remote Key Lock,” under Personal Settings
22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
