2010 JEEP GRAND CHEROKEE SRT Owners Manual

MIRRORS
Automatic Dimming Mirror
This mirror automatically adjusts for headlight glare
from vehicles behind you. You can turn the feature on or
off by pressing the button at the base of the mirror. A light
next to the button will illuminate to indicate when the
dimming feature is activated.
CAUTION!
To avoid damage to the mirror during cleaning, never
spray any cleaning solution directly onto the mirror.
Apply the solution onto a clean cloth and wipe the
mirror clean.
Automatic Dimming Mirror
80 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Outside Mirrors
To receive maximum benefit, adjust the outside mirrors
to center on the adjacent lane of traffic with a slight
overlap of the view obtained on the inside mirror.
WARNING!
Vehicles and other objects seen in the passenger-side
convex mirror will look smaller and farther away
than they really are. Relying too much on your
passenger-side mirror could cause you to collide with
another vehicle or other objects. Use your inside
mirror when judging the size or distance of a vehicle
seen in the passenger-side mirror.
Outside Mirrors Folding Feature
All outside mirrors are hinged and may be moved either
forward or rearward to resist damage. The hinges have
three detent positions; full forward, full rearward and
normal.
Driver’s Automatic Dimming Mirrors — If
Equipped
The driver and passenger outside mirrors will automati-
cally adjust for glare from vehicles behind you. This
feature is controlled by the inside automatic dimming
mirror and can be turned on or off by pressing the button
at the base of the inside mirror. The mirrors will auto-
matically adjust for headlight glare when the inside
mirror adjusts.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 81

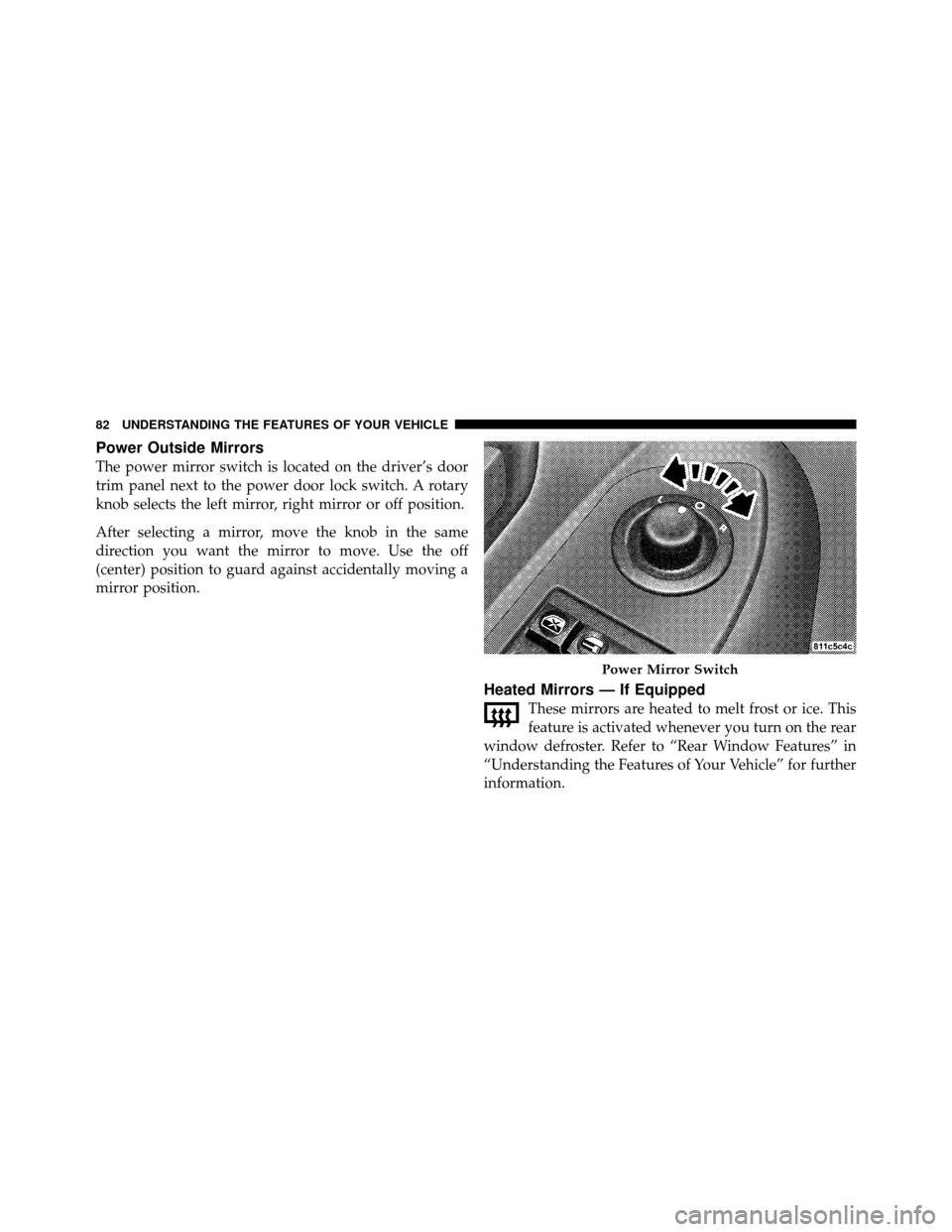

Power Outside Mirrors
The power mirror switch is located on the driver’s door
trim panel next to the power door lock switch. A rotary
knob selects the left mirror, right mirror or off position.
After selecting a mirror, move the knob in the same
direction you want the mirror to move. Use the off
(center) position to guard against accidentally moving a
mirror position.
Heated Mirrors — If Equipped
These mirrors are heated to melt frost or ice. This
feature is activated whenever you turn on the rear
window defroster. Refer to “Rear Window Features” in
“Understanding the Features of Your Vehicle” for further
information.
Power Mirror Switch
82 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Illuminated Vanity Mirrors — If Equipped
To access an illuminated vanity mirror, flip down one of
the sun visors.
Lift the cover to reveal the mirror. The light will turn on
automatically.
Uconnect™ Phone — IF EQUIPPED
Refer to “Uconnect™ Phone” in the Uconnect™ User
Manual located on the DVD for further details.
VOICE COMMAND — IF EQUIPPED
Refer to “Voice Command” in the Uconnect™ Phone
User Manual located on the DVD for further details.
SEATS
Seats are a primary part of the Occupant Restraint System
of the vehicle. They need to be used properly for safe
operation of the vehicle.
WARNING!
•DO NOT allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts. In a collision, people riding in these areas
are more likely to be seriously injured or killed.(Continued)
Lighted Vanity Mirror
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 83

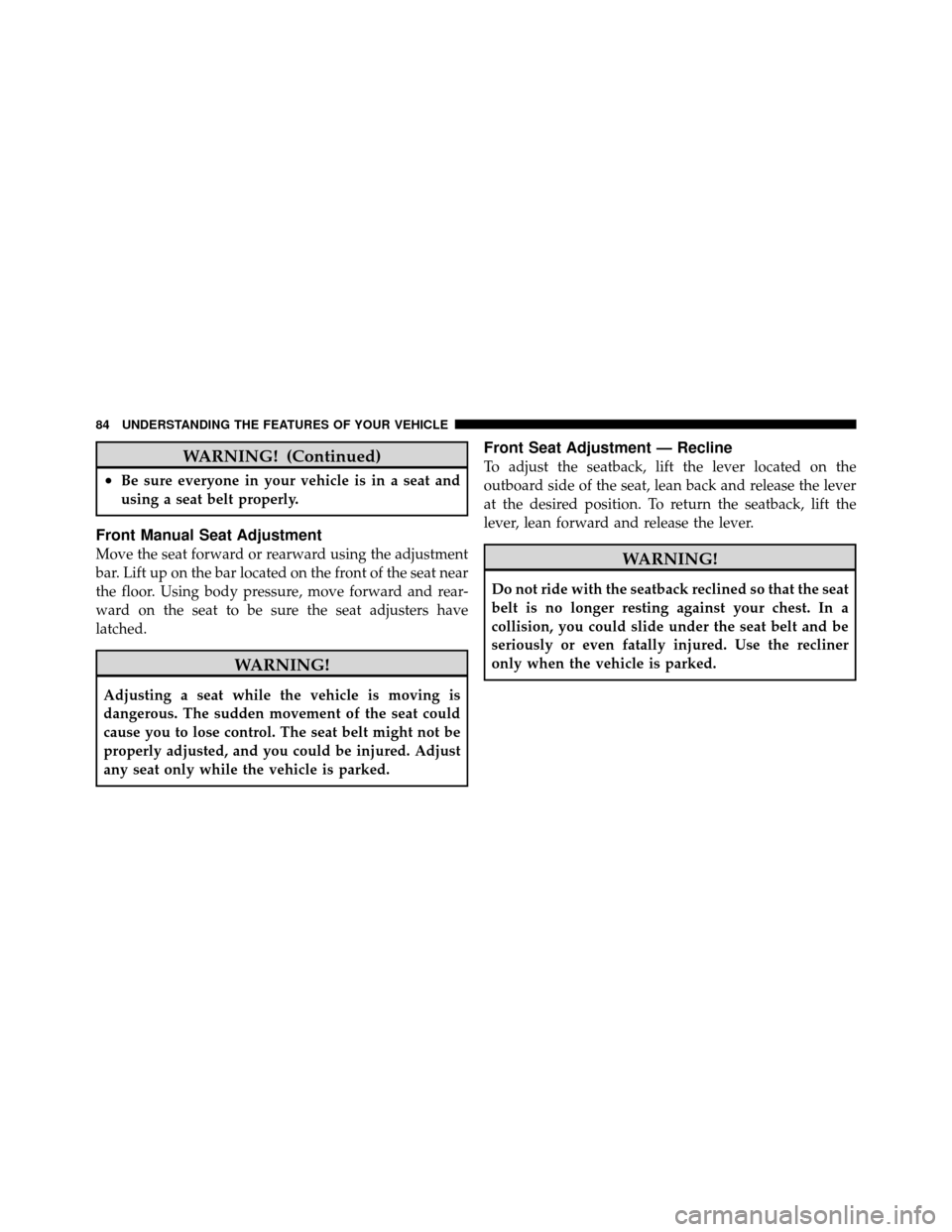

WARNING! (Continued)
•Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
Front Manual Seat Adjustment
Move the seat forward or rearward using the adjustment
bar. Lift up on the bar located on the front of the seat near
the floor. Using body pressure, move forward and rear-
ward on the seat to be sure the seat adjusters have
latched.
WARNING!
Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
properly adjusted, and you could be injured. Adjust
any seat only while the vehicle is parked.
Front Seat Adjustment — Recline
To adjust the seatback, lift the lever located on the
outboard side of the seat, lean back and release the lever
at the desired position. To return the seatback, lift the
lever, lean forward and release the lever.
WARNING!
Do not ride with the seatback reclined so that the seat
belt is no longer resting against your chest. In a
collision, you could slide under the seat belt and be
seriously or even fatally injured. Use the recliner
only when the vehicle is parked.
84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

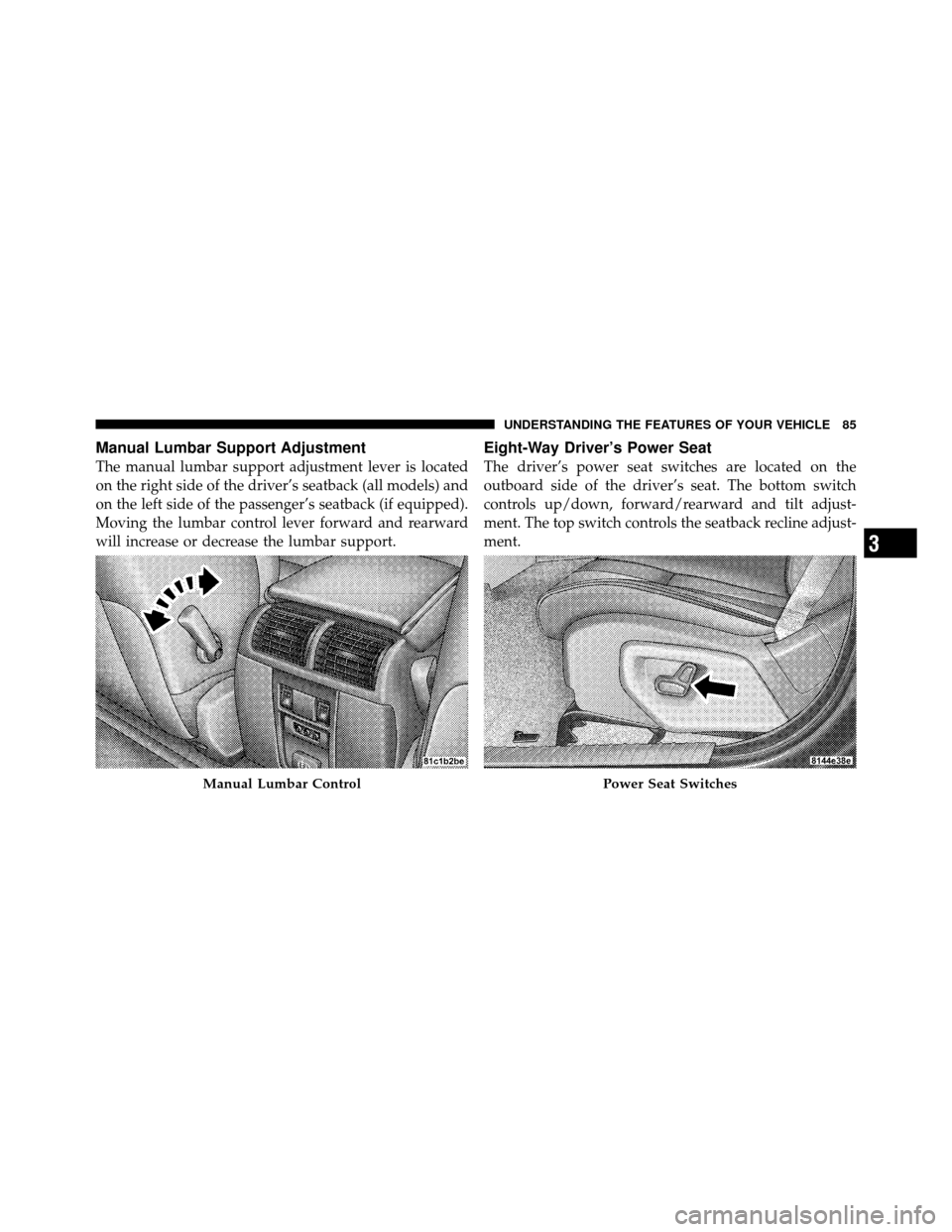

Manual Lumbar Support Adjustment
The manual lumbar support adjustment lever is located
on the right side of the driver’s seatback (all models) and
on the left side of the passenger’s seatback (if equipped).
Moving the lumbar control lever forward and rearward
will increase or decrease the lumbar support.
Eight-Way Driver’s Power Seat
The driver’s power seat switches are located on the
outboard side of the driver’s seat. The bottom switch
controls up/down, forward/rearward and tilt adjust-
ment. The top switch controls the seatback recline adjust-
ment.
Manual Lumbar ControlPower Seat Switches
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85

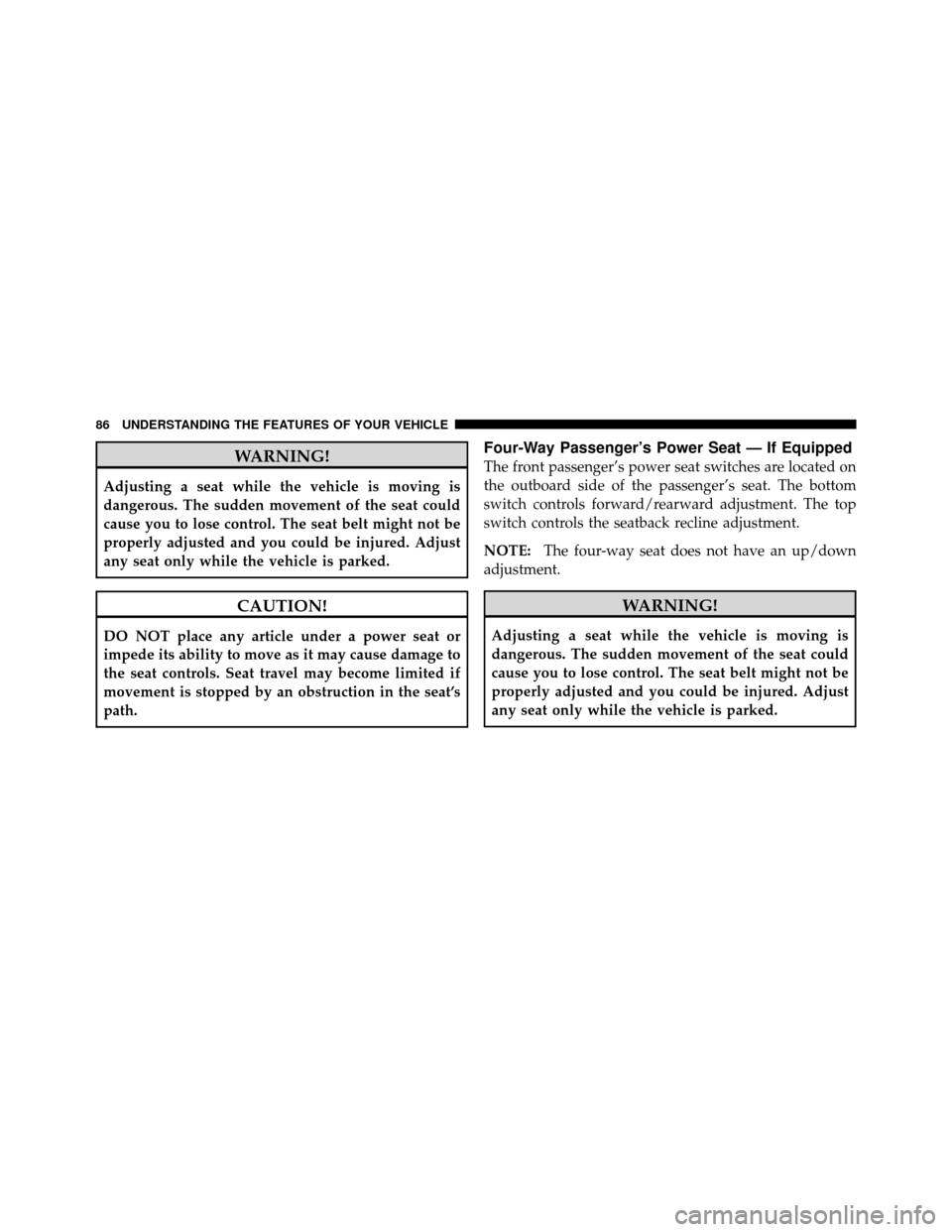

WARNING!
Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
properly adjusted and you could be injured. Adjust
any seat only while the vehicle is parked.
CAUTION!
DO NOT place any article under a power seat or
impede its ability to move as it may cause damage to
the seat controls. Seat travel may become limited if
movement is stopped by an obstruction in the seat’s
path.
Four-Way Passenger’s Power Seat — If Equipped
The front passenger’s power seat switches are located on
the outboard side of the passenger’s seat. The bottom
switch controls forward/rearward adjustment. The top
switch controls the seatback recline adjustment.
NOTE:The four-way seat does not have an up/down
adjustment.
WARNING!
Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the seat could
cause you to lose control. The seat belt might not be
properly adjusted and you could be injured. Adjust
any seat only while the vehicle is parked.
86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

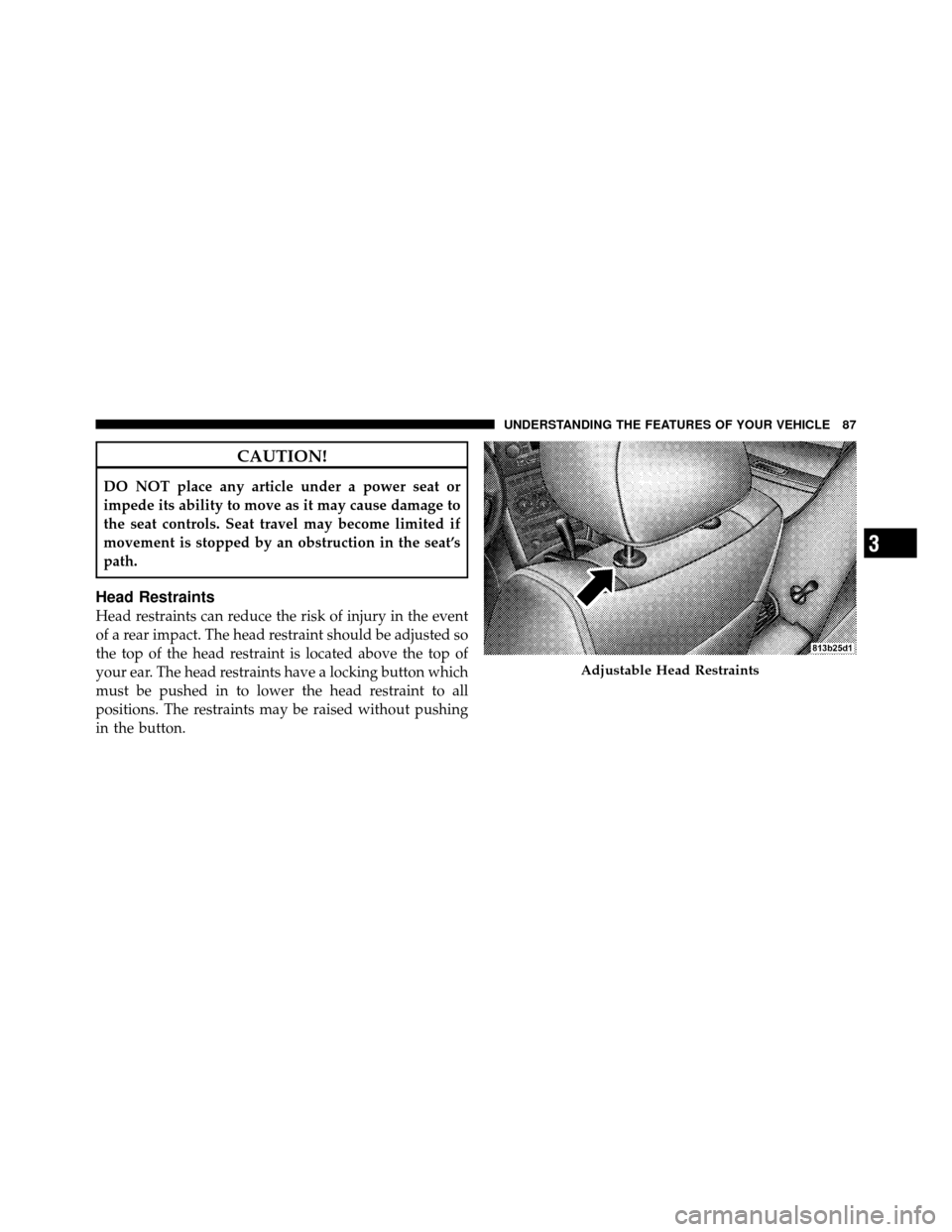

CAUTION!
DO NOT place any article under a power seat or
impede its ability to move as it may cause damage to
the seat controls. Seat travel may become limited if
movement is stopped by an obstruction in the seat’s
path.
Head Restraints
Head restraints can reduce the risk of injury in the event
of a rear impact. The head restraint should be adjusted so
the top of the head restraint is located above the top of
your ear. The head restraints have a locking button which
must be pushed in to lower the head restraint to all
positions. The restraints may be raised without pushing
in the button.
Adjustable Head Restraints
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87
