2010 JEEP GRAND CHEROKEE relay

CavityCartridge
Fuse Mini-
Fuse Description
10 10 Amp
RedFinal Drive Control
Module (FDCM),
Heater Ventilation/
Air Conditioning
(HVAC), Rear Heated
Seat Switch, O/H,
Heater Ventilation/
Air Conditioning
(HVAC) Relay, Rear
Park Assist
11 Spare (B+)
12 10 Amp
RedDoor Mods, O/H
Lamps, IP Courtesy
Lamps, Glove Box
Lamp (B+)
13 10 Amp
RedAutowipe (R/A)Cavity
Cartridge
Fuse Mini-
Fuse Description
14 20 Amp
YellowCigar Ltr (R/A)
15 10 Amp
RedTire Pressure Tran-
sponders (R/O)
16 10 Amp
RedUpper & Lower
Switch Bank, Diag.
Connector, Cluster
(B+)
17 15 Amp
BlueFlipper Glass (B+)
19 Spare
(R/S)
20 10 Amp
RedSteering Column Con-
trol Module (SCCM),
Cluster (R/S), BUX
Trailer Tow
342 MAINTAINING YOUR VEHICLE

CavityCartridge
Fuse Mini-
Fuse Description
21 Spare
(Acc De-
lay)
22 15 Amp
BlueRear Wiper (B+)
24 10 Amp
RedPower Distribution
Center (PDC) Relays,
Powertrain Control
Module, A580 (R/S)
25 10 Amp
RedShifter Assy (BTSI),
Trans. Case Switch,
ESP/ABS, Trailer

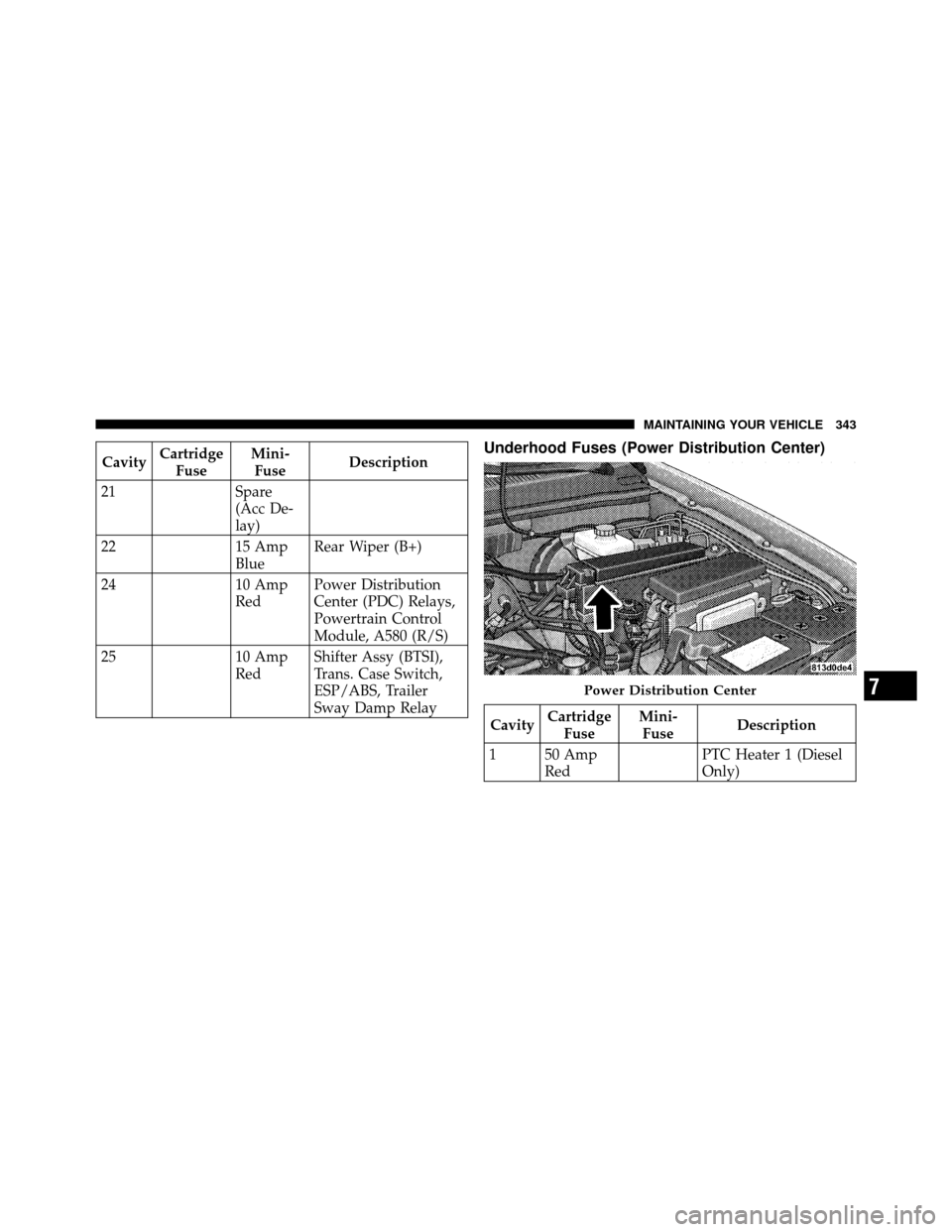

Sway Damp RelayUnderhood Fuses (Power Distribution Center)
Cavity
Cartridge
Fuse Mini-
Fuse Description
1 50 Amp Red PTC Heater 1 (Diesel
Only)
Power Distribution Center7
MAINTAINING YOUR VEHICLE 343
