2010 JEEP GRAND CHEROKEE fog light

▫Head Restraints ...................... 87
▫ Front Heated Seats — If Equipped ......... 88
▫ Rear Heated Seats — If Equipped .......... 90
▫ 60/40 Split Rear Seat ................... 91
 Driver Memory Seat — If Equipped ......... 94
▫ Setting Memory Positions And Linking
Remote Keyless Entry Transmitter To
Memory ............................ 95
▫ Memory Position Recall ................. 96
▫ To Disable a RKE Transmitter Linked To
Memory ............................ 96
▫ Easy Entry/Exit Seat ................... 97
 To Open And Close The Hood ............. 98
 Lights ............................. 100 ▫
Multifunction Lever .................. 100
▫ Headlights And Parking Lights .......... 100
▫ Automatic Headlights — If Equipped ...... 101
▫ Headlights On Automatically With Wipers . . 101
▫ Smartbeam™ — If Equipped ............ 102
▫ Daytime Running Lights — If Equipped .... 103
▫ Automatic Headlight Leveling — HID
Headlights Only ..................... 103
▫ Instrument Panel Dimmer .............. 103
▫ Battery Saver Feature ................. 104
▫ Lights-On Reminder .................. 104
▫ Fog Lights — If Equipped .............. 105
▫ Turn Signals ........................ 106
76 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

LIGHTS
Multifunction Lever
The multifunction lever controls the operation of the
headlights, turn signals, headlight beam selection, instru-
ment panel light dimming, passing light, interior courtesy/
dome lights and optional fog lights. The multifunction
lever is located on the left side of the steering wheel.
Headlights and Parking Lights
Turn the end of the multifunction lever to the first detent
for parking light operation. Turn to the second detent for
headlight operation. Turn to the third detent for Auto-
matic Headlight operation (if equipped).
Multifunction Lever
Headlight Switch
100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

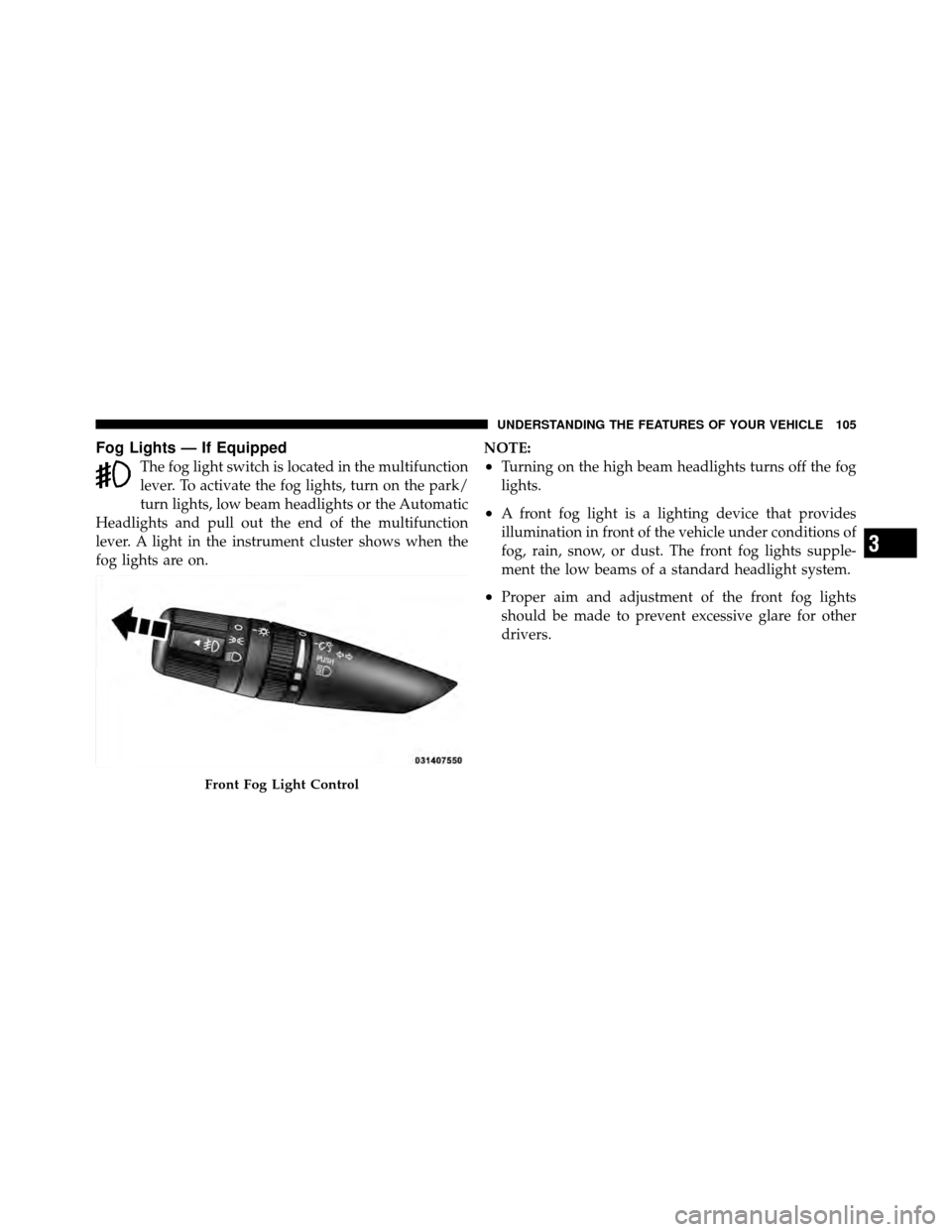

Fog Lights — If Equipped
The fog light switch is located in the multifunction
lever. To activate the fog lights, turn on the park/
turn lights, low beam headlights or the Automatic
Headlights and pull out the end of the multifunction
lever. A light in the instrument cluster shows when the
fog lights are on. NOTE:•Turning on the high beam headlights turns off the fog
lights.
•A front fog light is a lighting device that provides
illumination in front of the vehicle under conditions of
fog, rain, snow, or dust. The front fog lights supple-
ment the low beams of a standard headlight system.
•Proper aim and adjustment of the front fog lights
should be made to prevent excessive glare for other
drivers.
Front Fog Light Control
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105

make a record of the odometer reading before the repair/
service, so that you can be sure that it is properly reset, or
that the door jamb sticker is accurate if the odometer
must be reset at zero.
19. Shift Lever Indicator
The Shift Lever Indicator is self-contained within the
instrument cluster. It displays the gear position of the
automatic transmission.
NOTE:You must apply the brakes before shifting from
PARK.
20. Fuel Gauge
The pointer shows the level of fuel in the fuel tank when
the ignition switch is in the ON position.
21. Electronic Throttle Control (ETC) Warning Light This light informs you of a problem with the
Electronic Throttle Control (ETC) system. If a
problem is detected the light will come on while the engine is running. Cycle the ignition key when
the vehicle has completely stopped and the shift lever is
placed in the PARK position. The light should turn off. If
the light remains lit with the engine running, your
vehicle will usually be drivable; however, see your
authorized dealer for service as soon as possible. If the
light is flashing when the engine is running, immediate
service is required and you may experience reduced
performance, an elevated/rough idle or engine stall and
your vehicle may require towing. The light will come on
when the ignition is first turned on and remain on briefly
as a bulb check. If the light does not come on during
starting, have the system checked by an authorized
dealer.
22. Front Fog Light Indicator — If Equipped
This indicator will illuminate when the front fog
lights are on.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 165

REPLACEMENT BULBS
Interior LightsBulb Type
Glove Box Lamp ......................... 194
Grab Handle Lamp ................ L002825W5W
Overhead Console Reading Lamps .........VT4976
Rear Cargo Lamp ....................... 214–2
Visor Vanity Lamp ..................... V26377
Underpanel Courtesy Lamps ................ 906
Instrument Cluster (General Illumination) ....... 103
Telltale/Hazard Lamp ...................... 74
Exterior Lights Bulb Type
Backup Lamps ......................... 3157K
Front Park/Turn Lamp ................... 3757A
Front Fog Lamps ........................ 9145
Front Side Marker ...................... W5W
Headlamps (Low Beam) – High Intensity Discharge
(HID) .......... D1S (Serviced at Authorized Dealer) Headlamps (Low Beam)
................... 9006
Headlamps (High Beam) ..................9005
Rear Turn/Stop/Tail Lamps ...............3157K
NOTE: Numbers refer to commercial bulb types that
can be purchased from your authorized dealer.
If a bulb needs to be replaced, visit your authorized
dealer or refer to the applicable Service Manual.
BULB REPLACEMENT
High Intensity Discharge Headlamps (HID) — If
Equipped
The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off and the key removed. Because of
this, you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to
an authorized dealer for service.7
MAINTAINING YOUR VEHICLE 349

Fluid Leaks............................. 73
Fluid Level Checks Brake .............................. 334
Cooling System ....................... 328
Engine Oil ........................... 318
Power Steering ........................ 249
Fluids, Lubricants and Genuine Parts .......... 356
Fog Light Service ........................ 352
Fog Lights ....................... 105,165,352
Folding Rear Seat ........................ 91
Four-Way Hazard Flasher .................. 302
Freeing A Stuck Vehicle ................... 244
Front Heated Seats ....................... 88
Fuel ................................. 282
Additives ............................ 285
Clean Air ............................ 283
Ethanol ............................. 283
Filler Cap (Gas Cap) .................... 287
Gasoline ............................ 282 Gauge
.............................. 165
Materials Added ....................... 285
Methanol ............................ 283
Octane Rating ........................ 282
Requirements ...................... 282,355
Tank Capacity ........................ 355
Fuel System Caution ..................... 287
Fuses ................................ 341
Garage Door Opener (HomeLink) ........... 128
Gas Cap (Fuel Filler Cap) ............287,288,314
Gasoline, Clean Air ...................... 283
Gasoline (Fuel) ......................... 282
Gasoline, Reformulated ................... 283
Gauges Coolant Temperature ................... 162
Fuel ............................... 165
Speedometer ......................... 156
Tachometer .......................... 159
10
INDEX 393

Bulb Replacement...................... 349
Cargo .............................. 143
Center Mounted Stop ................... 354
Cruise .............................. 164
Daytime Running ...................... 103
Dimmer Switch, Headlight .............100,106
Electronic Stability Program (ESP)
Indicator ....................... 160,163,260
Electronic Throttle Control Warning ......... 165
Exterior .............................. 73
Fog .......................... 105,165,352
Fuses ............................... 341
Hazard Warning Flasher ................. 302
Headlight Switch ...................... 100
Headlights ........................ 349,350
Headlights On With Wipers ............... 101
High Beam Indicator .................... 157
Illuminated Entry ....................... 18
Instrument Cluster ..................... 100 Interior
............................. 107
Lights On Reminder .................... 104
Low Fuel ............................ 166
Malfunction Indicator (Check Engine) ........ 158
Map Reading ......................... 108
Oil Pressure .......................... 160
Passing ............................. 106
Reading .......................... 108,127
Rear Servicing ........................ 352
Rear Tail ............................ 352
Seat Belt Reminder ..................... 164
Security Alarm (Theft Alarm) .............. 159
Service ............................. 349
Service Engine Soon (Malfunction Indicator) . . . 158
Side Marker .......................... 352
SmartBeams .......................... 102
Tire Pressure Monitoring (TPMS) ........... 160
Traction Control .................... 160,260
Turn Signal ................ 73,100,106,351,352
396 INDEX
