Key-In-Ignition Reminder
Opening the driver’s door when the Key Fob is in the
ignition and the ignition switch position is OFF or ACC,
sounds a signal to remind you to remove the Key Fob.
NOTE:The Key-In-Ignition reminder only sounds
when the Key Fob is placed in the OFF or ACC ignition
position.
SENTRY KEY
The Sentry Key Immobilizer system prevents unautho-
rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses the factory-mated Key Fob with Remote
Keyless Entry (RKE) transmitter and Wireless Ignition
Node (WIN) to prevent unauthorized vehicle operation.
Therefore, only Key Fobs that are programmed to the
vehicle can be used to start and operate the vehicle. The system will shut the engine off in two seconds if an
invalid Key Fob is used to start the engine.
After turning the ignition switch to the ON position, the
Vehicle Security Light will turn on for three seconds for a
bulb check. If the light remains on after the bulb check, it
indicates that there is a problem with the electronics. In
addition, if the light begins to flash after the bulb check,
it indicates that someone used an invalid Key Fob to start
the engine. Either of these conditions will result in the
engine being shut off after two seconds.
If the Vehicle Security Light turns on during normal
vehicle operation (vehicle running for longer than 10 sec-
onds), it indicates that there is a fault in the electronics.
Should this occur, have the vehicle serviced as soon as
possible by an authorized dealer.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15

NOTE:The Sentry Key Immobilizer system is not
compatible with aftermarket remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
All of the Key Fobs provided with your new vehicle have
been programmed to the vehicle electronics.
Replacement Keys
NOTE: Only Key Fobs that are programmed to the
vehicle electronics can be used to start and operate the
vehicle. Once a Key Fob is programmed to a vehicle, it
cannot be programmed to any other vehicle.
CAUTION!
Always remove the Key Fobs from the vehicle and
lock all doors when leaving the vehicle unattended. At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
Keep the PIN in a secure location. This number is
required for authorized dealer replacement of Key Fobs.
Duplication of Key Fobs may be performed at an autho-
rized dealer, this procedure consists of programming a
blank Key Fob to the vehicle electronics. A blank Key Fob
is one that has never been programmed.
NOTE:
When having the Sentry Key Immobilizer
system serviced, bring all vehicle Key Fobs with you to
the authorized dealer.
Customer Key Programming
Programming Key Fobs or RKE transmitters may be
performed at an authorized dealer.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

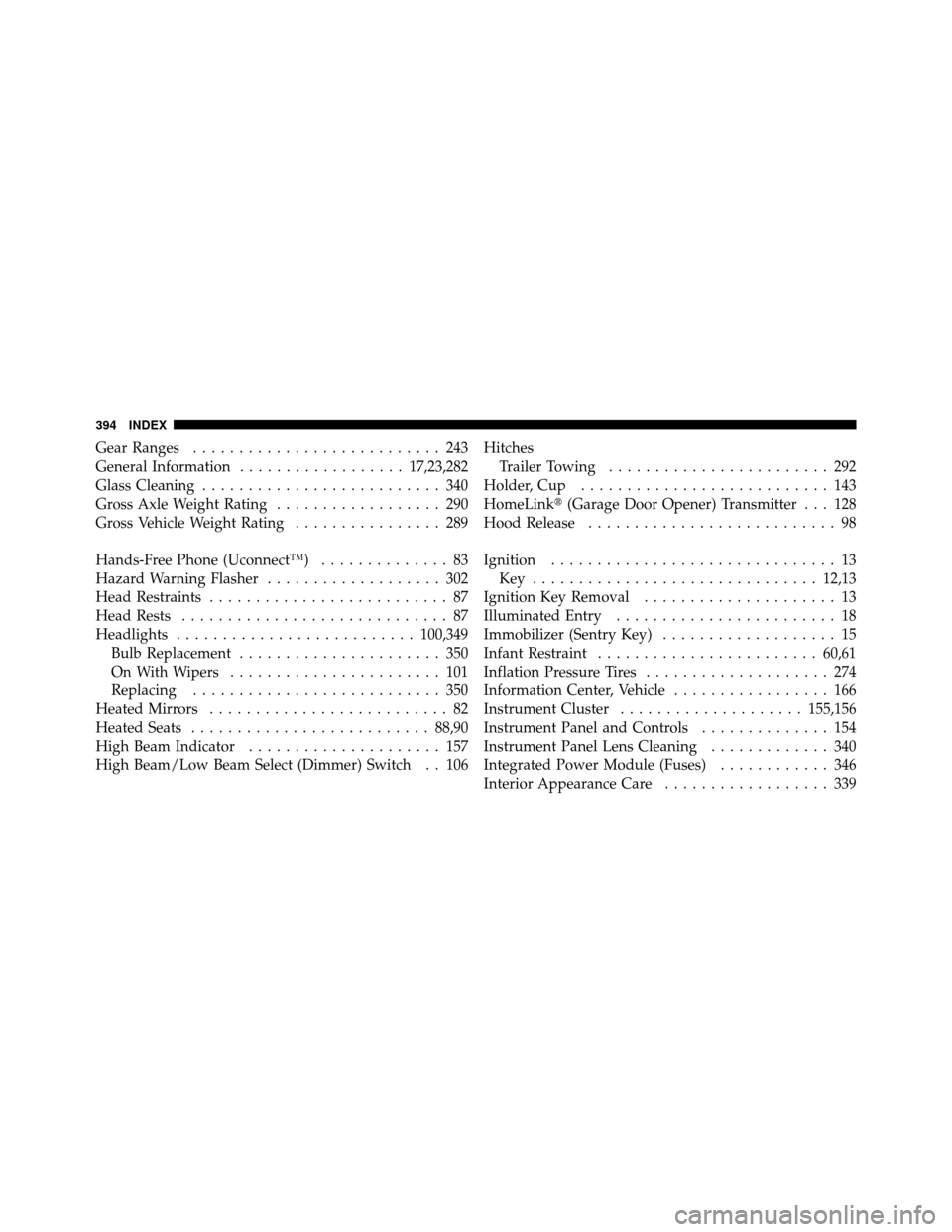

Gear Ranges........................... 243
General Information .................. 17,23,282
Glass Cleaning .......................... 340
Gross Axle Weight Rating .................. 290
Gross Vehicle Weight Rating ................ 289
Hands-Free Phone (Uconnect™) .............. 83
Hazard Warning Flasher ................... 302
Head Restraints .......................... 87
Head Rests ............................. 87
Headlights .......................... 100,349
Bulb Replacement ...................... 350
On With Wipers ....................... 101
Replacing ........................... 350
Heated Mirrors .......................... 82
Heated Seats .......................... 88,90
High Beam Indicator ..................... 157
High Beam/Low Beam Select (Dimmer) Switch . . 106 Hitches
Trailer Towing ........................ 292
Holder, Cup ........................... 143
HomeLink (Garage Door Opener) Transmitter . . . 128
Hood Release ........................... 98
Ignition ............................... 13
Key ............................... 12,13
Ignition Key Removal ..................... 13
Illuminated Entry ........................ 18
Immobilizer (Sentry Key) ................... 15
Infant Restraint ........................ 60,61
Inflation Pressure Tires .................... 274
Information Center, Vehicle ................. 166
Instrument Cluster .................... 155,156
Instrument Panel and Controls .............. 154
Instrument Panel Lens Cleaning ............. 340
Integrated Power Module (Fuses) ............ 346
Interior Appearance Care .................. 339
394 INDEX

Interior Fuses.......................... 341
Interior Lighting ........................ 107
Interior Lights .......................... 107
Intermittent Wipers (Delay Wipers) ........... 110
Introduction ............................. 4
Inverter, Power ......................... 140
Jump Starting .......................... 304
Key, Programming ........................ 16
Key, Replacement ........................ 16
Key, Sentry (Immobilizer) ................... 15
Key-In Reminder ......................... 15
Keyless Entry System ...................... 19
Keys ................................. 12
Kicker Sound System ..................... 220
Knee Bolster ............................ 46
Lane Change Assist ...................... 106 Lap/Shoulder Belts
....................... 36
LATCH (Lower Anchors and Tether for
CHildren) ............................ 65,66
Latches ................................ 73
Lead Free Gasoline ...................... 282
Leaks, Fluid ............................ 73
Life of Tires ............................ 277
Liftgate ................................ 32
Liftgate Flipper Glass ...................... 33
Liftgate Window Wiper/Washer ............. 148
Light Bulbs ............................. 73
Lights .............................. 73,100
Airbag ...................... 46,53,58,73,159
Anti-Lock ........................... 159
Automatic Headlights ................... 101
Back-Up ............................ 352
Battery Saver ......................... 104
Brake Assist Warning ................163,260
Brake Warning ........................ 156
10
INDEX 395

Maintenance......................... 340
Pretensioners .......................... 43
Reminder ............................ 164
Shoulder Belt Anchorage ................. 41
Seats ................................. 83
Adjustment ........................... 84
Cleaning ............................ 339
Easy Entry ............................ 97
Head Restraints ........................ 87
Heated ............................ 88,90
Lumbar Support ....................... 85
Memory ............................. 94
Power ............................. 85,86
Rear Folding .......................... 91
Reclining ............................. 84
Security Against Theft ..................... 17
Security Alarm (Theft Alarm) .............17,159
Selection of Coolant (Antifreeze) ............. 329
Selection of Oil ......................... 319 Sentry Key (Immobilizer)
................... 15
Sentry Key Programming ................... 16
Sentry Key Replacement ................... 16
Service Assistance ....................... 379
Service Contract ......................... 381
Service Engine Soon Light
(Malfunction Indicator) .................... 158
Service Manuals ........................ 383
Setting the Clock ................ 185,187,190,199
Settings, Personal ........................ 179
Shift Lock Manual Override ................ 241
Shifting ............................... 240
Automatic Transmission ................. 240
Shoulder Belts ........................... 36
Signals, Turn ................. 73,106,157,351,352
SmartBeams ........................... 102
Sound System Kicker .............................. 220
Speed Control (Cruise Control) .............. 116
10
INDEX 401
