If the transmission is not operable, or the vehicle must be
towed faster than 30 mph (48 km/h) or farther than
15 miles (24 km), remove the driveshaft or tow with all
four wheelsOFFthe ground. Acceptable methods are to
tow the vehicle on a flatbed, or with one end of the
vehicle raised and the other end on a towing dolly.Four-Wheel Drive Models Only
The manufacturer requires towing your vehicle with all
four wheels OFFthe ground using a flatbed.
CAUTION!
Towing this vehicle using any other method could
result in extensive damage to the transfer case and/or
transmission. Such damage is not covered by the
New Vehicle Limited Warranty.
360 WHAT TO DO IN EMERGENCIES

MAINTAINING YOUR VEHICLE

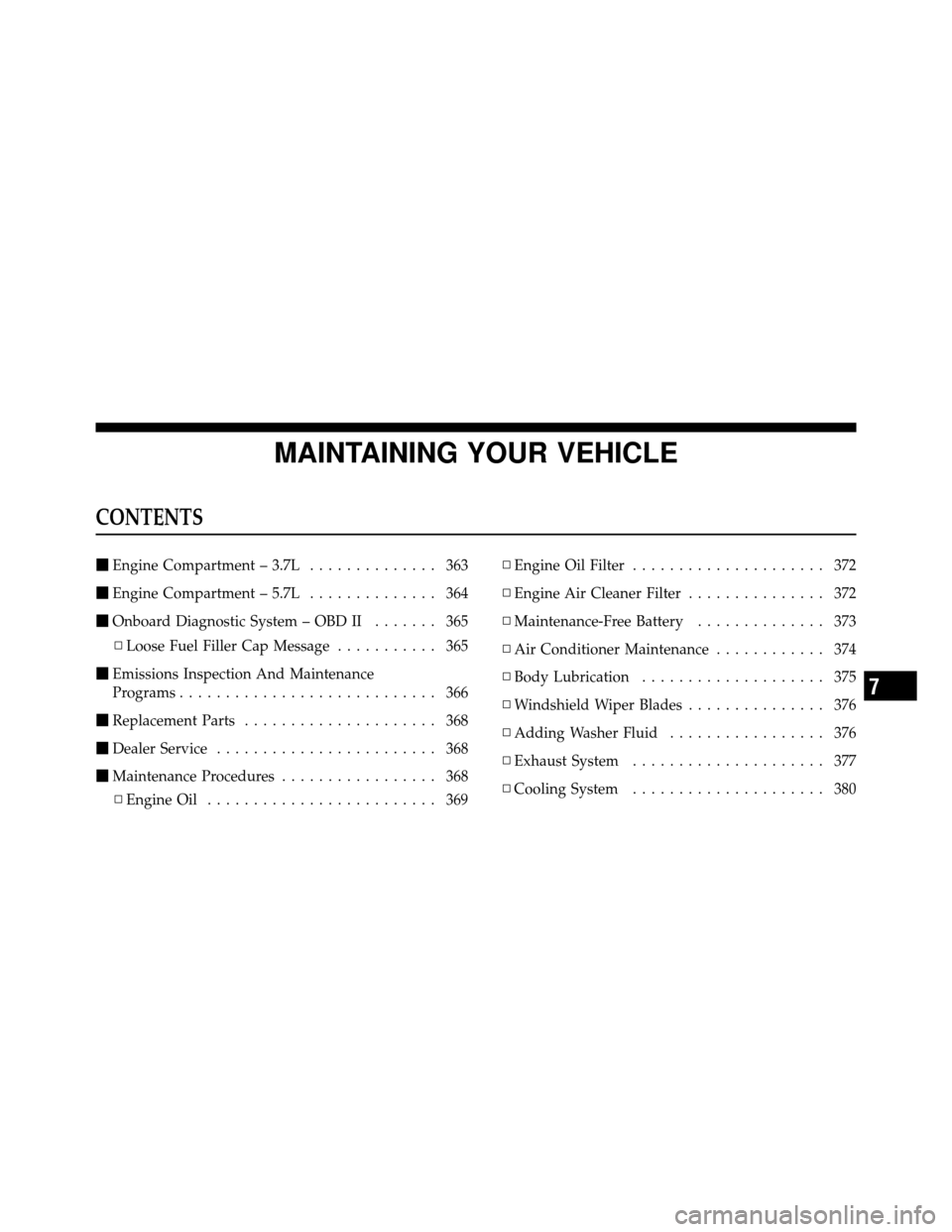

CONTENTS
Engine Compartment – 3.7L .............. 363
 Engine Compartment – 5.7L .............. 364
 Onboard Diagnostic System – OBD II ....... 365
▫ Loose Fuel Filler Cap Message ........... 365
 Emissions Inspection And Maintenance
Programs ............................ 366
 Replacement Parts ..................... 368
 Dealer Service ........................ 368
 Maintenance Procedures ................. 368
▫ Engine Oil ......................... 369 ▫
Engine Oil Filter ..................... 372
▫ Engine Air Cleaner Filter ............... 372
▫ Maintenance-Free Battery .............. 373
▫ Air Conditioner Maintenance ............ 374
▫ Body Lubrication .................... 375
▫ Windshield Wiper Blades ............... 376
▫ Adding Washer Fluid ................. 376
▫ Exhaust System ..................... 377
▫ Cooling System ..................... 380
7

▫Brake System ....................... 385
▫ Front/Rear Axle Fluid ................. 387
▫ Transfer Case ....................... 388
▫ Automatic Transmission ............... 389
▫ Maintenance After Off-Road Driving ...... 392
▫ Appearance Care And Protection From
Corrosion .......................... 393
 Fuses .............................. 398
▫ Interior Fuses ....................... 398
▫ Underhood Fuses
(Power Distribution Center) ............. 401
▫
Underhood Fuses (Integrated Power Module). . 404
 Vehicle Storage ....................... 406
 Replacement Bulbs .................... 406
Bulb Replacement ..................... 407
▫ High Intensity Discharge Headlamps (HID)
— If Equipped ...................... 407
▫ Halogen Headlamps — If Equipped ....... 408
▫ Front Turn Signal .................... 409
▫ Front Fog Lamp ..................... 410
▫ Rear Tail, Stop, Turn Signal, And Backup
Lamps ............................ 410
▫ Center High-Mounted Stop Lamp
(CHMSL) .......................... 412
 Fluid Capacities ...................... 413
 Fluids, Lubricants, And Genuine Parts ....... 414
▫ Engine ............................ 414
▫ Chassis ........................... 415
362 MAINTAINING YOUR VEHICLE

ENGINE COMPARTMENT – 3.7L
1 — Engine Coolant Reservoir6 — Washer Fluid Reservoir
2 — Engine Oil Dipstick 7 — Battery
3 — Brake Fluid Reservoir 8 — Engine Oil Fill
4 — Power Distribution Center 9 — Coolant Pressure Cap
5 — Integrated Power Module 10 — Air Cleaner Filter
7
MAINTAINING YOUR VEHICLE 363

ENGINE COMPARTMENT – 5.7L
1 — Engine Coolant Reservoir7 — Washer Fluid Reservoir
2 — Automatic Transmission Dipstick 8 — Battery
3 — Engine Oil Fill 9 — Engine Oil Dipstick
4 — Brake Fluid Reservoir 10 — Coolant Pressure Cap
5 — Power Distribution Center 11 — Air Cleaner Filter
6 — Integrated Power Module
364 MAINTAINING YOUR VEHICLE

ONBOARD DIAGNOSTIC SYSTEM – OBD II
Your vehicle is equipped with a sophisticated onboard
diagnostic system called OBD II. This system monitors
the performance of the emissions, engine, and automatic
transmission control systems. When these systems are
operating properly, your vehicle will provide excellent
performance and fuel economy, as well as engine emis-
sions well within current government regulations.
If any of these systems require service, the OBD II system
will turn on the “Malfunction Indicator Light” (MIL). It
will also store diagnostic codes and other information to
assist your service technician in making repairs. Al-
though your vehicle will usually be drivable and not
need towing, see your authorized dealer for service as
soon as possible.CAUTION!
•Prolonged driving with the MIL on could cause
further damage to the emission control system. It
could also affect fuel economy and drivability. The
vehicle must be serviced before any emissions
tests can be performed.
•If the MIL is flashing while the engine is running,
severe catalytic converter damage and power loss
will soon occur. Immediate service is required.
Loose Fuel Filler Cap Message
After fuel is added, the vehicle diagnostic system can
determine if the fuel filler cap is loose, improperly
installed, or damaged. A “CHECK GASCAP” message
will be displayed in the EVIC. Refer to “Electronic Vehicle
Information Center (EVIC)” in “Understanding Your
Instrument Panel” for further information. Tighten the
7
MAINTAINING YOUR VEHICLE 365

gas cap until aclickingsound is heard. This is an
indication that the gas cap is properly tightened.
The message will remain displayed until the vehicle
diagnostic system can retest the fuel system. The test will
perform the next time the vehicle is started, if the vehicle
was keyed off above 40°F (4°C) outside temperature and
the following vehicle start is above 40°F (4°C) outside
temperature. It may be possible to have a message that
will not clear due to the test being disabled due to low
outside temperatures. If the test is performed and the
problem is gone, the message will disappear.
If the problem persists, the message will appear the next
time the vehicle is started. This might indicate a damaged
cap. If the problem is detected twice in a row, the system
will turn on the MIL. Resolving the problem will turn the
MIL off. See your authorized dealer for service.EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS
In some localities, it may be a legal requirement to pass
an inspection of your vehicle’s emissions control system.
Failure to pass could prevent vehicle registration.
For states that require an Inspection and Mainte-
nance (I/M), this check verifies the “Malfunction
Indicator Light (MIL)” is functioning and is not
on when the engine is running, and that the OBD II
system is ready for testing.
Normally, the OBD II system will be ready. The OBD II
system may notbe ready if your vehicle was recently
serviced, recently had a dead battery or a battery replace-
ment. If the OBD II system should be determined not
ready for the I/M test, your vehicle may fail the test.
366 MAINTAINING YOUR VEHICLE

Your vehicle has a simple ignition key-actuated test,
which you can use prior to going to the test station. To
check if your vehicle’s OBD II system is ready, you must
do the following:
1. Turn the ignition switch to the ON position, but do not
crank or start the engine.
2. If you crank or start the engine, you will have to start
this test over.
3. As soon as you turn the ignition switch to the ON
position, you will see the MIL symbol come on as part of
a normal bulb check.
4. Approximately 15 seconds later, one of two things will
happen:a. The MIL will flash for about 10 seconds and then
return to being fully illuminated until you turn OFF
the ignition or start the engine. This means that your
vehicle’s OBD II system is not readyand you should
not proceed to the I/M station. b. The MIL will not flash at all and will remain fully
illuminated until you turn OFF the ignition or start the
engine. This means that your vehicle’s OBD II system
is
ready and you can proceed to the I/M station.
If your OBD II system is not ready,you should see your
authorized dealer or repair facility. If your vehicle was
recently serviced or had a battery failure or replacement,
you may need to do nothing more than drive your
vehicle as you normally would in order for your OBD II
system to update. A recheck with the above test routine
may then indicate that the system is now ready.
Regardless of whether your vehicle’s OBD II system is
ready or not, if the MIL is illuminated during normal
vehicle operation you should have your vehicle serviced
before going to the I/M station. The I/M station can fail
your vehicle because the MIL is on with the engine
running.
7
MAINTAINING YOUR VEHICLE 367
