2010 INFINITI QX56 torque

DLN-240
< PREPARATION >[REAR FINAL DRIVE: R230]
PREPARATION
Commercial Service Tool
INFOID:0000000005148927
ST3127S000
(J-25765-A)
Preload gauge
1: GG91030000 (J-25765)
Torque wrench
2: HT62940000 (—)
Socket adapter (1/2 ″)
3: HT62900000 (—)
Socket adapter (3/8 ″) Measuring drive pinion bearing preload torque
and total preload torque
ST3306S001
(—)
Differential side bearing puller set
1: ST33051001 (J-22888-20)
Puller
2: ST33061000
(J-8107-2)
Base Removing and installing side bearing inner
race
a: 28.5 mm (1.122 in) dia.
b: 38 mm (1.50 in) dia.
ST33081000
(—)
Adapter Install differential carrier side bearings
a: 43 mm (1.69 in) dia.
b: 33.5 mm (1.319 in) dia.
ST35325000
(—)
Drift bar Installing drive pinion front and rear bearing
races
ST36230000
(J-25840-A)
Sliding hammer Removing side flange
—
(J-8129)
Spring gauge Measuring turning torque
Tool number
(Kent-Moore No.)
Tool name
Description
NT124
NT072
NT431
ZZA1140D
ZZA0803D
NT127
Revision: April 20092010 QX56

DLN-244
< ON-VEHICLE MAINTENANCE >[REAR FINAL DRIVE: R230]
DIFFERENTIAL GEAR OIL
ON-VEHICLE MAINTENANCE
DIFFERENTIAL GEAR OIL
Changing Rear Differential Gear OilINFOID:0000000005148930
DRAINING
1. Stop the engine.
2. Remove the drain plug and gasket from the rear final drive
assembly to drain the differential gear oil.
3. Install the drain plug with a new gasket to the rear final drive assembly. Tighten to the specified torque. Refer to DLN-253,
"Disassembly and Assembly".
CAUTION:
Do not reuse gasket.
FILLING
1. Remove the filler plug and gasket from the rear final drive assembly.
2. Fill the rear final drive assembly with new differential gear oil until the level reaches the specified level near the filler plug hole.
3. Install the filler plug with a new gasket on it to the rear final drive assembly. Tighten to the specified torque. Refer to DLN-253,
"Disassembly and Assembly".
CAUTION:
Do not reuse gasket.
Checking Rear Differential Gear OilINFOID:0000000005148931
OIL LEAKAGE AND OIL LEVEL
1. Make sure that differential gear oil is not leaki ng from the rear final drive assembly or around it.
2. Check the differential gear oil level from the filler plug hole as shown.
CAUTION:
Do not start engine while checki ng differential gear oil level.
3. Install the filler plug with a new gasket on it to the rear final drive assembly. Tighten to the specified torque. Refer to DLN-253,
"Disassembly and Assembly".
CAUTION:
Do not reuse gasket.
LLIA0068E
Differential gear oil
grade and capacity : Refer to MA-13, "Fluids and
Lubricants".
LLIA0068E
LLIA0068E
Revision: April 20092010 QX56

FRONT OIL SEALDLN-245
< ON-VEHICLE REPAIR > [REAR FINAL DRIVE: R230]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
ON-VEHICLE REPAIR
FRONT OIL SEAL
Removal and InstallationINFOID:0000000005148932
REMOVAL
1. Remove the drive shafts from the rear final drive assembly. Refer to RAX-10, "Removal and Installation".
2. Remove the side flanges and side oil seals. Refer to DLN-247, "
Removal and Installation".
3. Remove the rear propeller shaft. Refer to DLN-196, "
Removal and Installation".
4. Measure the total preload torque. Refer to DLN-253, "
Disassembly and Assembly".
NOTE:
Record the total preload torque measurement.
5. Remove the drive pinion lock nut using suitable tool.
6. Put matching marks on the companion flange and drive pinion using paint. CAUTION:
Use paint to make the matching marks. Do not da mage the companion flange or drive pinion.
7. Remove the companion flange using suitable tool.
8. Remove the front oil seal using Tool.
INSTALLATION
SDIA1142E
SDIA1054E
Tool number : KV381054S0 (J-34286)
SDIA0485E
Revision: April 20092010 QX56

DLN-246
< ON-VEHICLE REPAIR >[REAR FINAL DRIVE: R230]
FRONT OIL SEAL
1. Apply multi-purpose grease to the lips of the new front oil seal.
Then drive the new front oil seal in evenly until it becomes flush
with the gear carrier using Tool.
CAUTION:
• Do not reuse front oil seal.
• Do not incline the new front oil seal when installing.
• Apply multi-purpose grease to the lips of the new front oilseal.
2. Install the companion flange to the drive pinion while aligning the matching marks.
3. Apply anti-corrosive oil to the threads of the drive pinion and the seating surface of the new drive pinion lock nut. Then adjust the
drive pinion lock nut tightening torque using suitable tool (A),
and check the total preload torque using Tool (B).
• The total preload torque should be within the total preloadtorque specification. When not replacing the collapsible
spacer, it should also be equal to the measurement taken dur-
ing removal plus an additional 0.56 N·m (0.06 Kg-m, 5 in-lb).
• If the total preload torque is low, tighten the drive pinion lock nut in 6.8 N·m (0.69 Kg-m, 5ft-lb) increments until the total pre-
load torque is met.
CAUTION:
• Do not reuse drive pinion lock nut.
• Apply anti-corrosive oil to the threads of the drive pinion and the seating surface of the new drive pinion lock nut.
• Adjust the drive pinion lock nut tightening torque to the
lower limit first. Do not exceed the drive pinion lock nut
specified torque. Refer to DLN-253, "
Disassembly and
Assembly".
• Do not loosen drive pinion lock nu t to adjust the total preload torque. If the total preload torque
exceeds the specifications, replace the collapsible spacer and tighten it again to adjust. Refer to
DLN-253, "
Disassembly and Assembly".
• After adjustment, rotate drive pinion back and fo rth 2 to 3 times to check for unusual noise, rota-
tion malfunction, and other malfunctions.
4. Installation of the remaining components is in the reverse order of removal. CAUTION:
Check the differential gear oil level after installation. Refer to DLN-244, "
Checking Rear Differential
Gear Oil".
Tool number : ST15310000 ( — )
PDIA0565E
Tool number B: ST3127S000 (J-25765-A)
Total preload torque: Refer to
DLN-253, "
Disassem-
bly and Assembly".
WDIA0380E
Revision: April 20092010 QX56

CARRIER COVERDLN-249
< ON-VEHICLE REPAIR > [REAR FINAL DRIVE: R230]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
CARRIER COVER
Removal and InstallationINFOID:0000000005148934
REMOVAL
1. Remove the rear final drive assembly. Refer to DLN-250, "Removal and Installation".
2. Remove the carrier cover bolts and separate the carrier cover from the gear carrier using Tool.
CAUTION:
• Do not damage the mating surface.
• Do not insert flat-bladed screw driver, this will damage the
mating surface.
INSTALLATION
1. Apply a 3 mm (0.12 in) bead of sealant to the mating surface of the carrier cover as shown.
• Use Genuine Silicone RTV or equivalent. Refer to GI-15,
"Recommended Chemical Products and Sealants".
CAUTION:
Remove any old sealant adheri ng to the mating surfaces.
Also remove any moisture, oil, or foreign material adhering
to the application and mating surfaces.
2. Install the carrier cover to the gear carrier. Tighten the bolts to the specified torque. Refer to DLN-253, "
Disassembly and
Assembly".
3. Install the rear final drive assembly. Refer to DLN-250, "
Removal
and Installation".
CAUTION:
Fill the rear final drive assembly with reco mmended differential gear oil. Refer to DLN-244
.
Tool number : KV10111100 (J-37228)
WDIA0123E
WDIA0282E
Revision: April 20092010 QX56

DLN-254
< DISASSEMBLY AND ASSEMBLY >[REAR FINAL DRIVE: R230]
REAR FINAL DRIVE
ASSEMBLY INSPECTION AND ADJUSTMENT
• Drain the differential gear oil before inspection and adjustment. Refer to
DLN-244.
• Remove and install the carrier cover as necessary for inspection and adjustment. Refer to DLN-249
.
Total Preload Torque
1. Remove the side flanges if necessary. Refer to DLN-247, "Removal and Installation".
CAUTION:
The side flanges must removed in or der to measure total preload torque.
2. Rotate the drive pinion back and forth 2 to 3 times to check for unusual noise and rotation malfunction.
3. Rotate the drive pinion at least 20 times to check for smooth operation of the bearings.
4. Measure the total preload torque using Tool.
NOTE:
Total preload torque = Drive pinion bearing preload torque +
Side bearing preload torque
• If the measured value is out of the specification, check and adjust each part. Adjust the drive pinion
bearing preload torque first, then adjust the side bearing preload torque.
CAUTION:
Select a side bearing adjusting wash er for right and left individually.
Drive Gear Runout
1. Drive pinion lock nut 2. Companion flange3. Front oil seal
4. Drive pinion front bearing 5. Collapsible spacer6. Drive pinion rear bearing
7. Drive pinion height adjusting washer 8. Drive pinion 9. Gear carrier
10. Drive gear 11. Pinion mate shaft12. Lock pin
13. Pinion mate gear 14. Pinion mate thrust washer 15. Side gear
16. Side gear thrust washer 17. Differential case18. Side bearing
19. Side bearing adjusting washer 20. Bearing cap 21. Carrier cover
22. Filler plug 23. Drain plug24. Side oil seal
Tool number : ST3127S000 (J-25765-A)
Total preload torque
: Refer to DLN-270, "
Inspection and Adjustment"
SPD884
If the total preload torque is greater than specification
On drive pinion bearings: Replace the collapsible spacer.
On side bearings: Use thinner side b earing adjusting washers by the same
amount on each side. Refer to DLN-270, "
Inspection and Adjust-
ment".
If the total preload torque is less than specification On drive pinion bearings: Tighten the drive pinion lock nut.
On side bearings: Use thicker side b earing adjusting washers by the same
amount on each side. Refer to DLN-270, "
Inspection and Ad-
justment".
Revision: April 20092010 QX56

DLN-256
< DISASSEMBLY AND ASSEMBLY >[REAR FINAL DRIVE: R230]
REAR FINAL DRIVE
• If the tooth contact is near the face (face contact), or near the heel
(heel contact), use a thicker drive pinion height adjusting washers
to move the drive pinion closer to the drive gear.
Refer to DLN-270, "
Inspection and Adjustment".
• If the tooth contact is near the flank (flank contact), or near the toe (toe contact), use a thinner drive pinion height adjusting washers to
move the drive pinion farther from the drive gear.
Refer to DLN-270, "
Inspection and Adjustment".
Backlash
1. Fit a dial indicator to the drive gear face to measure the back- lash.
• If the backlash is outside of the specification, change the thickness of the side bearing adjusting washers.
CAUTION:
Do not change the total thickness of side bearing adjusting washers as it will change the side bearing
preload torque.
Companion Flange Runout
PDIA0440E
PDIA0441E
Backlash : Refer to DLN-270, "Inspection and
Adjustment"
If the backlash is greater than specification:
Make side bearing adjusting washer thicker on drive
gear back side, and side bearing adjusting washer
thinner on drive gear tooth side by the same amount.
Refer to DLN-270, "
Inspection and Adjustment".
If the backlash is less than specification: Make side bearing adjusting washer thinner on drive
gear back side, and side bearing adjusting washer
thicker on drive gear tooth side by the same amount.
Refer to DLN-270, "
Inspection and Adjustment".
SPD513
Revision: April 20092010 QX56

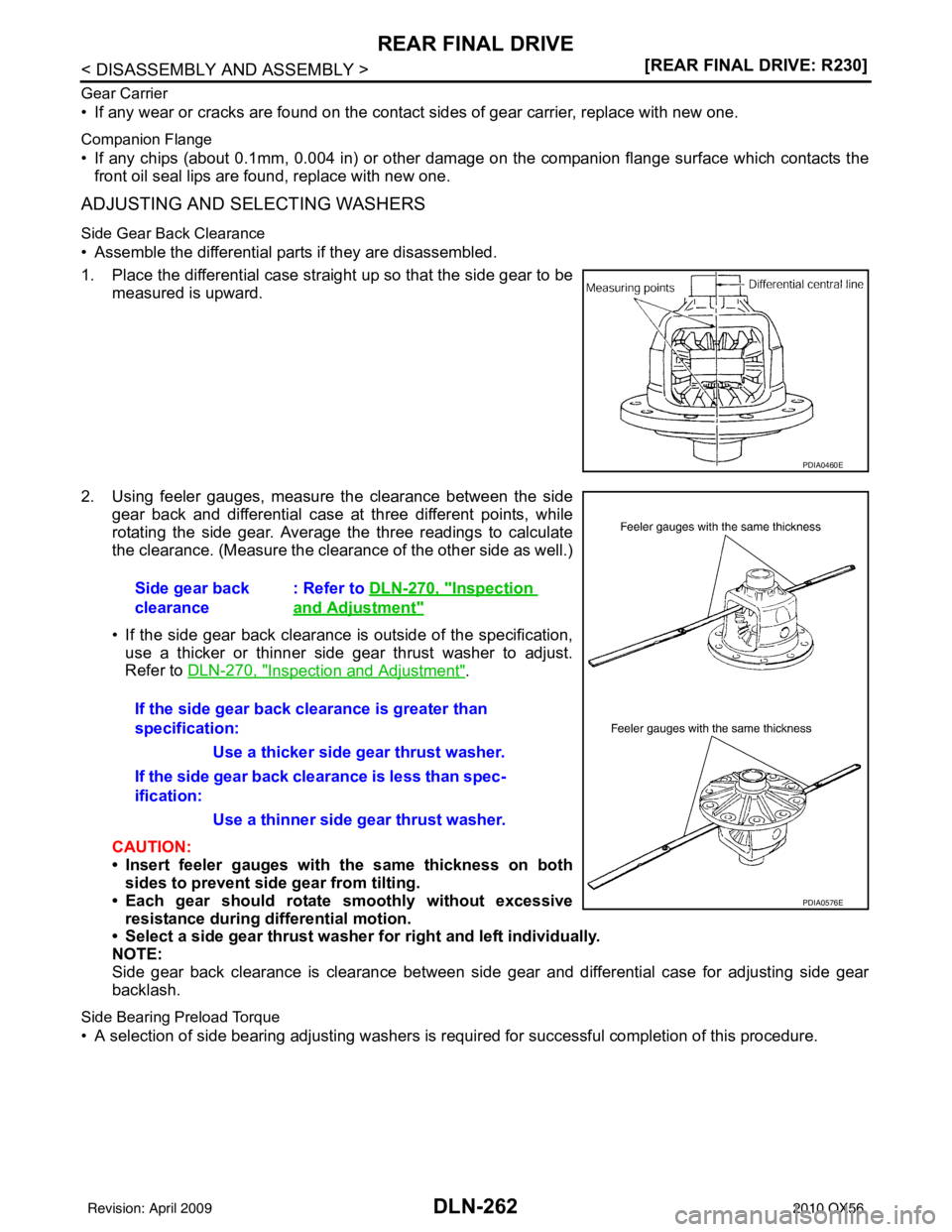

DLN-262
< DISASSEMBLY AND ASSEMBLY >[REAR FINAL DRIVE: R230]
REAR FINAL DRIVE
Gear Carrier
• If any wear or cracks are found on the contact sides of gear carrier, replace with new one.
Companion Flange
• If any chips (about 0.1mm, 0.004
in) or other damage on the companion flange surface which contacts the
front oil seal lips are found, replace with new one.
ADJUSTING AND SELECTING WASHERS
Side Gear Back Clearance
• Assemble the differential parts if they are disassembled.
1. Place the differential case straight up so that the side gear to be measured is upward.
2. Using feeler gauges, measure the clearance between the side gear back and differential case at three different points, while
rotating the side gear. Average the three readings to calculate
the clearance. (Measure the clearance of the other side as well.)
• If the side gear back clearance is outside of the specification,use a thicker or thinner side gear thrust washer to adjust.
Refer to DLN-270, "
Inspection and Adjustment".
CAUTION:
• Insert feeler gauges with the same thickness on both sides to prevent side gear from tilting.
• Each gear should rotate smoothly without excessive resistance during differential motion.
• Select a side gear thrust washer for right and left individually.
NOTE:
Side gear back clearance is clearance between side gear and differential case for adjusting side gear
backlash.
Side Bearing Preload Torque
• A selection of side bearing adjusting washers is required for successful completion of this procedure.
PDIA0460E
Side gear back
clearance : Refer to
DLN-270, "Inspection
and Adjustment"
If the side gear back clearance is greater than
specification:
Use a thicker side gear thrust washer.
If the side gear back clearance is less than spec-
ification: Use a thinner side gear thrust washer.
PDIA0576E
Revision: April 20092010 QX56
