2010 INFINITI QX56 check engine

DLN-8
< BASIC INSPECTION >[ATX14B]
DIAGNOSIS AND REPAIR WORKFLOW
Does 4WD warning lamp turn ON?
YES >> GO TO CHECK AT IDLE.
NO >> GO TO
DLN-105, "
Diagnosis Procedure".
CHECK AT IDLE
1.CHECK 4WD SHIFT INDICATOR LAMP
1. Park vehicle on flat surface and engage the parking brake.
2. Turn ignition switch to OFF position.
3. Move A/T selector lever to P position.
4. Set 4WD shift switch to 2WD position.
5. Start engine.
Does 4WD shift indicator lamp turn ON?
YES >> GO TO 3.
NO >> GO TO 2.
2.CHECK 4WD WARNING LAMP
Check 4WD warning lamp state.
Is 4WD warning lamp turned ON?
YES >> Perform the self-diagnosis. Refer to DLN-18, "CONSULT-III Function (ALL MODE AWD/4WD)".
NO >> Refer to DLN-107, "
Diagnosis Procedure".

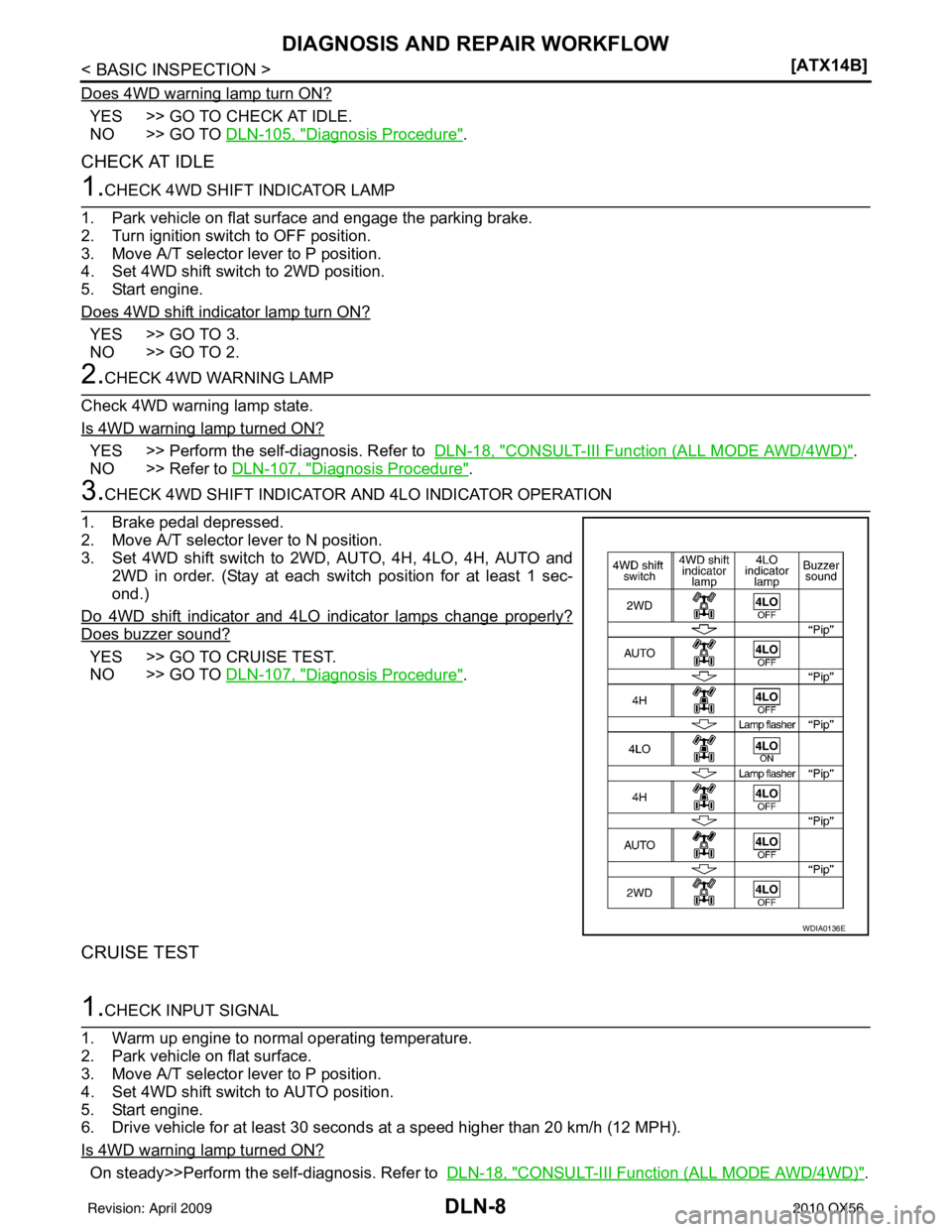

3.CHECK 4WD SHIFT INDICATOR AND 4LO INDICATOR OPERATION
1. Brake pedal depressed.
2. Move A/T selector lever to N position.
3. Set 4WD shift switch to 2WD, AUTO, 4H, 4LO, 4H, AUTO and 2WD in order. (Stay at each switch position for at least 1 sec-
ond.)
Do 4WD shift indicator and 4LO indicator lamps change properly?
Does buzzer sound?
YES >> GO TO CRUISE TEST.
NO >> GO TO DLN-107, "
Diagnosis Procedure".
CRUISE TEST
1.CHECK INPUT SIGNAL
1. Warm up engine to normal operating temperature.
2. Park vehicle on flat surface.
3. Move A/T selector lever to P position.
4. Set 4WD shift switch to AUTO position.
5. Start engine.
6. Drive vehicle for at least 30 seconds at a speed higher than 20 km/h (12 MPH).
Is 4WD warning lamp turned ON?
On steady>>Perform the self-diagnosis. Refer to DLN-18, "CONSULT-III Function (ALL MODE AWD/4WD)".
WDIA0136E
Revision: April 20092010 QX56

4WD SYSTEMDLN-13
< FUNCTION DIAGNOSIS > [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P

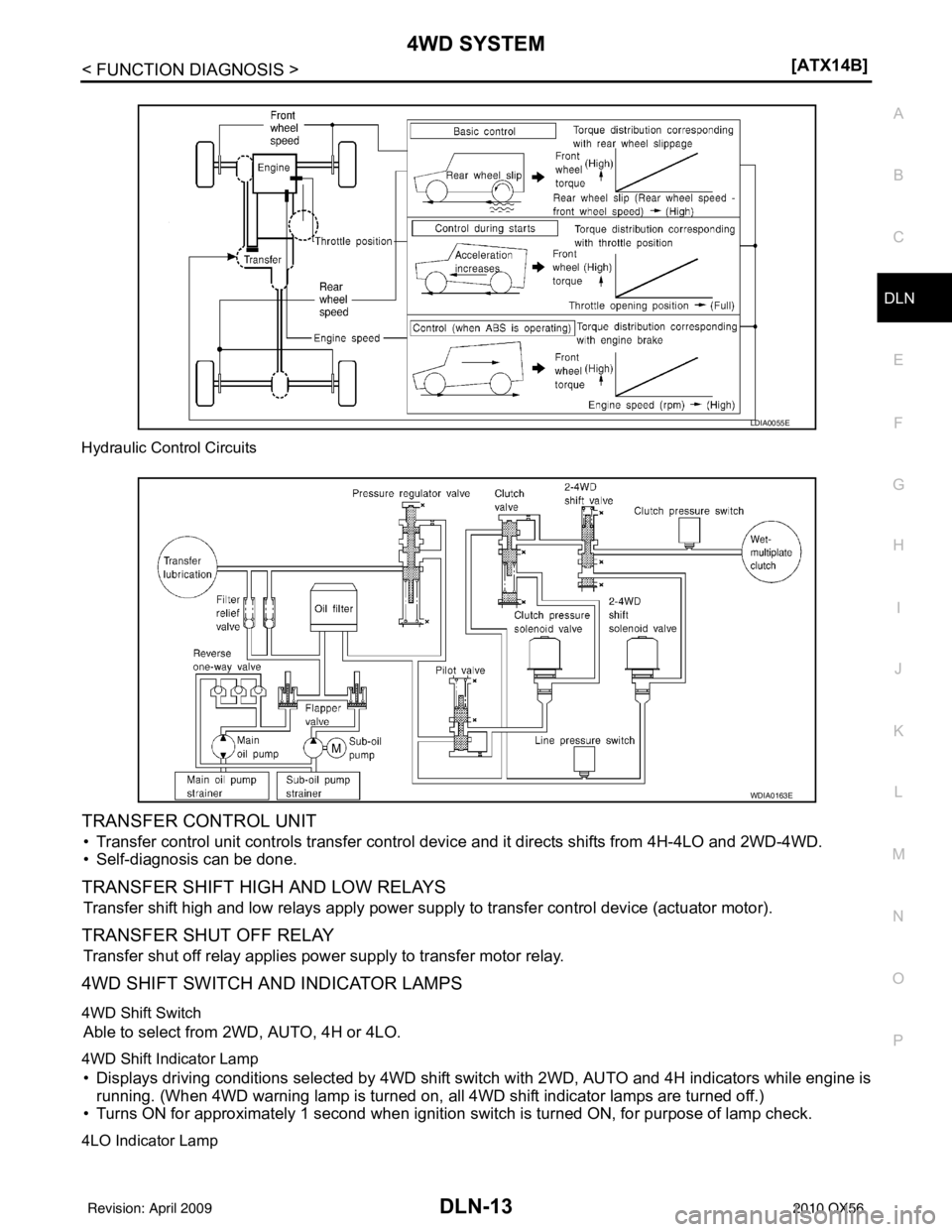

Hydraulic Control Circuits
TRANSFER CONTROL UNIT
• Transfer control unit controls transfer control dev
ice and it directs shifts from 4H-4LO and 2WD-4WD.
• Self-diagnosis can be done.
TRANSFER SHIFT HIGH AND LOW RELAYS
Transfer shift high and low relays apply power supply to transfer control device (actuator motor).
TRANSFER SHUT OFF RELAY
Transfer shut off relay applies power supply to transfer motor relay.
4WD SHIFT SWITCH AND INDICATOR LAMPS
4WD Shift Switch
Able to select from 2WD, AUTO, 4H or 4LO.
4WD Shift Indicator Lamp
• Displays driving conditions selected by 4WD shift switch with 2WD, AUTO and 4H indicators while engine is running. (When 4WD warning lamp is turned on, all 4WD shift indicator lamps are turned off.)
• Turns ON for approximately 1 second when ignition switch is turned ON, for purpose of lamp check.
4LO Indicator Lamp
LDIA0055E
WDIA0163E
Revision: April 20092010 QX56

DLN-14
< FUNCTION DIAGNOSIS >[ATX14B]
4WD SYSTEM
• Displays 4LO condition while engine is running. 4LO indicator lamp flashes if transfer gear does not shift
completely under 2WD, AUTO, 4H ⇔4LO. (When 4WD warning lamp is turned on, 4LO indicator lamp is
turned off.)
• Turns ON for approximately 1 second when ignition switch is turned ON, for purpose of lamp check.
4WD WARNING LAMP
Turns on or flashes when there is a malfunction in 4WD system.
Also turns on when ignition switch is turned ON, for purpose of lamp che\
ck. Turns OFF approximately 1 sec-
ond after the engine starts if system is normal.
4WD Warning Lamp Indication
ATP WARNING LAMP
When the A/T selector lever is in P position, the vehicle may move if the transfer case is in neutral. ATP warn-
ing lamp is turned on to indicate this condition to the driver.
LINE PRESSURE SWITCH
• With the transfer system design, control of the oil pressure provides the transmission of drive torque to the
front wheels. The main pressure to control the oil pressure is referred to as the line pressure.
• The line pressure switch determines whether or not adequate line pressure has built up under different oper- ating conditions.
• The line pressure switch closes when line pressure is produced.
• The line pressure switch senses line pressure abnormalities and turns the 4WD warning lamp ON.
CLUTCH PRESSURE SWITCH
• The clutch pressure switch determines whether or not adequate clutch pressure has built up under different
operating conditions.
• The clutch pressure switch closes when clutch pressure is produced.
• The clutch pressure switch senses clutch pressure abnormalities and turns the 4WD warning lamp ON.
WAIT DETECTION SWITCH
• The wait detection switch operates when there is circulating torque produced in the propeller shaft (L→H) or
when there is a phase difference between 2-4 sleeve and clutch drum (H →L). After the release of the circu-
lating torque, the wait detection switch helps provi de the 4WD lock gear (clutch drum) shifts. A difference
may occur between the operation of the 4WD shift swit ch and actual drive mode. At this point, the wait
detection switch senses an actual drive mode.
• The wait detection switch operates as follows.
- 4WD lock gear (clutch drum) locked: ON
- 4WD lock gear (clutch drum) released: OFF
• The wait detection switch senses an actual drive mode and the 4WD shift indicator lamp indicates the vehi-
cle drive mode.
ATP SWITCH
ATP switch detects if transfer case is in neutral by the position of the L-H shift fork.
NOTE:
Transfer case may be in neutral when shifting between 4H-4LO.
NEUTRAL-4LO SWITCH
The neutral-4LO switch detects that transfer gear is in neutral or 4LO (or shifting from neutral to 4LO) condi-
tion by L-H shift fork position.
Condition 4WD warning lamp
System normal OFF
Lamp check Turns ON when ignition switch is turned ON.
Turns OFF after engine start.
4WD system malfunction ON
During self-diagnosis Flashes malfunction mode.
Large difference in diameter of front/
rear tires Flashes slow (1 flash / 2 seconds)
(Continues to flash until the ignition switch is turned OFF)
High fluid temperature in transfer case Flashes rapidly (2 flashes / 1 second)
(Continues to flash until fluid temperature returns to normal)
Revision: April 20092010 QX56

DLN-22
< COMPONENT DIAGNOSIS >[ATX14B]
P1811 POWER SUPPLY CIRCUIT
FOR TRANSFER CONTROL UNIT

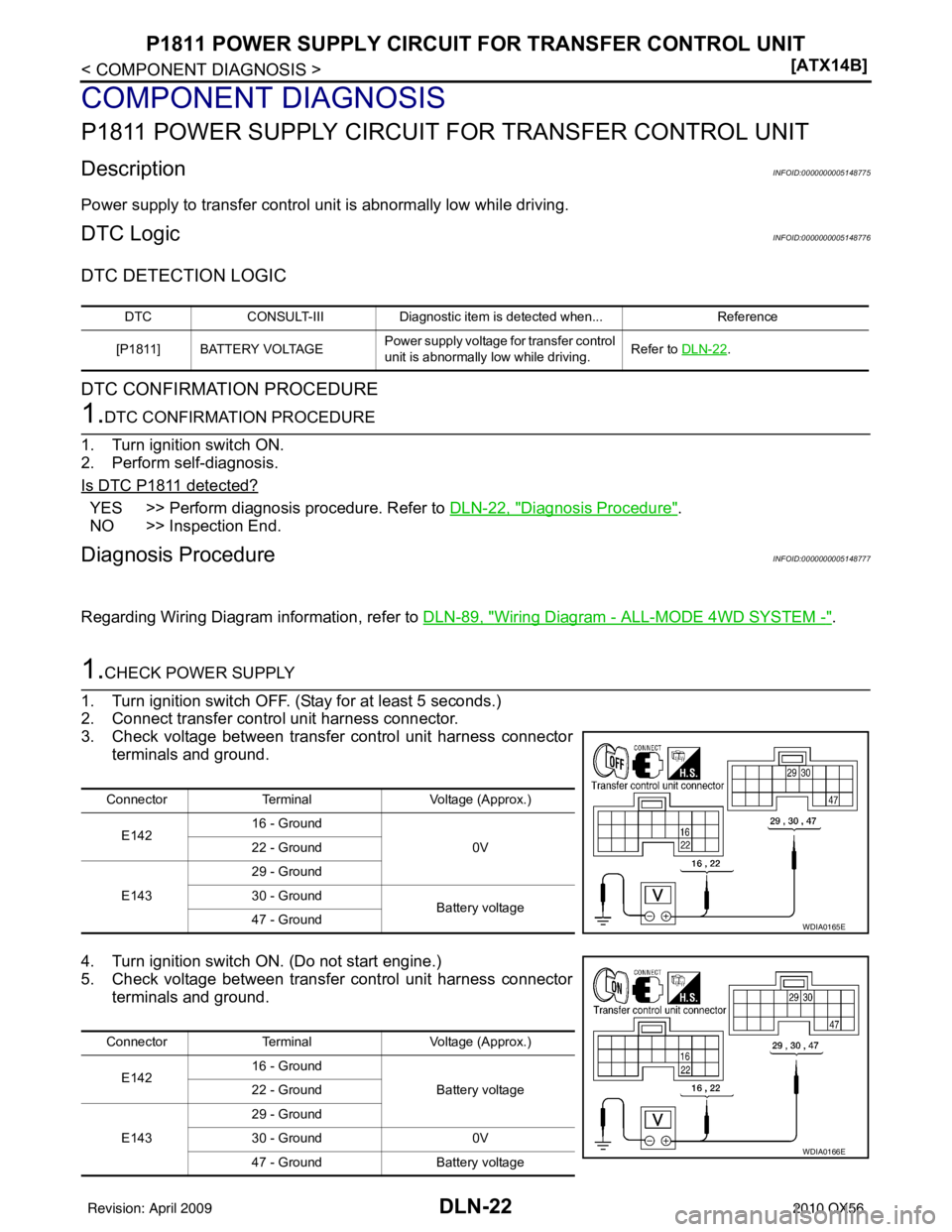

COMPONENT DIAGNOSIS
P1811 POWER SUPPLY CIRCUIT FOR TRANSFER CONTROL UNIT
DescriptionINFOID:0000000005148775
Power supply to transfer control unit is abnormally low while driving.
DTC LogicINFOID:0000000005148776
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Perform self-diagnosis.
Is DTC P1811 detected?
YES >> Perform diagnosis procedure. Refer to DLN-22, "Diagnosis Procedure".
NO >> Inspection End.
Diagnosis ProcedureINFOID:0000000005148777
Regarding Wiring Diagram information, refer to DLN-89, "Wiring Diagram - ALL-MODE 4WD SYSTEM -".
1.CHECK POWER SUPPLY
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Connect transfer control unit harness connector.
3. Check voltage between transfer control unit harness connector terminals and ground.
4. Turn ignition switch ON. (Do not start engine.)
5. Check voltage between transfer control unit harness connector terminals and ground.
DTC CONSULT-III Diagnostic item is detected when... Reference
[ P 1 8 11 ] B AT T E R Y V O LTA G E Power supply voltage for transfer control
unit is abnormally low while driving.Refer to
DLN-22
.
Connector Terminal Voltage (Approx.)
E142 16 - Ground
0V
22 - Ground
E143 29 - Ground
30 - Ground
Battery voltage
47 - Ground
WDIA0165E
Connector Terminal Voltage (Approx.)
E142 16 - Ground
Battery voltage
22 - Ground
E143 29 - Ground
30 - Ground
0V
47 - Ground Battery voltage
WDIA0166E
Revision: April 20092010 QX56

P1810 NEUTRAL-4LO SWITCHDLN-29
< COMPONENT DIAGNOSIS > [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
P1810 NEUTRAL-4LO SWITCH
DescriptionINFOID:0000000005148788
The neutral-4LO switch detects that the transfer case is in neutral or 4LO range. DTC P1810 will set when an
improper signal from the neutral-4LO switch is input due to an open or short circuit.
DTC LogicINFOID:0000000005148789
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Perform self-diagnosis.
Is DTC P1810 displayed?
YES >> Perform diagnosis procedure. Refer to DLN-29, "Diagnosis Procedure".
NO >> Inspection End.
Diagnosis ProcedureINFOID:0000000005148790
Regarding Wiring Diagram information, refer to DLN-89, "Wiring Diagram - ALL-MODE 4WD SYSTEM -".
1.CHECK 4LO POSITION SWITCH SIGNAL
With CONSULT-III1. Start engine.
2. Select DATA MONITOR mode for ALL MODE AWD/4WD with CONSULT-III.
3. Read out the value of N POSI SW TF.
Without CONSULT-III
1. Start engine.
DTCCONSULT-III Diagnostic item is detected when... Reference
[P1810] 4L POSI SW TF Improper signal from neutral-4LO switch
is input due to open or short circuit.Refer to DLN-29
.
Condition
Display value
• Vehicle stopped
• Engine running
• A/T selector lever N position
• Brake pedal depressed 4WD shift switch: 2WD,
AUTO or 4H
OFF
4WD shift switch: 4H to
4LO (While actuator mo-
tor is operating.) OFF
→ ON
4WD shift switch: 4LO to
4H (While actuator motor
is operating.) ON
→ OFF
4WD shift switch: 4LO ON
Revision: April 20092010 QX56

DLN-30
< COMPONENT DIAGNOSIS >[ATX14B]
P1810 NEUTRAL-4LO SWITCH

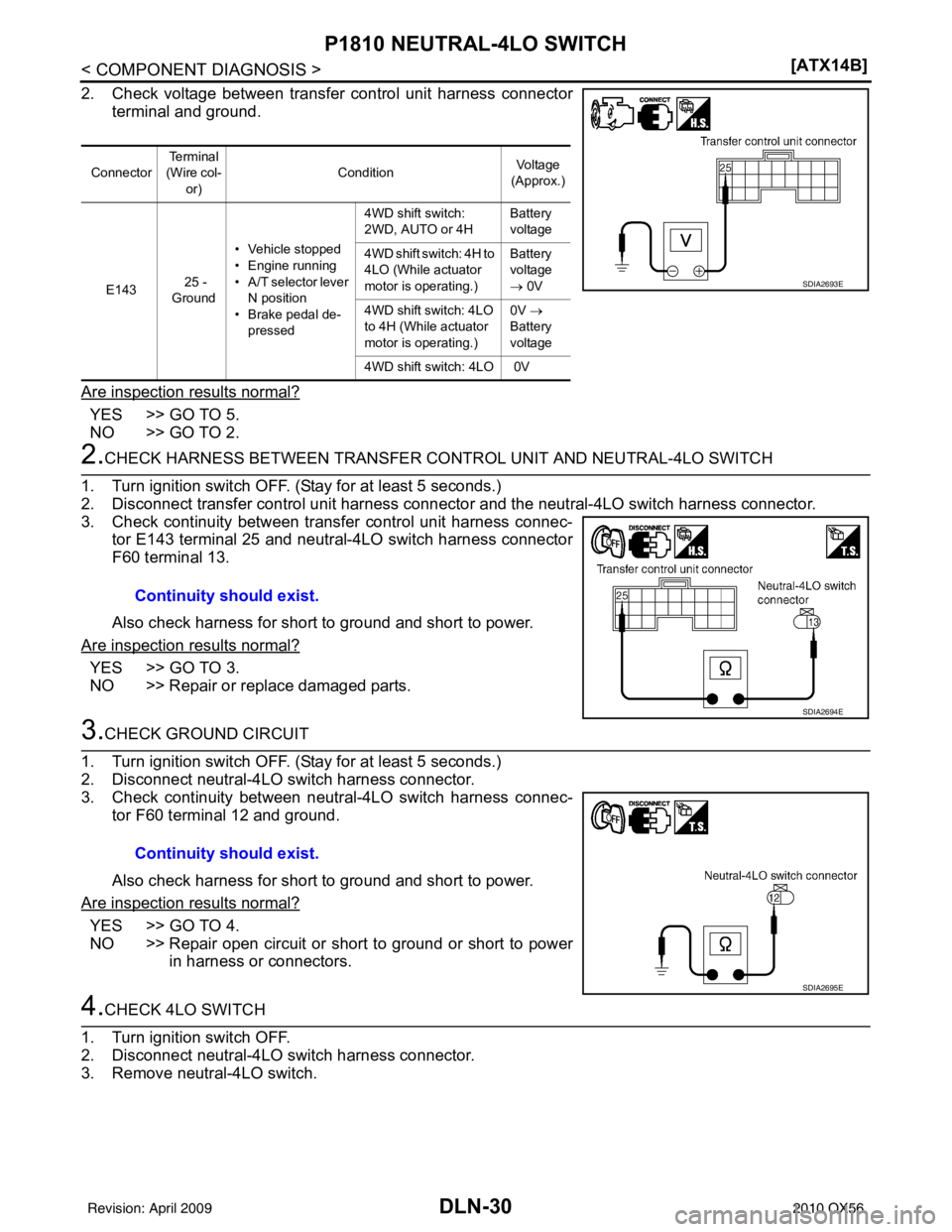

2. Check voltage between transfer control unit harness connector
terminal and ground.
Are inspection results normal?
YES >> GO TO 5.
NO >> GO TO 2.
2.CHECK HARNESS BETWEEN TRANSFER CO NTROL UNIT AND NEUTRAL-4LO SWITCH
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Disconnect transfer control unit harness connecto r and the neutral-4LO switch harness connector.
3. Check continuity between transfer control unit harness connec-
tor E143 terminal 25 and neutral-4LO switch harness connector
F60 terminal 13.
Also check harness for short to ground and short to power.
Are inspection results normal?
YES >> GO TO 3.
NO >> Repair or replace damaged parts.
3.CHECK GROUND CIRCUIT
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Disconnect neutral-4LO switch harness connector.
3. Check continuity between neutral-4LO switch harness connec- tor F60 terminal 12 and ground.
Also check harness for short to ground and short to power.
Are inspection results normal?
YES >> GO TO 4.
NO >> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK 4LO SWITCH
1. Turn ignition switch OFF.
2. Disconnect neutral-4LO switch harness connector.
3. Remove neutral-4LO switch.
Connector Te r m i n a l
(Wire col- or) Condition
Voltage
(Approx.)
E143 25 -
Ground • Vehicle stopped
• Engine running
• A/T selector lever
N position
• Brake pedal de-
pressed 4WD shift switch:
2WD, AUTO or 4H
Battery
voltage
4WD shift switch: 4H to
4LO (While actuator
motor is operating.) Battery
voltage
→ 0V
4WD shift switch: 4LO
to 4H (While actuator
motor is operating.) 0V
→
Battery
voltage
4WD shift switch: 4LO 0V
SDIA2693E
Continuity should exist.
SDIA2694E
Continuity should exist.
SDIA2695E
Revision: April 20092010 QX56

DLN-32
< COMPONENT DIAGNOSIS >[ATX14B]
P1813 4WD SHIFT SWITCH
P1813 4WD SHIFT SWITCH
DescriptionINFOID:0000000005148792
The 4WD shift switch allows the driver to select
AUTO, 2WD or 4WD and 4H or 4LO. DTC P1813 will set if
more than two switch inputs are simultaneously detected by the transfer control unit due to a short circuit in the
4WD shift switch.
DTC LogicINFOID:0000000005148793
DTC DETECTION LOGIC
DTC CONFIRMATION PROCEDURE
1.DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON.
2. Perform self-diagnosis.
Is DTC P1813 displayed?
YES >> Perform diagnosis procedure. Refer to DLN-32, "Diagnosis Procedure".
NO >> Inspection End.
Diagnosis ProcedureINFOID:0000000005148794
Regarding Wiring Diagram information, refer to DLN-89, "Wiring Diagram - ALL-MODE 4WD SYSTEM -".

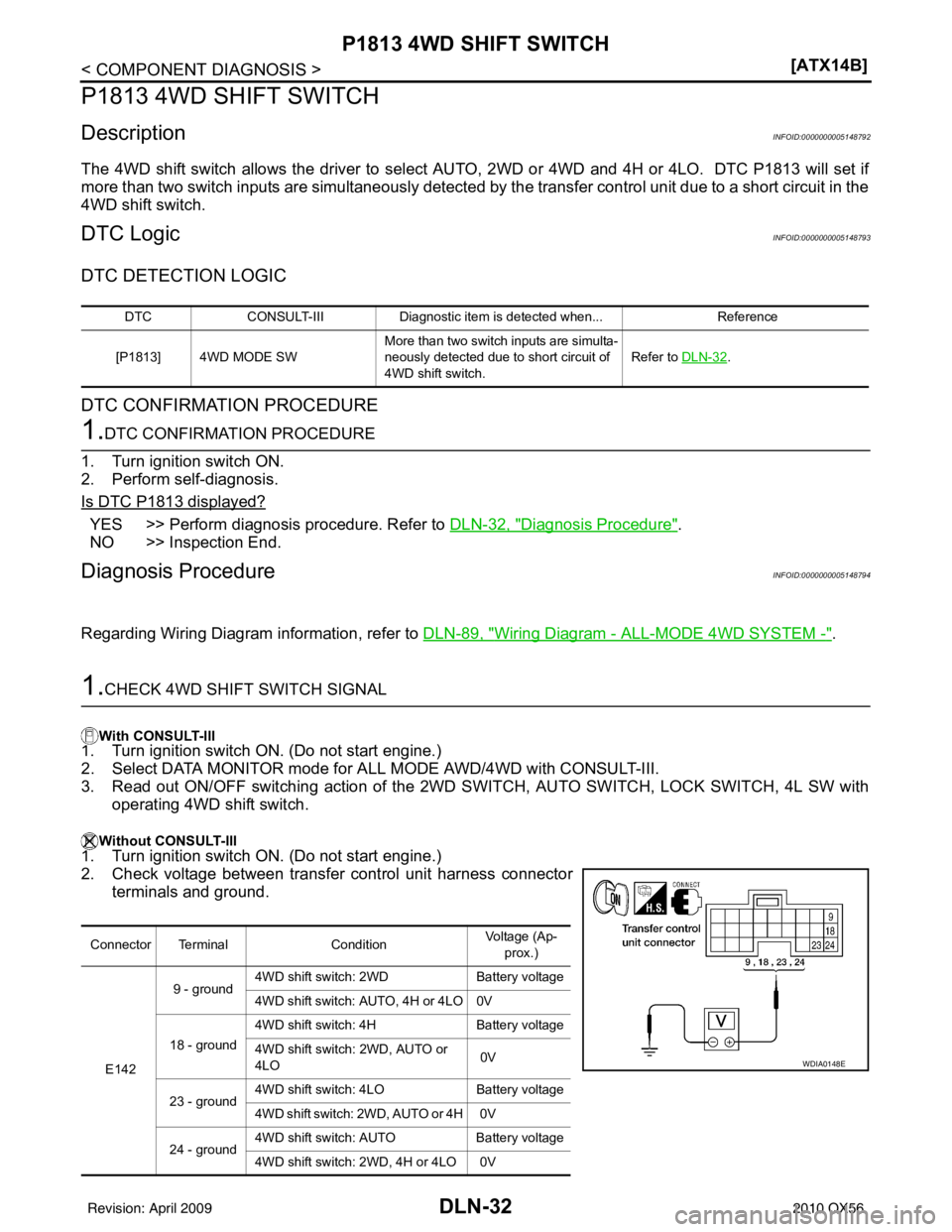

1.CHECK 4WD SHIFT SWITCH SIGNAL
With CONSULT-III
1. Turn ignition switch ON. (Do not start engine.)
2. Select DATA MONITOR mode for ALL MODE AWD/4WD with CONSULT-III.
3. Read out ON/OFF switching action of the 2WD SWITCH, AUTO SWITCH, LO CK SWITCH, 4L SW with
operating 4WD shift switch.
Without CONSULT-III1. Turn ignition switch ON. (Do not start engine.)
2. Check voltage between transfer control unit harness connector terminals and ground.
DTC CONSULT-III Diagnostic item is detected when... Reference
[P1813] 4WD MODE SW More than two switch inputs are simulta-
neously detected due to short circuit of
4WD shift switch.Refer to
DLN-32
.
Connector Terminal ConditionVoltage (Ap-
prox.)
E142 9 - ground
4WD shift switch: 2WD
Battery voltage
4WD shift switch: AUTO, 4H or 4LO 0V
18 - ground 4WD shift switch: 4H
Battery voltage
4WD shift switch: 2WD, AUTO or
4LO 0V
23 - ground 4WD shift switch: 4LO
Battery voltage
4WD shift switch: 2WD, AUTO or 4H 0V
24 - ground 4WD shift switch: AUTO
Battery voltage
4WD shift switch: 2WD, 4H or 4LO 0V
WDIA0148E
Revision: April 20092010 QX56

P1813 4WD SHIFT SWITCHDLN-33
< COMPONENT DIAGNOSIS > [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
Are inspection results normal?
YES >> GO TO 5.
NO >> GO TO 2.
2.CHECK 4WD SHIFT SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Disconnect 4WD shift switch harness connector.
3. Check voltage between 4WD shift switch harness connector ter- minal 1 and ground.
4. Turn ignition switch ON. (Do not start engine.)
5. Check voltage between 4WD shift switch harness connector ter- minal 1 and ground.
Are inspection results normal?
YES >> GO TO 3.
NO >> Refer to DLN-22, "
Diagnosis Procedure".
3.CHECK HARNESS BETWEEN 4W D SHIFT SWITCH AND TRANSFER CONTROL UNIT
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Disconnect transfer control unit harness connector and the 4WD shift switch harness connector.
3. Check continuity between the following terminals.
- Transfer control unit harness connector E142 terminal 9 and 4WD shift switch harness connector M141 terminal 2.
- Transfer control unit harness connector E142 terminal 18 and 4WD shift switch harness connector M141 terminal 5.
- Transfer control unit harness connector E142 terminal 23 and 4WD shift switch harness connector M141 terminal 6.
- Transfer control unit harness connector E142 terminal 24 and
4WD shift switch harness connector M141 terminal 3.
Also check harness for short to ground and short to power.
Are inspection results normal?
YES >> GO TO 4.
NO >> Check the following. If any items are damaged, repair or replace damaged parts. • Harness for short or open between battery and transfer shut off relay harness connector E69
terminal 5.
• Power supply circuit for trans fer control unit. Refer to DLN-22, "
Diagnosis Procedure".
4.CHECK 4WD SHIFT SWITCH
1. Turn ignition switch OFF. (Stay for at least 5 seconds.)
2. Disconnect 4WD shift switch harness connector.
Connector Terminal Voltage (Approx.)
M141 1 - Ground 0V
SDIA2383E
ConnectorTerminal Voltage (Approx.)
M141 1 - Ground Battery voltage
PDIA0210E
Continuity should exist.SDIA2699E
Revision: April 20092010 QX56
