2010 INFINITI QX56 ECU

TRANSFER CONTROL UNITDLN-83
< ECU DIAGNOSIS > [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
VHCL/S COMP [km/h] or
[mph] Vehicle speed Vehicle stopped
0 km/h (0 mph)
Vehicle running
CAUTION:
Check air pressure of tire under standard condition. Approximately
equal to the indica-
tion on speedome-
ter (Inside of
±
10%)
COMP CL TORQ [kgm] Condition of control
torque • Vehicle stopped
• Engine running
• A/T selector lever N posi-
tion
• Brake pedal depressed 4WD shift switch: 2WD 0 kg-m
4WD shift switch: AUTO
39 - 1,353 N·m
(4 - 138 kg-m, 29 - 998 ft-lb)
4WD shift switch: 4H or
4LO 1,353 N·m
(138 kg-m, 998 ft-
lb)
DUTY SOLENOID [%] Condition of clutch pres-
sure solenoid • Vehicle stopped
• Engine running
• A/T selector lever N posi-
tion
• Brake pedal depressed 4WD shift switch: 2WD
4%
4WD shift switch: AUTO 96 - 4%
4WD shift switch: 4H or
4LO 4%
2-4WD SOL [ON/OFF] Condition of 2-4WD shift
solenoid valve • Vehicle stopped
• Engine running
• A/T selector lever N posi-
tion
• Brake pedal depressed 4WD shift switch: 2WD
OFF
4WD shift switch: AUTO ON
4WD shift switch: 4H
4WD shift switch: 4LO
4WD shift switch: AUTO
(Wait function is operat-
ing.) OFF
4WD shift switch: 4H
(Wait function is operat-
ing.) OFF
2-4WD SOL MON [ON/
OFF] Check signal for transfer
control unit signal output • Vehicle stopped
• Engine running
• A/T selector lever N posi-
tion
• Brake pedal depressed 4WD shift switch: 2WD
OFF
4WD shift switch: AUTO ON
4WD shift switch: 4H
4WD shift switch: 4LO
4WD shift switch: AUTO
(Wait function is operat-
ing.) OFF
4WD shift switch: 4H
(Wait function is operat-
ing.) OFF
MOTOR RELAY [ON/
OFF] Condition of transfer mo-
tor relay • Accelerator pedal de-
pressed
• Vehicle stopped
• Engine running
• Brake pedal depressed 4WD shift switch: 2WD
OFF
4WD shift switch: AUTO
or 4LO (A/T selector lever
P or N position) OFF
(ON for approx. 2 sec. after shifting to P and N.)
4WD shift switch: AUTO
or 4LO (Except for A/T se-
lector lever P or N posi-
tion) ON
4WD shift switch: 4H (A/T
se l

ector lever P position) OFF
(ON for approx. 2 sec. after shifting to P.)
4WD shift switch: 4H (Ex-
cept for A/T selector lever
P position) ON
Monitored item [Unit]
Content ConditionDisplay value
Revision: April 20092010 QX56

DLN-84
< ECU DIAGNOSIS >[ATX14B]
TRANSFER CONTROL UNIT
MOTOR RLY MON [ON/
OFF]Check signal for transfer
control unit signal output • Accelerator pedal de-
pressed
• Vehicle stopped
• Engine running
• Brake pedal depressed 4WD shift switch: 2WD
OFF
4WD shift switch: AUTO
or 4LO (A/T selector lever
P or N position) OFF
(ON for approx. 2
sec. after shifting to P and N.)
4WD shift switch: AUTO
or 4LO (Except for A/T se-
lector lever P or N posi-
tion) ON
4WD shift switch: 4H (A/T
selector lever P position) OFF
(ON for approx. 2
sec. after shifting to P.)
4WD shift switch: 4H (Ex-
cept for A/T selector lever
P position) ON
4WD FAIL LAMP [ON/
OFF] Condition of 4WD warn-
ing lamp 4WD warning lamp: ON
ON
4WD warning lamp: OFF OFF
2WD IND [ON/OFF] Condition of 4WD shift in-
dicator lamp (2WD indi-
cator lamp) 2WD indicator lamp of 4WD shift indicator lamp: OFF
OFF
2WD indicator lamp of 4WD shift indicator lamp: ON ON
AUTO IND [ON/OFF] Condition of 4WD shift in-
dicator lamp (AUTO indi-
cator lamp) AUTO indicator lamp of 4WD shift indicator lamp: OFF
OFF
AUTO indicator lamp of 4WD shift indicator lamp: ON ON
LOCK IND [ON/OFF] Condition of 4WD shift in-
dicator lamp (Lock indi-
cator lamp) Lock indicator lamp of 4WD shift indicator lamp: OFF
OFF
Lock indicator lamp of 4WD shift indicator lamp: ON ON
4L IND [ON/OFF] Condition of 4LO indica-
tor lamp condition 4LO indicator lamp: OFF
OFF
4LO indicator lamp: ON ON
ATP IND [ON/OFF] Condition of ATP indica-
tor lamp ATP indicator lamp: ON
ON
AT P i n d i c a t o r l a m p : O F F O F F
SHIFT POS SW1 [ON/
OFF] Condition of actuator po-
sition switch 1
(Low) • Vehicle stopped
• Engine running
• A/T selector lever N posi-
tion
• Brake pedal depressed 4WD shift switch: 4LO
ON
4WD shift switch: 2WD,
AUTO or 4H OFF
SHIFT POS SW2 [ON/
OFF] Condition of actuator po-
sition switch 2
(High) • Vehicle stopped
• Engine running
• A/T selector lever N posi-
tion
• Brake pedal depressed 4WD shift switch: 4H,
AUTO or 2WD
ON
4WD shift switch: 4LO OFF
SHIFT ACT 1 [ON/OFF] Output condition to actu-
ator motor (High) • Vehicle stopped
• Engine running
• A/T selector lever N posi-
tion
• Brake pedal depressed 4WD sh
if
t switch: 4H to
4LO (Wait function is op-
erating.) ON
Except the above OFF
SHIFT AC MON1 [ON/
OFF] Check signal for transfer
control unit signal output • Vehicle stopped
• Engine running
• A/T selector lever N posi-
tion
• Brake pedal depressed 4WD shift switch: 4H to
4LO (Wait function is op-
erating.)
ON
Except the above OFF
SHIFT ACT 2 [ON/OFF] Output condition to actu-
ator motor (Low) • Vehicle stopped
• Engine running
• A/T selector lever N posi-
tion
• Brake pedal depressed 4WD shift switch: 4LO to
4H (Wait function is oper-
ating.)
ON
Except the above OFF
Monitored item [Unit]
Content ConditionDisplay value
Revision: April 20092010 QX56

TRANSFER CONTROL UNITDLN-85
< ECU DIAGNOSIS > [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
PHYSICAL VALUES
Terminal Layout
SHIFT AC MON2 [ON/
OFF] Check signal for transfer
control unit signal output • Vehicle stopped
• Engine running
• A/T selector lever N posi-
tion
• Brake pedal depressed 4WD shift switch: 4LO to
4H (Wait function is oper-
ating.)
ON
Except the above OFF
T/F F SPEED [km/h] or
[mph] Displayed, but do not use.
AT R SPEED [km/h] or
[mph] Condition of vehicle
speed sensor A/T (output
speed sensor)
During driving Approximately
matches the out-
put shaft speed.
AT GEAR POSI [1/2/3/4/
5] Condition of A/T selector
lever position
Displays actual A/T gear position. 1
2
3
4
5
Monitored item [Unit]
Content ConditionDisplay value
WDIA0378E
Te r m i n a lWire
color Item
ConditionData (Approx.)
1 GR 2-4WD shift solenoid valve • Vehicle stopped
• Engine running
• A/T selector lever
“N” position
• Brake pedal de- pressed 4WD shift switch: 2WD
0V
4WD shift switch: AUTO, 4H or 4LO Battery voltage
2 B/W 4WD shift indicator lamp
(2WD indicator lamp) 2WD indicator lamp: OFF
Battery voltage
2WD indicator lamp: ON 0V
3 B Ground Always0V
4 Y/L Transfer shift high relay • Vehicle stopped
• Engine running
• A/T selector lever
“N” position
• Brake pedal de-
pressed 4WD shift switch: 4H to 4LO (“Wait” func-
tion is operating.)
Battery voltage
Except the above 0V
5 W/B 4WD warning lamp 4WD warning lamp: ON
0V
4WD warning lamp: OFF Battery voltage
6 B Ground Always0V
7 L CAN-H ——
8 P CAN-L ——
9G/W 4WD shift switch
(2WD) Ignition switch: ON4WD shift switch: 2WD
Battery voltage
4WD shift switch: AUTO, 4H or 4LO 0V
Revision: April 20092010 QX56

DLN-86
< ECU DIAGNOSIS >[ATX14B]
TRANSFER CONTROL UNIT
10 L/W Transfer dropping resistor• Vehicle stopped
• Engine running
• A/T selector lever
“N” position
• Brake pedal de- pressed 4WD shift switch: AUTO
4 - 14V
4WD shift switch: 2WD, 4H or 4LO Less than 1V
11 L 4WD shift indicator lamp
(Lock indicator lamp) Lock indicator lamp of 4WD shift indicator lamp: OFF
Battery voltage
Lock indicator lamp of 4WD shift indicator lamp: ON 0V
12 W/G 4LO indicator lamp 4LO indicator lamp: OFF
Battery voltage
4LO indicator lamp: ON 0V
13 G/B Transfer shift low relay • Vehicle stopped
• Engine running
• A/T selector lever
“N” position
• Brake pedal de-
pressed 4WD shift switch: 4LO to 4H (“Wait” func-
tion is operating.)
Battery voltage
Except the above 0V
14 LG Transfer motor relay • Accelerator pedal
depressed
• Vehicle stopped
• Engine running
• Brake pedal de- pressed 4WD shift switch: 2WD
Battery voltage
4WD shift switch: AUTO or 4LO (A/T selec-
tor lever “P” or “N” position) Battery voltage
(0V for approx.
2 sec. after
shifting to “P”
and “N”.)
4WD shift switch: AUTO or 4LO (Except for
A/T selector lever “P” or “N” position) 0V
4WD shift switch: 4H (A/T selector lever
“P” position) Battery voltage
(0V for approx.
2 sec. after
shifting to “P”.)
4WD shift switch: 4H (Except for A/T selec-
tor lever “P” position) 0V
15 L/B ATP warning lamp ATP indicator lamp: ON
0V
ATP indicator lamp: OFF Battery voltage
16 Y/R Power supply Ignition switch: ON
Battery voltage
Ignition switch: OFF 0V
18 O 4WD shift switch
(4H) Ignition switch: ON4WD shift switch: 4H
Battery voltage
4WD shift switch: 2WD, AUTO or 4LO 0V
19 L Clutch pressure solenoid
valve • Vehicle stopped
• Engine running
• A/T selector lever
“N” position
• Brake pedal de- pressed 4WD shift switch: AUTO
1.5 - 3V
4WD shift switch: 2WD, 4H or 4LO Less than 1V
21 BR 4WD shift indicator lamp
(AUTO indicator lamp) • AUTO indicator lamp of 4WD shift indicator lamp: OFF
Battery voltage
AUTO indicator lamp of 4WD shift indicator lamp: ON 0V
22 Y/R Power supply Ignition switch: ON
Battery voltage
Ignition switch: OFF 0V
23 R 4WD shift switch
(4LO)
Ignition switch: ON4WD shift switch: 4LO
Battery voltage
4WD shift switch: 2WD, AUTO or 4H 0V
24 LG/R 4WD shift switch
(AUTO)
Ignition switch: ON4WD shift switch: AUTO
Battery voltage
4WD shift switch: 2WD, 4H or 4LO 0V
Te r m i n a l
Wire
color Item
ConditionData (Approx.)
Revision: April 20092010 QX56

TRANSFER CONTROL UNITDLN-87
< ECU DIAGNOSIS > [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
25 V Neutral-4LO switch • Vehicle stopped
• Engine running
• A/T selector lever
“N” position
• Brake pedal de- pressed 4WD shift switch: 2WD, AUTO or 4H Battery voltage
4WD shift switch: 4H to 4LO (While actua-
tor motor is operating.)
Battery voltage
→ 0V
4WD shift switch: 4LO to 4H (While actua-
tor motor is operating.) 0V
→ Battery
voltage
4WD shift switch: 4LO 0V
27 W/L Actuator position switch 2
(High) • Vehicle stopped
• Engine running
• A/T selector lever
“N” position
• Brake pedal de-
pressed 4WD shift switch: 4H, AUTO or 2WD 0V
4WD shift switch: 4LO
Battery voltage
28 B/G Sensor ground Always0V
29 L/W Ignition switch monitor Ignition switch: ON
Battery voltage
Ignition switch: OFF 0V
30 SB Shut off relay Ignition switch: ON
0V
Ignition switch: OFF Battery voltage
31 G Transfer fluid temperature
sensor
Ignition switch: ONTransfer fluid temperature approx. 20°
C
(68 °F) 1.1V
Transfer fluid temperature approx. 80° C
(176 °F) 0.3V
33 R/L Transfer shift high relay
monitor • Vehicle stopped
• Engine running
• A/T selector lever
“N” position
• Brake pedal de- pressed 4WD shift switch: 4H to 4LO (“Wait” func-
tion is operating.)
Battery voltage
Except the above 0V
34 BR Clutch pressure switch • Vehicle stopped
• Engine running
• A/T selector lever
“D” position 4WD shift switch: AUTO or 4H (“Wait” func-
tion is not operating.)
0V
• Vehicle stopped
• Engine running 4WD shift switch: 2WD (“Wait” function is
not operating.)
Battery voltage
35 BR/
W Line pressure switch • Ignition switch: ON
• A/T selector le
ver “D” position
• 4WD shift switch: AUTO 0V
• After the vehicle has been left at
room temperature
for 5 minutes and
more with ignition
switch in “OFF” po-
sition. • Ignition switch: ON
• A/T selector lever: “P” or “N” position
• 4WD shift switch: other than AUTO
Battery voltage
40 L/Y ATP switch • Vehicle stopped
• Engine running
• A/T selector lever
“N ”
•

Brake pedal de-
pressed 4WD shift switch: 4H to 4LO or 4LO to 4H
(While actuator motor is operating.)
0V
Except the above Battery voltage
Te r m i n a l
Wire
color Item
ConditionData (Approx.)
Revision: April 20092010 QX56

DLN-88
< ECU DIAGNOSIS >[ATX14B]
TRANSFER CONTROL UNIT
CAUTION:
When using a circuit tester to measure voltage for inspecti
on, be sure not to extend forcibly any connector terminals.
NOTE:
Data are reference value and are measured between each terminal and ground.
41 RTransfer motor relay moni-
tor • Accelerator pedal
depressed
• Vehicle stopped
• Engine running
• Brake pedal de- pressed 4WD shift switch: 2WD
0V
4WD shift switch: AUTO or 4LO (A/T selec-
tor lever “P” or “N” position) 0V
(Battery volt-
age for approx.
2 sec. after
shifting to “P”
and “N”.)
4WD shift switch: AUTO or 4LO (Except for
A/T selector lever “P” or “N” position) Battery voltage
4WD shift switch: 4H (A/T selector lever
“P” position) 0V
(Battery volt-
age for approx.
2 sec. after
shifting to “P”.)
4WD shift switch: 4H (Except for A/T selec-
tor lever “P” position) Battery voltage
42 P/G Transfer shift low relay
monitor • Vehicle stopped
• Engine running
• A/T selector lever
“N” position
• Brake pedal de-
pressed 4WD shift switch: 4LO to 4H (“Wait” func-
tion is operating.)
Battery voltage
Except the above 0V
43 G/Y Wait detection switch • Vehicle stopped
• Engine running
• A/T selector lever
“N” position
• Brake pedal de- pressed 4WD shift switch: 2WD, AUTO or 4H Battery voltage
4WD shift switch: 4H to 4LO (While actua-
tor motor is operating.)
Battery voltage
→
0V
4WD shift switch: 4LO to 4H (While actua-
tor motor is operating.) 0V
→ Battery
voltage
4WD shift switch: 4LO 0V
44 LG/B Actuator position switch 1
(Low) • Vehicle stopped
• Engine running
• A/T selector lever
“N” position
• Brake pedal de- pressed 4WD shift switch: 4LO
0V
4WD shift switch: 2WD, AUTO or 4H Battery voltage
45 B Ground Always0V
47 W Power supply
(Memory back-up) Ignition switch: ON
Battery voltage
Ignition switch: OFF Battery voltage
Te r m i n a l
Wire
color Item
ConditionData (Approx.)
Revision: April 20092010 QX56

TRANSFER CONTROL UNITDLN-89
< ECU DIAGNOSIS > [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P

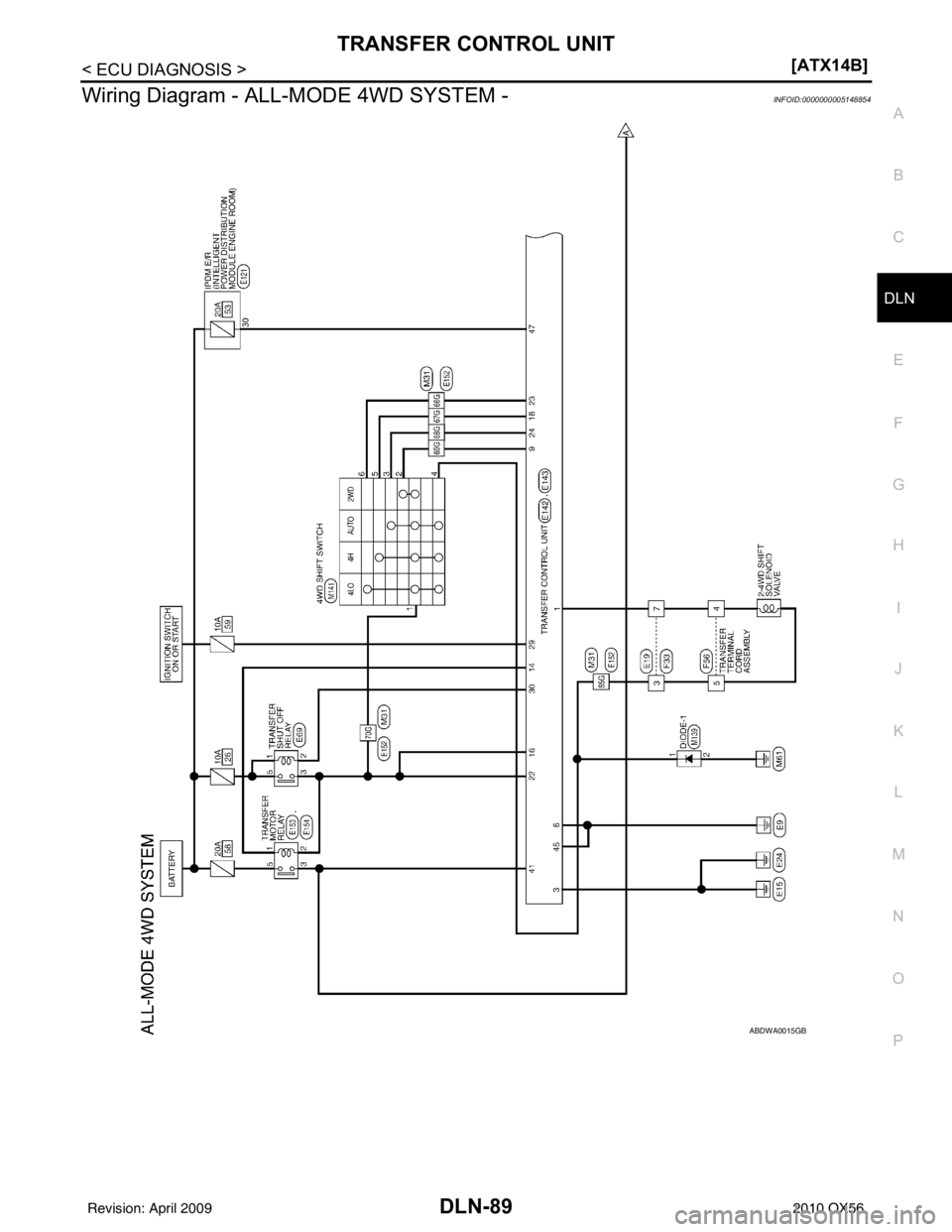

Wiring Diagram - A LL-MODE 4WD SYSTEM -INFOID:0000000005148854
ABDWA0015GB
Revision: April 20092010 QX56

DLN-90
< ECU DIAGNOSIS >[ATX14B]
TRANSFER CONTROL UNIT

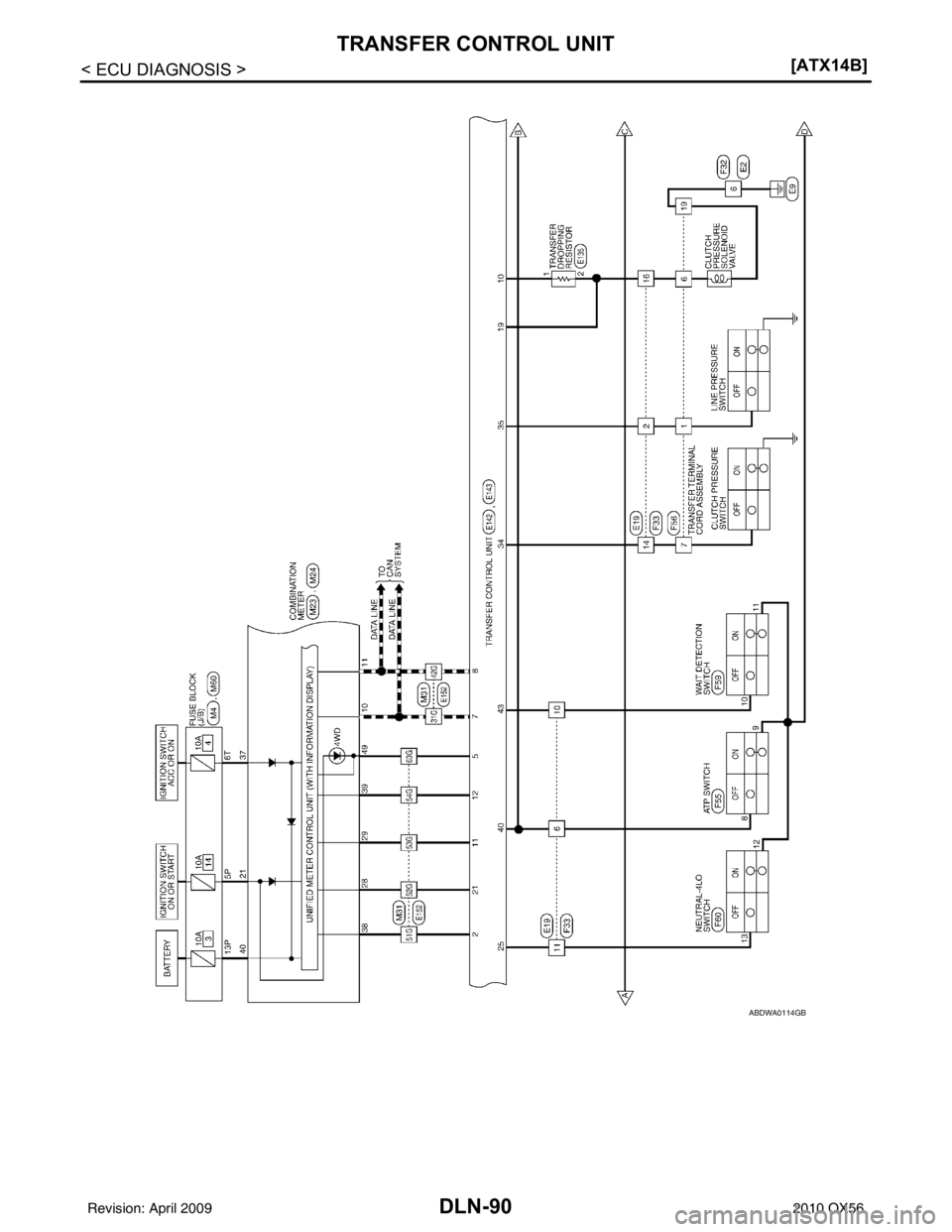

ABDWA0114GB
Revision: April 20092010 QX56
