PREPARATIONBRC-113
< PREPARATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
PREPARATION
PREPARATION
Special Service ToolINFOID:0000000005148097
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Commercial Service ToolINFOID:0000000005148098
Tool number
(Kent-Moore No.)
Tool name Description
KV991J0080
(J-45741)
ABS active wheel sensor tester Checking operation of ABS active wheel sen-
sors
WFIA0101E
Tool name
Description
1. Flare nut crowfoot
2. Torque wrench Removing and installing brake piping
a: 10 mm (0.39 in)/12 mm (0.47 in)
S-NT360
Revision: April 20092010 QX56

BRC-116
< REMOVAL AND INSTALLATION >[VDC/TCS/ABS]
ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)
ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)
Removal and InstallationINFOID:0000000005148101
REMOVAL
1. Disconnect the battery negative terminal. Refer to
PG-74, "Removal and Installation".
2. Remove the air cleaner and air duct assembly. Refer to EM-25, "
Removal and Installation".
3. Drain the brake fluid. Refer to BR-17, "
Drain and Refill".
4. Disconnect the actuator harness connector from t he ABS actuator and electric unit (control unit).
CAUTION:
• To remove the brake tubes, use a flare nut wrench to prevent the flare nuts and brake tubes from
being damaged.
• Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is splashed on painted areas, wash it away with water immediately.
5. Disconnect the brake tubes.
6. Remove the three bolts and remove the ABS actuator and electric unit (control unit).
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
• To install, use a flare nut crowfoot and torque wrench (commercial service tools).
1. To rear left caliper
16.2 N·m (1.7 kg-m, 12 ft-lb) 2. To rear right caliper
16.2 N·m (1.7 kg-m, 12 ft-lb) 3. To front left caliper
16.2 N·m (1.7 kg-m, 12 ft-lb)
4. To front right caliper 16.2 N·m (1.7 kg-m, 12 ft-lb) 5. From the master cylinder secondary side
18.2 N·m (1.9 kg-m, 13 ft-lb) 6. From the master cylinder primary side
18.2 N·m (1.9 kg-m, 13 ft-lb)
7. ABS actuator and electric unit (control unit) 8. Actuator harness connector
WFIA0375E
Revision: April 20092010 QX56

BODY REPAIRBRM-39
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
BRM
N
O P
• When straightening body panels, use caution in pulling any HSS panel. Because HSS is very strong, pulling may cause
deformation in adjacent portions of the body. In this case,
increase the number of measuring points, and carefully pull
the HSS panel.
• When cutting HSS panels, avoid gas (torch) cutting if possible. Instead, use a saw to avoid weakening surrounding areas due
to heat. If gas (torch) cutting is unavoidable, allow a minimum
margin of 50 mm (1.97in).
• When welding HSS panels, use spot welding whenever possi- ble in order to minimize weakening surrounding areas due to
heat.
If spot welding is impossible, use M.I.G. welding. Do not use
gas (torch) welding because it is inferior in welding strength.
• The spot weld on HSS panels is harder than that of an ordi- nary steel panel.
Therefore, when cutting spot welds on a HSS panel, use a low
speed high torque drill (1,000 to 1,200 rpm) to increase drill bit
durability and facilitate the operation.
• SP150 HSS panels with a tensile strength of 785 to 981 N/
mm
2 (80 to 100 kg/mm2 , 114 to 142 klb/sq in), used as rein-
forcement in the door guard beams, is too strong to repair.
When these HSS parts are damaged, the outer panels also
sustain substantial damage; therefore, the assembly parts
must be replaced.
PIIA0116E
PIIA0117E
PIIA0144E
PIIA0145E
Revision: April 20092010 QX56

DLK-234
< ON-VEHICLE REPAIR >[WITH INTELLIGENT KEY SYSTEM]

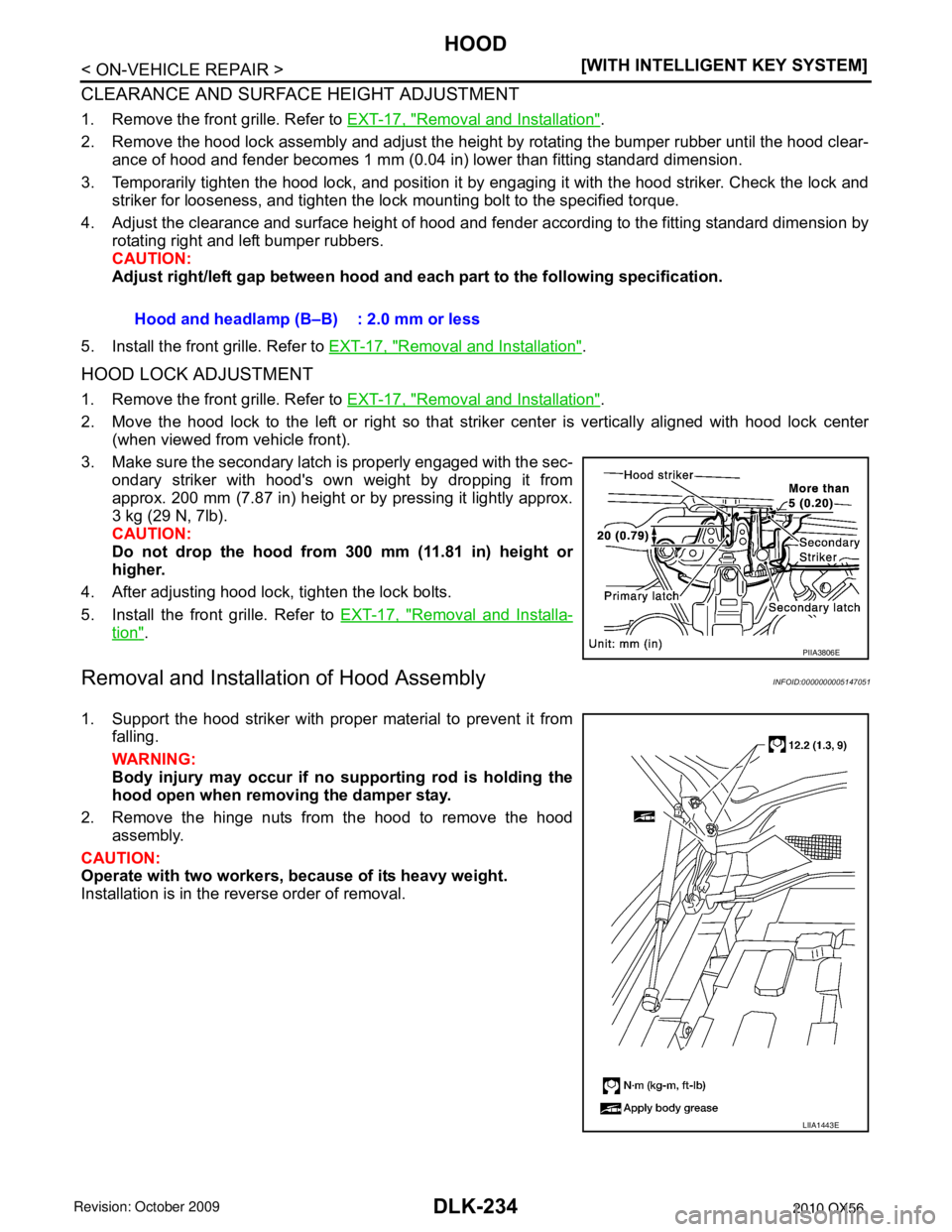

HOOD
CLEARANCE AND SURFACE HEIGHT ADJUSTMENT
1. Remove the front grille. Refer to
EXT-17, "Removal and Installation".
2. Remove the hood lock assembly and adjust the height by rotating the bumper rubber until the hood clear- ance of hood and fender becomes 1 mm (0.04 in) lower than fitting standard dimension.
3. Temporarily tighten the hood lock, and position it by engaging it with the hood striker. Check the lock and striker for looseness, and tighten the lock mounting bolt to the specified torque.
4. Adjust the clearance and surface height of hood and fender according to \
the fitting standard dimension by rotating right and left bumper rubbers.
CAUTION:
Adjust right/left gap between hood and each part to the following specification.
5. Install the front grille. Refer to EXT-17, "
Removal and Installation".
HOOD LOCK ADJUSTMENT
1. Remove the front grille. Refer to EXT-17, "Removal and Installation".
2. Move the hood lock to the left or right so that striker center is vertically aligned with hood lock center (when viewed from vehicle front).
3. Make sure the secondary latch is properly engaged with the sec- ondary striker with hood's own weight by dropping it from
approx. 200 mm (7.87 in) height or by pressing it lightly approx.
3 kg (29 N, 7lb).
CAUTION:
Do not drop the hood from 300 mm (11.81 in) height or
higher.
4. After adjusting hood lock, tighten the lock bolts.
5. Install the front grille. Refer to EXT-17, "
Removal and Installa-
tion".
Removal and Installation of Hood AssemblyINFOID:0000000005147051
1. Support the hood striker with proper material to prevent it from falling.
WARNING:
Body injury may occur if no supporting rod is holding the
hood open when removing the damper stay.
2. Remove the hinge nuts from the hood to remove the hood assembly.
CAUTION:
Operate with two workers, because of its heavy weight.
Installation is in the reverse order of removal. Hood and headlamp (B–B) : 2.0 mm or less
PIIA3806E
LIIA1443E
Revision: April 20092010 QX56

DLN-10
< FUNCTION DIAGNOSIS >[ATX14B]
4WD SYSTEM
FUNCTION DIAGNOSIS
4WD SYSTEM

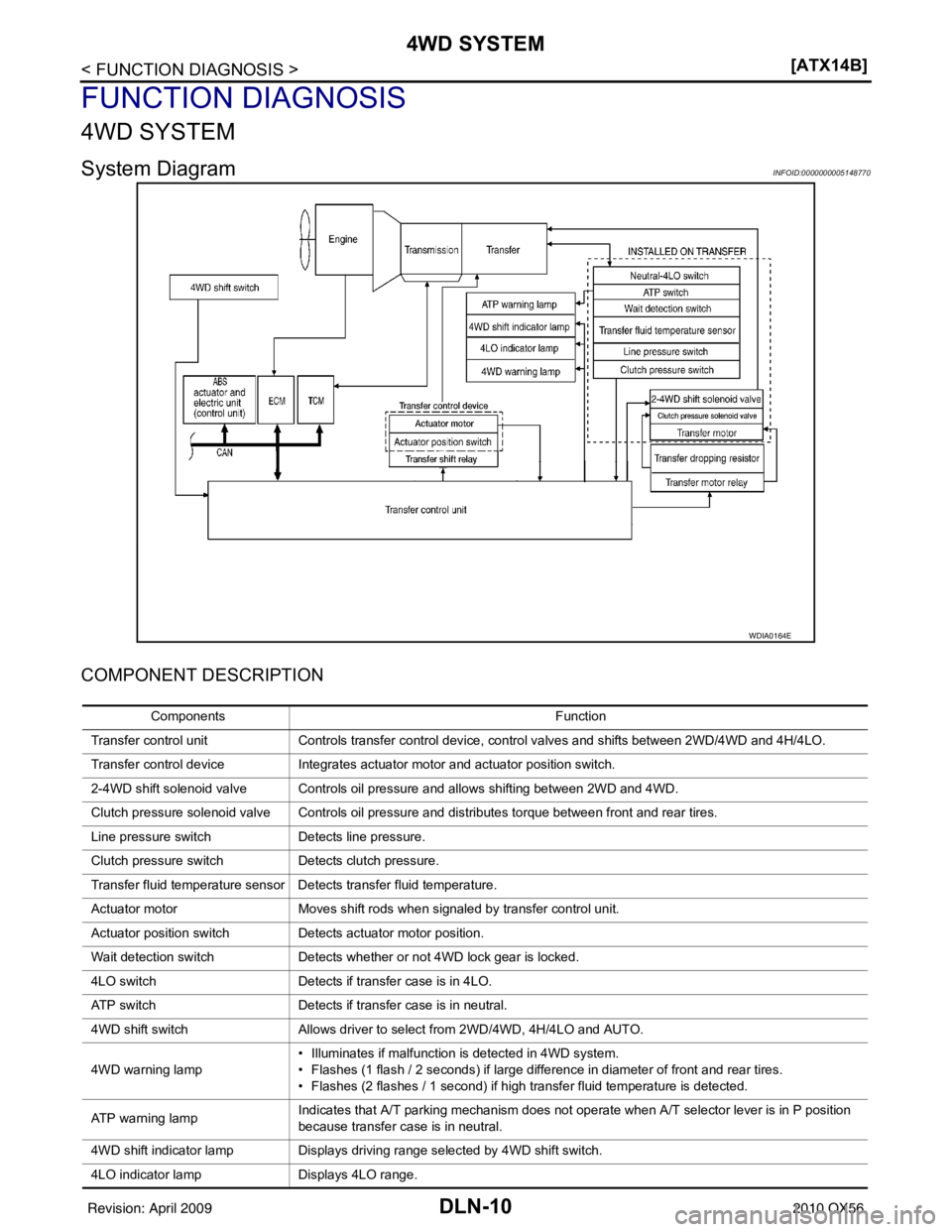

System DiagramINFOID:0000000005148770
COMPONENT DESCRIPTION
WDIA0164E
Components
Function
Transfer control unit Controls transfer control device, control valves and shifts between 2WD/4WD and 4H/4LO.
Transfer control device Integrates actuator motor and actuator position switch.
2-4WD shift solenoid valve Controls oil pressure and allows shifting between 2WD and 4WD.
Clutch pressure solenoid valve Controls oil pressure and distributes torque between front and rear tires.
Line pressure switch Detects line pressure.
Clutch pressure switch Detects clutch pressure.
Transfer fluid temperature sensor Detects transfer fluid temperature.
Actuator motor Moves shift rods when signaled by transfer control unit.
Actuator position switch Detects actuator motor position.
Wait detection switch Detects whether or not 4WD lock gear is locked.
4LO switch Detects if transfer case is in 4LO.
ATP switch Detects if transfer case is in neutral.
4WD shift switch Allows driver to select from 2WD/4WD, 4H/4LO and AUTO.
4WD warning lamp • Illuminates if malfunction is detected in 4WD system.
• Flashes (1 flash / 2 seconds) if large difference in diameter of front and rear tires.
• Flashes (2 flashes / 1 second) if high transfer fluid temperature is detected.
AT P w a r n i n g l a m p Indicates that A/T parking mechanism does not operate when A/T selector lever is in P position
because transfer case is in neutral.
4WD shift indicator lamp Displays driving range selected by 4WD shift switch.
4LO indicator lamp Displays 4LO range.
Revision: April 20092010 QX56

DLN-14
< FUNCTION DIAGNOSIS >[ATX14B]
4WD SYSTEM
• Displays 4LO condition while engine is running. 4LO indicator lamp flashes if transfer gear does not shift
completely under 2WD, AUTO, 4H ⇔4LO. (When 4WD warning lamp is turned on, 4LO indicator lamp is
turned off.)
• Turns ON for approximately 1 second when ignition switch is turned ON, for purpose of lamp check.
4WD WARNING LAMP
Turns on or flashes when there is a malfunction in 4WD system.
Also turns on when ignition switch is turned ON, for purpose of lamp che\
ck. Turns OFF approximately 1 sec-
ond after the engine starts if system is normal.
4WD Warning Lamp Indication
ATP WARNING LAMP
When the A/T selector lever is in P position, the vehicle may move if the transfer case is in neutral. ATP warn-
ing lamp is turned on to indicate this condition to the driver.
LINE PRESSURE SWITCH
• With the transfer system design, control of the oil pressure provides the transmission of drive torque to the
front wheels. The main pressure to control the oil pressure is referred to as the line pressure.
• The line pressure switch determines whether or not adequate line pressure has built up under different oper- ating conditions.
• The line pressure switch closes when line pressure is produced.
• The line pressure switch senses line pressure abnormalities and turns the 4WD warning lamp ON.
CLUTCH PRESSURE SWITCH
• The clutch pressure switch determines whether or not adequate clutch pressure has built up under different
operating conditions.
• The clutch pressure switch closes when clutch pressure is produced.
• The clutch pressure switch senses clutch pressure abnormalities and turns the 4WD warning lamp ON.
WAIT DETECTION SWITCH
• The wait detection switch operates when there is circulating torque produced in the propeller shaft (L→H) or
when there is a phase difference between 2-4 sleeve and clutch drum (H →L). After the release of the circu-
lating torque, the wait detection switch helps provi de the 4WD lock gear (clutch drum) shifts. A difference
may occur between the operation of the 4WD shift swit ch and actual drive mode. At this point, the wait
detection switch senses an actual drive mode.
• The wait detection switch operates as follows.
- 4WD lock gear (clutch drum) locked: ON
- 4WD lock gear (clutch drum) released: OFF
• The wait detection switch senses an actual drive mode and the 4WD shift indicator lamp indicates the vehi-
cle drive mode.
ATP SWITCH
ATP switch detects if transfer case is in neutral by the position of the L-H shift fork.
NOTE:
Transfer case may be in neutral when shifting between 4H-4LO.
NEUTRAL-4LO SWITCH
The neutral-4LO switch detects that transfer gear is in neutral or 4LO (or shifting from neutral to 4LO) condi-
tion by L-H shift fork position.
Condition 4WD warning lamp
System normal OFF
Lamp check Turns ON when ignition switch is turned ON.
Turns OFF after engine start.
4WD system malfunction ON
During self-diagnosis Flashes malfunction mode.
Large difference in diameter of front/
rear tires Flashes slow (1 flash / 2 seconds)
(Continues to flash until the ignition switch is turned OFF)
High fluid temperature in transfer case Flashes rapidly (2 flashes / 1 second)
(Continues to flash until fluid temperature returns to normal)
Revision: April 20092010 QX56

4WD SYSTEMDLN-15
< FUNCTION DIAGNOSIS > [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
TRANSFER FLUID TEMPERATURE SENSOR
The transfer fluid temperature sensor detects the trans fer fluid temperature and sends a signal to the transfer
control unit.
TRANSFER MOTOR
• The transfer motor drives the sub-oil pump to provi de proper lubrication and oil pressure control when the
vehicle is at standstill, during low-speed operations or is being driven in reverse.
• The main oil pump is operated by the driving force of t he mainshaft. In other words, sufficient oil pressure
buildup does not occur when the vehicle is at standsti ll or during low-speed operations. While the vehicle is
being driven in reverse, the main oil pump rotates in the reverse direction. Therefore the main oil pump does
not discharge oil pressure. During any of the above vehi cle operations, the transfer motor drives the sub-oil
pump to compensate for insufficient oil pressure.
• The transfer motor operates as follows:
- The motor relay turns OFF in the 2WD mode.
- The motor relay operates as described in the table below in modes other than the 2WD mode.
• 4WD shift switch, transmission range switch, Neutral-4LO switch, vehicle speed sensor and throttle position
sensor are used in conjunction with the transfer motor.
Transfer Motor Relay Operation
*: After 2.5 seconds have elapsed.
CLUTCH PRESSURE SOLENOID VALVE
The clutch pressure solenoid valve distributes front and rear torque in AUTO mode.
2-4WD SHIFT SOLENOID VALVE
The 2-4WD shift solenoid valve operates to apply oil pressure to the wet-multiplate clutch, depending on the
drive mode. The driving force is transmitted to the front wheels through the clutch so the vehicle is set in the
4WD mode. Setting the vehicle in the 2WD mode requires no pressure buildup. In other words, pressure force
applied to the wet-multiplate clutch becomes zero.
TRANSFER CONTROL DEVICE
Integrates actuator motor and actuator position switch.
4WD shift switch A/T selector lever position Vehicle speed
(VSS) Accelerator pedal position Motor relay drive
command
2WD ———OFF
4H (LOCK) and 4LO N position
0— ON
P position 00 - 0.07/8
OFF*
0.07/8 - 1/8 HOLD
1/8 - MAX ON
Other than R position 0 < VSS ≤
50 km/h (31 MPH)
— ON
50 km/h (31 MPH) < VSS < 55 km/h (34 MPH) HOLD
55 km/h (34 MPH) ≤ VSS OFF
R position —— ON
R position —— ON
AUTO P or N position 0
0 - 0.07/8
OFF*
0.07/8 - 1/8 HOLD
1/8 - MAX ON
0 < VSS ≤ 50 km/h (31 MPH)
— ON
50 km/h (31 MPH) < VSS < 55 km/h (34 MPH) HOLD
55 km/h (34 MPH) ≤ VSS OFF
Other than R, P and N posi-
tion 0 < VSS ≤
50 km/h (31 MPH)
— ON
50 km/h (31 MPH) < VSS < 55 km/h (34 MPH) HOLD
55 km/h (34 MPH) ≤ VSS OFF
Revision: April 20092010 QX56

DLN-20
< FUNCTION DIAGNOSIS >[ATX14B]
DIAGNOSIS SYSTEM (T
RANSFER CONTROL UNIT)
4L SW [On/Off] ×–×4WD shift switch status is displayed.
(4L means 4LO of 4WD shift switch.)
N POSI SW TF [On/Off] ×–×Neutral-4LO switch signal status is displayed.
ATP SWITCH [On/Off] ×–×ATP switch signal status is displayed.
WAIT DETCT SW [On/Off] ×–×Wait detection switch status is displayed.
LINE PRES SW [On/Off] ×–×Line pressure switch status is displayed.
CL PRES SW [On/Off] ×–×Clutch pressure switch status is displayed.
N POSI SW AT [On/Off] ×–×N position signal of transmission range switch
status is displayed.
Signal input with CAN communication line.
R POSI SW AT [On/Off] ×–×R position signal of transmission range switch
status is displayed.
Signal input with CAN communication line.
P POSI SW AT [On/Off] ×–×P position signal of transmission range switch
status is displayed.
Signal input with CAN communication line.
ABS OPER SW [On/Off] ×–×ABS operation signal status is displayed.
Signal input with CAN communication line.
VDC OPER SW [On/Off] ×–×VDC operation signal status is displayed.
Signal input with CAN communication line.
TCS OPER SW [On/Off] ×–×TCS operation signal status is displayed.
Signal input with CAN communication line.
THROTTLE POSI [0.0/8] –×× Thottle position status is displayed.
Signal input with CAN communication line.
4WD MODE [AUTO/LOCK/2WD/4L] – ××Control status of 4WD recognized by transfer
control unit. (AUTO, 4H, 2WD or 4LO)
VHCL/S COMP [km/h] or [mph] –×× Vehicle speed recognized by transfer control
unit.
COMP CL TORQ [kgm] –×× Calculated torque recognized by transfer con-
trol unit.
DUTY SOLENOID [%] –×× Control value of clutch pressure solenoid.
2-4WD SOL [On/Off] –×× Output condition to 2-4WD solenoid.
2-4WD SOL MON [On/Off] ––×Check signal for transfer control unit signal
output.
MOTOR RELAY [On/Off] –×× Transfer motor relay signal status is dis-
played.
MOTOR RELAY MON [On/Off] ––×Check signal for transfer control unit signal
ou
t

put.
4WD FAIL LAMP [On/Off] –×× Control status of 4WD warning lamp is dis-
played.
2WD IND [On/Off] ––×Control status of 4WD shift indicator lamp
(2WD indicator lamp) is displayed.
AUTO IND [On/Off] ––×Control status of 4WD shift indicator lamp
(2WD and AUTO indicator lamp) is displayed.
LOCK IND [On/Off] ––×Control status of 4WD shift indicator lamp
(2WD, AUTO and Lock indicator) is displayed.
4L IND [On/Off] ––×Control status of 4LO indicator lamp is dis-
played.
Monitored item (Unit)
Monitor item selection
Remarks
ECU INPUT
SIGNALS MAIN
SIGNALS SELEC-
TION FROM
MENU
Revision: April 20092010 QX56
