INSPECTION AND ADJUSTMENTEC-15
< BASIC INSPECTION > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
1. Start engine and warm it up to normal operating temperature.
2. Check idle speed.
Refer to EC-17, "
Idle Speed and Ignition Timing Check" .
OK or NG
OK >> GO TO 10.
NG >> GO TO 8.
8.DETECT MALFUNCTIONING PART
Check the following.
• Check camshaft position sensor (PHASE) and circuit. Refer to EC-205
.
• Check crankshaft position sensor (POS) and circuit. Refer to EC-201
.
OK or NG
OK >> GO TO 9.
NG >> 1. Repair or replace. 2. GO TO 4.
9.CHECK ECM FUNCTION
1. Substitute another known-good ECM to check ECM f unction. (ECM may be the cause of an incident, but
this is a rare case.)
2. Perform initialization of IVIS (NAT S) system and registration of all IVIS (NATS) ignition key IDs. Refer to
SEC-14, "
System Diagram".
>> GO TO 4.
10.CHECK IGNITION TIMING
1. Run engine at idle.
2. Check ignition timing with a timing light. Refer to EC-17, "
Idle Speed and Ignition Timing Check" .
OK or NG
OK >> GO TO 19.
NG >> GO TO 11.
11 .PERFORM ACCELERATOR PEDAL RELEASED POSITION LEARNING
1. Stop engine.
2. Perform EC-18, "
Accelerator Pedal Released Position Learning" .
>> GO TO 12.
12.PERFORM THROTTLE VALVE CLOSED POSITION LEARNING
Perform EC-18, "
Throttle Valve Closed Position Learning" .
>> GO TO 13.
13.PERFORM IDLE AIR VOLUME LEARNING
Refer to EC-18, "
Idle Air Volume Learning" .
Is Idle Air Volume Learning carried out successfully?
Ye s o r N o
Yes >> GO TO 14.
No >> 1. Follow the instruction of Idle Air Volume Learning. 650
± 50 rpm (in P or N position)
15 ± 5 ° BTDC (in P or N position)
BBIA0379E
Revision: April 20092010 QX56

EC-16
< BASIC INSPECTION >[VK56DE]
INSPECTION AND ADJUSTMENT
2. GO TO 4.
14.CHECK TARGET IDLE SPEED AGAIN
With CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Read idle speed in “DATA MONITOR” mode with CONSULT-III.
Refer to EC-17, "
Idle Speed and Ignition Timing Check" .
Without CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Check idle speed.
Refer to EC-17, "
Idle Speed and Ignition Timing Check" .
OK or NG
OK >> GO TO 15.
NG >> GO TO 17.
15.CHECK IGNITION TIMING AGAIN
1. Run engine at idle.
2. Check ignition timing with a timing light. Refer to EC-17, "
Idle Speed and Ignition Timing Check" .
OK or NG
OK >> GO TO 19.
NG >> GO TO 16.
16.CHECK TIMING CHAIN INSTALLATION
Check timing chain installation. Refer to EM-45, "
Removal and Installation".
OK or NG
OK >> GO TO 17.
NG >> 1. Repair the timing chain installation. 2. GO TO 4.
17.DETECT MALFUNCTIONING PART
Check the following.
• Check camshaft position sensor (PHASE) and circuit. Refer to EC-205
.
• Check crankshaft position sensor (POS) and circuit. Refer to EC-201
.
OK or NG
OK >> GO TO 18.
NG >> 1. Repair or replace. 2. GO TO 4.
18.CHECK ECM FUNCTION
1. Substitute another known-good ECM to check ECM function. (ECM may be the cause of an incident, but this is a rare case.)
2. Perform initialization of IVIS (NATS) system and regist ration of all IVIS (NATS) ignition key IDs. Refer to
SEC-14, "
System Diagram".
>> GO TO 4.
19.INSPECTION END 650
± 50 rpm (in P or N position)
650 ± 50 rpm (in P or N position)
15 ± 5 ° BTDC (in P or N position)
BBIA0379E
Revision: April 20092010 QX56

INSPECTION AND ADJUSTMENTEC-17
< BASIC INSPECTION > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Did you replace ECM, referring this Basic Inspection procedure?
Ye s o r N o
Ye s > > 1 . P e r f o r m
EC-17, "VIN Registration" .
2. INSPECTION END
No >> INSPECTION END
Idle Speed and Ignition Timing CheckINFOID:0000000005149056
IDLE SPEED
With CONSULT-III
Check idle speed in “DATA MONITOR” mode with CONSULT-III.
With GST
Check idle speed with GST.
IGNITION TIMING
1. Attach timing light to loop wire as shown.
2. Check ignition timing.
Procedure After Replacing ECMINFOID:0000000005149057
When replacing ECM, the following procedure must be performed.
1. Perform initialization of IVIS (NATS) system and registration of all IVIS (NATS) ignition key IDs.
Refer to SEC-14, "
System Diagram".
2. Perform EC-17, "
VIN Registration".
3. Perform EC-18, "
Accelerator Pedal Released Position Learning".
4. Perform EC-18, "
Throttle Valve Closed Position Learning".
5. Perform EC-18, "
Idle Air Volume Learning".
VIN RegistrationINFOID:0000000005149058
DESCRIPTION
VIN Registration is an operation to registering VIN in ECM. It must be performed each time ECM is replaced.
NOTE:
Accurate VIN which is registered in ECM may be required for Inspection & Maintenance (I/M).
OPERATION PROCEDURE
BBIA0377E
BBIA0379E
Revision: April 20092010 QX56

ENGINE CONTROL SYSTEMEC-21
< FUNCTION DIAGNOSIS > [VK56DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
FUNCTION DIAGNOSIS
ENGINE CONTROL SYSTEM

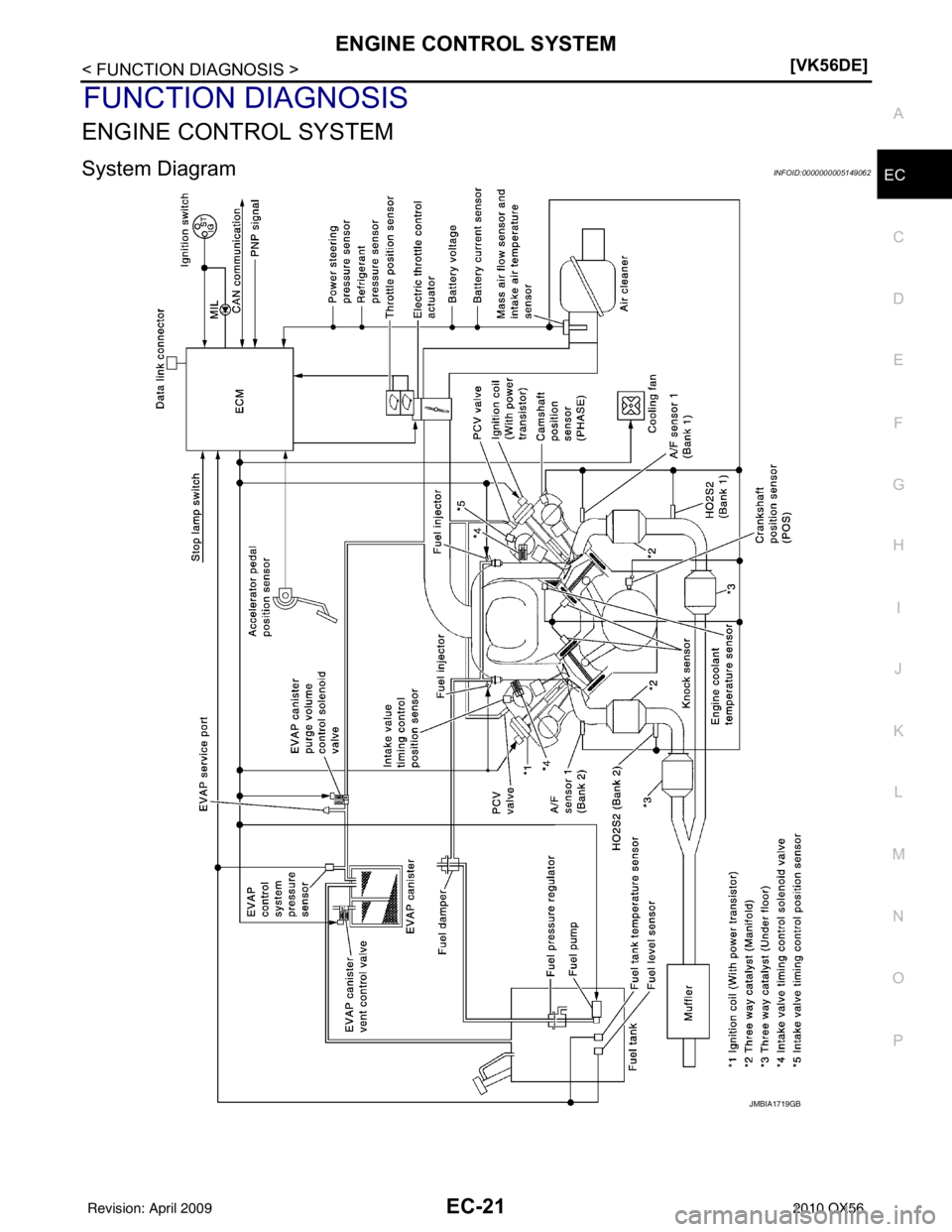

System DiagramINFOID:0000000005149062
JMBIA1719GB
Revision: April 20092010 QX56

EC-82
< COMPONENT DIAGNOSIS >[VK56DE]
POWER SUPPLY AND GROUND CIRCUIT
POWER SUPPLY AND GROUND CIRCUIT
Diagnosis ProcedureINFOID:0000000005149085
1.INSPECTION START
Start engine.
Is engine running?
Ye s o r N o
Ye s > > G O T O 8 .
No >> GO TO 2.
2.CHECK ECM POWER SUPPLY CIRCUIT-I
1. Turn ignition switch OFF and then ON.
2. Check voltage between ECM terminal 109 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
• 10A fuse (No. 59)
• Harness for open or short between ECM and fuse
>> Repair harness or connectors.
4.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to EC-85, "
Ground Inspection".
OK or NG
OK >> GO TO 5.
NG >> Repair or replace ground connections.
5.CHECK ECM GROUND CIRCUIT FOR OPEN AND SHORT-I
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminals 1, 115, 116 and ground. Refer to Wiring Diagram.
3. Also check harness for short to power. Voltage: Battery voltage
MBIB0015E
BBIA0354E
Continuity should exist.
Revision: April 20092010 QX56

EC-84
< COMPONENT DIAGNOSIS >[VK56DE]
POWER SUPPLY AND GROUND CIRCUIT
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 13.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
11 .CHECK ECM POWER SUPPLY CIRCUIT-VI
1. Disconnect ECM harness connector.
2. Disconnect IPDM E/R harness connector E119.
3. Check harness continuity between ECM terminal 111 and IPDM E/R terminal 7. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 12.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
12.CHECK 20 A FUSE
1. Disconnect 20 A fuse from IPDM E/R.
2. Check 20 A fuse (No. 53).
OK or NG
OK >> GO TO 16.
NG >> Replace 20 A fuse.
13.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground three screws on the body. Refer to EC-85, "
Ground Inspection".
OK or NG
OK >> GO TO 14.
NG >> Repair or replace ground connections.
14.CHECK ECM GROUND CIRCUIT FOR OPEN AND SHORT-II
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminals 1, 115, 116 and ground. Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 16.
NG >> GO TO 15.
15.DETECT MALFUNCTIONING PART Continuity should exist.
Continuity should exist.
BBIA0354E
Continuity should exist.
Revision: April 20092010 QX56
