2010 INFINITI QX56 clutch

TM-238
< DISASSEMBLY AND ASSEMBLY >
REPAIR FOR COMPONENT PARTS
DISASSEMBLY
1. Remove bearing race from high and low reverse clutch drum.
2. Remove snap ring from high and low reverse clutch drum usingsuitable tool.
3. Remove drive plates, driven plates and retaining plate from high and low reverse clutch drum.
INSPECTION
•Check the following, and re place high and low reverse clutch assembly if necessary.
High and Low Reverse Clutch Snap Ring
• Check for deformation, fatigue or damage.
High and Low Reverse Clutch Drive Plates
• Check facing for burns, cracks or damage.
High and Low Reverse Clutch Retaining Plate and Driven Plates
• Check facing for burns, cracks or damage.
ASSEMBLY

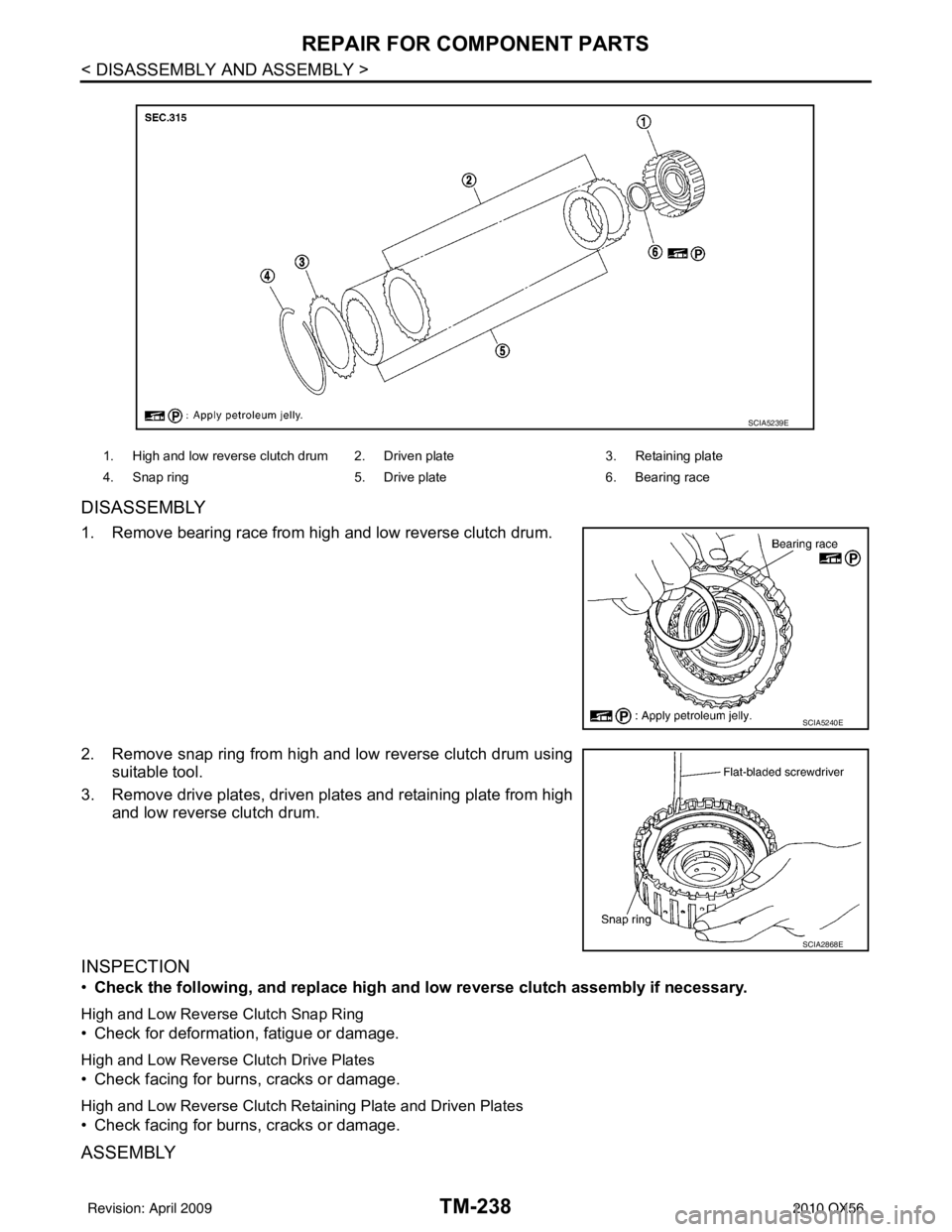

1. High and low reverse clutch drum 2. Driven plate 3. Retaining plate
4. Snap ring 5. Drive plate6. Bearing race
SCIA5239E
SCIA5240E
SCIA2868E
Revision: April 20092010 QX56

REPAIR FOR COMPONENT PARTSTM-239
< DISASSEMBLY AND ASSEMBLY >
CEF
G H
I
J
K L
M A
B
TM
N
O P

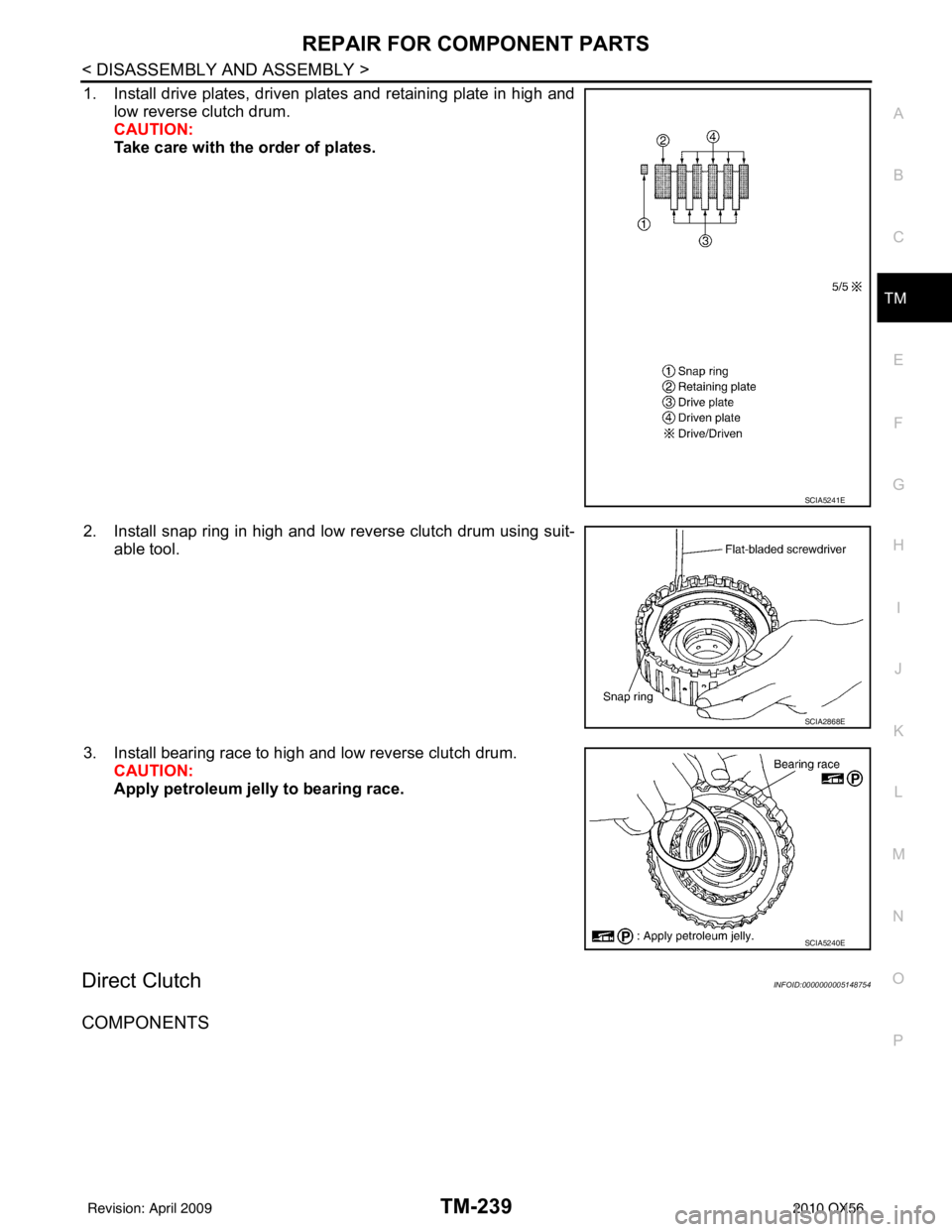

1. Install drive plates, driven plates and retaining plate in high and low reverse clutch drum.
CAUTION:
Take care with the order of plates.
2. Install snap ring in high and low reverse clutch drum using suit- able tool.
3. Install bearing race to high and low reverse clutch drum. CAUTION:
Apply petroleum jelly to bearing race.
Direct ClutchINFOID:0000000005148754
COMPONENTS
SCIA5241E
SCIA2868E
SCIA5240E
Revision: April 20092010 QX56

TM-240
< DISASSEMBLY AND ASSEMBLY >
REPAIR FOR COMPONENT PARTS
DISASSEMBLY
1. Remove snap rings from direct clutch drum using suitable tool.
2. Remove drive plates, driven plates and retaining plate fromdirect clutch drum.
INSPECTION
•Check the following, and replace direct clutch assembly if necessary.
Direct Clutch Snap Rings
• Check for deformation, fatigue or damage.
Direct Clutch Drive Plates
• Check facing for burns, cracks or damage.
Direct Clutch Retaining Plate and Driven Plates
• Check facing for burns, cracks or damage.
ASSEMBLY

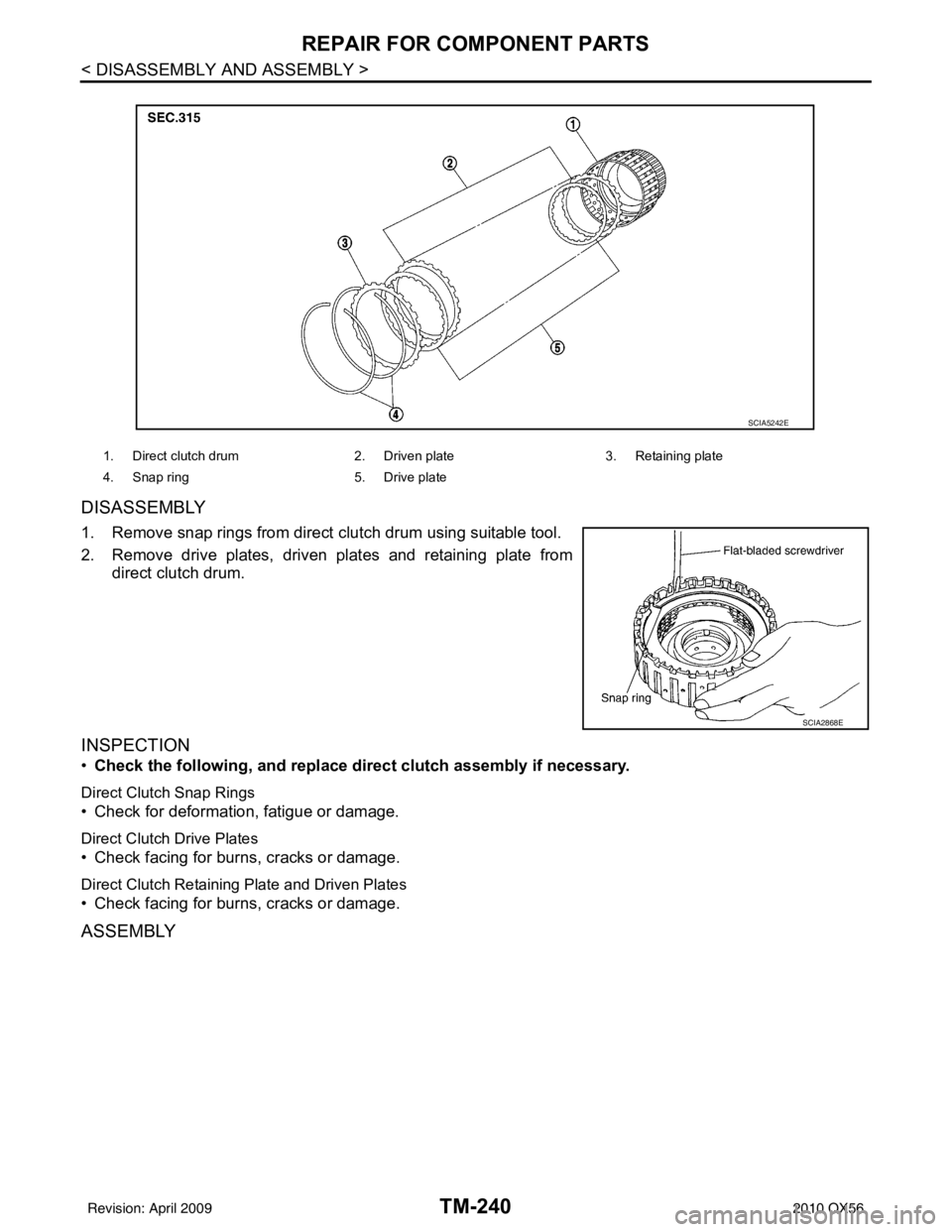

1. Direct clutch drum 2. Driven plate 3. Retaining plate
4. Snap ring 5. Drive plate
SCIA5242E
SCIA2868E
Revision: April 20092010 QX56

REPAIR FOR COMPONENT PARTSTM-241
< DISASSEMBLY AND ASSEMBLY >
CEF
G H
I
J
K L
M A
B
TM
N
O P

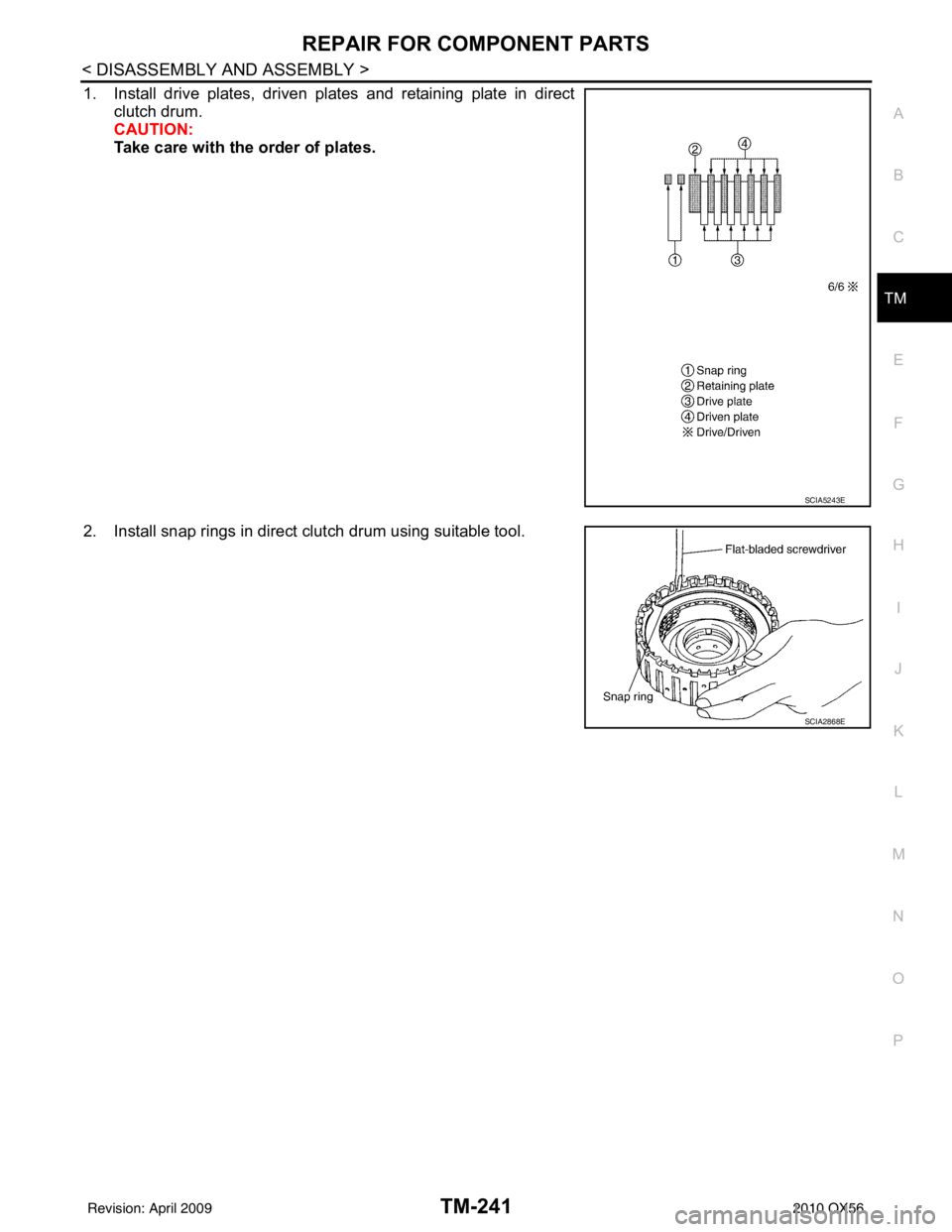

1. Install drive plates, driven plates and retaining plate in direct clutch drum.
CAUTION:
Take care with the order of plates.
2. Install snap rings in direct clutch drum using suitable tool.
SCIA5243E
SCIA2868E
Revision: April 20092010 QX56

ASSEMBLYTM-251
< DISASSEMBLY AND ASSEMBLY >
CEF
G H
I
J
K L
M A
B
TM
N
O P

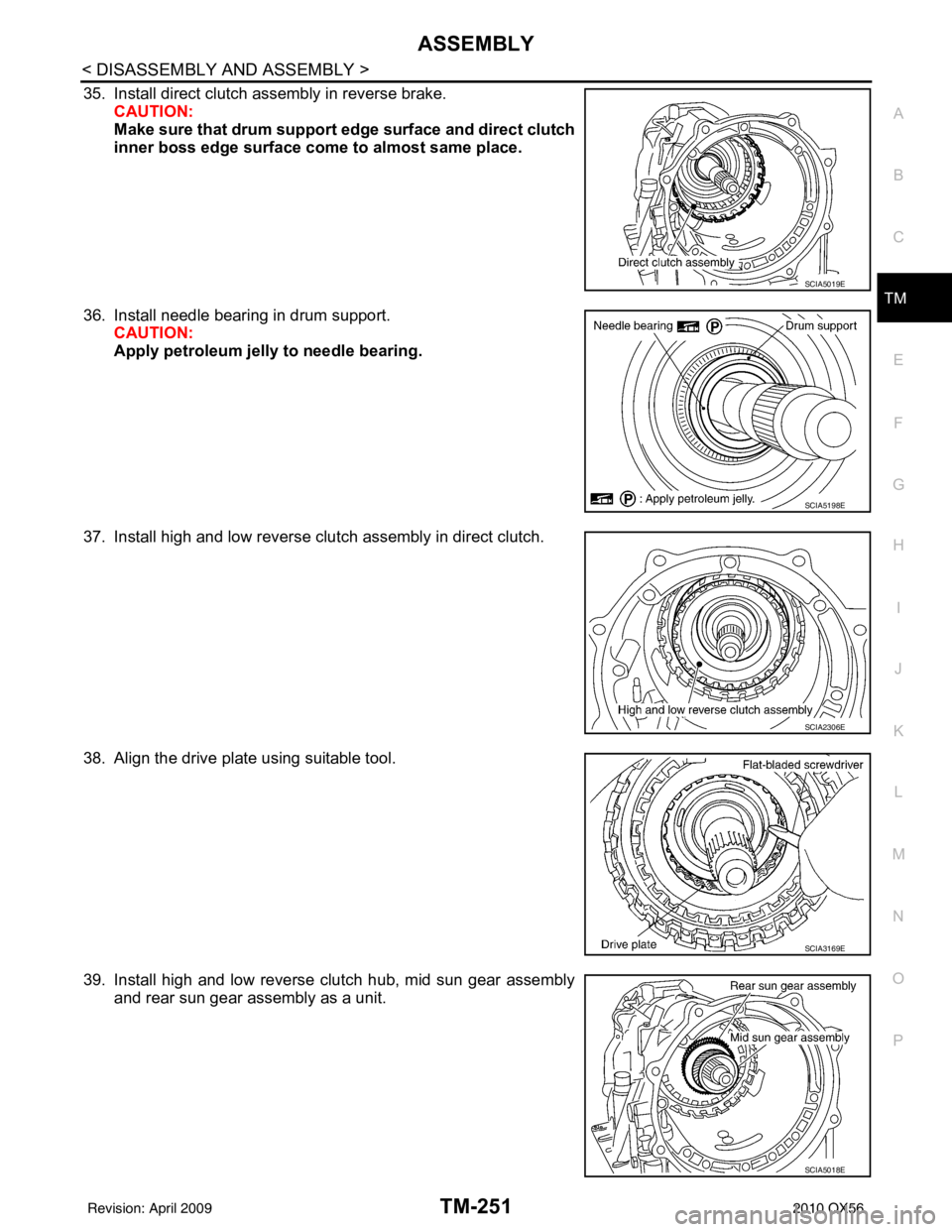

35. Install direct clutch assembly in reverse brake. CAUTION:
Make sure that drum support edge surface and direct clutch
inner boss edge surface come to almost same place.
36. Install needle bearing in drum support. CAUTION:
Apply petroleum jelly to needle bearing.
37. Install high and low reverse clutch assembly in direct clutch.
38. Align the drive plate using suitable tool.
39. Install high and low reverse clutch hub, mid sun gear assembly and rear sun gear assembly as a unit.
SCIA5019E
SCIA5198E
SCIA2306E
SCIA3169E
SCIA5018E
Revision: April 20092010 QX56

TM-252
< DISASSEMBLY AND ASSEMBLY >
ASSEMBLY

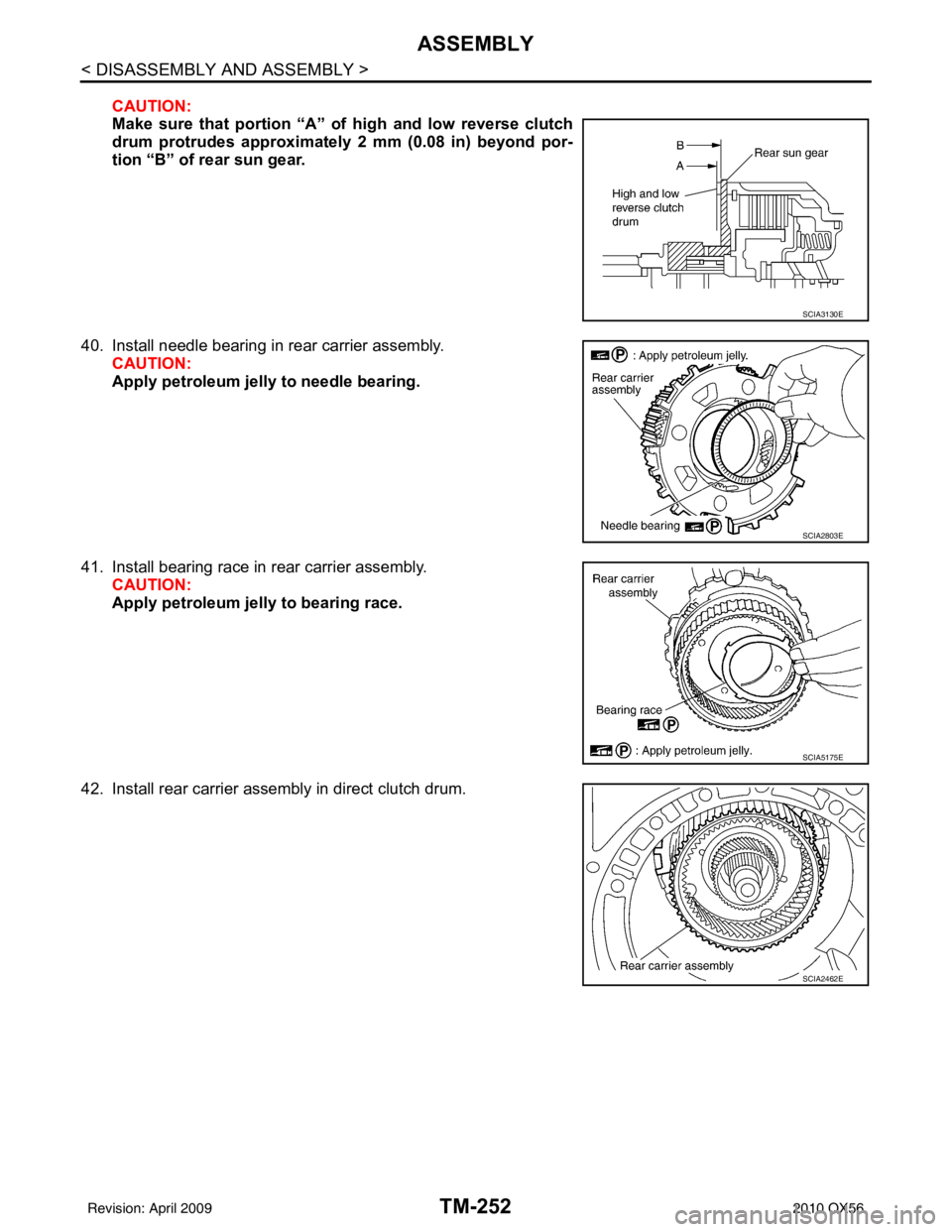

CAUTION:
Make sure that portion “A” of high and low reverse clutch
drum protrudes approximately 2 mm (0.08 in) beyond por-
tion “B” of rear sun gear.
40. Install needle bearing in rear carrier assembly. CAUTION:
Apply petroleum jelly to needle bearing.
41. Install bearing race in rear carrier assembly. CAUTION:
Apply petroleum jelly to bearing race.
42. Install rear carrier assembly in direct clutch drum.
SCIA3130E
SCIA2803E
SCIA5175E
SCIA2462E
Revision: April 20092010 QX56

ASSEMBLYTM-253
< DISASSEMBLY AND ASSEMBLY >
CEF
G H
I
J
K L
M A
B
TM
N
O P

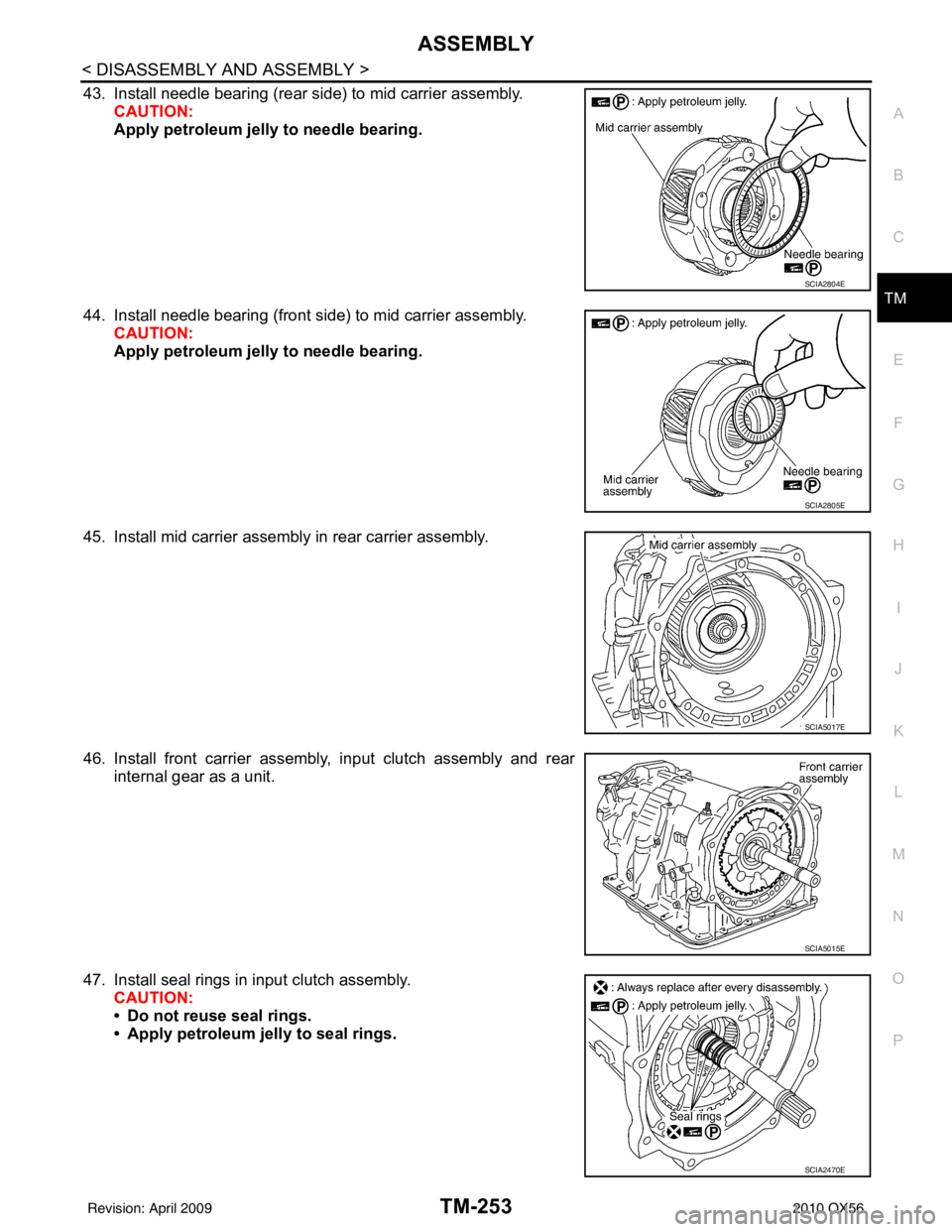

43. Install needle bearing (rear side) to mid carrier assembly. CAUTION:
Apply petroleum jelly to needle bearing.
44. Install needle bearing (front side) to mid carrier assembly. CAUTION:
Apply petroleum jelly to needle bearing.
45. Install mid carrier assembly in rear carrier assembly.
46. Install front carrier assembly, input clutch assembly and rear internal gear as a unit.
47. Install seal rings in input clutch assembly. CAUTION:
• Do not reuse seal rings.
• Apply petroleum jelly to seal rings.
SCIA2804E
SCIA2805E
SCIA5017E
SCIA5015E
SCIA2470E
Revision: April 20092010 QX56

TM-254
< DISASSEMBLY AND ASSEMBLY >
ASSEMBLY
48. Install band servo anchor end pin and lock nut in transmissioncase.
CAUTION:
Do not reuse band servo anchor end pin.
49. Install brake band in transmission case. CAUTION:
Install it so that the identification to avoid incorrect installa-
tion faces the servo side.
50. Install front sun gear to front carrier assembly. CAUTION:
Apply ATF to front sun gear bearing and 3rd one-way clutch
end bearing.
51. Install needle bearing to front sun gear. CAUTION:
Apply petroleum jelly to needle bearing.
52. Adjust brake band tilting using a clip so that brake band contacts front sun gear drum evenly.
SCIA6512E
SCIA5498E
SCIA5014E
SCIA2808E
SCIA5033E
Revision: April 20092010 QX56
