2010 INFINITI QX56 Ignition switch

FRONT WIPER MOTOR HI CIRCUITWW-21
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
WW
N
O P
FRONT WIPER MOTOR HI CIRCUIT
Component Function CheckINFOID:0000000005146774
1. CHECK FRONT WIPER HI OPERATION
IPDM E/R AUTO ACTIVE TEST
1. Start IPDM E/R auto active test. Refer to PCS-12, "
Diagnosis Description".
2. Check that the front wiper operates at the HI operation.
CONSULT-III ACTIVE TEST
1. Select "FRONT WIPER" of IPDM E/R active test item.
2. While operating the test item, check front wiper operation.
Is front wiper (HI) operation normal?
YES >> Front wiper motor HI circuit is normal.
NO >> Refer to WW-21, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000005146775
Regarding Wiring Diagram information, refer to WW-31, "Wiring Diagram".
1. CHECK FRONT WIPER MOTOR FUSE
1. Turn the ignition switch OFF.
2. Check that the following fuse is not blown.
Is the fuse blown?
YES >> GO TO 2
NO >> GO TO 3
2. CHECK FRONT WIPER MOTOR (HI) SHORT CIRCUIT
1. Disconnect IPDM E/R and front wiper motor.
2. Check continuity between IPDM E/R harness connector and ground.
Does continuity exist?
YES >> Repair or replace harness.
NO >> Replace the fuse. (Replace IPDM E/R if the fuse is blown again.)
3. CHECK FRONT WIPER MOTOR (HI) OUTPUT VOLTAGE
CONSULT-III ACTIVE TEST HI : Front wiper (HI) operation
OFF : Stop the front wiper.
Unit Location Fuse No. Capacity
Front wiper motor IPDM E/R39 30 A
IPDM E/R
GroundContinuity
Connector Terminal
E121 35 No
ALLIA0448ZZ
Revision: April 20092010 QX56

WW-22
< COMPONENT DIAGNOSIS >
FRONT WIPER MOTOR HI CIRCUIT

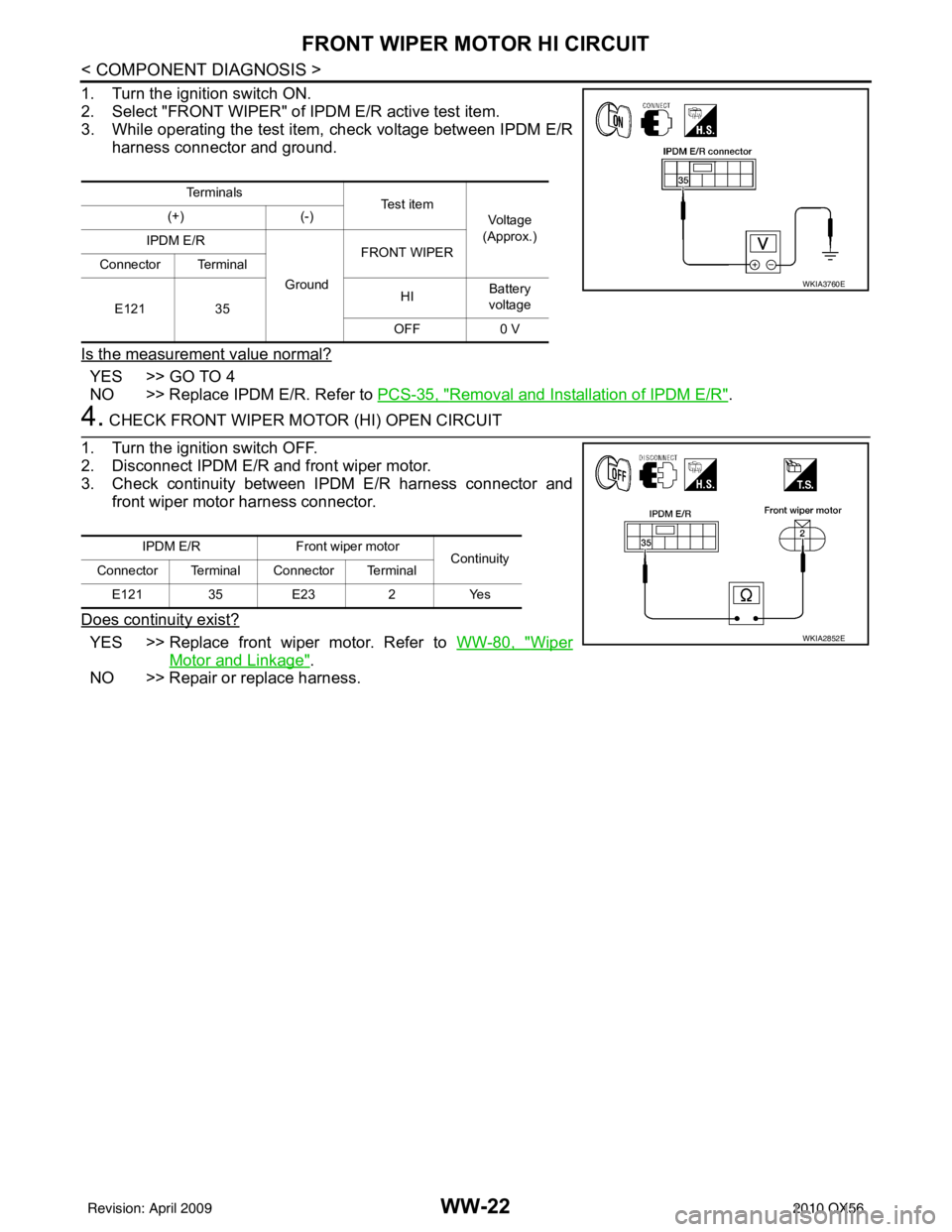

1. Turn the ignition switch ON.
2. Select "FRONT WIPER" of IPDM E/R active test item.
3. While operating the test item, check voltage between IPDM E/Rharness connector and ground.
Is the measurement value normal?
YES >> GO TO 4
NO >> Replace IPDM E/R. Refer to PCS-35, "
Removal and Installation of IPDM E/R".
4. CHECK FRONT WIPER MOTOR (HI) OPEN CIRCUIT
1. Turn the ignition switch OFF.
2. Disconnect IPDM E/R and front wiper motor.
3. Check continuity between IPDM E/R harness connector and front wiper motor harness connector.
Does continuity exist?
YES >> Replace front wiper motor. Refer to WW-80, "Wiper
Motor and Linkage".
NO >> Repair or replace harness.
Te r m i n a l s Te s t i t e m
Voltage
(Approx.)
(+)
(-)
IPDM E/R
GroundFRONT WIPER
Connector Terminal
E121 35 HI
Battery
voltage
OFF 0 V
WKIA3760E
IPDM E/R Front wiper motor
Continuity
Connector Terminal Connector Terminal
E121 35 E232Yes
WKIA2852E
Revision: April 20092010 QX56

FRONT WIPER AUTO STOP SIGNAL CIRCUITWW-23
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
WW
N
O P

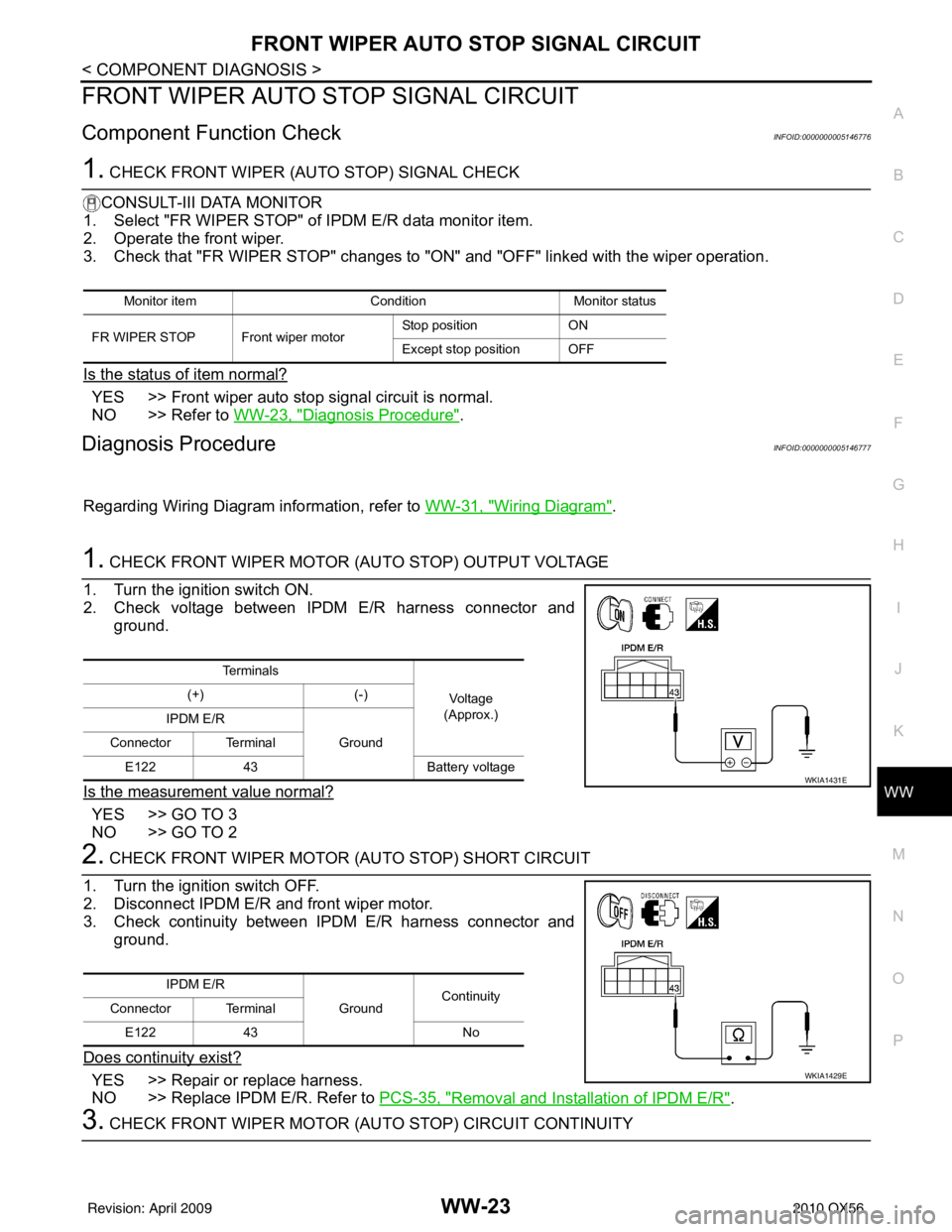

FRONT WIPER AUTO ST OP SIGNAL CIRCUIT
Component Function CheckINFOID:0000000005146776
1. CHECK FRONT WIPER (AUTO STOP) SIGNAL CHECK
CONSULT-III DATA MONITOR
1. Select "FR WIPER STOP" of IPDM E/R data monitor item.
2. Operate the front wiper.
3. Check that "FR WIPER STOP" changes to "ON" and "OFF" linked with the wiper operation.
Is the status of item normal?
YES >> Front wiper auto stop signal circuit is normal.
NO >> Refer to WW-23, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000005146777
Regarding Wiring Diagram information, refer to WW-31, "Wiring Diagram".
1. CHECK FRONT WIPER MOTOR (AUTO STOP) OUTPUT VOLTAGE
1. Turn the ignition switch ON.
2. Check voltage between IPDM E/R harness connector and ground.
Is the measurement value normal?
YES >> GO TO 3
NO >> GO TO 2
2. CHECK FRONT WIPER MOTOR (AUTO STOP) SHORT CIRCUIT
1. Turn the ignition switch OFF.
2. Disconnect IPDM E/R and front wiper motor.
3. Check continuity between IPDM E/R harness connector and ground.
Does continuity exist?
YES >> Repair or replace harness.
NO >> Replace IPDM E/R. Refer to PCS-35, "
Removal and Installation of IPDM E/R".
3. CHECK FRONT WIPER MOTOR (AUTO STOP) CIRCUIT CONTINUITY
Monitor item ConditionMonitor status
FR WIPER STOP Front wiper motor Stop position
ON
Except stop position OFF
Te r m i n a l s
Voltage
(Approx.)
(+)
(-)
IPDM E/R Ground
Connector Terminal
E122 43 Battery voltage
WKIA1431E
IPDM E/R
GroundContinuity
Connector Terminal
E122 43 No
WKIA1429E
Revision: April 20092010 QX56

FRONT WIPER MOTOR GROUND CIRCUITWW-25
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
WW
N
O P

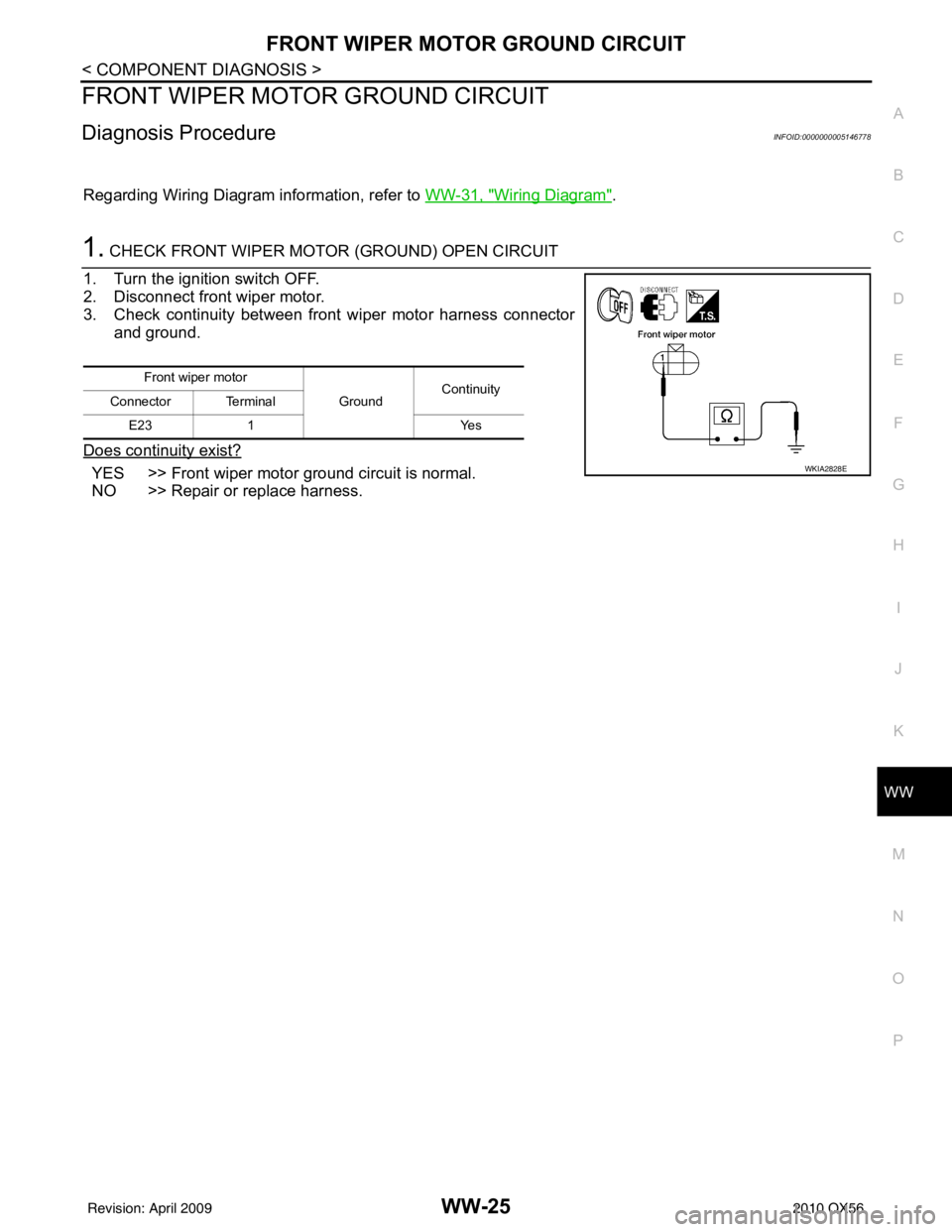

FRONT WIPER MOTOR GROUND CIRCUIT
Diagnosis ProcedureINFOID:0000000005146778
Regarding Wiring Diagram information, refer to WW-31, "Wiring Diagram".
1. CHECK FRONT WIPER MOTOR (GROUND) OPEN CIRCUIT
1. Turn the ignition switch OFF.
2. Disconnect front wiper motor.
3. Check continuity between front wiper motor harness connector and ground.
Does continuity exist?
YES >> Front wiper motor ground circuit is normal.
NO >> Repair or replace harness.
Front wiper motor GroundContinuity
Connector Terminal
E23 1 Yes
WKIA2828E
Revision: April 20092010 QX56

WW-26
< COMPONENT DIAGNOSIS >
WASHER SWITCH
WASHER SWITCH
DescriptionINFOID:0000000005146779
• Washer switch is integrated with combination switch.
• Combination switch switches polarity between front washer operating and rear washer operating to supply
power to the front and rear washer motor on ground.
Component InspectionINFOID:0000000005146780
1. CHECK FRONT WASHER SWITCH
1. Turn the ignition switch OFF.
2. Disconnect combination switch.
3. Check continuity between the combination switch terminals.
Does continuity exist?
YES >> GO TO 2.
NO >> Replace combination switch. Refer to WW-85, "
Wiper and Washer Switch".
2. CHECK REAR WASHER SWITCH
ALLIA0350GB
A: Terminal 14
B: Terminal 12
C: Terminal 13
D: Terminal 11
ALLIA0839ZZJPLIA0164GB
Combination switch ConditionContinuity
Te r m i n a l
11 1 2
Front washer switch ON Yes
13 14
Revision: April 20092010 QX56

WASHER SWITCHWW-27
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
WW
N
O P
1. Turn the ignition switch OFF.
2. Disconnect combination switch.
3. Check continuity between the combination switch terminals.
Does continuity exist?
YES >> Wiper and washer switch is normal.
NO >> Replace combination switch. Refer to WW-85, "
Wiper and Washer Switch".
A: Terminal 14
B: Terminal 12
C: Terminal 13
D: Terminal 11
ALLIA0840ZZJPLIA0164GB
Combination switch
ConditionContinuity
Te r m i n a l
11 1 4
Rear washer switch ON Yes
12 13
Revision: April 20092010 QX56

WW-28
< COMPONENT DIAGNOSIS >
REAR WIPER MOTOR CIRCUIT
REAR WIPER MOTOR CIRCUIT
Component Function CheckINFOID:0000000005146781
1. CHECK REAR WIPER ON OPERATION
CONSULT-III ACTIVE TEST
1. Select "RR WIPER" of BCM active test item.
2. While operating the test item, check rear wiper operation.
Is rear wiper operation normal?
YES >> Rear wiper motor circuit is normal.
NO >> Refer to WW-28, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000005146782
Regarding Wiring Diagram information, refer to WW-35, "Wiring Diagram".
1. CHECK REAR WIPER MOTOR OUTPUT VOLTAGE
CONSULT-III ACTIVE TEST
1. Turn the ignition switch OFF.
2. Disconnect rear wiper motor.
3. Turn the ignition switch ON.
4. Select "RR WIPER" of BCM active test item.
5. While operating the test item, check voltage between BCM har-
ness connector and ground.
Is the measurement value normal?
YES >> GO TO 2
NO >> GO TO 3
2. CHECK REAR WIPER MOTOR GROUND CIRCUIT
1. Turn the ignition switch OFF.
2. Check continuity between rear wiper motor harness connector and ground.
Does continuity exist?
YES >> Replace rear wiper motor. Refer to WW-86, "Rear Wiper
Motor".
NO >> Repair or replace harness. ON : Rear wiper ON operation
OFF : Stop the rear wiper.
Te r m i n a l s Te s t i t e m
Vo l ta g e
(Approx.)
(+)
(−)
BCM
REAR WIPER
Connector Terminal
M19 54
Ground ON Battery voltage
55 OFF0V
WKIA1417E
Rear wiper motor
GroundContinuity
Connector Terminal
D704 3
Ye s
5
WKIA1416E
Revision: April 20092010 QX56

REAR WIPER MOTOR CIRCUITWW-29
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K
M A
B
WW
N
O P
3. CHECK GLASS HATCH AJAR SWITCH CIRCUIT
1. Disconnect BCM harness M19.
2. Turn ignition switch OFF.
3. Make sure hatch glass is closed
4. Check continuity between BCM harness connector and ground.
Does continuity exist?
YES >> Repair harness if shorted. If not, refer to DLK-129,
"Diagnosis Procedure".
NO >> GO TO 4
4. CHECK REAR WIPER MOTOR OPEN CIRCUIT
1. Check continuity between BCM harness connector and rear wiper motor harness connector.
Does continuity exist?
YES >> GO TO 5
NO >> Repair or replace harness.
5. CHECK REAR WIPER MOTOR SHORT CIRCUIT
Check continuity between BCM harness connector and ground.
Does continuity exist?
YES >> Repair or replace harness.
NO >> Replace BCM. Refer to BCS-59, "
Removal and Installa-
tion".
BCM
GroundContinuity
Connector Terminal
M19 42 No
WKIA1414E
BCMRear wiper motor
Continuity
Connector Terminal Connector Terminal
M19 54
D704 6
Ye s
55 4
WKIA1413E
BCM
GroundContinuity
Connector Terminal
M19 54
No
55
ALLIA0449ZZ
Revision: April 20092010 QX56
