1. Check the inner and outer circumference, tooth face, and side- face of the inner and outer gears for damage or abnormal wear.
2. Measure the side clearance between the main oil pump housing edge and the inner and outer gears.
3. Make sure the side clearance is within specification. If the mea- surement is out of specification, replace the inner and outer
gears with new ones as a set. Refer to DLN-142, "
Disassembly
and Assembly".
Sub-oil Pump
1. Check the inner and outer circumference, tooth face, and side-face of the inner and outer gears for damage or abnormal wear.
2. Measure the side clearance between the sub oil pump housing edge and the inner and outer gears.
3. Make sure the side clearance is within specification. If the mea- surement is out of specification, replace the inner and outer
gears with new ones as a set. Refer to DLN-179, "
Inspection
and Adjustment".
Control Valve
• Check resistance between the terminals of the clutch pressure
solenoid valve, 2-4WD shift solenoid valve, clutch pressure switch,
line pressure switch and the transfer fluid temperature sensor.
Refer to DLN-57, "
Component Inspection" (clutch pressure sole-
noid valve), DLN-61, "
Component Inspection" (2-4WD solenoid
valve), DLN-73, "
Component Inspection" (clutch pressure switch),
DLN-76, "
Component Inspection" (line pressure switch) and DLN-
69, "Component Inspection" (transfer fluid temperature sensor).
• Check the sliding faces of the control valves and plugs for abnor- mality. If any is found, replace the control valve assembly with a
new one. Refer to DLN-142, "
Disassembly and Assembly".
CAUTION:
Replace control valve body together with clutch return spring
as a set. Specification : Refer to
DLN-179, "
Inspection and
Adjustment"SDIA2174E
Specification : Refer to DLN-179, "Inspection and Ad-
justment"SDIA2173E
WDIA0199E
SMT947C
Revision: April 20092010 QX56

TRANSFER ASSEMBLYDLN-163
< DISASSEMBLY AND ASSEMBLY > [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
c. Install each control valve (3), springs (4), and plugs (2) to the upper body (5), and install retainer plates (1) to hold them in
place.
CAUTION:
• To insert control valves into upper body, place upper
body on a level surface in order to prevent flaw or dam-
age.
• Make sure each control valve is smoothly inserted.
d. Install the reverse balls, relief balls and relief springs, accumula- tor pistons and valve springs to the upper body.
e. Install the lower body and separator plate to the upper body. CAUTION:
Do not reuse separator plates.
f. With the lower body down, tighten the two bolts shown.
g. Apply ATF to the new O-rings, and install them to each solenoid valve, switch and terminal body.
CAUTION:
Do not reuse O-rings.
h. Install the following to the control valve assembly: • Clutch pressure solenoid valve
• Clutch pressure switch
• 2-4WD shift solenoid valve
• Line pressure switch
• Transfer fluid temperature sensor
Center Case
SDIA2127E
SDIA2126E
WDIA0200E
WDIA0198E
Revision: April 20092010 QX56

SERVICE DATA AND SPECIFICATIONS (SDS)DLN-179
< SERVICE DATA AND SPECIFICATIONS (SDS) [ATX14B]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
General SpecificationINFOID:0000000005148896
Inspection and AdjustmentINFOID:0000000005148897
CLEARANCE BETWEEN INNER GEAR AND OUTER GEAR
Unit: mm (in)
CLUTCH
Unit: mm (in)
PINION GEAR END PLAY
Unit: mm (in)
CLEARANCE BETWEEN SHIFT FORK AND SLEEVE
Unit: mm (in)
SELECTIVE PARTS
Sub-oil Pump
Unit: mm (in)
*: Always check with the Parts Department for the latest parts information. Applied model
4WD
VK56DE A/T
Transfer model AT X 1 4 B
Fluid capacity (Approx.) (US qt, lmp qt) 3.0 (3-1/8, 2-5/8)
Gear ratio High
1.000
Low 2.625
Number of teeth Planetary
gear
Sun gear
57
Internal gear 91
Front drive sprocket 38
Front drive shaft 38
ItemSpecification
Sub-oil pump 0.015 - 0.035 (0.0006 - 0.0014)
Main oil pump 0.015 - 0.035 (0.0006 - 0.0014)
ItemLimit value
Drive plate 1.4 (0.055)
ItemStandard
Pinion gear end play 0.1 - 0.7 (0.004 - 0.028)
ItemStandard
Shift fork and sleeve Less than 0.36 (0.0142)
Gear thicknessPart number*
Inner gear Outer gear
9.27 - 9.28 (0.3650 - 0.3654) 31346 0W46231347 0W462
9.28 - 9.29 (0.3654 - 0.3657) 31346 0W46131347 0W461
9.29 - 9.30 (0.3657 - 0.3661) 31346 0W46031347 0W460
Revision: April 20092010 QX56

DLN-190
< SERVICE DATA AND SPECIFICATIONS (SDS) [PROPELLER SHAFT: 2F1310]
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
General SpecificationINFOID:0000000005148903
Unit: mm (in)
Propeller Shaft Runout
Unit: mm (in)
Propeller Shaft Joint Flex Effort
Unit: N·m (kg-m, in-lb)
Journal Axial Play
Unit: mm (in)
Snap RingINFOID:0000000005148904
Model 2F1310 (4WD)
Unit: mm (in)
*Always check with the Parts Department for the latest parts information.Applied model
4WD
VK56DE A/T
Propeller shaft model 2F1310
Number of joints 2
Coupling method with front final drive Flange type
Coupling method with transfer Flange type
Shaft length (Spider to spider) 696 (27.40)
Shaft outer diameter 63.5 (2.5)
ItemLimit
Propeller shaft runout 0.6 (0.024)
ItemLimit
Propeller shaft joint flex effort 1.96 (0.20, 17) or less
ItemLimit
Journal axial play 0.02 (0.0008)
ThicknessColorPart Number*
1.99 (0.0783) White37146-C9400
2.02 (0.0795) Yellow37147-C9400
2.05 (0.0807) Red37148-C9400
2.08 (0.0819) Green37149-C9400
2.11 (0.0831) Blue37150-C9400
2.14 (0.0843) Light brown 37151-C9400
2.17 (0.0854) Black37152-C9400
2.20 (0.0866) No paint37153-C9400
Revision: April 20092010 QX56

PROPELLER SHAFTDLN-197
< REMOVAL AND INSTALLATION > [PROPELLER SHAFT: 2S1410]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
4WD
REMOVAL
1. Move the A/T select lever to the N position and release the parking brake.
2. Put matching marks on the rear propeller shaft flange yoke and the rear final drive companion flange as shown.
CAUTION:
For matching marks, use paint. Never damage the rear pro-
peller shaft flange yoke or the companion flange.
3. Remove the bolts, then remove the propeller shaft from the rear final drive and A/T or transfer.
INSPECTION
• Inspect the propeller shaft runout. If runout exceeds the limit, replace the propeller shaft assembly.
AWDIA0699GB

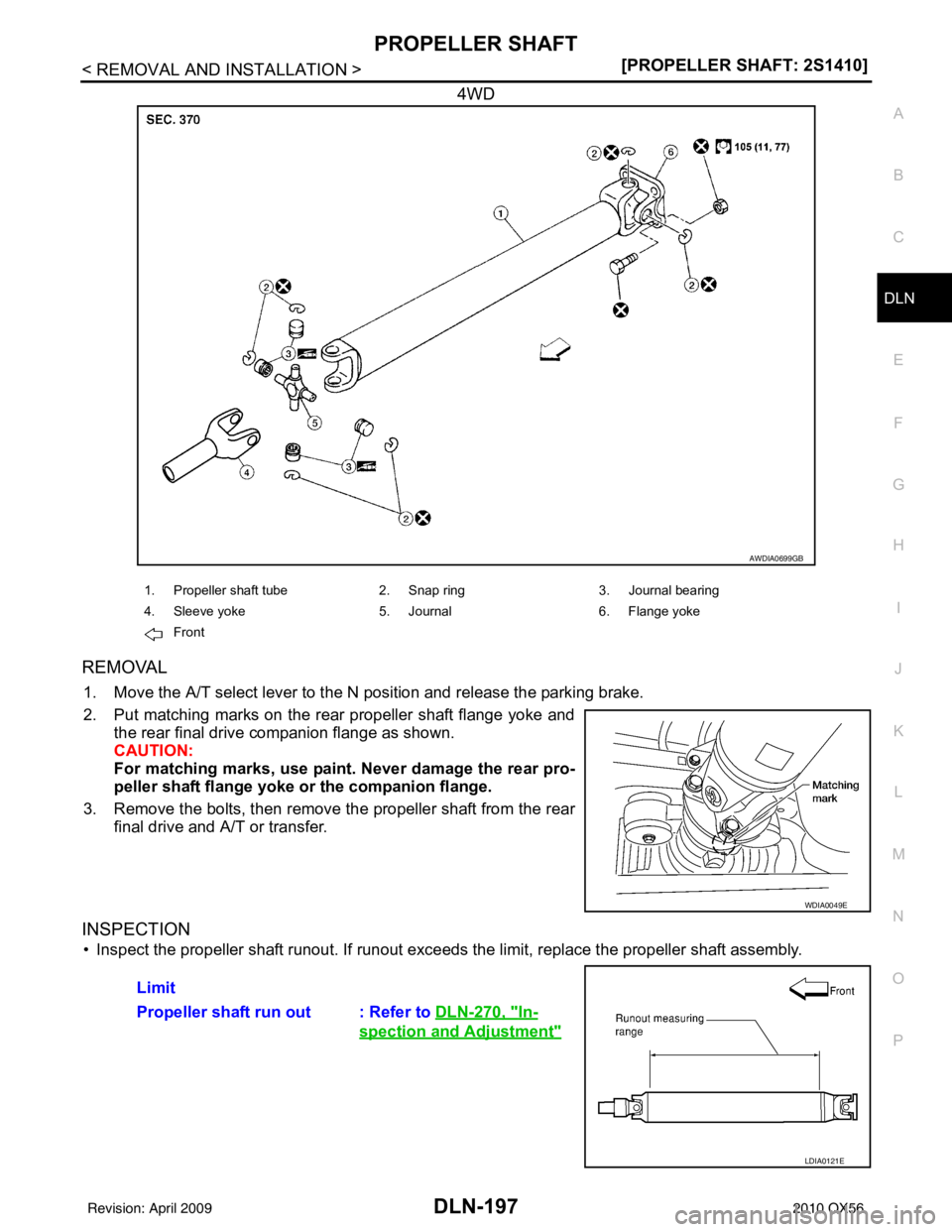

1. Propeller shaft tube 2. Snap ring3. Journal bearing
4. Sleeve yoke 5. Journal6. Flange yoke
Front
WDIA0049E
Limit
Propeller shaft run out : Refer to DLN-270, "
In-
spection and Adjustment"
LDIA0121E
Revision: April 20092010 QX56

SERVICE DATA AND SPECIFICATIONS (SDS)DLN-201
< SERVICE DATA AND SPECIFICATIONS (SDS) [PROPELLER SHAFT: 2S1410]
C
EF
G H
I
J
K L
M A
B
DLN
N
O P
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
General SpecificationINFOID:0000000005148910
Propeller Shaft Runout
Unit: mm (in)
Propeller Shaft Joint Flex Effort
Unit: N·m (kg-m, in-lb)
Journal Axial Play
Unit: mm (in)
Snap RingINFOID:0000000005148911
Model (2WD) Unit: mm (in)
*Always check with the Parts Department for the latest parts information.
Model (4WD)
Unit: mm (in)
Applied model2WD
4WD
VK56DE A/T
Propeller shaft model 2S1410
Number of joints 2
Coupling method with rear final drive Flange type
Coupling method with transfer Sleeve type
Shaft length (Spider to spider) 1637.1 (44.35)1156.8 (45.54)
Shaft outer diameter 127.60 (5.02)102.46 (4.03)
Item Limit
Propeller shaft runout 1.02 (0.0402) or less
ItemLimit
Propeller shaft joint flex effort 2.26 (0.23, 20) or less
ItemLimit
Journal axial play 0.02 (0.0008) or less
ThicknessColorPart Number*
1.600 - 1.638 (0.0630 - 0.0645) Black37146-EA500
1.549 - 1.588 (0.0610 - 0.0625) Black37147-EA500
1.524 - 1.562 (0.0600 - 0.0615) Black37148-EA500
1.499 - 1.537 (0.0590 - 0.0605) Black37149-EA500
Thickness ColorPart Number*
1.99 (0.0783) White37146-C9400
2.02 (0.0795) Yellow37147-C9400
2.05 (0.0807) Red37148-C9400
2.08 (0.0819) Green37149-C9400
2.11 (0.0831) Blue37150-C9400
Revision: April 20092010 QX56

DLN-234
< SERVICE DATA AND SPECIFICATIONS (SDS) [FRONT FINAL DRIVE: M205]
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
General SpecificationINFOID:0000000005148923
Inspection and AdjustmentINFOID:0000000005148924
DRIVE GEAR RUNOUT
Unit: mm (in)
SIDE GEAR CLEARANCE
Unit: mm (in)
PRELOAD TORQUE
Unit: N·m (kg-m, in-lb)
BACKLASH
Unit: mm (in)
COMPANION FLANGE RUNOUT
Unit: mm (in)
SELECTIVE PARTS
Drive Pinion Height Adjusting Washer
Applied model4WD
VK56DE
A/T
Final drive model M205
Gear ratio 3.357
Number of teeth (Drive gear/Drive pinion) 47/14
Differential gear oil capacity (Approx.) 1.6 (3 3/8 US pt, 2 7/8 Imp pt)
Number of pinion gears 2
Drive pinion adjustment spacer type Collapsible
ItemLimit
Drive gear back face 0.08 (0.0031) or less
ItemStandard
Side gear back clearance (Clearance between side gear and dif-
ferential case for adjusting side gear backlash) 0.20 (0.0079) or less
(Each gear should rotate smoothly without excessive resistance during differential motion.)
Item Standard
Drive pinion bearing preload torque 2.3 - 3.4 (0.24 - 0.34, 21 - 30)
Total preload torque
(Total preload torque = drive pinion bearing preload torque + side
bearing preload torque). 2.98 - 4.76 (0.31 - 0.48, 27 - 42)
Item
Standard
Drive gear to drive pinion backlash 0.12 - 0.20 (0.0050 - 0.0078)
ItemLimit
Companion flange face 0.10 (0.0039) or less
Companion flange inner side 0.13 (0.0051) or less
Revision: April 20092010 QX56

EM-30
< ON-VEHICLE REPAIR >
EXHAUST MANIFOLD AND THREE WAY CATALYST
EXHAUST MANIFOLD AND THREE WAY CATALYST
Exploded ViewINFOID:0000000005148989
Removal and InstallationINFOID:0000000005148990
REMOVAL
WARNING:
Perform the work when the exhaust and cooling system have cooled sufficiently.
1. Remove the engine undercover (rear) using power tool (4WD models).
2. Remove front final drive assembly (4WD models). Refer to DLN-215, "
Removal and Installation".
3. Remove the main muffler assembly and center exhaust tube. Refer to EX-6, "
Removal and Installation".
4. Remove the front exhaust tubes. Refer to EX-6, "
Removal and Installation".
5. Remove front tires. Refer to WT-49, "
Rotation".
6. Remove fender protectors. Refer to EXT-23, "
Removal and Installation".
7. Remove the LH and RH air fuel ratio A/F sensors. • Follow steps below to remove each air fuel ratio A/F sensor.
a. Remove the harness connector of each air fuel ra tio A/F sensor, and harness from bracket and middle
clamp.
1. Air fuel ratio A/F sensor 1 (bank 2) 2. Exhaust manifold cover (bank 2) 3. Exhaust manifold (bank 2)
4. Gaskets 5. Exhaust manifold (bank 1) 6. Exhaust manifold cover (bank 1)
7. Air fuel ratio A/F sensor 1 (bank 1) A. Up B. Coated face
C. Manifold side D. Up mark Front
AWBIA0453GB
