If No CAN Communication Is Available With BCM
IGNITION RELAY MALFUNCTION DETECTION FUNCTION
• IPDM E/R monitors the voltage at the contact circuit and excitation coil circuit of the ignition relay inside it.
• IPDM E/R judges the ignition relay error if the voltage differs between the contact circuit and the excitation
coil circuit.
• If the ignition relay cannot turn OFF due to contact seizure, it activates the tail lamp relay for 10 minutes to alert the user to the ignition relay malfunction when the ignition switch is turned OFF.
NOTE:
The tail lamp turns OFF when the ignition switch is turned ON.
FRONT WIPER CONTROL
IPDM E/R detects front wiper stop posit ion by a front wiper auto stop signal.
When a front wiper auto stop signal is in the conditions listed below, IPDM E/R stops power supply to wiper
after repeating a front wiper 10 second activation and 20 second stop five times.
NOTE:
This operation status can be confirmed on the IPDM E/R “DATA MONITOR” that displays “Block” for the item
“WIP PROT” while the wiper is stopped.
STARTER MOTOR PROTECTION FUNCTION
IPDM E/R turns OFF the starter control relay to protect the starter motor when the starter control relay remains
active for 90 seconds.
Control part Fail-safe in operation
Cooling fan • Turns ON the cooling fan relay when the ignition switch is turned ON
• Turns OFF the cooling fan relay when the ignition switch is turned OFF
Control part
Fail-safe in operation
Headlamp • Turns ON the headlamp low relay when the ignition switch is turned ON
• Turns OFF the headlamp low relay when the ignition switch is turned OFF
• Headlamp high LH/RH relays OFF
•Parking lamps
• License plate lamps
• Tail lamps • Turns ON the tail lamp relay when the ignition switch is turned ON
• Turns OFF the tail lamp relay when the ignition switch is turned OFF
Front wiper • The status just before activation of fail-safe control is maintained until the ignition
switch is turned OFF while the front wiper is operating at LO or HI speed.
• The wiper is operated at LO speed until the ignition switch is turned OFF if the fail- safe control is activated while the front wipe r is set in the INT mode and the front wiper
motor is operating.
Rear window defogger Rear window defogger relay OFF
A/C compressor A/C relay OFF
Front fog lamps Front fog lamp relay OFF
Ignition switch Ignition relayTail lamp relay
ON ON —
OFF OFF —
Ignition switchFront wiper switch Auto stop signal
ON OFF
Front wiper stop position signal cannot be
input 10 seconds.
ON The signal does not change for 10 seconds.
Revision: April 20092010 QX56

PG
HARNESSPG-43
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K L
B A
O P
N
A3 M6 W/10 : To E10
G4 M84 W/16 : To B101
A2 M7 B/5 : Passenger select unlock relay B2 M85 W/3 : Tilt motor
A3 M8 W/16 : To D2 B2 M86 W/2 : Tilt motor
A2 M9 BR/24 : To D1 B3 M87 B/5 : Rear power vent window relay (open)
A3 M10 Y/4 : To E29 B3 M89 B/5 : Rear power vent window relay (close)
A3 M11 B/1 : Parking brake switch A3 M91 W/16 : To E26
C3 M12 GR/6 : Key switch and ignition knob switch A2 M92 GR/6 : Power liftgate switch
D3 M13 BR/2 : Front passenger air bag OFF indicator D1 M93 W/24 : Display unit
A1 M14 B/2 : Diode-3 A2 M95 W/6 : Rear power vent window switch
B3 M15 W/4 : Steering lock solenoid A2 M96 BR/6 : Pedal adjusting switch
A2 M16 GR/6 : ADP steering switch C2 M98 W/16 : A/C and AV switch assembly
B2 M17 W/8 : Steering angle sensor C3 M99 BR/2 : Foot lamp LH
C2 M18 W/40 : BCM (body control module) F4 M100 BR/2 : Foot lamp RH
C2 M19 W/15 : BCM (body control module) E3 M104 W/4 : Aux jack
C2 M20 B/15 : BCM (body control module) F2 M105 Y/2 : Front passenger air bag module
C3 M21 W/4 : NATS antenna AMP. F2 M106 O/2 : Front passenger air bag module
C3 M22 W/16 : Data link connector F3 M107 B/5 : Front blower relay
B1 M23 W/12 : Combination meter D5 M108 B/6 : Yaw rate/ side/ decel G sensor
C1 M24 W/40 : Combination meter A1 M109 BR/2 : Front tweeter LH
F2 M25 B/4 : Remote keyless entry receiver D2 M110 BR/2 : Center speaker
B2 M26 W/6 : Ignition switch F2 M111 BR/2 : Front tweeter RH
B2 M28 W/16 : Combination switch C2 M112 BR/14 : BOSE speaker amp.
B2 M29 Y/6 : Combination switch C2 M113 BR/23 : BOSE speaker amp.
B3 M30 GR/8 : Combination switch A2 M116 GR/8 : Sonar system OFF switch
G4 M31 SMJ : To E152 B1 M118 B/2 : Front sonar buzzer
C3 M32 W/4 : In-vehicle sensor F2 M120 W/4 : Remote keyless entry receiver
B3 M33 W/32 : Automatic drive positioner control unit F4 M122 W/4 : Variable blower control (front)
B3 M34 W/16 : Automatic drive positioner control unit C3 M123 W/2 : Tire pressure warning check connector
C5 M35 Y/28 : Air bag diagnosis sensor unit D2 M139 B/2 : Diode-1
G4 M36 SMJ : To B149 D1 M140 B/2 : Diode-2
G3 M37 B/1 : Fuse block (J/B) C2 M141 GR/8 : 4WD shift switch
G3 M38 B/2 : Fuse block (J/B) E1 M142 B/6 : Mode door motor (front)
G3 M39 W/8 : Fuse block (J/B) E3 M143 B/6 : Air mix door motor (passenger)
A3 M40 SMJ : To B69 C1 M144 B/6 : Defroster door motor
D2 M42 W/20 : AV control unit E3 M146 GR/2 : Intake sensor
D2 M43 W/12 : AV control unit D3 M147B/6 : Air mix door motor (driver)
D2 M44 W/32 : AV control unit A3 M148 W/4 : Headlamp aiming switch
D2 M45 W/40 : AV control unit E3 M149 W/4 : Clock
B1 M47 B/2 : Sonar buzzer B1 M150 W/2 : Ignition keyhole illumination
D2 M49 B/26 : A/C auto amp. A3 M158 W/10 : To D3
D2 M50 L/26 : A/C auto amp. Console sub-harness
B3 M51 L/4 : Trailer tow relay 1 D4 M201 W/16 : To M56
B2 M52 W/2 : Combination switch D4 M202 BR/24 : To M64
D3 M53 B/3 : Front power socket LH D4 M203 W/12 : A/T shift selector
E3 M54 B/3 : Front power socket RH D5 M205 W/32 : DVD player
Revision: April 20092010 QX56

PG-52
< COMPONENT DIAGNOSIS >
HARNESS
G3 B3 W/16 : Suspension control unitC5 B69 SMJ : To M40
E4 B6 W/18 : To D201 G2 B70 GR/3 : Rear combination lamp LH
C5 B7 — : Body ground D5 B72 BR/6 : Subwoofer
D4 B8 W/3 : Front door switch LH F3 B73 W/16 : Rear view camera control unit
C4 B9 Y/12 : Air bag diagnosis sensor unit C4 B74 Y/4 : Seat belt buckle pre-tensioner assembly LH
E5 B10 Y/2 : Front LH side air bag module F2 B75 W/10 : To B400
F3 B13 W/24 : ICC unit F2 B76 GR/2 : Luggage area antenna
E5 B14 Y/2 : Front LH seat belt pre-tensioner C3 B78 W/3 : Rear seat heater RH
E5 B15 Y/2 : LH side air bag (satellite) sensor E3 B79 W/3 : Rear seat heater LH
G3 B17 GR/24 : ICC unit Front seat LH harness
E3 B18 W/3 : Rear door switch LH D3 B200 W/16 : To B37
G1 B19 — : Body ground D5 B202 W/32 : Driver seat control unit
G2 B24 W/16 : Sonar control unit D5 B203 W/16 : Driver seat control unit
B4 B32 W/6 : To B124 C5 B204 GR/5 : Sliding motor LH
G2 B35 B/3 : Rear combination lamp LH D3 B205 W/4 : Reclining motor LH
D3 B37 W/16 : To B200 C4 B206 GR/5 : Lifting motor (front)
C5 B38 Y/2 : LH side front curtain air bag module D4 B207 GR/5 : Lifting motor (rear)
C5 B40 W/24 : To E34 D4 B208 W/10 : Power seat switch LH
C5 B41 W/12 : To E35 D4 B209 W/3 : Front seat heater LH
C5 B42 W/2 : To E36 D5 B210 W/4 : Lumbar support switch
B4 B43 W/16 : To B111 E5 B211 B/2 : Lumbar support motor
F1 B48 W/18 : To D401 Third row power folding seat sub-harness
F1 B49 W/2 : To D402 F2 B400 W/10 : To B75
F2 B52 W/2 : Rear power vent window motor LH E3 B401 GR/12 : Third row power folding seat control unit
F2 B54 Y/2 : LH side rear curtain air bag module E3 B402 W/10 : Third row power folding seat control unit
G3 B55 W/26 : Back door control unit F3 B403 GR/4 : Third row power folding seat motor LH
F2 B56 GR/16 : Sonar control unit (with front and rear
sonar system) E2 B404 W/4 : To B425
G2 B57 GR/10 : Sonar control unit (with front and rear
sonar system) E3 B425 W/4 : To B404
G1 B63 W/6 : Back door close switch E2 B426 GR/4 : Third row power folding seat motor RH
Revision: April 20092010 QX56

PG
HARNESSPG-53
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K L
B A
O P
N
BODY NO. 2 HARNESS

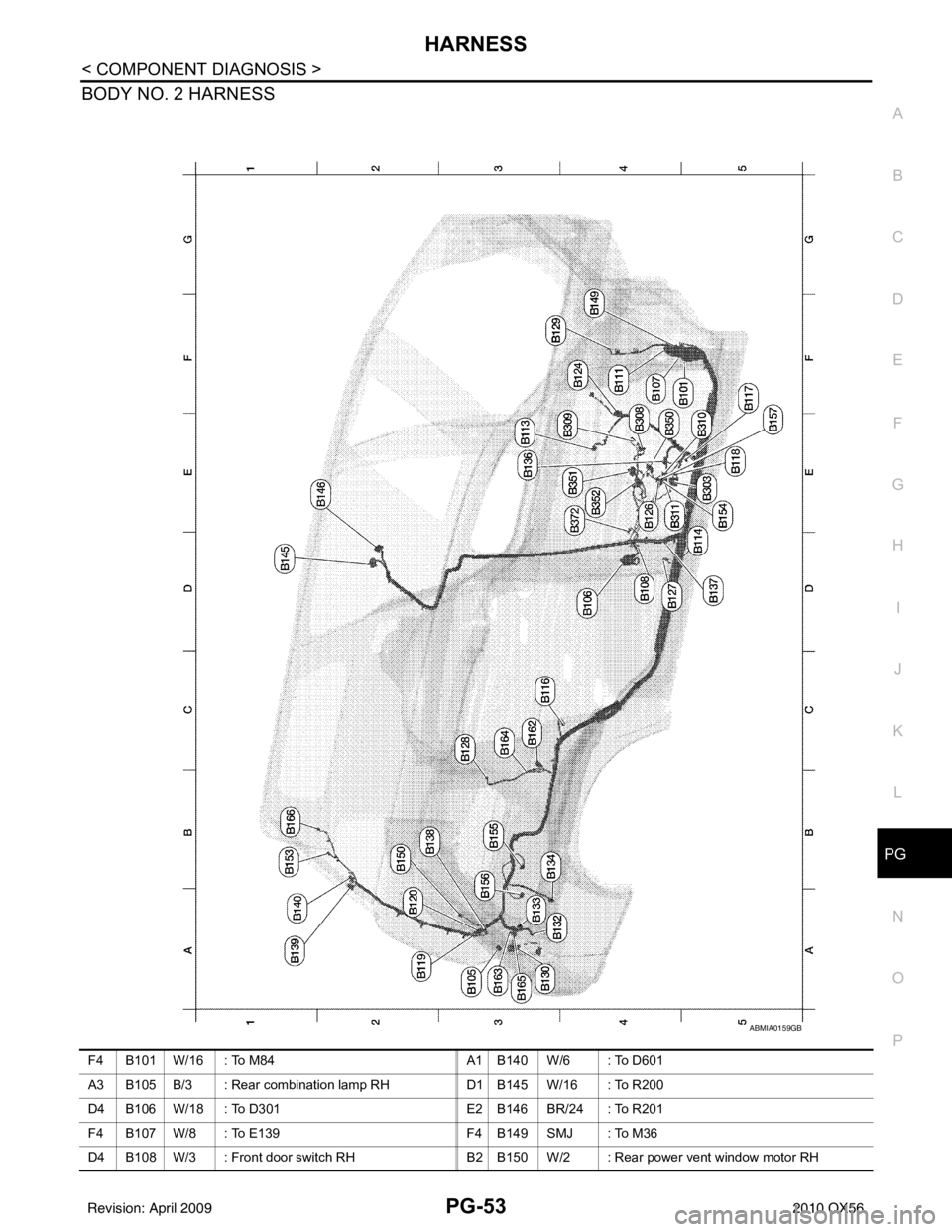

ABMIA0159GB
F4 B101 W/16 : To M84
A1 B140 W/6 : To D601
A3 B105 B/3 : Rear combination lamp RHD1 B145 W/16 : To R200
D4 B106 W/18 : To D301 E2 B146 BR/24 : To R201
F4 B107 W/8 : To E139 F4 B149 SMJ : To M36
D4 B108 W/3 : Front door switch RH B2 B150 W/2 : Rear power vent window motor RH
Revision: April 20092010 QX56

PG
HARNESSPG-55
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K L
B A
O P
N
FRONT DOOR LH HARNESS
A4 R1 W/16 : To M1
C3 R107 W/8 : To R9
A4 R2 W/12 : To M2 C2 R108 B/6 : Rear air control (front)
D3 R3 W/2 : Vanity lamp LH D2 R109 W/4 : Microphone
C3 R4 W/10 : Sunroof motor assembly Room lamp sub-harness B
C2 R6 W/16 : To R101 D1 R200 W/16 : To B145
C3 R7 GR/10 : Auto anti-dazzling inside mirror D1 R201 BR/24 : To B146
B3 R8 W/2 : Vanity lamp RH C2 R202 W/12 : Video monitor
D3 R9 W/8 : To R107 D1 R203 W/3 : Personal lamp 2ND row
Room lamp sub-harness A D2 R204 W/16 : Rear audio remote control unit
C2 R101 W/16 : To R6 E1 R205 W/3 : Personal lamp 3RD row
C3 R102 GR/8 : Front room/map lamp assembly D2 R209 B/6 : Rear air control (rear)
D3 R104 GR/6 : Sunroof switch E1 R210 W/2 : Over head console area antenna

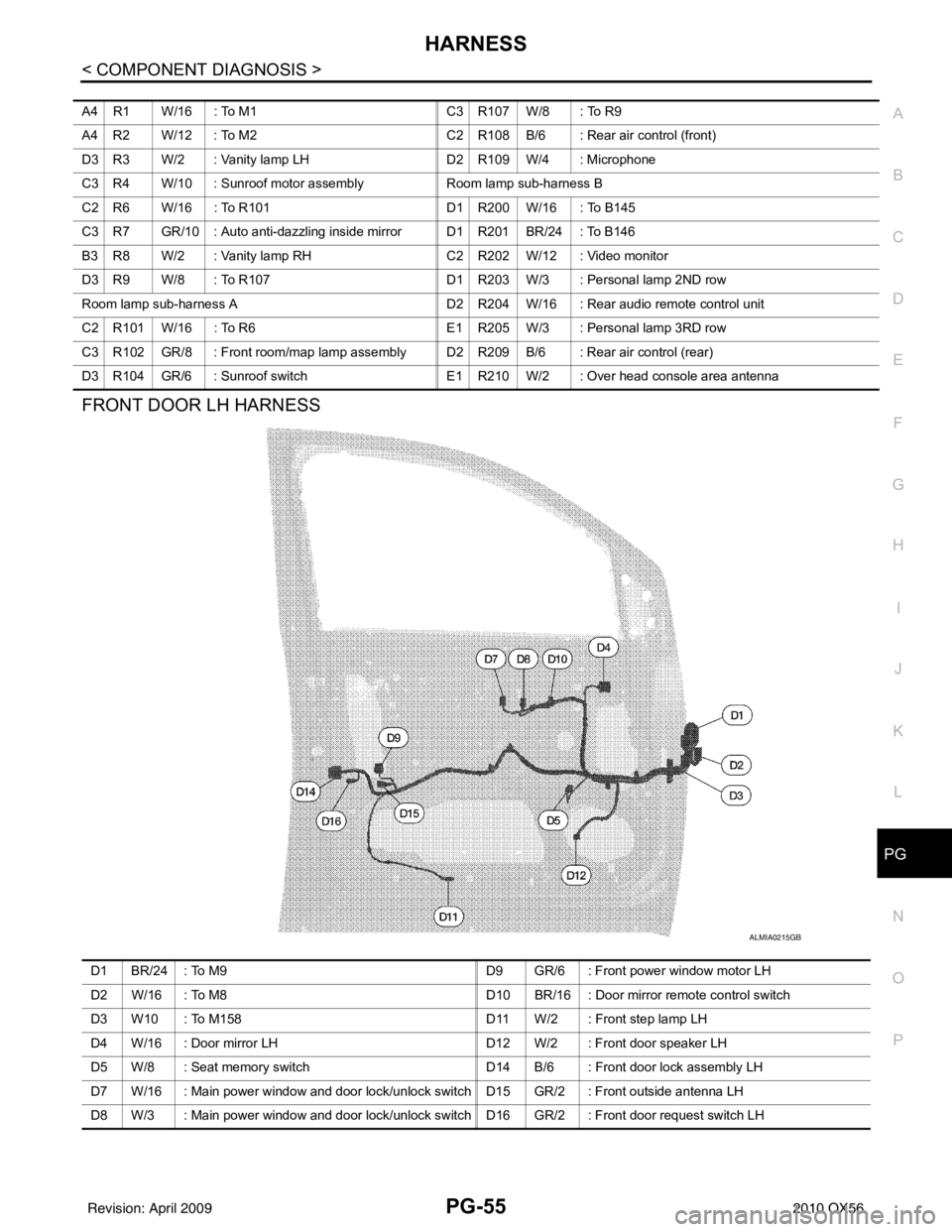

ALMIA0215GB
D1 BR/24 : To M9 D9 GR/6 : Front power window motor LH
D2 W/16 : To M8 D10 BR/16 : Door mirror remote control switch
D3 W10 : To M158 D11 W/2 : Front step lamp LH
D4 W/16 : Door mirror LH D12 W/2 : Front door speaker LH
D5 W/8 : Seat memory switch D14 B/6 : Front door lock assembly LH
D7 W/16 : Main power window and door lock/unlock switch D15 GR/2 : Front outside antenna LH
D8 W/3 : Main power window and door lock/unlock switch D16 GR/2 : Front door request switch LH
Revision: April 20092010 QX56

PG-56
< COMPONENT DIAGNOSIS >
HARNESS
FRONT DOOR RH HARNESS

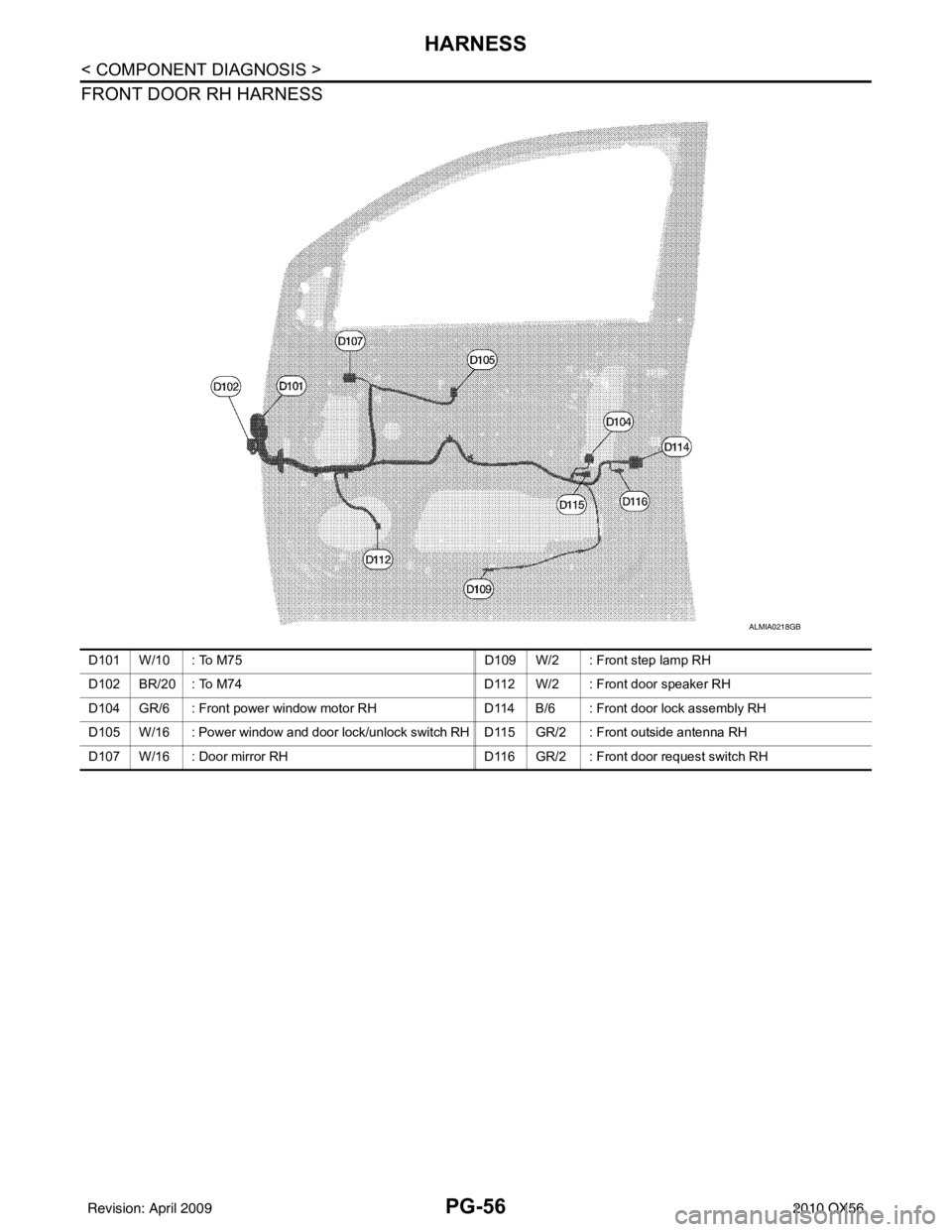

ALMIA0218GB
D101 W/10 : To M75 D109 W/2 : Front step lamp RH
D102 BR/20 : To M74 D112 W/2 : Front door speaker RH
D104 GR/6 : Front power window motor RH D114 B/6 : Front door lock assembly RH
D105 W/16 : Power window and door lock/unlock switch RH D115 GR/2 : Front outside antenna RH
D107 W/16 : Door mirror RH D116 GR/2 : Front door request switch RH
Revision: April 20092010 QX56

PG
HARNESSPG-57
< COMPONENT DIAGNOSIS >
C
DE
F
G H
I
J
K L
B A
O P
N
REAR DOOR LH HARNESS

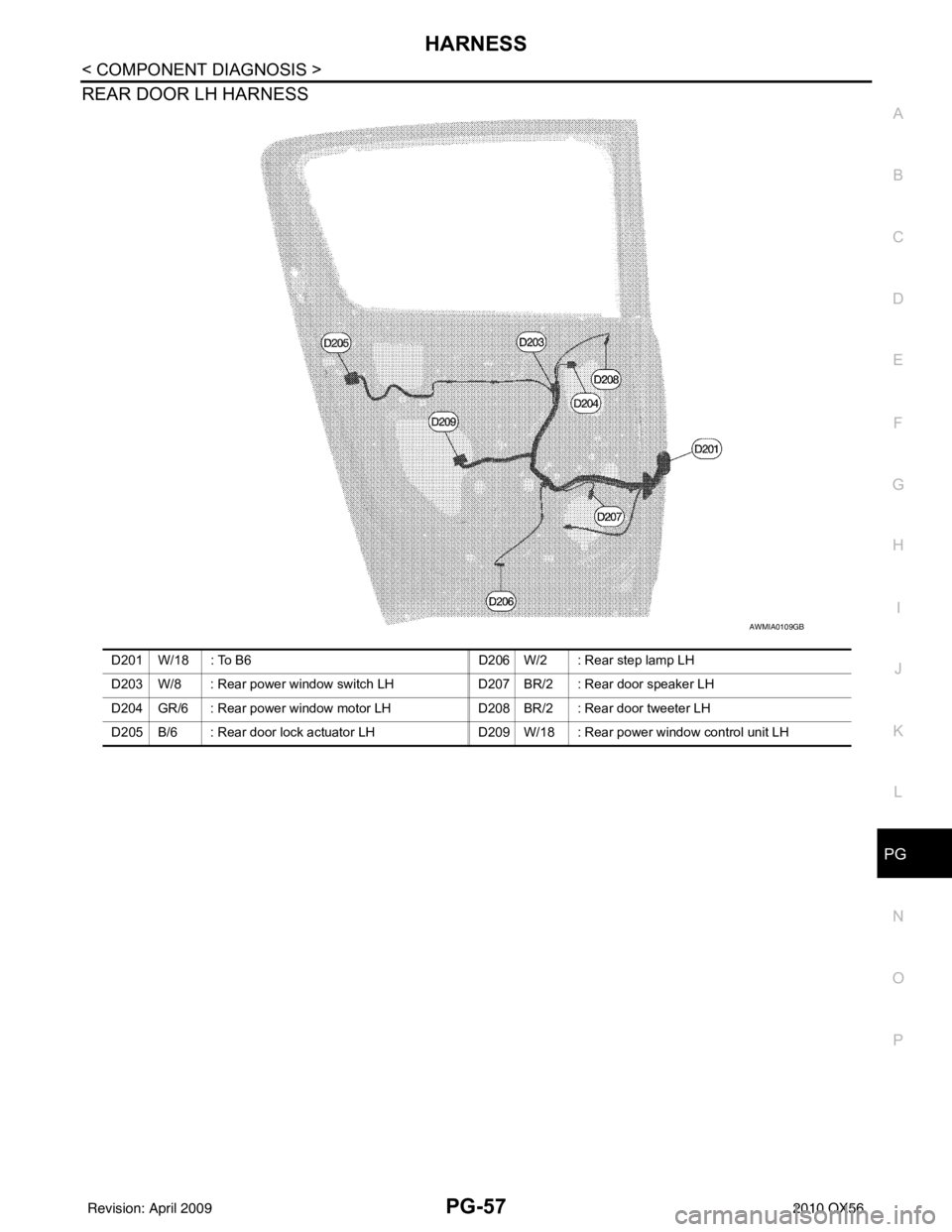

AWMIA0109GB
D201 W/18 : To B6
D206 W/2 : Rear step lamp LH
D203 W/8 : Rear power window switch LHD207 BR/2 : Rear door speaker LH
D204 GR/6 : Rear power window motor LH D208 BR/2 : Rear door tweeter LH
D205 B/6 : Rear door lock actuator LH D209 W/18 : Rear power window control unit LH
Revision: April 20092010 QX56

PG-58
< COMPONENT DIAGNOSIS >
HARNESS
REAR DOOR RH HARNESS

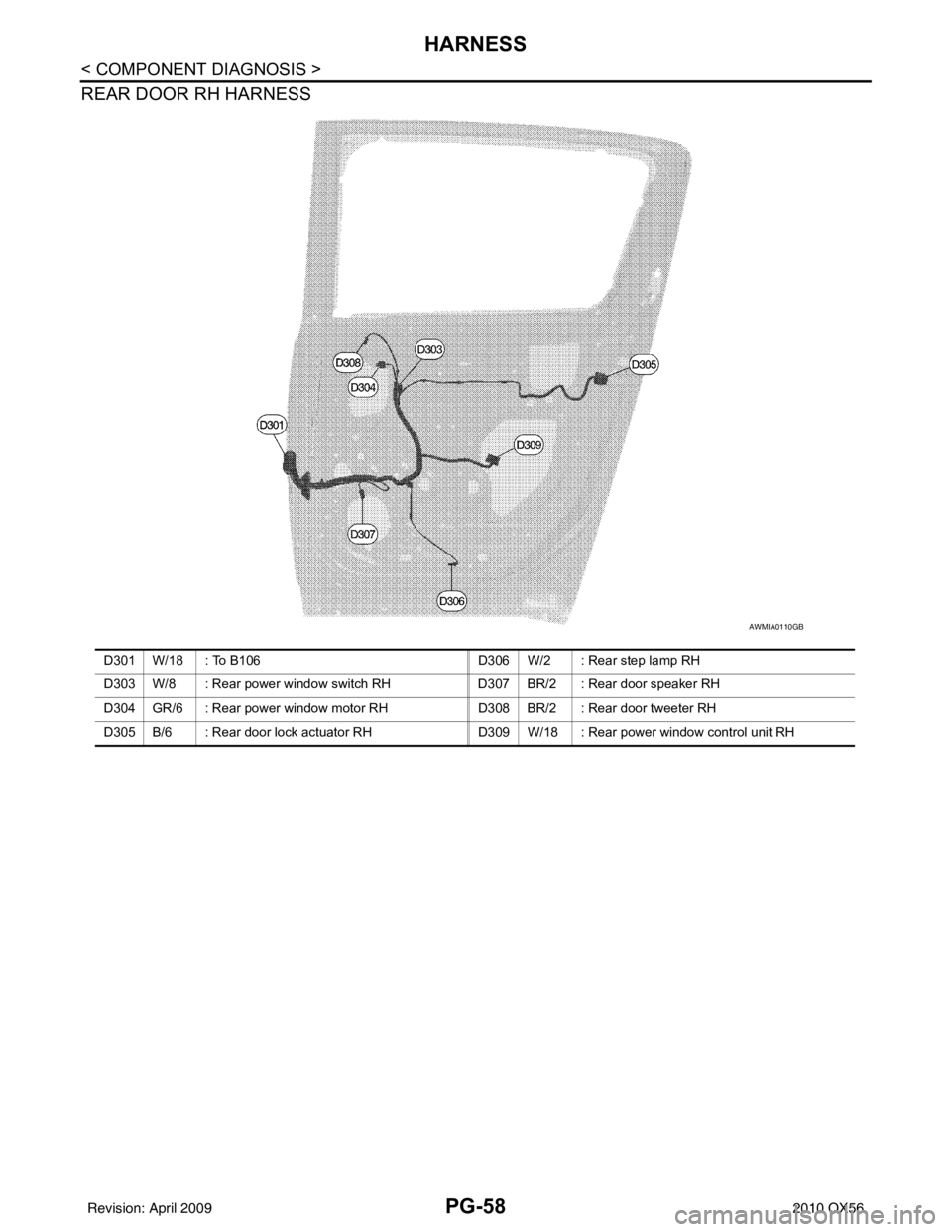

AWMIA0110GB
D301 W/18 : To B106 D306 W/2 : Rear step lamp RH
D303 W/8 : Rear power window switch RHD307 BR/2 : Rear door speaker RH
D304 GR/6 : Rear power window motor RH D308 BR/2 : Rear door tweeter RH
D305 B/6 : Rear door lock actuator RH D309 W/18 : Rear power window control unit RH
Revision: April 20092010 QX56
