2010 HYUNDAI VERACRUZ Owners Manual

Page 25 of 425

HYUNDAI VERACRUZ 2010  Owners Manual 35
Safety features of your vehicle
C010102AUN
Seatback angle
To recline the seatback:
1. Lean forward slightly and lift up on the
seatback recline lever located on the
outside of the seat at the rear.

Page 26 of 425

HYUNDAI VERACRUZ 2010  Owners Manual Safety features of your vehicle
6 3
Forward and backward adjustment
The headrest may be adjusted forward to
3 different positions by pulling the head-
rest forward to the desired detent. To
adjust th

Page 27 of 425

HYUNDAI VERACRUZ 2010  Owners Manual 37
Safety features of your vehicle
Removal
To remove the headrest, raise it as far as
it can go then press the release button (1)
while pulling upward (2).
To reinstall the headrest, put the head-
res

Page 28 of 425

HYUNDAI VERACRUZ 2010  Owners Manual Safety features of your vehicle
8 3
C010107AEN
Seat warmer (if equipped)
The seat warmer is provided to warm the
front seats during cold weather. With the
ignition switch in the ON position, push
eith

Page 29 of 425

HYUNDAI VERACRUZ 2010  Owners Manual 39
Safety features of your vehicle
C010108AUN-EU
Seatback pocket
The seatback pocket is provided on the
back of the front passenger’s and driver’s
seatbacks.
C010200AEN
Front seat adjustment - pow

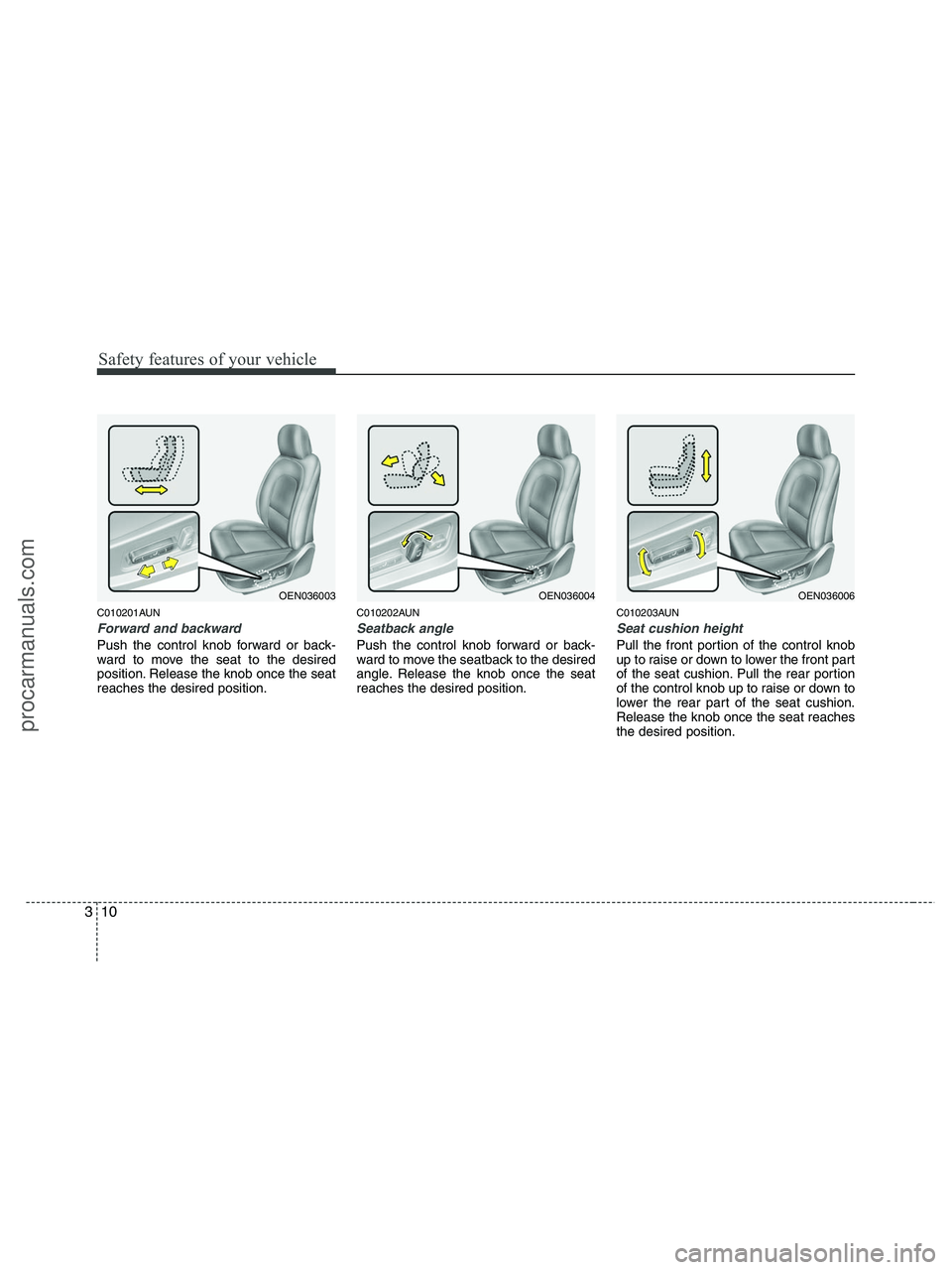

Page 30 of 425

HYUNDAI VERACRUZ 2010  Owners Manual Safety features of your vehicle
10 3
C010201AUN
Forward and backward
Push the control knob forward or back-
ward to move the seat to the desired
position. Release the knob once the seat
reaches the de

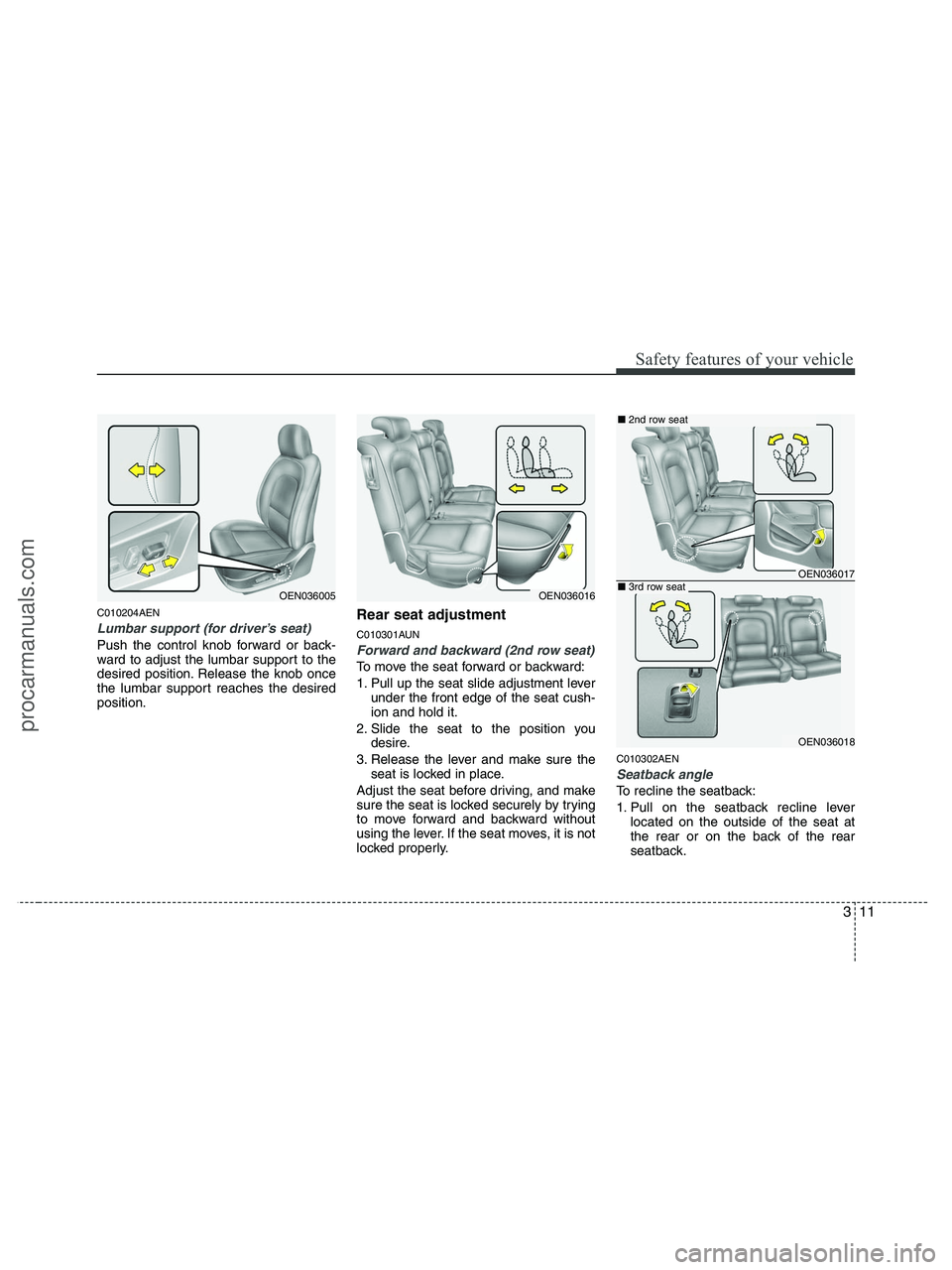

Page 31 of 425

HYUNDAI VERACRUZ 2010  Owners Manual 311
Safety features of your vehicle
C010204AEN
Lumbar support (for driver’s seat)
Push the control knob forward or back-
ward to adjust the lumbar support to the
desired position. Release the knob o

Page 32 of 425

HYUNDAI VERACRUZ 2010  Owners Manual Safety features of your vehicle
12 3
2.2nd row seat
Carefully lean back on the seat and
adjust the seatback of the seat to the
position you desire.
3rd row seat
Hold and adjust the seatback of the
sea
