2010 HUMMER H3 Owners Manual

Seats and Restraints 3-5
The seats have manual reclining
seatbacks. The lever used to
operate them is located on the
outboard side of the seats.
To recline the seatback:
1. Lift the recline lever and movethe seatback to the desired
position, then release the lever
to lock the seatback in place.
2. Push and pull on the seatback to make sure it is locked. To return the seatback to an upright
position:
1. Lift the lever fully without
applying pressure to the
seatback.
2. Push and pull on the seatback to make sure it is locked.
Do not have a seatback reclined
when the vehicle is moving.
{WARNING
Sitting in a reclined position when
the vehicle is in motion can be
dangerous. Even when buckled
up, the safety belts cannot do
their job when reclined like this.
The shoulder belt cannot do its
job because it will not be against
your body. Instead, it will be in
front of you. In a crash, you could
go into it, receiving neck or other
injuries.
The lap belt cannot do its job
either. In a crash, the belt could
go up over your abdomen. The
belt forces would be there, not at
your pelvic bones. This could
cause serious internal injuries.
For proper protection when the
vehicle is in motion, have the
seatback upright. Then sit well
back in the seat and wear the
safety belt properly.

3-6 Seats and Restraints
Heated Front Seats
{WARNING
If you cannot feel temperature
change or pain to the skin, the
seat heater may cause burns
even at low temperatures.
To reduce the risk of burns,
people with such a condition
should use care when using
the seat heater, especially for
long periods of time. Do not
place anything on the seat that
insulates against heat, such as
a blanket, cushion, cover or
similar item. This may cause
the seat heater to overheat.
An overheated seat heater may
cause a burn or may damage
the seat.This feature heats the cushion and
seatbacks.
On vehicles with this feature the
controls are located on the outboard
sides of the front seats.
Press the top of the switch to
turn the heat to the high setting.
Press the bottom of the switch to
turn the heat to the low setting.
Put the switch in the center position
to turn the heat off.
The ignition must be on for the
heated seat feature to work. The
seat will heat to the last setting if the
ignition has been turned off and
then turned back on.
For the heated seat feature to work
on the passenger seat the safety
belt must be fastened.

Seats and Restraints 3-7
Rear Seats
Rear Seats (H3)
The 60/40 split bench seats can be
folded for more cargo space.
Folding the Seatbacks
There should be nothing on, under,
or in front of the seat, and the front
seats should be moved forward.
To fold the rear seatback(s):
1. Reach under the front of theseat and lift the cushion up while
moving it forward.
2. Pull the seat cushion forward
until it rests in the footwell.
Notice: Folding a rear seat with
the safety belts still fastened may
cause damage to the seat or the
safety belts. Always unbuckle the
safety belts and return them to
their normal stowed position
before folding a rear seat.3. Lift the latch on top of the seatback and pull the seatback
forward. Fold the seatback down
until it is nearly flat.
4. If the seatback will not fold nearly flat, try moving the front
seat forward and/or moving the
front seatback more upright.
5. Repeat the steps for the other half of the 60/40 split
bench seat.

3-8 Seats and Restraints
Returning the Seatbacks to an
Upright Position
{WARNING
If either seatback is not locked, it
could move forward in a sudden
stop or crash. That could cause
injury to the person sitting there.
Always push and pull on the
seatbacks to be sure they are
locked.
{WARNING
A safety belt that is improperly
routed, not properly attached,
or twisted will not provide the
protection needed in a crash.
The person wearing the belt could
be seriously injured. After raising
the rear seatback, always check
to be sure that the safety belts
are properly routed and attached,
and are not twisted.To return the seatback(s) to the
upright position:
1. Lift the seatback up and push it
all the way rearward.
2. Reach under the front seat and lift the cushion while moving it
rearward until it latches.
3. Pull forward on the seatback and push down on the seat
cushion to make sure the seat
is securely in place.

Seats and Restraints 3-9
Rear Seats (H3T)
Notice:Folding a rear seat with
the safety belts still fastened may
cause damage to the seat or the
safety belts. Always unbuckle the
safety belts and return them to
their normal stowed position
before folding a rear seat.
To fold the rear seatback(s) forward:
1. Disconnect the rear center safety belt latch from the mini
buckle by inserting the tip of the
safety belt into the slot on the
buckle. Let the belt retract.
2. Pull the loop, located on theoutboard side of the seatback,
forward until you hear a click.
3. Fold the seatback forward slightly so that the headrest can
be removed.4. Remove the headrest bypressing the button on the
headrest post, at the top of the
seatback.
5. Lift the headrest off the seatback and store on the back panel.

3-10 Seats and Restraints
To return the seatback(s) to the
upright position:
1. Lift the seatback partially andreinsert the headrest.
2. Lift the seatback completely and push it into place.
{WARNING
If either seatback is not locked, it
could move forward in a sudden
stop or crash. That could cause
injury to the person sitting there.
Always push and pull on the
seatbacks to be sure they are
locked.
3. Make sure the seatback is locked by pushing and pulling
on it.
{WARNING
A safety belt that is improperly
routed, not properly attached,
or twisted will not provide the
protection needed in a crash.
The person wearing the belt could
be seriously injured. After raising
the rear seatback, always check
to be sure that the safety belts
are properly routed and attached,
and are not twisted.
4. Reconnect the center safety belt latch plate to the mini buckle.
Make sure the safety belt is not
twisted.
5. Push and pull on the latch plate to be sure it is secure.
When the seatback is not in use, it
should be kept in the upright, locked
position.
Safety Belts
This section of the manual
describes how to use safety belts
properly. It also describes some
things not to do with safety belts.
{WARNING
Do not let anyone ride where
a safety belt cannot be worn
properly. In a crash, if you or your
passenger(s) are not wearing
safety belts, the injuries can be
much worse. You can hit things
inside the vehicle harder or
be ejected from the vehicle.
You and your passenger(s) can
be seriously injured or killed.
In the same crash, you might
not be, if you are buckled up.
Always fasten your safety belt,
and check that your passenger(s)
are restrained properly too.

Seats and Restraints 3-11
{WARNING
It is extremely dangerous to ride
in a cargo area, inside or outside
of a vehicle. In a collision, people
riding in these areas are more
likely to be seriously injured or
killed. Do not allow people to ride
in any area of your vehicle that is
not equipped with seats and
safety belts. Be sure everyone in
your vehicle is in a seat and using
a safety belt properly.
{WARNING
People riding on the tailgate
(if equipped) can easily lose their
balance and fall even when the
vehicle is operated at low speeds.
Falling from a moving vehicle may
result in serious injuries or death.
This vehicle has indicators as a
reminder to buckle the safety belts.
See Safety Belt Reminders
on
page 5‑9for additional information. In most states and in all Canadian
provinces, the law requires wearing
safety belts. Here is why:
You never know if you will be in a
crash. If you do have a crash,
you do not know if it will be a
serious one.
A few crashes are mild, and some
crashes can be so serious that even
buckled up, a person would not
survive. But most crashes are in
between. In many of them, people
who buckle up can survive and
sometimes walk away. Without
safety belts they could have been
badly hurt or killed.
After more than 40 years of safety
belts in vehicles, the facts are clear.
In most crashes buckling up does
matter ... a lot!

3-12 Seats and Restraints

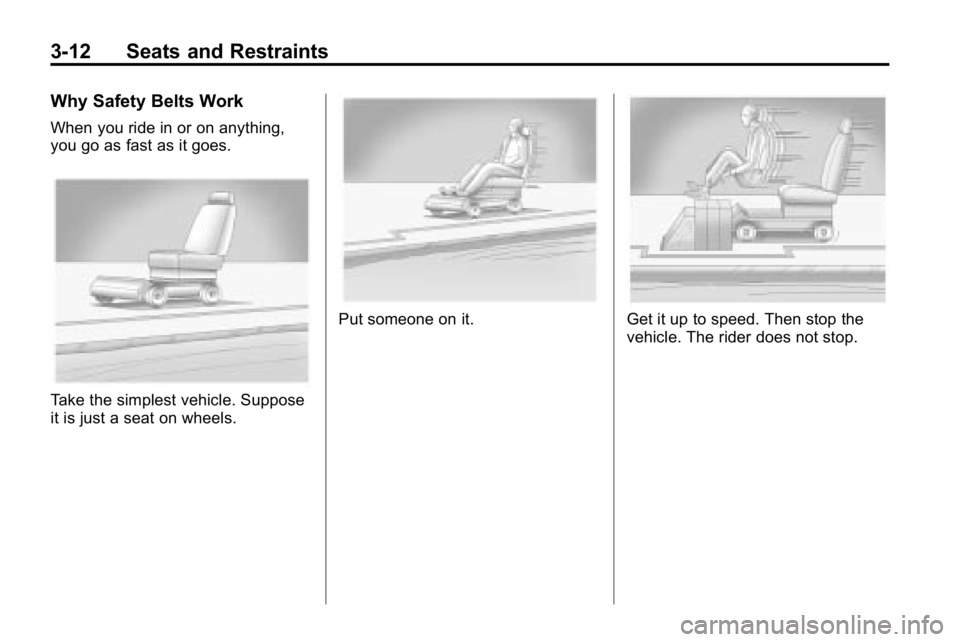

Why Safety Belts Work
When you ride in or on anything,
you go as fast as it goes.
Take the simplest vehicle. Suppose
it is just a seat on wheels.
Put someone on it.Get it up to speed. Then stop the
vehicle. The rider does not stop.
