2010 HONDA ODYSSEY reset

µµ
Fill the f uel tank until the nozzle automatically clicks of f .
Reset trip counter to zero.
Record the total gallons (liters) needed to ref ill.

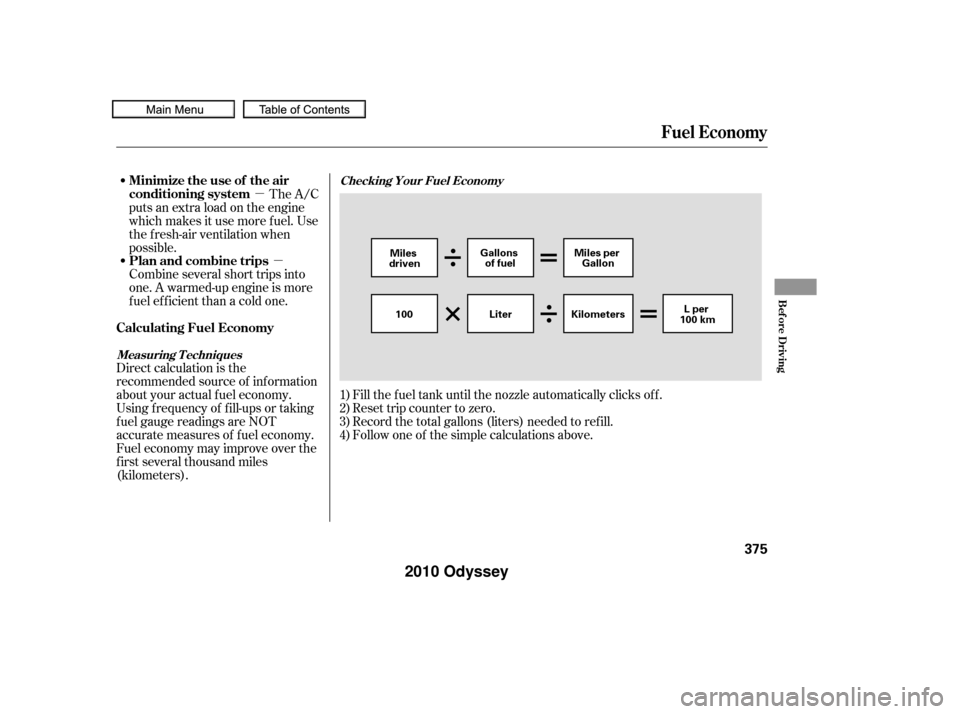

Follow one of the simple calculations above.
Direct calculation is the
recommended source of inf ormation
about your actual f uel economy.
Using f requency of f ill-ups or taking
f uel gauge readings are NOT
accurate measures of f uel economy.
Fuel economy may improve over the
f irst several thousand miles
(kilometers). The A/C
puts an extra load on the engine
which makes it use more f uel. Use
the f resh-air ventilation when
possible.
Combine several short trips into
one. A warmed-up engine is more
f uel ef f icient than a cold one.
1)
2)
3)
4)
Checking Your Fuel Economy
Measuring T echniques
Calculating Fuel Economy Minimize the use of the air
conditioning system
Plan and combine trips
Fuel Economy
Bef ore Driving
375
Miles
driven Gallons
of fuel Miles per
Gallon
100 KilometersLper
100 km
Liter
——
y
y
(yy
2010 Odyssey

When VSA activates, you will see the
VSA activation indicator blink (see
page ).
The vehicle stability assist (VSA)
system helps to stabilize the vehicle
during cornering if the vehicle turns
more or less than desired. It also
assists you in maintaining traction
while accelerating on loose or
slippery road surf aces. It does this
by regulating the engine’s output and
by selectively applying the brakes.
When VSA activates, you may notice
that the engine does not respond to
the accelerator in the same way it
does at other times. There may also
be some noise f rom the VSA
hydraulic system. You will also see
the VSA activation indicator blink.
The VSA system cannot enhance the
vehicle’s driving stability in all
situations and does not control your
vehicle’s entire braking system. It is
still your responsibility to drive and
corner at reasonable speeds and to
leave a sufficient margin of safety.
If the low tire pressure indicator or
TPMS indicator comes on, see
page .
The VSA system automatically turns
on every time you start the engine,
even if you turned it of f the last time
you drove the vehicle. Without VSA, your vehicle still has
normal braking and cornering ability,
but it does not have VSA traction and
stability enhancement. You will also see a ‘‘CHECK VSA
SYSTEM’’ message on the multi-
inf ormation display if there is a
problem with the VSA system. If the indicator does not come on
when the ignition switch is turned to
the ON (II) position, there may be a
problem with the VSA system. Have
your dealer inspect your vehicle as
soon as possible.
If the VSA system indicator comes
on while driving, pull to the side of
theroadwhenitissafe,andturnoff
the engine. Reset the system by
restarting the engine. If the VSA
system indicator stays on or comes
back on while driving, have the VSA
system inspected by your dealer. The main f unction of the
VSA system is generally known as
Electronic Stability Control (ESC).
The system also includes a traction
control f unction. 70
396
Except Touring models
On Touring models
VSA A ctivation Indicator
VSA System Indicator
Vehicle Stability A ssist (VSA), aka Electronic Stability Control (ESC), System
394
NOTE:
——
y
y
(yy
2010 Odyssey

µ
When any of the tires have low
pressure, the low tire pressure/
TPMS indicator on the instrument
panel comes on, and the multi-
inf ormation display also interrupts
the current display and shows a
‘‘CHECK TIRE PRESSURE’’
message. You can see one or more of
the low pressure tire positions
highlighted in the display along with
this message.
To display the tire pressure monitor,
press the INFO button until it
appears on the multi-inf ormation
display.
When all tire pressures are normal,
the tire pressure monitor will show a
‘‘TIRE PRESS. OK SYSTEM FUNC
NORMAL’’ message.
When the TPMS is functioning
normally, you can see the tire
pressure readings of each tire in psi
(U.S. models) or kPa (Canadian
models) by pressing the SEL/
RESET button while the multi-
inf ormation display shows the tire
pressure monitor.
CONT INUED
On Touring models
Tire Pressure Monitor
Tire Pressure Monitoring System (TPMS) Touring models
Driving
401
——
y
y
(yy
2010 Odyssey

CONT INUED
If the oil lif e is 15 percent or less,
you will see the oil lif e indicator
everytimeyouturntheignition
switch to the ON (II) position. This
indicator stays on until you cancel it
by pressing the select/reset knob.
The maintenance minder indicator
will also come on, and the
maintenance item code(s) for other
scheduled maintenance items
needing service will be displayed
next to the engine oil lif e indicator.
To see the current engine oil lif e,
turn the ignition switch to the ON
(II) position, and push and release
the select/reset knob on the
instrument panel repeatedly, until
the engine oil lif e is displayed.
Your vehicle displays engine oil lif e
and maintenance service items on
the information display (LX, EX,
EX-L and Canadian DX models), or
on the multi-information display
(Touring models), to show you when
you should have your dealer perf orm
engine oil replacement and indicated
maintenance service.
Based on the engine operating
conditions and accumulated engine
revolutions, the onboard computer in
your vehicle calculates the remaining
engine oil lif e and displays it as a
percentage.
On LX, EX, EX-L and Canadian DX
models
Maintenance Minder
Engine Oil L if e Indicator
Maint enance
415
MAINTENANCE ITEM CODE ENGINE OIL LIFE
INDICATOR
MAINTENANCE MINDER
INDICATOR
——
y
y
(yy
2010 Odyssey

You can change the display to the
odometer, the trip meter, or the
outside temperature by pushing the
select/reset knob on the instrument
panel.
When the remaining engine oil lif e is
less than 5 percent, you will see a
‘‘CHANGE OIL’’ message on the
inf ormation display, along with the
same maintenance item code(s),
everytimeyouturntheignition
switch to the ON (II) position. When the remaining engine oil lif e is
0 percent, you will see the above
display. In this display, the remaining
oil lif e indicator will be blinking. This
display comes on and stays on every
time you turn the ignition switch to
the ON (II) position. When you see
this message, have the indicated
maintenance perf ormed by your
dealer as soon as possible.
Maintenance Minder
416
——
y
y
(y
y
2010 Odyssey

µ
CONT INUED
If you still do not perf orm the
indicated maintenance, you will see a
negative mileage, f or example
‘‘ 543,’’ blinking in the display. This
negative mileage means that you
should have perf ormed the indicated
maintenance 543 miles ago.
Immediately have the indicated
maintenancedonebyyourdealer.When the remaining engine oil lif e is
15 percent or less, the display shows
a ‘‘SERVICE DUE SOON’’ message
along with the maintenance item
code(s) f or other scheduled
maintenance items needing service.
To see the current engine oil lif e,
turn the ignition switch to the ON
(II) position, then push and release
the SEL/RESET button on the
steering wheel repeatedly, until the
engine oil lif e is displayed.
When you turn the ignition switch to
the ON (II) position, the system
message indicator will also come on.
On Touring models
Maintenance Minder
Maint enance
417
SYSTEM MESSAGE INDICATOR
——
y
y
(yy
2010 Odyssey

These messages will come on every
time you turn the ignition switch to
the ON (II) position.
Immediately have the service
perf ormed, and make sure to reset
the display as described on page .
You can change the display to the
odometer, the trip meter, or the
outside temperature by pushing the
SEL/RESET button on the steering
wheel.
When the remaining engine oil lif e is
less than 5 percent, you will see the
above display. The display then
changes to ‘‘SERVICE DUE NOW.’’
Have the indicated maintenance
done as soon as possible. When the remaining engine oil lif e is
less than 0 percent and you have not
done the required maintenance, you
will see the above display for several
seconds. In this display, ‘‘0’’ will be
blinking.
The display then changes to
‘‘SERVICE PAST DUE.’’ 421
Maintenance Minder
418
——
y
y
(yy
2010 Odyssey

Press the select/reset knob f or
about 10 seconds. The engine oil
lif e indicator and the maintenance
item code(s) will blink.Press the select/reset knob f or
more than 5 seconds. The
maintenance items code(s) will
disappear, and the engine oil lif e
indicator will reset to ‘‘100.’’
Press the select/reset knob until
the engine oil lif e indicator is
displayed. Turn the ignition switch to the ON
(II) position.
If maintenance service is done by
someone other than your dealer,
reset the maintenance minder as
f ollows: Your dealer will reset the display
af ter completing the required
maintenance service. You will see
‘‘OIL LIFE 100%’’ on the inf ormation
display the next time you turn the
ignition switch to the ON (II)
position.
3.4.
1.
2.
On LX, EX, EX-L and Canadian DX models
Maintenance Minder
Resetting the Engine Oil Lif e
Indicator
420
——
y
y
(yy
2010 Odyssey
