2010 FORD MONDEO Owners Manual

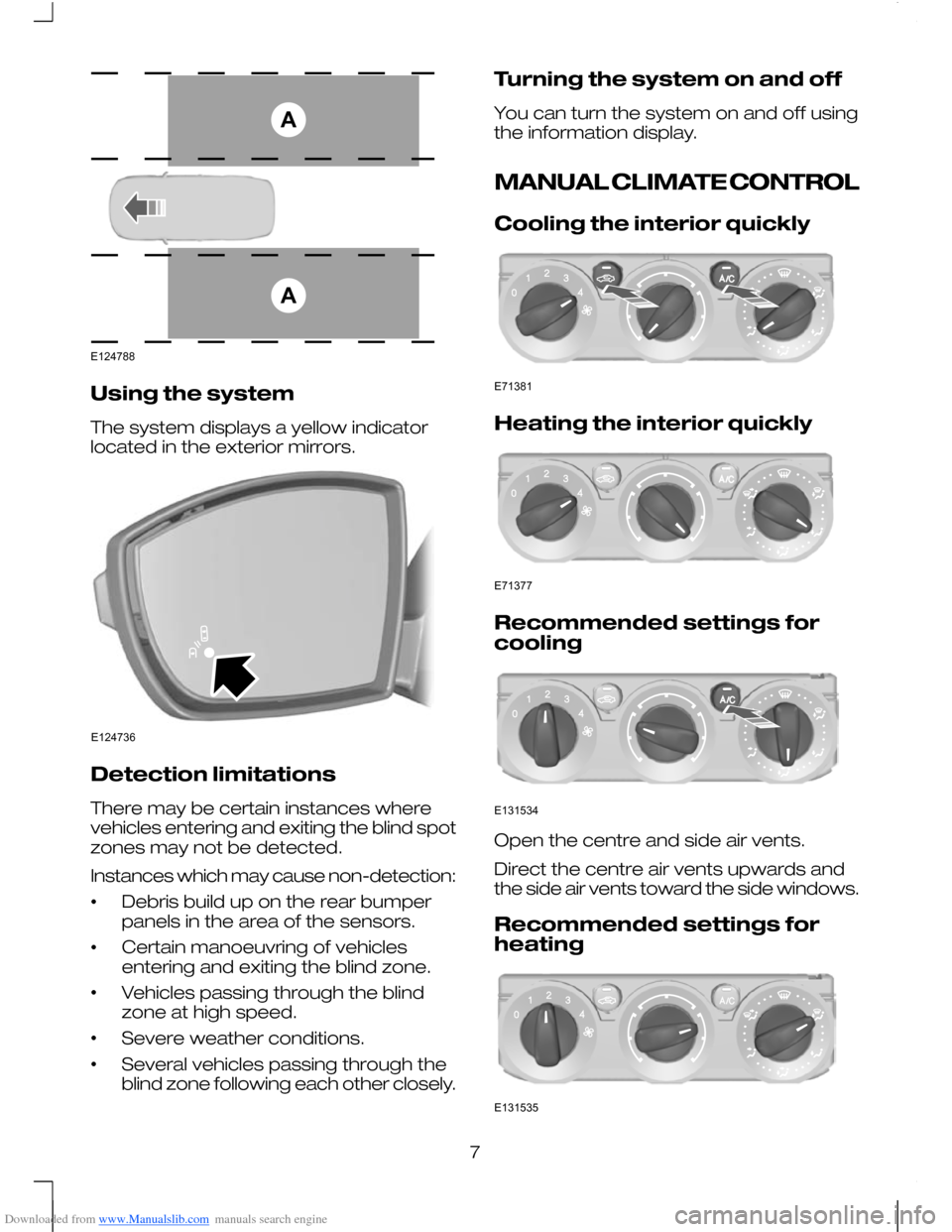

Downloaded from www.Manualslib.com manuals search engine Using the system
The system displays a yellow indicator
located in the exterior mirrors.
Detection limitations
There may be certain instances where
vehicles entering and exiting the blind spot
zones may not be detected.
Instances which may cause non-detection:
•
Debris build up on the rear bumper
panels in the area of the sensors.
• Certain manoeuvring of vehicles
entering and exiting the blind zone.
• Vehicles passing through the blind
zone at high speed.
• Severe weather conditions.
• Several vehicles passing through the
blind zone following each other closely. Turning the system on and off
You can turn the system on and off using
the information display.
MANUAL CLIMATE CONTROL
Cooling the interior quickly
Heating the interior quickly
Recommended settings for
cooling
Open the centre and side air vents.
Direct the centre air vents upwards and
the side air vents toward the side windows.
Recommended settings for
heating
7AAE124788 E124736 E71381 E71377 E131534 E131535

Downloaded from www.Manualslib.com manuals search engine Close the centre air vents and open the
side air vents.
Direct the side air vents toward the side
windows.
Defrosting and demisting the
windscreen
When the temperature is above 4°C
(39°F), the air conditioning will switch on
automatically. Make sure that the blower
is on. The indicator in the switch will
illuminate during defrosting and demisting.
If you move the air distribution control to a
position other than windscreen, the
A/C
will remain on.
You can switch the air conditioning and
recirculated air on and off while the air
distribution control is set to windscreen.
AUTOMATIC CLIMATE
CONTROL Windscreen defrosting and
demisting
A
Toggle mono mode on and off
B
Air conditioning ON and OFF
C
Recirculated air
D Recommended settings: AUTO, 22ºC
Mono mode
In mono mode, the temperature settings
for both the driver’s and passenger’s side
are linked. If you adjust the temperature
using the rotary control on the driver’s side,
the settings will be adjusted to the same
setting on the passenger’s side.
AUXILIARY HEATER
WARNING
For all warnings and cautions, refer
to your Owner's handbook.
Parking heater
Note:The parking heater will only operate
if there is at least 7.5 litres (1.6 gallons) of fuel in the fuel tank and the ambienttemperature is below 15°C (59°F). Theheater will not operate if the battery is low.
Remote starting Starting
Hold the transmitter with the antenna
upwards and press the ON button for at
least two seconds.
8E71382 E131606DACB E114360

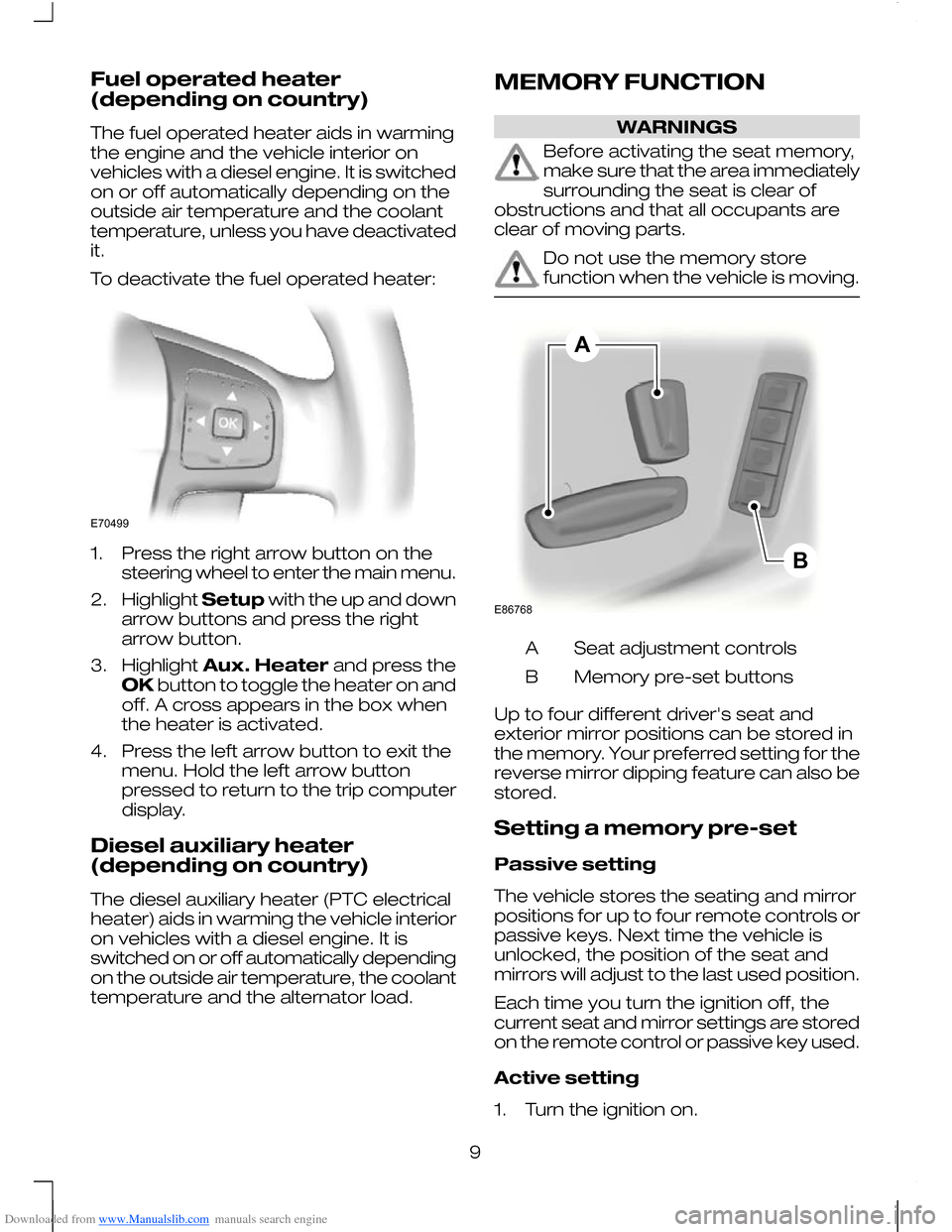

Downloaded from www.Manualslib.com manuals search engine Fuel operated heater
(depending on country)
The fuel operated heater aids in warming
the engine and the vehicle interior on
vehicles with a diesel engine. It is switched
on or off automatically depending on the
outside air temperature and the coolant
temperature, unless you have deactivated
it.
To deactivate the fuel operated heater:
1. Press the right arrow button on the
steering wheel to enter the main menu.
2. Highlight Setupwith the up and down
arrow buttons and press the right
arrow button.
3. Highlight Aux. Heater and press the
OK button to toggle the heater on and
off. A cross appears in the box when
the heater is activated.
4. Press the left arrow button to exit the menu. Hold the left arrow button
pressed to return to the trip computer
display.
Diesel auxiliary heater
(depending on country)
The diesel auxiliary heater (PTC electrical
heater) aids in warming the vehicle interior
on vehicles with a diesel engine. It is
switched on or off automatically depending
on the outside air temperature, the coolant
temperature and the alternator load. MEMORY FUNCTION WARNINGS
Before activating the seat memory,
make sure that the area immediately
surrounding the seat is clear of
obstructions and that all occupants are
clear of moving parts. Do not use the memory store
function when the vehicle is moving.
Seat adjustment controls
A
Memory pre-set buttons
B
Up to four different driver's seat and
exterior mirror positions can be stored in
the memory. Your preferred setting for the
reverse mirror dipping feature can also be
stored.
Setting a memory pre-set
Passive setting
The vehicle stores the seating and mirror
positions for up to four remote controls or
passive keys. Next time the vehicle is
unlocked, the position of the seat and
mirrors will adjust to the last used position.
Each time you turn the ignition off, the
current seat and mirror settings are stored
on the remote control or passive key used.
Active setting
1. Turn the ignition on.
9E70499 ABE86768

Downloaded from www.Manualslib.com manuals search engine 2. Adjust the seat and exterior mirrors to
the desired position.
3. Press and hold the desired pre-set button Buntil a single chime sounds
to confirm.
Recalling a stored seat position
Note:To stop seat movement during a
recall, press any driver seat adjustment control, any of the memory buttons or anymirror control switch. Seat movement willalso stop if you move the vehicle.
Passive recall
Note:
If more than one passive key is in
range, the memory function will move to the settings of the first key stored.
When you unlock the vehicle with the
remote control or pull the driver door
handle with a passive key in range, the
seat and mirrors will move to the position
stored on that remote control or passive
key.
Active recall
Press the pre-set button associated with
the desired driving position. The seat and
mirrors will move to the position stored on
that pre-set.
Resetting the memory
If any seat position travel is interrupted (e.g.
an obstacle in the way or loss of power
supply), you will need to reset the memory.
Note:
Make sure all electrical accessories
are switched off.
1. Turn the ignition to position II.
2. Operate the seat adjustment control to move the seat in the required
direction until it stops. A click will be
heard.
3. Release the seat adjustment control and immediately press and hold the
switch in the same direction for at least
3 seconds. Keep it held until the seat
stops at the mechanical end of its
travel and a click is heard.
4. Release the seat adjustment control. 5. Operate the same seat adjustment
control in the opposite direction for at
least 3 seconds. Keep it held until the
seat stops at the mechanical end of its
travel and a click is heard.
KEYLESS STARTING WARNINGS
For all warnings and cautions, refer
to your Owner's handbook.
The keyless starting system may not
function if the key is close to metal
objects or electronic devices such
as mobile phones. Press the start button once.
Starting with automatic
transmission
Note:
Releasing the brake pedal during
engine start will stop the engine cranking and return to ignition on.
1. Make sure the transmission is in Por
N.
2. Fully depress the brake pedal.
3. Briefly press the start button.
Starting with manual
transmission
Note:
Releasing the clutch pedal during
engine start will stop the engine cranking and return to ignition on.
1. Fully depress the clutch pedal.
2. Briefly press the start button.
10E85766

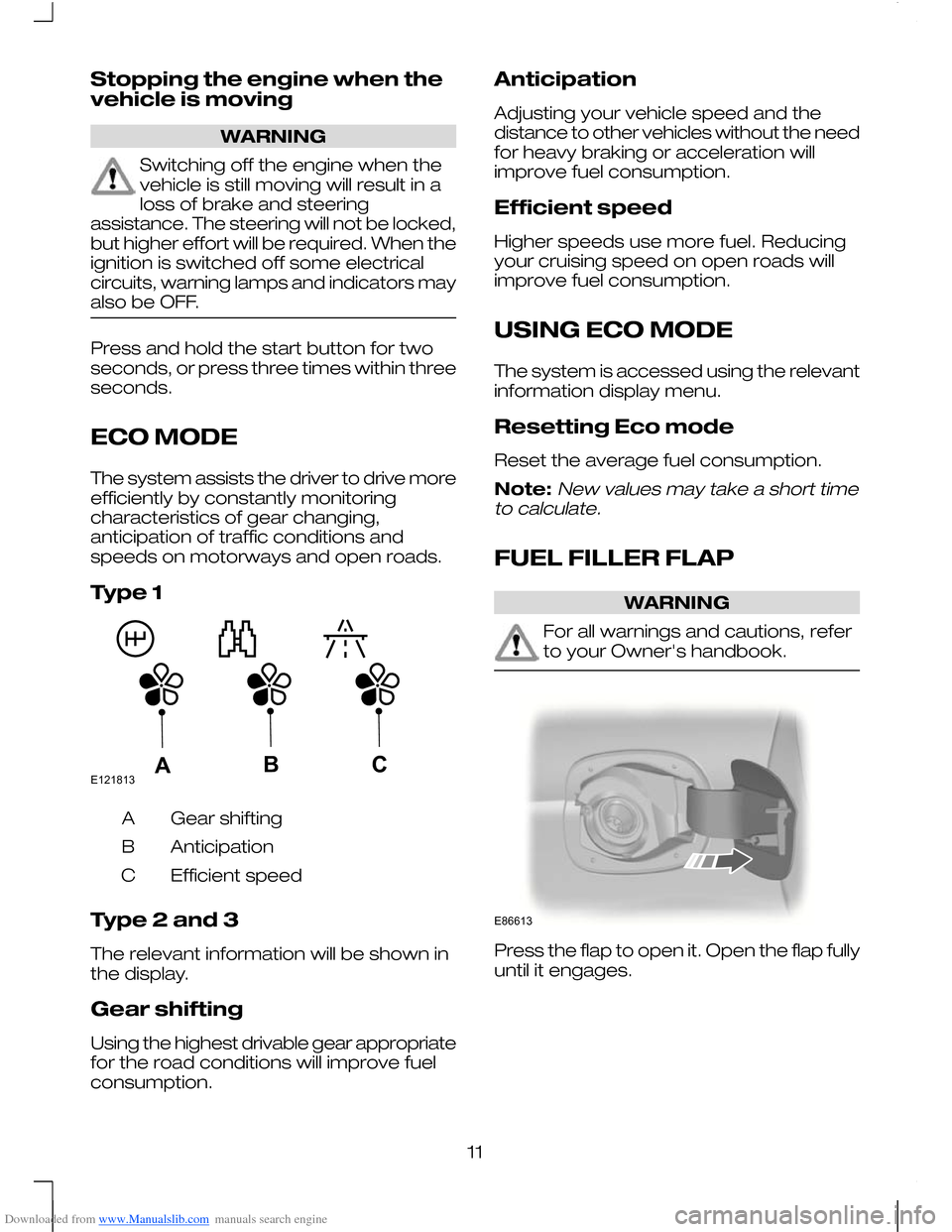

Downloaded from www.Manualslib.com manuals search engine Stopping the engine when the
vehicle is moving
WARNING
Switching off the engine when the
vehicle is still moving will result in a
loss of brake and steering
assistance. The steering will not be locked,
but higher effort will be required. When the
ignition is switched off some electrical
circuits, warning lamps and indicators may
also be OFF. Press and hold the start button for two
seconds, or press three times within three
seconds.
ECO MODE
The system assists the driver to drive more
efficiently by constantly monitoring
characteristics of gear changing,
anticipation of traffic conditions and
speeds on motorways and open roads.
Type 1
Gear shifting
A
Anticipation
B
Efficient speed
C
Type 2 and 3
The relevant information will be shown in
the display.
Gear shifting
Using the highest drivable gear appropriate
for the road conditions will improve fuel
consumption. Anticipation
Adjusting your vehicle speed and the
distance to other vehicles without the need
for heavy braking or acceleration will
improve fuel consumption.
Efficient speed
Higher speeds use more fuel. Reducing
your cruising speed on open roads will
improve fuel consumption.
USING ECO MODE
The system is accessed using the relevant
information display menu.
Resetting Eco mode
Reset the average fuel consumption.
Note:New values may take a short time
to calculate.
FUEL FILLER FLAP WARNING
For all warnings and cautions, refer
to your Owner's handbook.
Press the flap to open it. Open the flap fully
until it engages.
11E121813ABC E86613

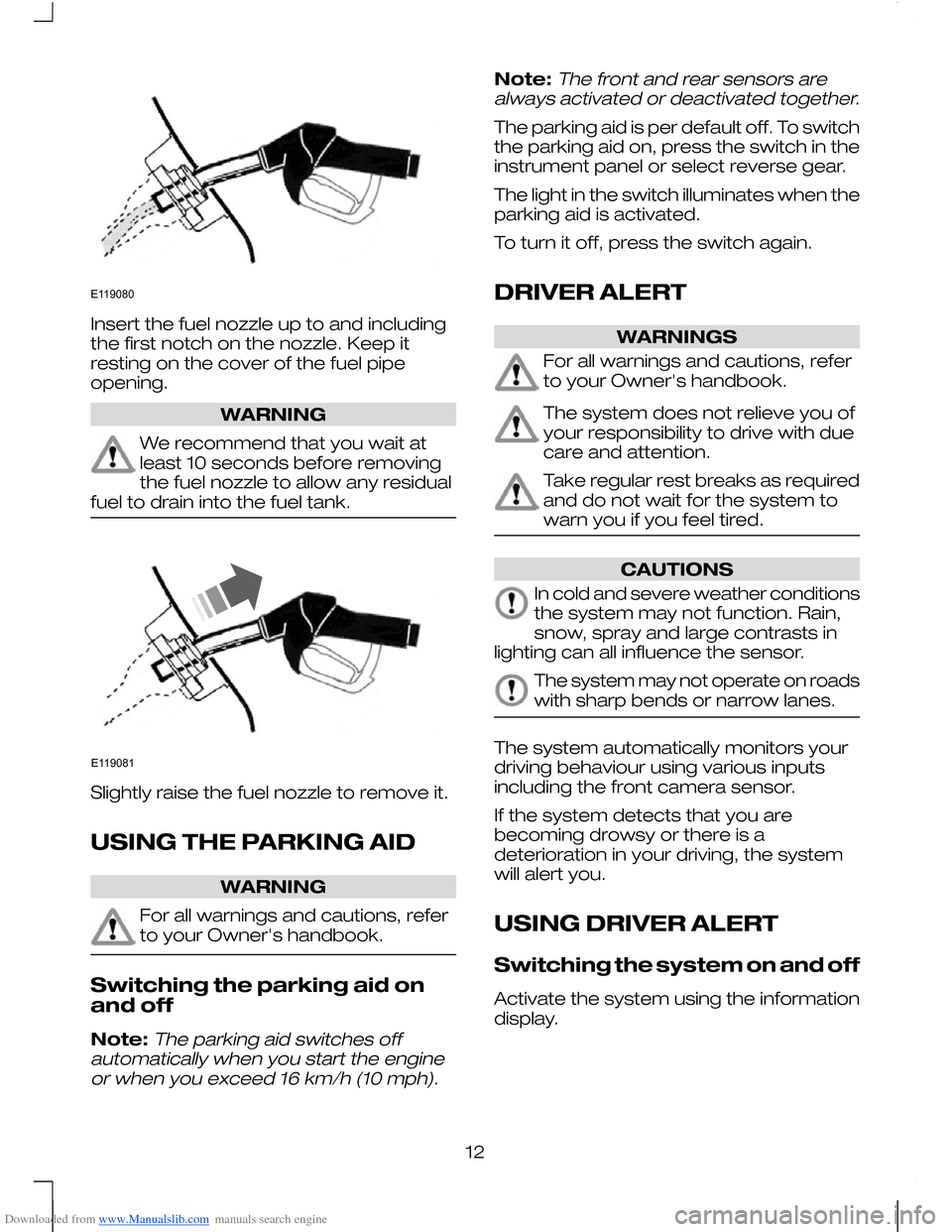

Downloaded from www.Manualslib.com manuals search engine Insert the fuel nozzle up to and including
the first notch on the nozzle. Keep it
resting on the cover of the fuel pipe
opening.
WARNING
We recommend that you wait at
least 10 seconds before removing
the fuel nozzle to allow any residual
fuel to drain into the fuel tank. Slightly raise the fuel nozzle to remove it.
USING THE PARKING AID
WARNING
For all warnings and cautions, refer
to your Owner's handbook.
Switching the parking aid on
and off
Note:The parking aid switches off
automatically when you start the engine or when you exceed 16 km/h (10 mph).
Note:The front and rear sensors are
always activated or deactivated together.
The parking aid is per default off. To switch
the parking aid on, press the switch in the
instrument panel or select reverse gear.
The light in the switch illuminates when the
parking aid is activated.
To turn it off, press the switch again.
DRIVER ALERT WARNINGS
For all warnings and cautions, refer
to your Owner's handbook.
The system does not relieve you of
your responsibility to drive with due
care and attention.
Take regular rest breaks as required
and do not wait for the system to
warn you if you feel tired.
CAUTIONS
In cold and severe weather conditions
the system may not function. Rain,
snow, spray and large contrasts in
lighting can all influence the sensor. The system may not operate on roads
with sharp bends or narrow lanes.
The system automatically monitors your
driving behaviour using various inputs
including the front camera sensor.
If the system detects that you are
becoming drowsy or there is a
deterioration in your driving, the system
will alert you.
USING DRIVER ALERT
Switching the system on and off
Activate the system using the information
display.
12E119080 E119081

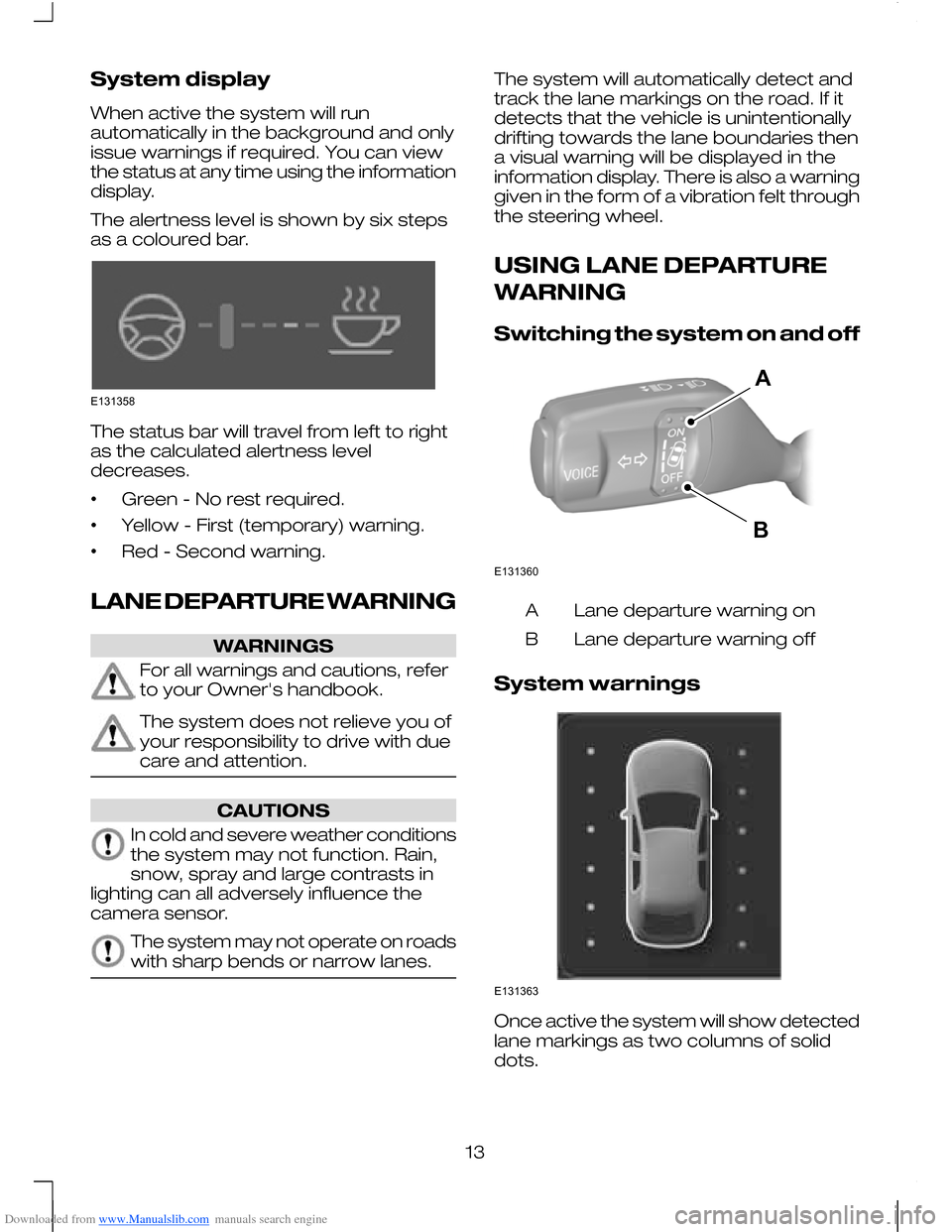

Downloaded from www.Manualslib.com manuals search engine System display
When active the system will run
automatically in the background and only
issue warnings if required. You can view
the status at any time using the information
display.
The alertness level is shown by six steps
as a coloured bar.
The status bar will travel from left to right
as the calculated alertness level
decreases.
•
Green - No rest required.
• Yellow - First (temporary) warning.
• Red - Second warning.
LANE DEPARTURE WARNING WARNINGS
For all warnings and cautions, refer
to your Owner's handbook.
The system does not relieve you of
your responsibility to drive with due
care and attention.
CAUTIONS
In cold and severe weather conditions
the system may not function. Rain,
snow, spray and large contrasts in
lighting can all adversely influence the
camera sensor. The system may not operate on roads
with sharp bends or narrow lanes. The system will automatically detect and
track the lane markings on the road. If it
detects that the vehicle is unintentionally
drifting towards the lane boundaries then
a visual warning will be displayed in the
information display. There is also a warning
given in the form of a vibration felt through
the steering wheel.
USING LANE DEPARTURE
WARNING
Switching the system on and off
Lane departure warning on
A
Lane departure warning off
B
System warnings Once active the system will show detected
lane markings as two columns of solid
dots.
13E131358 E131360AB E131363

Downloaded from www.Manualslib.com manuals search engine •

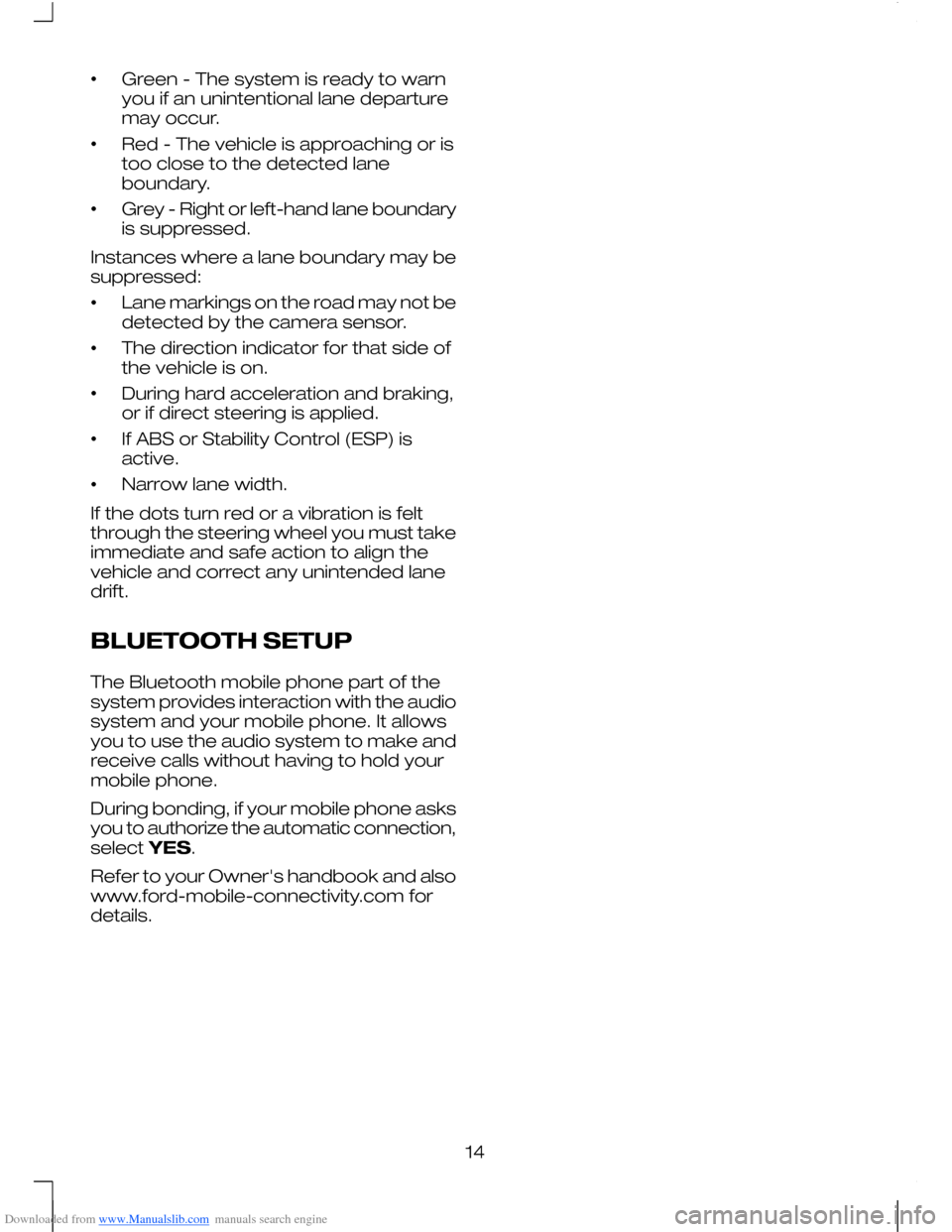

Green - The system is ready to warn
you if an unintentional lane departure
may occur.
• Red - The vehicle is approaching or is
too close to the detected lane
boundary.
• Grey - Right or left-hand lane boundary
is suppressed.
Instances where a lane boundary may be
suppressed:
• Lane markings on the road may not be
detected by the camera sensor.
• The direction indicator for that side of
the vehicle is on.
• During hard acceleration and braking,
or if direct steering is applied.
• If ABS or Stability Control (ESP) is
active.
• Narrow lane width.
If the dots turn red or a vibration is felt
through the steering wheel you must take
immediate and safe action to align the
vehicle and correct any unintended lane
drift.
BLUETOOTH SETUP
The Bluetooth mobile phone part of the
system provides interaction with the audio
system and your mobile phone. It allows
you to use the audio system to make and
receive calls without having to hold your
mobile phone.
During bonding, if your mobile phone asks
you to authorize the automatic connection,
select YES.
Refer to your Owner's handbook and also
www.ford-mobile-connectivity.com for
details.
14
