2010 FORD MONDEO Owners Manual

Downloaded from www.Manualslib.com manuals search engine Feel the difference
FordMondeo
Quick guide

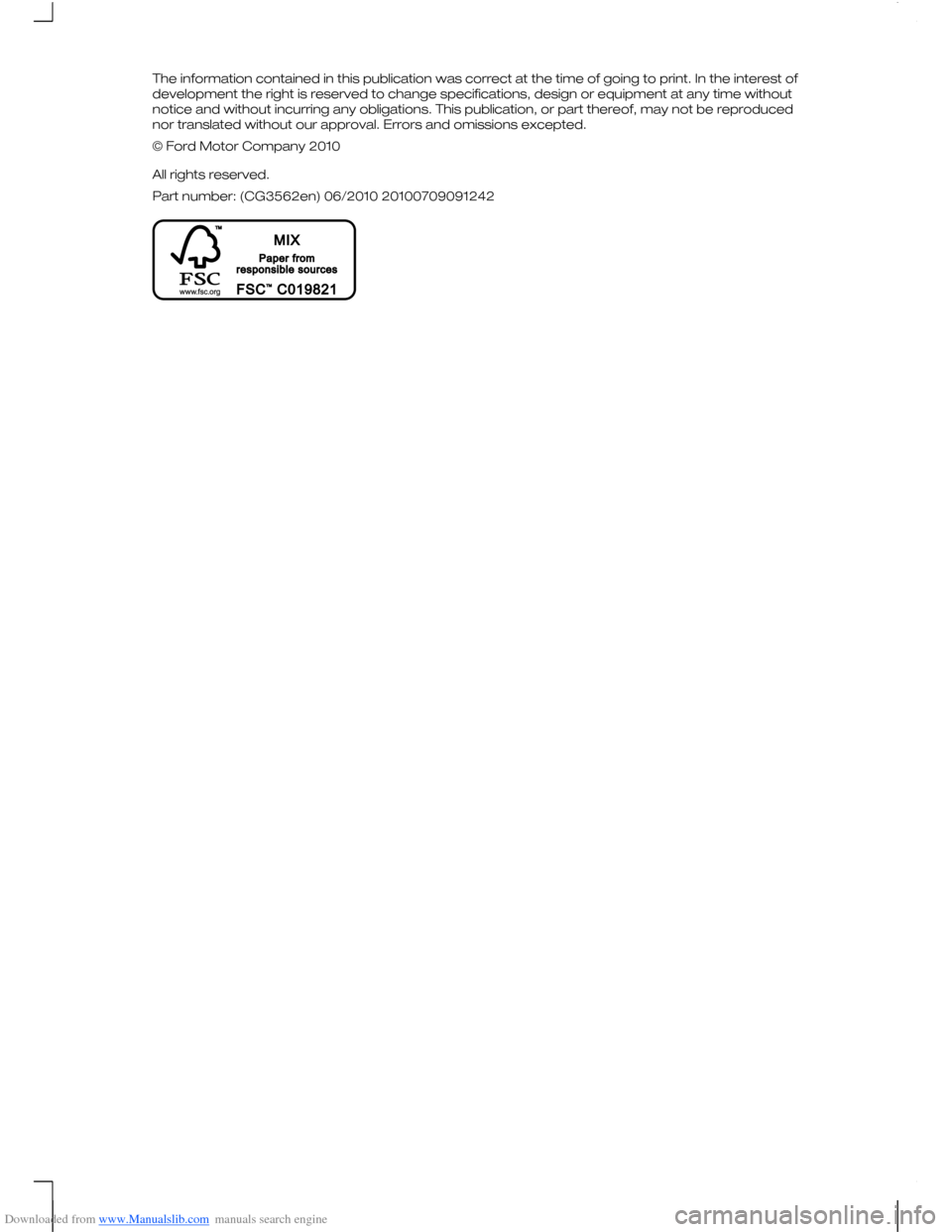

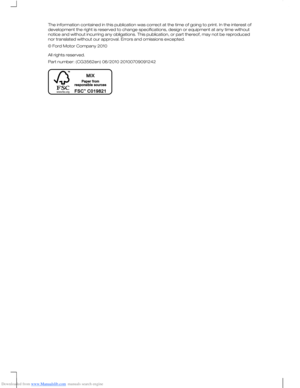

Downloaded from www.Manualslib.com manuals search engine The information contained in this publication was correct at the time of going to print. In the interest of
development the right is reserved to change specifications, design or equipment at any time without
notice and without incurring any obligations. This publication, or part thereof, may not be reproduced
nor translated without our approval. Errors and omissions excepted.
© Ford Motor Company 2010
All rights reserved.
Part number: (CG3562en) 06/2010 20100709091242E108837

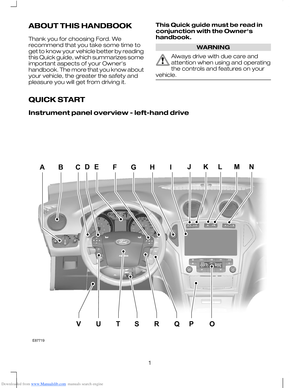

Downloaded from www.Manualslib.com manuals search engine ABOUT THIS HANDBOOK
Thank you for choosing Ford. We
recommend that you take some time to
get to know your vehicle better by reading
this Quick guide, which summarizes some
important aspects of your Owner's
handbook. The more that you know about
your vehicle, the greater the safety and
pleasure you will get from driving it.
This Quick guide must be read in
conjunction with the Owner's
handbook. WARNING
Always drive with due care and
attention when using and operating
the controls and features on your
vehicle. QUICK START
Instrument panel overview - left-hand drive
1AJKLMNCBHIGFEPOVUTSRQE87719D

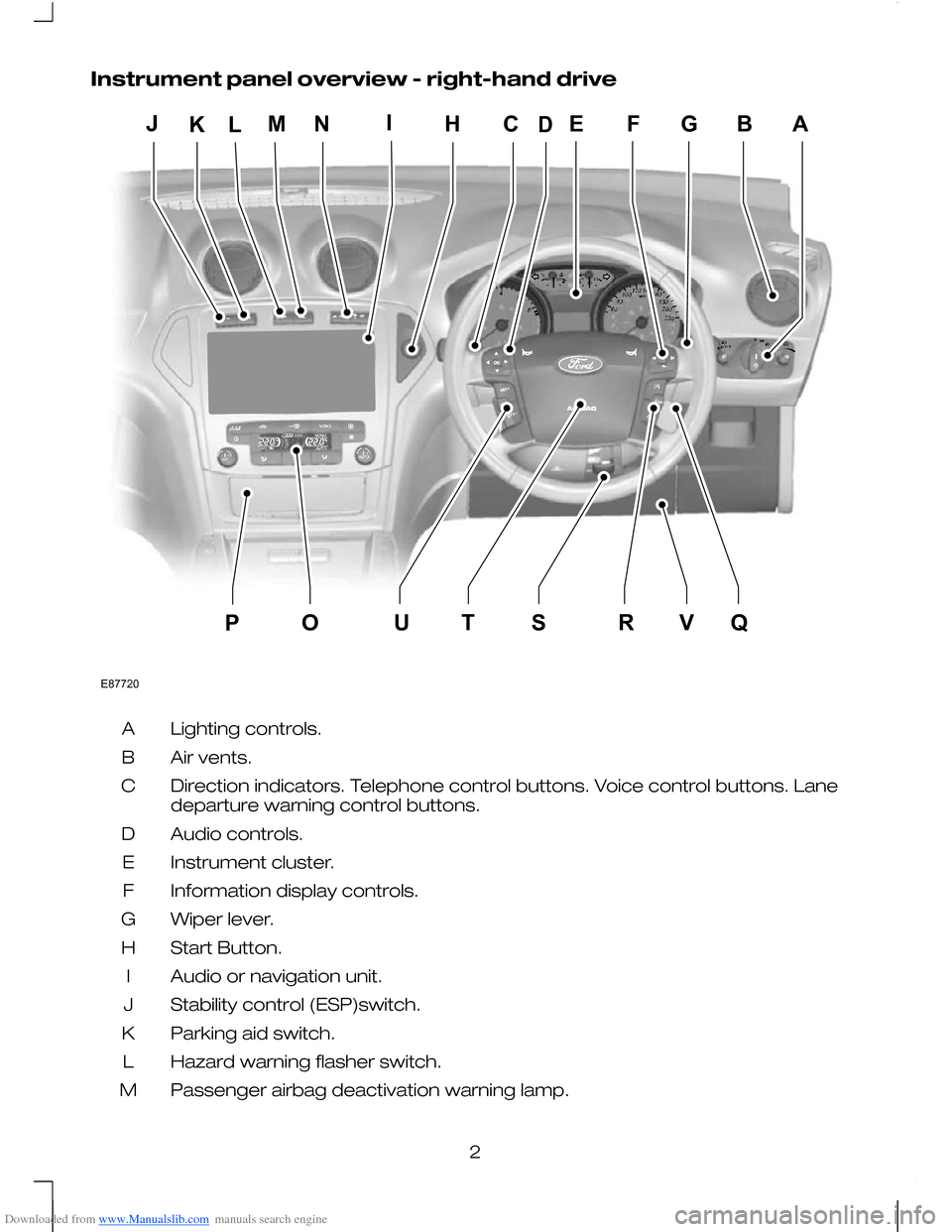

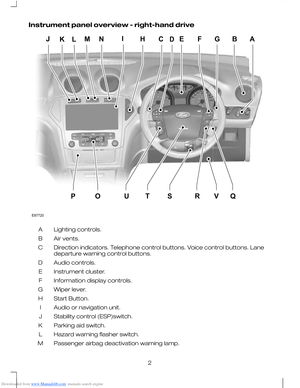

Downloaded from www.Manualslib.com manuals search engine Instrument panel overview - right-hand drive
Lighting controls.
A
Air vents.
B
Direction indicators. Telephone control buttons. Voice control buttons. Lane
departure warning control buttons.
C
Audio controls.
D
Instrument cluster.
E
Information display controls.
F
Wiper lever.
G
Start Button.
H
Audio or navigation unit.
I
Stability control (ESP)switch.
J
Parking aid switch.
K
Hazard warning flasher switch.
L
Passenger airbag deactivation warning lamp.
M
2E87720EFGBAMLHCIOQUTSRVPJKND

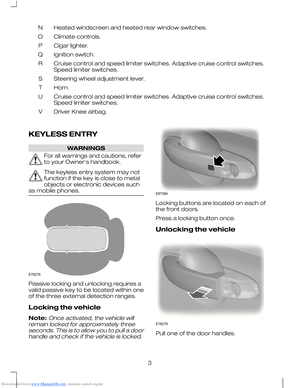

Downloaded from www.Manualslib.com manuals search engine Heated windscreen and heated rear window switches.
N
Climate controls.
O
Cigar lighter.
P
Ignition switch.
Q
Cruise control and speed limiter switches. Adaptive cruise control switches.
Speed limiter switches.
R
Steering wheel adjustment lever.
S
Horn.
T
Cruise control and speed limiter switches. Adaptive cruise control switches.
Speed limiter switches.
U
Driver Knee airbag.
V
KEYLESS ENTRY WARNINGS
For all warnings and cautions, refer
to your Owner's handbook.
The keyless entry system may not
function if the key is close to metal
objects or electronic devices such
as mobile phones. Passive locking and unlocking requires a
valid passive key to be located within one
of the three external detection ranges.
Locking the vehicle
Note:Once activated, the vehicle will
remain locked for approximately three seconds. This is to allow you to pull a doorhandle and check if the vehicle is locked. Locking buttons are located on each of
the front doors.
Press a locking button once.
Unlocking the vehicle
Pull one of the door handles.
3E78276 E87384 E78278

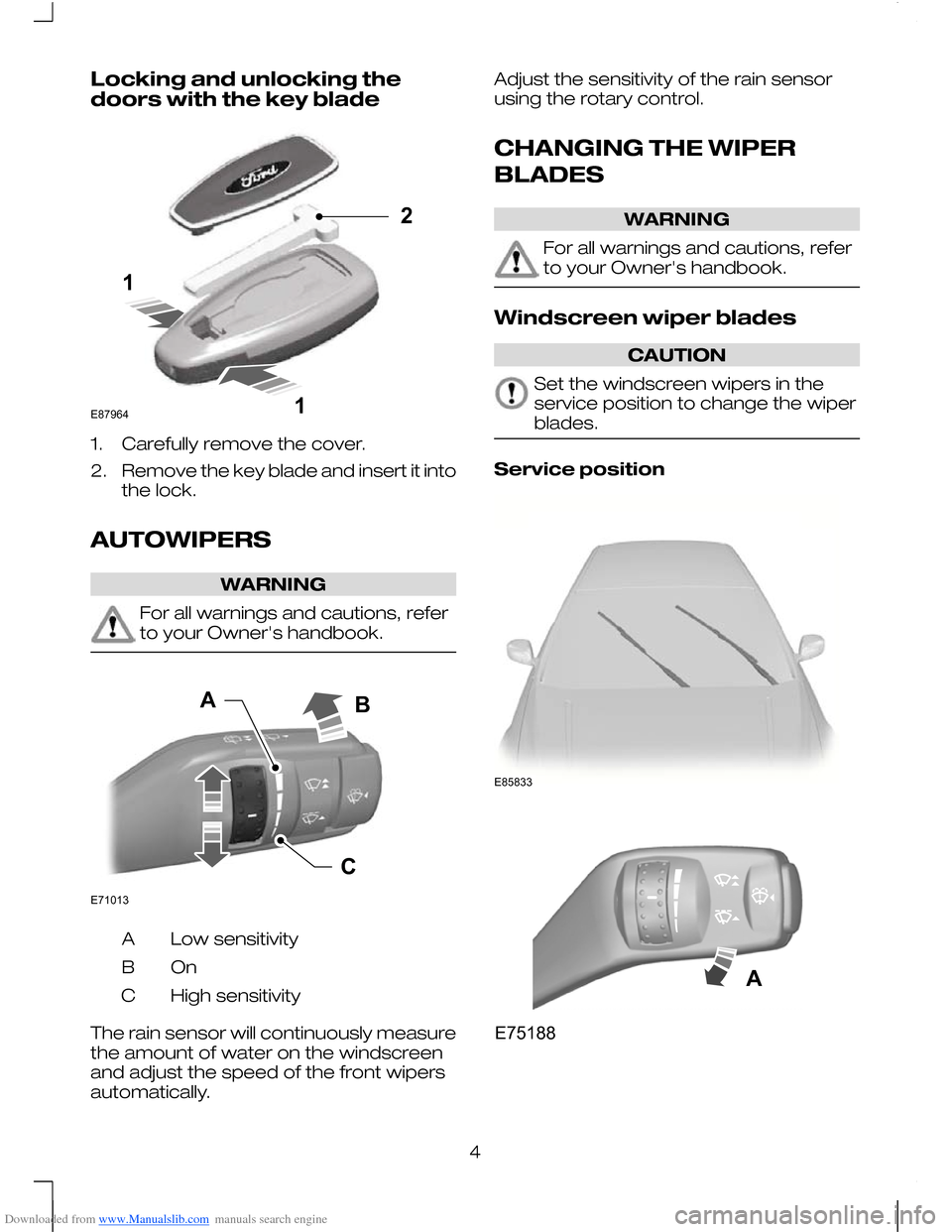

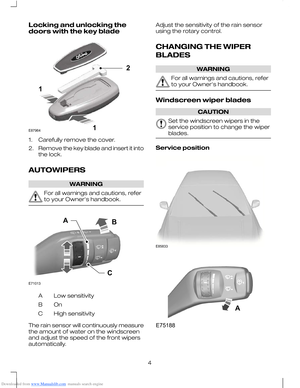

Downloaded from www.Manualslib.com manuals search engine Locking and unlocking the
doors with the key blade
1. Carefully remove the cover.
2.
Remove the key blade and insert it into
the lock.
AUTOWIPERS WARNING
For all warnings and cautions, refer
to your Owner's handbook.
Low sensitivity
A
OnB
High sensitivity
C
The rain sensor will continuously measure
the amount of water on the windscreen
and adjust the speed of the front wipers
automatically. Adjust the sensitivity of the rain sensor
using the rotary control.
CHANGING THE WIPER
BLADES
WARNING
For all warnings and cautions, refer
to your Owner's handbook.
Windscreen wiper blades
CAUTION
Set the windscreen wipers in the
service position to change the wiper
blades.
Service position
4121E87964 E71013CAB E85833 AE75188

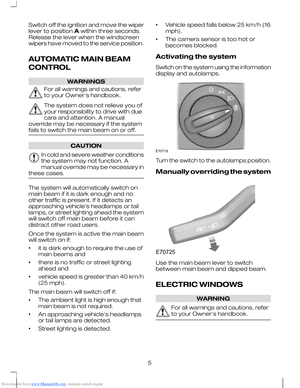

Downloaded from www.Manualslib.com manuals search engine Switch off the ignition and move the wiper
lever to positionAwithin three seconds.
Release the lever when the windscreen
wipers have moved to the service position.
AUTOMATIC MAIN BEAM
CONTROL
WARNINGS
For all warnings and cautions, refer
to your Owner's handbook.
The system does not relieve you of
your responsibility to drive with due
care and attention. A manual
override may be necessary if the system
fails to switch the main beam on or off.
CAUTION
In cold and severe weather conditions
the system may not function. A
manual override may be necessary in
these cases.
The system will automatically switch on
main beam if it is dark enough and no
other traffic is present. If it detects an
approaching vehicle’s headlamps or tail
lamps, or street lighting ahead the system
will switch off main beam before it can
distract other road users.
Once the system is active the main beam
will switch on if:
• it is dark enough to require the use of
main beams and
• there is no traffic or street lighting
ahead and
• vehicle speed is greater than 40 km/h
(25 mph).
The main beam will switch off if:
• The ambient light is high enough that
main beam is not required.
• An approaching vehicle's headlamps
or tail lamps are detected.
• Street lighting is detected. •
Vehicle speed falls below 25 km/h (16
mph).
• The camera sensor is too hot or
becomes blocked.
Activating the system
Switch on the system using the information
display and autolamps.
E70719
Turn the switch to the autolamps position.
Manually overriding the system
E70725
Use the main beam lever to switch
between main beam and dipped beam.
ELECTRIC WINDOWS
WARNING
For all warnings and cautions, refer
to your Owner's handbook.
5

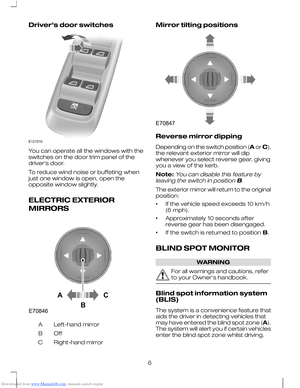

Downloaded from www.Manualslib.com manuals search engine Driver’s door switches
E121510
You can operate all the windows with the
switches on the door trim panel of the
driver’s door.
To reduce wind noise or buffeting when
just one window is open, open the
opposite window slightly.
ELECTRIC EXTERIOR
MIRRORS
AC
B
E70846
Left-hand mirror
A
OffB
Right-hand mirror
C
Mirror tilting positions
E70847
Reverse mirror dipping
Depending on the switch position (A orC),
the relevant exterior mirror will dip
whenever you select reverse gear, giving
you a view of the kerb.
Note:
You can disable this feature by
leaving the switch in position B.
The exterior mirror will return to the original
position:
•If the vehicle speed exceeds 10 km/h
(6 mph).
• Approximately 10 seconds after
reverse gear has been disengaged.
• If the switch is returned to position
B.
BLIND SPOT MONITOR
WARNING
For all warnings and cautions, refer
to your Owner's handbook.
Blind spot information system
(BLIS)
The system is a convenience feature that
aids the driver in detecting vehicles that
may have entered the blind spot zone (A).
The system will alert you if certain vehicles
enter the blind spot zone whilst driving.
6
