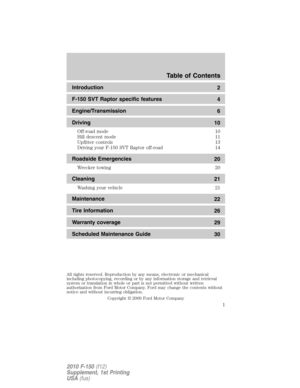

2010 FORD F150 Raptor Supplement Manual

Introduction2
F-150 SVT Raptor specific features 4
Engine/Transmission 6
Driving 10

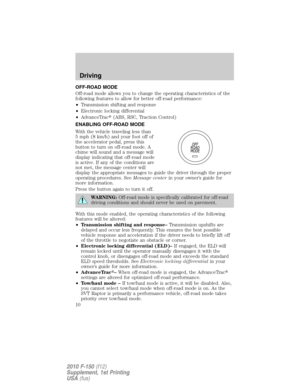

Off-road mode 10

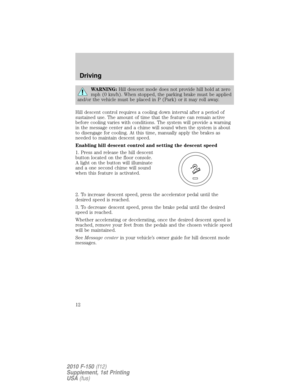

Hill descent mode 11
Upfitter controls 13
Driving your F-150 SVT Raptor off-road 14
Roadside Emergencies
20
Wrecker towing 20
Cleaning
21
Washing your vehicle 21
Maintenance
22
Tire Information 26
Warranty coverage 29
Scheduled Maintenance Guide 30
All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and retrieval
system or translation in whole or part is not permitted without written
authorization from Ford Motor Company. Ford may change the contents without
notice and without incurring obligation.
Copyright © 2009 Ford Motor Company
Table of Contents
1
2010 F-150(f12)
Supplement, 1st Printing
USA (fus)

WELCOME
Congratulations on your decision to purchase or lease the latest from
Ford SVT — the F-150 SVT Raptor. If you’ve owned or leased an SVT
product in the past, we’re glad you’re back. If this is your first SVT
vehicle, welcome to the SVT family! We are confident that our dedication
to performance, quality, craftsmanship and customer service will ensure
many miles of exhilarating, safe and comfortable driving in your new
F-150 SVT Raptor.
Your choice of an SVT product is an intelligent and informed one. SVT
strives to build engaging vehicles that involve the driver in every aspect
of the driving experience. Although performance is at the heart of every
SVT vehicle, we go much further. Our goal is to deliver a comprehensive,
complete vehicle, sweating the details such as the sound of the exhaust,
the quality of the interior materials, and the functionality and the
comfort of the seats, to ensure that the driver enjoys not only
exceptional performance but an outstandingdriving environmentas
well. In the F-150 SVT Raptor, that philosophy is expressed by a
sophisticated powertrain, outstanding chassis dynamics and significant
interior and exterior enhancements.
This supplement complements yourF-150 Owner’s Guideand provides
information specific to SVT and the Raptor. By referring to the pages
listed in this supplement, you can identify those features,
recommendations and specifications unique to your new SVT vehicle. If
there are any discrepancies between this supplement and the F-150
Owner Guide, this supplement shall supersede the information found in
the F-150 Owner Guide.
SVT HISTORY
The Ford Special Vehicle Team (SVT) was established in 1991 to “Polish
the Ford Oval” by creating low-volume, factory-produced vehicles
designed for those select few whose idea of driving is a high-powered,
passionate experience — not just a means of getting from point A to
point B.
In a move to support this spirited enthusiasm, Ford Motor Company
carefully integrated the wide array of talent in the company into a small,
cross-functional group of engineers and product planners, housed
together under one roof with a common mission: to create vehicles
specifically designed to meet the unique needs and desires of the
knowledgeable driving enthusiast.
Introduction
2
2010 F-150(f12)
Supplement, 1st Printing
USA(fus)

Each of nearly 150,000 SVT vehicles produced since the 1993 model year
has been designed and developed with the four SVT Hallmarks in mind:
Performance, Substance, Exclusivity and Value. These hallmarks have
driven the SVT Mustang Cobra and the Cobra R, the SVT F-150
Lightning, the SVT Contour, the SVT Focus, Ford GT, Shelby GT500,
GT500KR and the F-150 SVT Raptor.
We are proud and passionate about what we do, and we’re glad you have
made us your choice.
Introduction
3
2010 F-150(f12)
Supplement, 1st Printing
USA(fus)

UNIQUE FEATURES
•5.4L 3V Triton V8 engine
•6.2L V8 engine (late availability)
•6R80 6-speed automatic transmission
•4x4 electronic shift on the fly transfer case
•Modified rear differential capable of locking in 2H, 4H and 4L
•4.10 front and rear axle ratios
•Super Cab – 5.5’ box with unique outer box
•New hood with functional air extractors
•New grille
•New front bumper and fascia
•Dual exhaust, 3.5” exhaust tips
•Modified rear bumper with integrated rear tow hooks
•Heavy duty front skid plate and engine skid plate, and front tow hooks
•Cast aluminum running board/sill protector with Durabed protection
•New front fenders with functional air extractors
•Seats with increased bolstering and unique covers
•Front and rear LED marker lamps
•Switch pack with “off-road mode” and “hill descent” buttons, and four
auxiliary switches
F-150 SVT Raptor specific features
4
2010 F-150(f12)
Supplement, 1st Printing
USA(fus)

•Longer, cast aluminum lower control arms
•Longer, forged steel upper control arms
•Front coil springs and rear leaf springs
•Fox Racing 47mm piston internal bypass front shocks
•Fox Racing 47mm pistons, internal bypass, remote reservoir rear
shocks
•Micro-cellular urethane jounce bumpers (front and rear)
•Raptor navigation welcome screen
•17” cast aluminum wheels and 315/70-17 BFGoodrichall-terrain tires
•Full size all-terrain spare tire
•Off-road specific calibrations for engine, transmission and
AdvanceTractraction control system

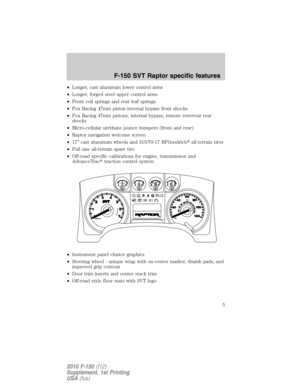

•Instrument panel cluster graphics
•Steering wheel - unique wrap with on-center marker, thumb pads, and
improved grip contour
•Door trim inserts and center stack trim
•Off-road style floor mats with SVT logo
F-150 SVT Raptor specific features
5
2010 F-150(f12)
Supplement, 1st Printing
USA(fus)

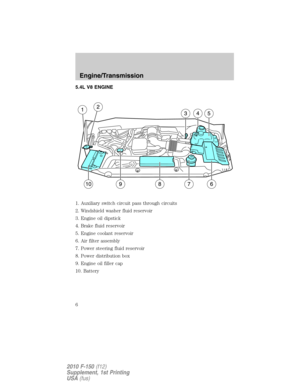

5.4L V8 ENGINE
1. Auxiliary switch circuit pass through circuits
2. Windshield washer fluid reservoir
3. Engine oil dipstick
4. Brake fluid reservoir
5. Engine coolant reservoir
6. Air filter assembly
7. Power steering fluid reservoir
8. Power distribution box
9. Engine oil filler cap
10. Battery
Engine/Transmission
6
2010 F-150(f12)
Supplement, 1st Printing
USA(fus)

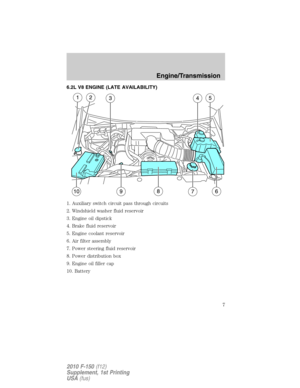

6.2L V8 ENGINE (LATE AVAILABILITY)
1. Auxiliary switch circuit pass through circuits
2. Windshield washer fluid reservoir
3. Engine oil dipstick
4. Brake fluid reservoir
5. Engine coolant reservoir
6. Air filter assembly
7. Power steering fluid reservoir
8. Power distribution box
9. Engine oil filler cap
10. Battery
Engine/Transmission
7
2010 F-150(f12)
Supplement, 1st Printing
USA(fus)

ENGINE INFORMATION
—5.4L Triton V8 engine 6.2L V8 engine
Bore x Stroke90.2 x 105.8 mm
(3.55 x 4.17 in)102x95mm
(4.01 x 3.74 in)
Displacement5.4L (5399cc) 6.2L (6207 cc)
Compression
ratio9.8:1 9.8:1
Horsepower
(SAE net)310 hp @ 5000 rpm
320 hp @ 5000 rpm
(FFV)*
Torque365 lb.-ft. @
3750 rpm
390 lb. - @
3750 rpm (FFV)*
Redline5700 rpm 6000 rpm
Specific output57.4 hp/l 64.5 hp/l
ValvetrainSingle overhead cam,
hydraulic lash
adjustment, three valves
per cylinderSingle overhead cam,
roller rocker shaft with
hydraulic lash
adjustment,
inverted-tooth chain
drive, ovate-wire valve
springs, two valves per
cylinder
Fuel systemSequential electronic fuel
injection, returnless fuel
systemSequential electronic
fuel injection,
returnless fuel system
Ignition systemCoil-on-plug electronic
ignitionCoil-on-plug electronic
ignition with secondary
wire and dual-plug
Throttle bodySingle 75mm (2.95 in) Single 80mm (3.15 in)
Exhaust
manifoldsCast-iron Cast-iron high silicon,
molybdenum (HiSiMo)
*Not available at time of printing.
Engine/Transmission
8
2010 F-150(f12)
Supplement, 1st Printing
USA(fus)
