2010 DODGE CHARGER Owners Manual

Towing This Vehicle Behind Another Vehicle
Flatbed towing is recommended. DO NOT tow an AWD
vehicle with the rear wheels on the ground unless the
rear driveshaft is removed and the transmission is in
NEUTRAL.
Vehicles WITHOUT AWD may be towed (with rear
wheels on the ground) with the transmission in NEU-
TRAL under the following conditions:
•The distance to be traveled must not exceed 15 miles
(24 km).
•The towing speed must not exceed 30 mph (48 km/h).
CAUTION!
Exceeding these towing limits may cause severe
transmission damage. Such damage is not covered by
the New Vehicle Limited Warranty.Vehicles equipped with AWD can be towed with the
transmission in NEUTRAL and the rear wheels OFF the
ground (or the rear driveshaft removed) with no limita-
tion on speed or distance.
CAUTION!
•Do not attempt to tow this vehicle from the front
with sling-type towing equipment. Damage to the
front fascia will result.
•If the transmission is not operative or if the
vehicle is to be towed more than 15 miles (24 km),
then the only approved method of towing is with
a flatbed truck. Otherwise, damage to the trans-
mission may result.
•Do not tow the vehicle from the rear. Damage to
the rear sheet metal and fascia will occur.
(Continued)
368 WHAT TO DO IN EMERGENCIES

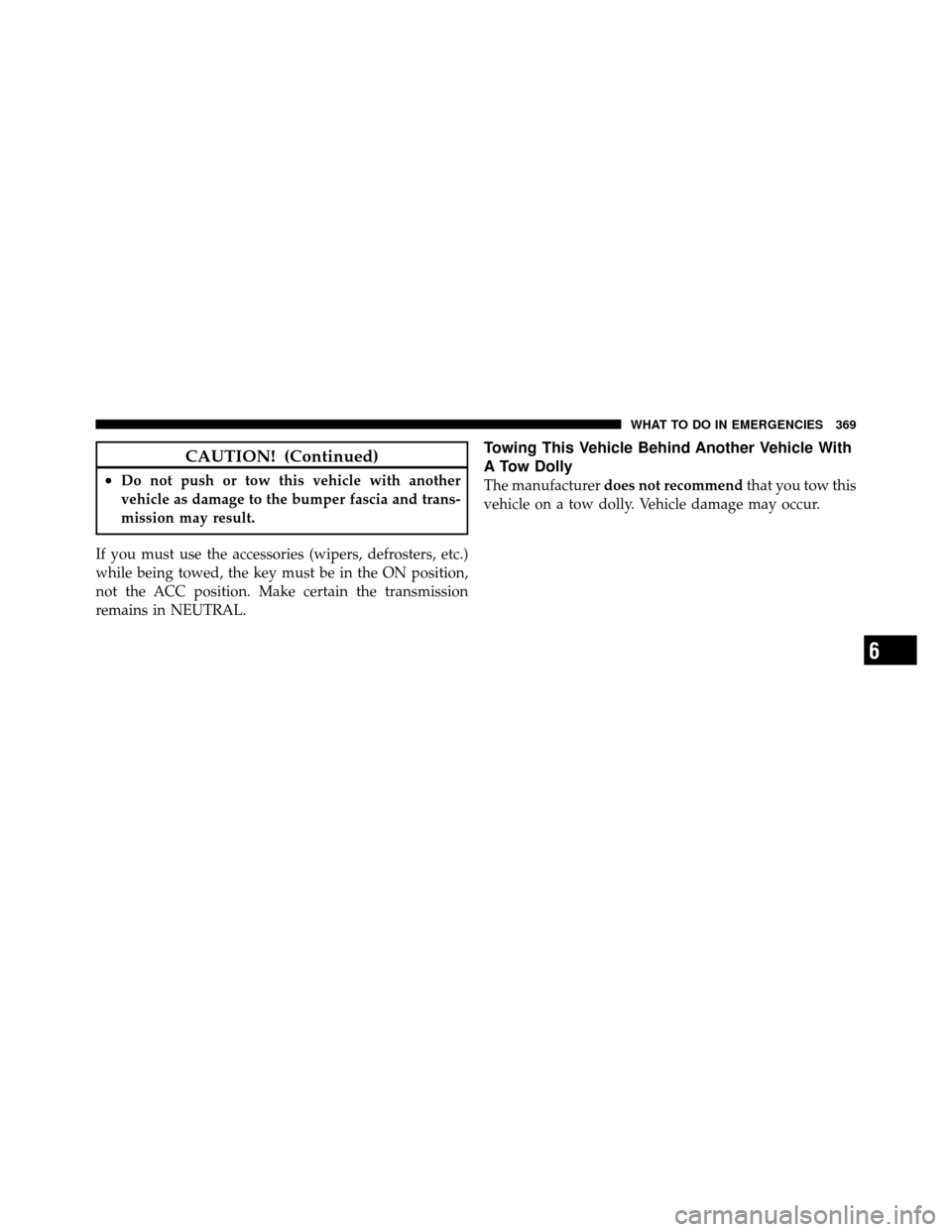

CAUTION! (Continued)
•Do not push or tow this vehicle with another
vehicle as damage to the bumper fascia and trans-
mission may result.
If you must use the accessories (wipers, defrosters, etc.)
while being towed, the key must be in the ON position,
not the ACC position. Make certain the transmission
remains in NEUTRAL.
Towing This Vehicle Behind Another Vehicle With
A Tow Dolly
The manufacturer does not recommend that you tow this
vehicle on a tow dolly. Vehicle damage may occur.
6
WHAT TO DO IN EMERGENCIES 369

MAINTAINING YOUR VEHICLE
CONTENTS
Engine Compartment — 2.7L ............. 373
 Engine Compartment — 3.5L ............. 374
 Engine Compartment — 5.7L ............. 375
 Onboard Diagnostic System — OBD II ...... 376
▫ Loose Fuel Filler Cap ................. 376
 Emissions Inspection And Maintenance
Programs ............................ 377
 Replacement Parts ..................... 378
 Dealer Service ........................ 378
Maintenance Procedures ................. 379
▫ Engine Oil ......................... 380
▫ Engine Oil Filter ..................... 383
▫ Engine Air Cleaner Filter ............... 384
▫ Maintenance-Free Battery .............. 384
▫ Air Conditioner Maintenance ............ 386
▫ A/C Air Filter ...................... 387
▫ Body Lubrication .................... 389
▫ Windshield Wiper Blades ............... 390
7

▫Adding Washer Fluid ................. 390
▫ Exhaust System ..................... 391
▫ Cooling System ..................... 393
▫ Brake System ....................... 399
▫ Automatic Transmission ............... 401
▫ All Wheel Drive (AWD) – If Equipped ..... 403
▫ Rear Axle .......................... 403
▫ Appearance Care And Protection From
Corrosion .......................... 404
 Fuses .............................. 409
▫ Integrated Power Module .............. 409
▫ Rear Power Distribution Center .......... 412
 Vehicle Storage ....................... 417
 Replacement Bulbs .................... 417
Bulb Replacement ..................... 418
▫ Low Beam Headlamp, High Beam
Headlamp, Park/Turn Lamp, And Front Side
Marker Lamp — Models With Halogen
Headlamps ......................... 418
▫ Low Beam Headlamp, High Beam
Headlamp, And Park/Turn Lamp — Models
With High Intensity Discharge Headlamps
(HID) ............................. 421
▫ Backup Lamp, Side Marker Lamp, Tail/Turn
Lamp, And Tail/Stop Lamp ............. 422
▫ License Lamp ....................... 425
 Fluid Capacities ...................... 426
 Fluids, Lubricants, And Genuine Parts ....... 428
▫ Engine ............................ 428
▫ Chassis ........................... 429
372 MAINTAINING YOUR VEHICLE

ENGINE COMPARTMENT — 2.7L
1 — Integrated Power Module6 — Air Cleaner Filter
2 — Engine Oil Dipstick 7 — Engine Oil Fill
3 — Brake Fluid Reservoir Access Cover 8 — Remote Jump Start (Positive Battery Post)
4 — Engine Coolant Reservoir 9 — Washer Fluid Reservoir
5 — Power Steering Fluid Reservoir
7
MAINTAINING YOUR VEHICLE 373

ENGINE COMPARTMENT — 3.5L
1 — Integrated Power Module6 — Engine Oil Fill
2 — Air Cleaner Filter 7 — Engine Oil Dipstick
3 — Brake Fluid Reservoir Access Cover 8 — Remote Jump Start (Positive Battery Post)
4 — Engine Coolant Reservoir 9 — Washer Fluid Reservoir
5 — Power Steering Fluid Reservoir
374 MAINTAINING YOUR VEHICLE

ENGINE COMPARTMENT — 5.7L
1 — Integrated Power Module6 — Air Cleaner Filter
2 — Coolant Pressure Cap 7 — Engine Oil Fill
3 — Brake Fluid Reservoir Access Cover 8 — Engine Oil Dipstick
4 — Engine Coolant Reservoir 9 — Remote Jump Start (Positive Battery Post)
5 — Power Steering Fluid Reservoir 10 — Washer Fluid Reservoir
7
MAINTAINING YOUR VEHICLE 375
