Voice Command — If Equipped ........... 119
▫ Voice Command System Operation ........ 119
▫ Commands ........................ 121
▫ Voice Training ...................... 124
 Seats .............................. 124
▫ Manual Seats — If Equipped ............ 125
▫ Power Seats — If Equipped ............. 126
▫ Power Reclining Seats — If Equipped ...... 127
▫ Lumbar Support — If Equipped .......... 128
▫ Head Restraints ..................... 128
▫ Heated Seats — If Equipped ............ 130
▫ Folding Rear Seat — If Equipped ......... 131
 To Open And Close The Hood ............ 132
 Lights ............................. 134 ▫
Headlight Switch .................... 134
▫ Automatic Headlights — If Equipped ...... 134
▫ Headlights On With Wipers (Available With
Automatic Headlights Only) ............ 135
▫ Headlight Time Delay ................. 135
▫ Daytime Running Lights — If Equipped .... 136
▫ Lights-On Reminder .................. 136
▫ Fog Lights — If Equipped .............. 136
▫ Multifunction Lever .................. 136
▫ Turn Signals ........................ 137
▫ Lane Change Assist ................... 137
▫ High/Low Beam Switch ............... 137
▫ Flash-To-Pass ....................... 138
▫ Overhead Console Map/Reading Lights .... 138
84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

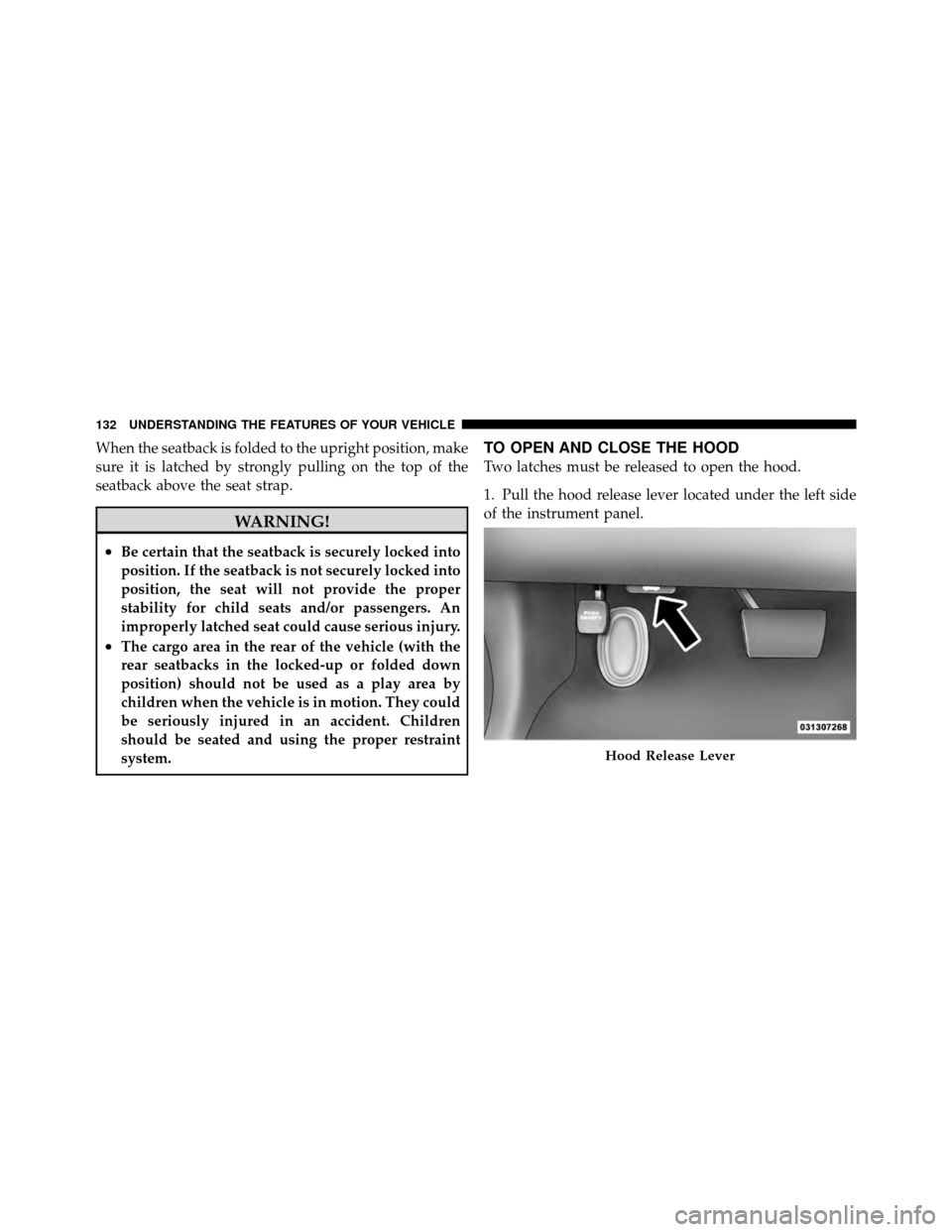

When the seatback is folded to the upright position, make
sure it is latched by strongly pulling on the top of the
seatback above the seat strap.
WARNING!
•Be certain that the seatback is securely locked into
position. If the seatback is not securely locked into
position, the seat will not provide the proper
stability for child seats and/or passengers. An
improperly latched seat could cause serious injury.
•The cargo area in the rear of the vehicle (with the
rear seatbacks in the locked-up or folded down
position) should not be used as a play area by
children when the vehicle is in motion. They could
be seriously injured in an accident. Children
should be seated and using the proper restraint
system.
TO OPEN AND CLOSE THE HOOD
Two latches must be released to open the hood.
1. Pull the hood release lever located under the left side
of the instrument panel.
Hood Release Lever
132 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

2. Move to the outside of the vehicle and push the safety
catch to the left. The safety catch is located under the
center front edge of the hood.
Use the hood prop rod (if equipped) to secure the hood in
the open position.CAUTION!
To prevent possible damage, do not slam the hood to
close it. Lower the hood, until it is open approxi-
mately 6 in (15 cm), and then drop it. This should
secure both latches. Never drive your vehicle unless
the hood is fully closed, with both latches engaged.
WARNING!
Be sure the hood is fully latched before driving your
vehicle. If the hood is not fully latched, it could open
when the vehicle is in motion and block your vision.
Failure to follow this warning could result in serious
injury or death.
Hood Safety Catch
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 133

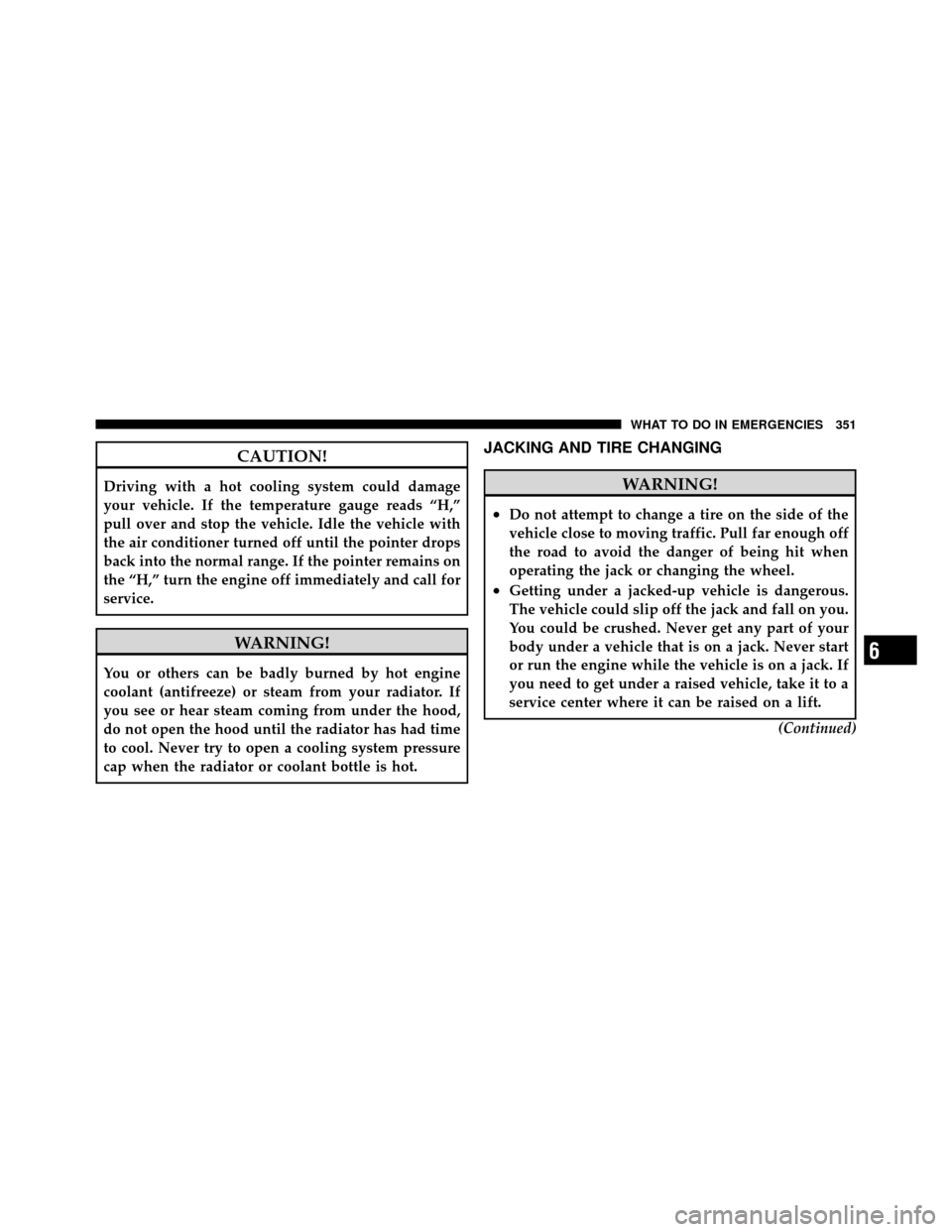

CAUTION!
Driving with a hot cooling system could damage
your vehicle. If the temperature gauge reads “H,”
pull over and stop the vehicle. Idle the vehicle with
the air conditioner turned off until the pointer drops
back into the normal range. If the pointer remains on
the “H,” turn the engine off immediately and call for
service.
WARNING!
You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If
you see or hear steam coming from under the hood,
do not open the hood until the radiator has had time
to cool. Never try to open a cooling system pressure
cap when the radiator or coolant bottle is hot.
JACKING AND TIRE CHANGING
WARNING!
•Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off
the road to avoid the danger of being hit when
operating the jack or changing the wheel.
•Getting under a jacked-up vehicle is dangerous.
The vehicle could slip off the jack and fall on you.
You could be crushed. Never get any part of your
body under a vehicle that is on a jack. Never start
or run the engine while the vehicle is on a jack. If
you need to get under a raised vehicle, take it to a
service center where it can be raised on a lift.(Continued)
6
WHAT TO DO IN EMERGENCIES 351

WARNING!
•Take care to avoid the radiator cooling fan when-
ever the hood is raised. It can start anytime the
ignition switch is on. You can be injured by
moving fan blades.
•Remove any metal jewelry such as watch bands or
bracelets that might make an inadvertent electrical
contact. You could be seriously injured.
•Batteries contain sulfuric acid that can burn your
skin or eyes and generate hydrogen gas which is
flammable and explosive. Keep open flames or
sparks away from the battery.
1. Set the parking brake, shift the automatic transmission
into PARK and turn the ignition to LOCK.
2. Turn off the heater, radio, and all unnecessary electri-
cal accessories. 3. If using another vehicle to jump-start the battery, park
the vehicle within the jumper cables reach, set the
parking brake and make sure the ignition is OFF.
WARNING!
Do not allow vehicles to touch each other as this
could establish a ground connection and personal
injury could result.
Jump-Starting Procedure
WARNING!
Failure to follow this procedure could result in per-
sonal injury or property damage due to battery ex-
plosion.
364 WHAT TO DO IN EMERGENCIES

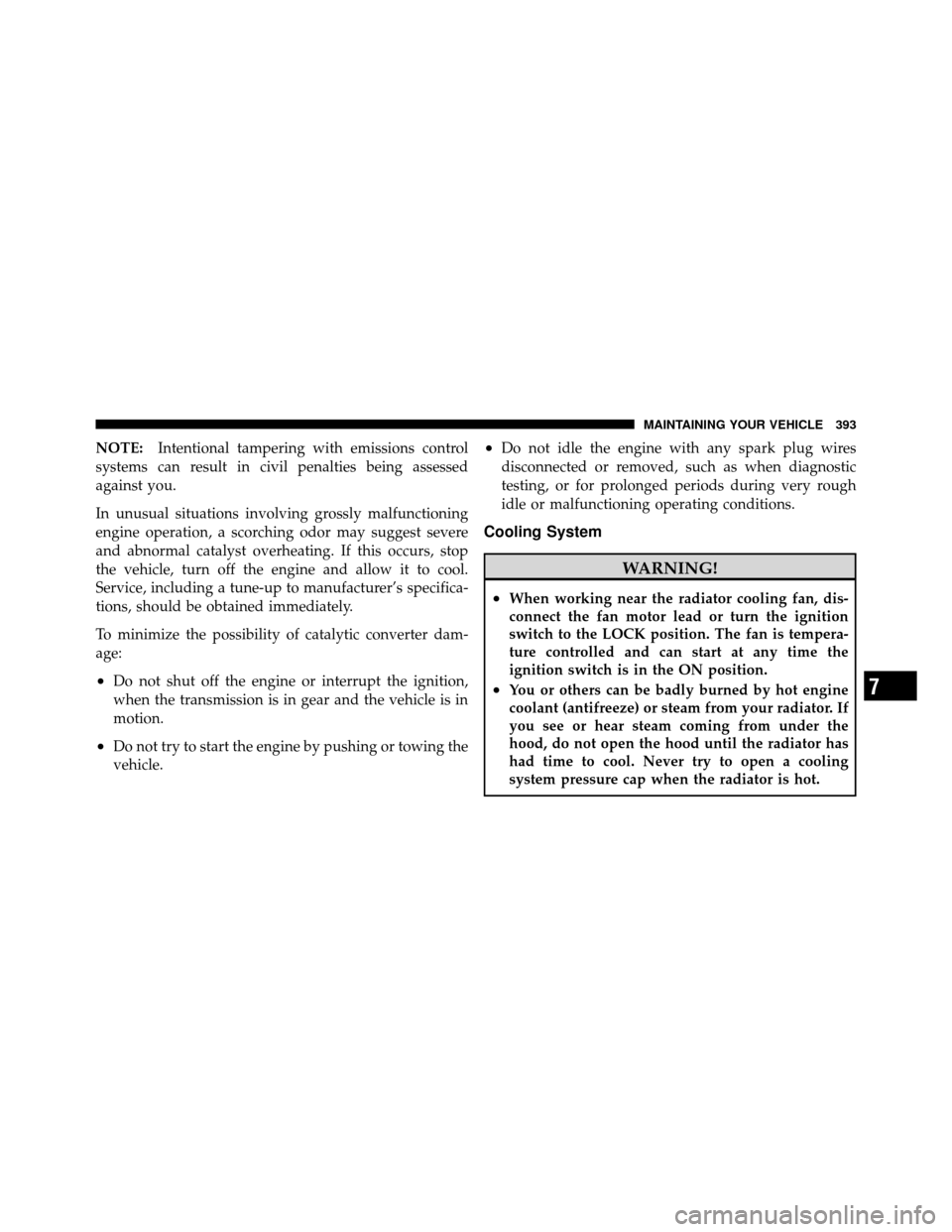

NOTE:Intentional tampering with emissions control
systems can result in civil penalties being assessed
against you.
In unusual situations involving grossly malfunctioning
engine operation, a scorching odor may suggest severe
and abnormal catalyst overheating. If this occurs, stop
the vehicle, turn off the engine and allow it to cool.
Service, including a tune-up to manufacturer’s specifica-
tions, should be obtained immediately.
To minimize the possibility of catalytic converter dam-
age:
•Do not shut off the engine or interrupt the ignition,
when the transmission is in gear and the vehicle is in
motion.
•Do not try to start the engine by pushing or towing the
vehicle.
•Do not idle the engine with any spark plug wires
disconnected or removed, such as when diagnostic
testing, or for prolonged periods during very rough
idle or malfunctioning operating conditions.
Cooling System
WARNING!
•When working near the radiator cooling fan, dis-
connect the fan motor lead or turn the ignition
switch to the LOCK position. The fan is tempera-
ture controlled and can start at any time the
ignition switch is in the ON position.
•You or others can be badly burned by hot engine
coolant (antifreeze) or steam from your radiator. If
you see or hear steam coming from under the
hood, do not open the hood until the radiator has
had time to cool. Never try to open a cooling
system pressure cap when the radiator is hot.7
MAINTAINING YOUR VEHICLE 393

ExteriorBulb Number
Low Beam Headlamp (Standard Halogen) ......9006
Low Beam Headlamp – High Intensity
Discharge (HID) ......................... D1S
(Serviced at Authorized Dealer)
High Beam Headlamp .................... 9005
Front Park/Turn Lamp ................... 3157A
Front Fog Lamp – If Equipped ............PSX24W
Front Side Marker ........................ 194
(Serviced at Authorized Dealer)
Tail/Stop Lamp ......................... 3057
Tail/Turn Lamp ......................... 3057
Rear Side Marker ........................ 168
Backup Lamp ........................... 921
Center High-Mount Stop Lamp (CHMSL) ....... LED
(Serviced at Authorized Dealer)
License ................................ 168BULB REPLACEMENT
Low Beam Headlamp, High Beam Headlamp,
Park/Turn Lamp, and Front Side Marker Lamp —
Models with Halogen Headlamps
1. Open the hood.
NOTE: Removal of the air cleaner filter housing may be
necessary prior to replacing bulbs in the headlamp
assembly on the driver side of the vehicle.
2. Twist the appropriate bulb and socket assembly coun-
terclockwise, and then pull it out of the headlamp
assembly.
418 MAINTAINING YOUR VEHICLE

Automatic........................... 134
Bulb Replacement ...................... 418
Cleaning ............................ 407
Delay .............................. 135
High Beam/Low Beam Select Switch ........ 137
Lights On Reminder .................... 136
On With Wipers .................... 135,142
Passing ............................. 138
Switch .............................. 134
Time Delay .......................... 135
Washers ............................. 390
Heated Mirrors .......................... 90
Heated Seats ........................... 130
Heater ............................... 247
Heater, Engine Block ..................... 265
High Beam/Low Beam Select (Dimmer) Switch . . 137
Hitches Trailer Towing ........................ 338
Holder, Coin ........................... 162 Holder, Cup
........................... 161
HomeLink (Garage Door Opener) Transmitter . . . 149
Hood Release .......................... 132
Ignition ............................... 14
Key ............................... 12,14
Ignition Key Removal ..................... 14
Illuminated Entry ........................ 19
Immobilizer (Sentry Key) ................... 15
Infant Restraint ........................ 67,68
Information Center, Vehicle ................. 186
Inside Rearview Mirror .................... 87
Instrument Cluster .................... 171,173
Instrument Panel and Controls .............. 170
Instrument Panel Lens Cleaning ............. 408
Interior Appearance Care .................. 407
Interior Fuses .......................... 409
Interior Lights .......................... 139
Intermittent Wipers (Delay Wipers) ........... 140
470 INDEX
