2010 DODGE CHARGER Owners Manual

▫Operating Instructions — Voice Command
System (VR) — If Equipped ............. 202
▫ Operating Instructions — Uconnect™ Phone
— If Equipped ...................... 202
▫ Clock Setting Procedure — RBZ Radio ..... 202
▫ Clock Setting Procedure —
RER/REN Radio ..................... 203
 Media Center 130 (RES) — AM/FM Stereo
Radio With CD Player (MP3 AUX Jack) ....... 206
▫ Operating Instructions — Radio Mode ..... 206
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 209
▫ Notes On Playing MP3 Files ............ 211
▫ Operation Instructions - Auxiliary Mode .... 214
Media Center 130 (RES/RSC) — AM/FM
Stereo Radio With CD Player (MP3 AUX Jack)
And Sirius Radio ...................... 214
▫ Operating Instructions — Radio Mode ..... 215
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 220
▫ Notes On Playing MP3 Files ............ 222
▫ List Button (CD Mode For MP3 Play) ...... 225
▫ Info Button (CD Mode For MP3 Play) ...... 225
▫ Uconnect™ Multimedia (Satellite Radio) —
If Equipped ........................ 226
 Universal Consumer Interface (UCI) 0.5 —
If Equipped .......................... 230
▫ Connecting The iPod ................. 231
▫ Using This Feature ................... 232
168 UNDERSTANDING YOUR INSTRUMENT PANEL

▫Controlling The iPodUsing Radio Buttons. . 232
▫ Play Mode ......................... 232
▫ List Or Browse Mode ................. 234
 Uconnect™ Multimedia (Satellite Radio) —
If Equipped (REN/RER/RES Radios Only) .... 236
▫ System Activation .................... 236
▫ Electronic Serial Number/Sirius
Identification Number (ESN/SID) ......... 236
▫ Selecting Uconnect™ Multimedia (Satellite)
Mode ............................. 237
▫ Satellite Antenna ..................... 237
▫ Reception Quality .................... 237
▫ Operating Instructions - Uconnect™
Multimedia (Satellite) Mode ............. 238▫
Operating Instructions - Uconnect™ Phone
(If Equipped) ....................... 240

Kicker High Performance Sound System With
Driver-Selectable Surround (DSS) – If Equipped
. . 240
 Video Entertainment System (VES)™ —
If Equipped .......................... 242
 Remote Sound System Controls ........... 244
 CD/DVD Disc Maintenance .............. 246
 Radio Operation And Cellular Phones ....... 246
 Climate Controls ...................... 247
▫ Manual Air Conditioning And Heating
System ............................ 247
▫ Automatic Temperature Control —
If Equipped ........................ 250
▫ Operating Tips ...................... 255
4
UNDERSTANDING YOUR INSTRUMENT PANEL 169

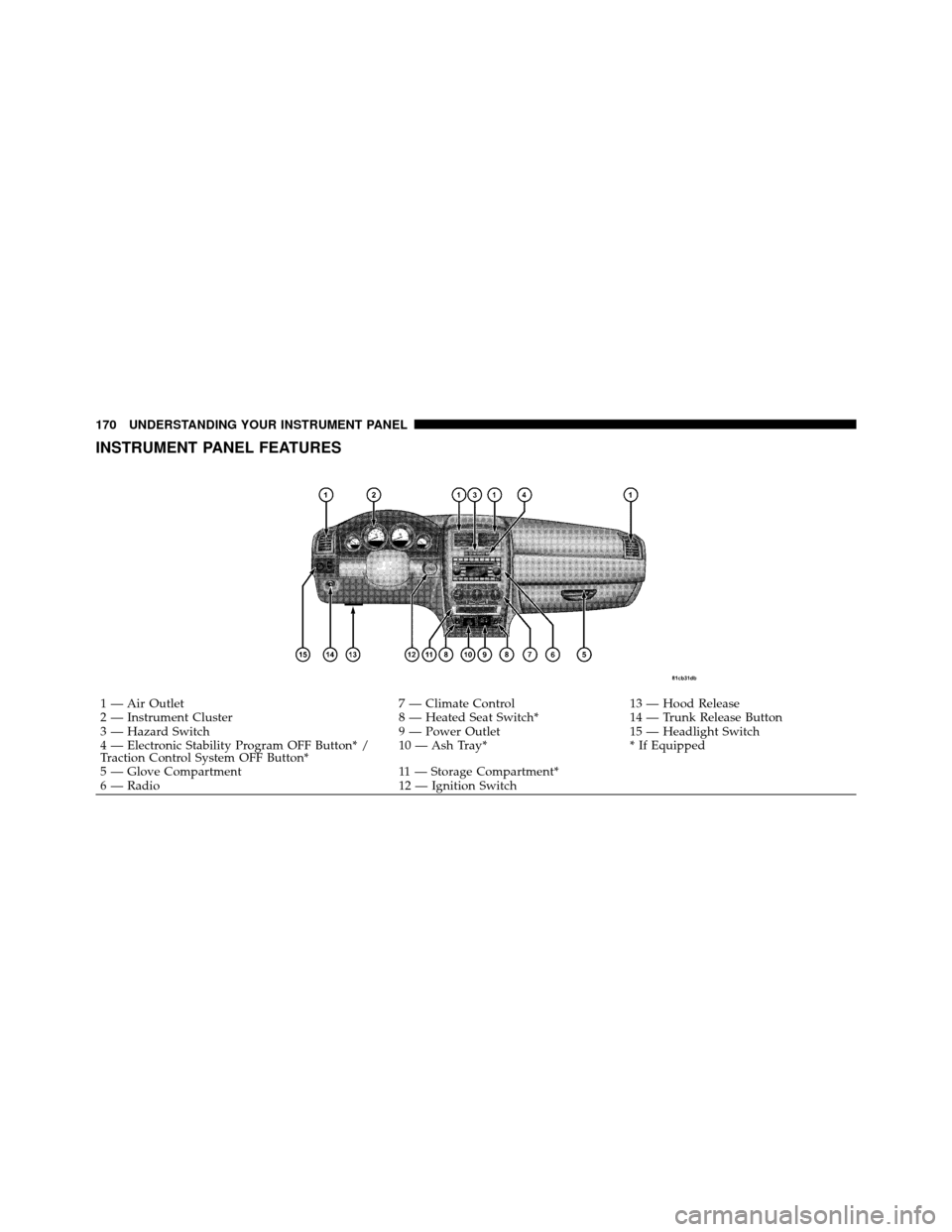

INSTRUMENT PANEL FEATURES
1 — Air Outlet7 — Climate Control13 — Hood Release
2 — Instrument Cluster 8 — Heated Seat Switch*14 — Trunk Release Button
3 — Hazard Switch 9 — Power Outlet15 — Headlight Switch
4 — Electronic Stability Program OFF Button* /
Traction Control System OFF Button* 10 — Ash Tray*
* If Equipped
5 — Glove Compartment 11 — Storage Compartment*
6 — Radio 12 — Ignition Switch
170 UNDERSTANDING YOUR INSTRUMENT PANEL

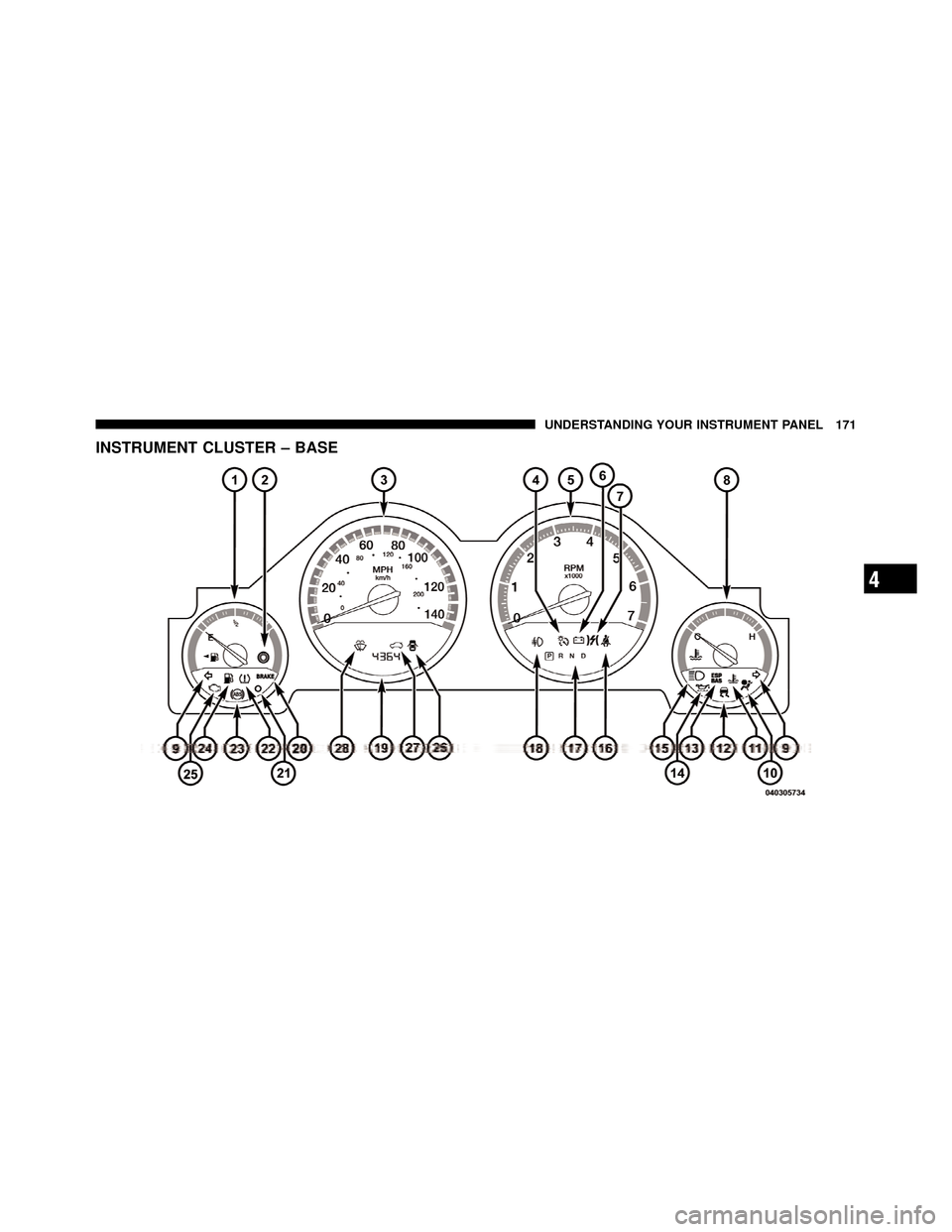

INSTRUMENT CLUSTER – BASE
4
UNDERSTANDING YOUR INSTRUMENT PANEL 171

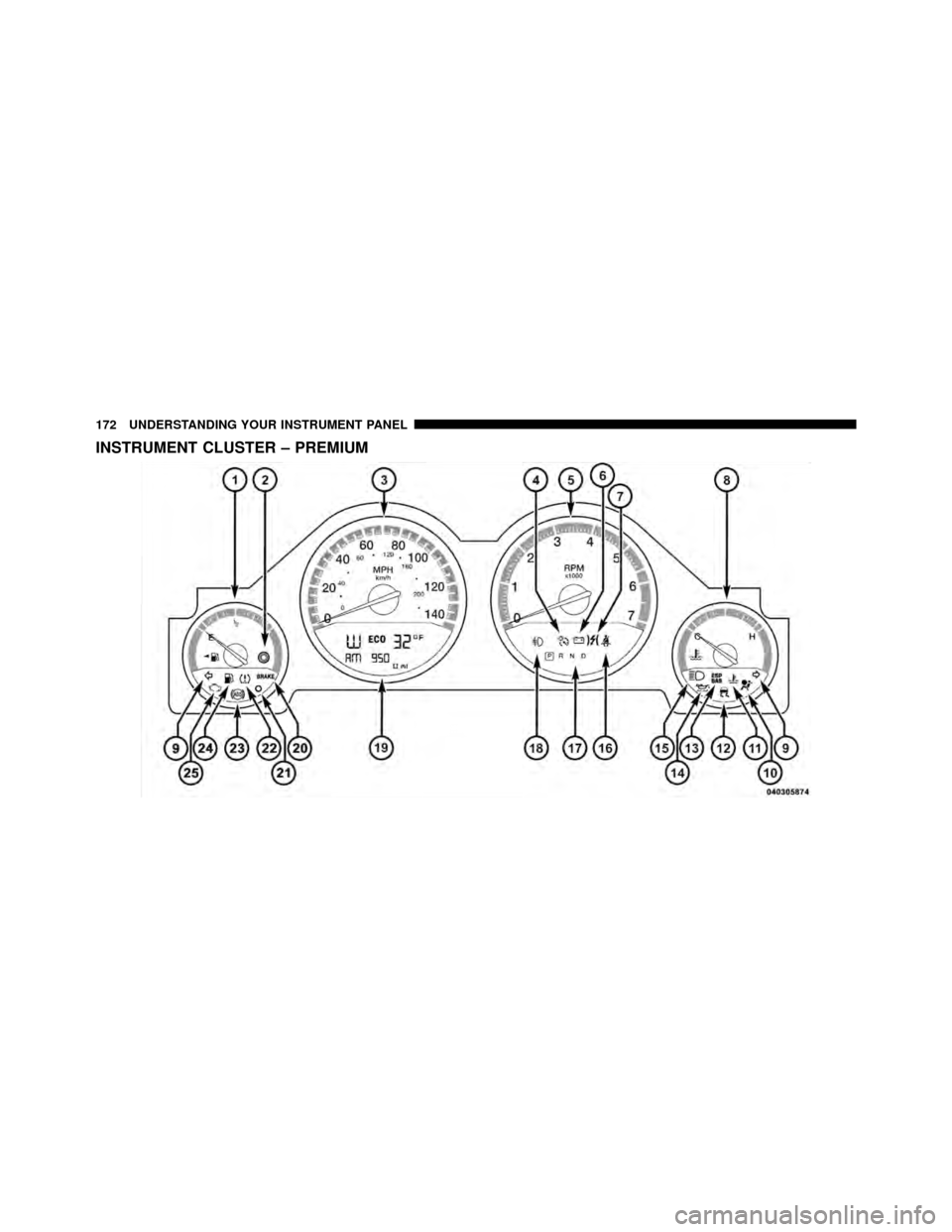

INSTRUMENT CLUSTER – PREMIUM
172 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT CLUSTER DESCRIPTIONS
1. Fuel Gauge
The pointer shows the level of fuel in the fuel tank when
the ignition switch is in the ON position.
2. Trip Odometer Button
Premium Cluster
Press this button to change the display from odometer to
either of two trip odometer settings. The letter “A” or “B”
will appear when in the trip odometer mode. Push in and
hold the button for two seconds to reset the trip odometer
to 0 miles (km). The odometer must be in TRIP mode to
reset it.
Base Cluster
The wordTripwill appear when this button is pressed.
Push in and hold the button for two seconds when the trip odometer is displayed to reset it to 0 miles (km). A
second press of the button will display the outside
temperature in the odometer.
3. Speedometer
Indicates vehicle speed.
4. Electronic Speed Control Indicator Light
This light will turn on when the electronic
speed control is on.
5. Tachometer
The red segments indicate the maximum permissible
engine revolutions per minute (RPM x 1000) for each gear
range. Ease up on the accelerator before reaching the red
area.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 173

6. Charging System Warning LightThis light shows the status of the electrical charg-
ing system. The light should turn on when the
ignition switch is first turned ON and remain on briefly
as a bulb check. If the light stays on or turns on while
driving, turn off some of the vehicle’s non-essential
electrical devices (i.e., radio) or slightly increase engine
speed (if at idle). If the light remains on, it means that the
charging system is experiencing a problem. See your
local authorized dealer to obtain service immediately.
If jump starting is required, refer to “Jump Starting
Procedures” in “What To Do In Emergencies”.
7. Electronic Throttle Control (ETC) Warning Light This light will turn on briefly as a bulb check
when the ignition switch is turned ON. This
light will also turn on while the engine is
running if there is a problem with the Elec-
tronic Throttle Control (ETC) system. If the light comes on while the engine is running, safely
bring the vehicle to a complete stop as soon as possible,
place the shift lever in PARK, and cycle the ignition key.
The light should turn off. If the light remains lit with the
engine running, your vehicle will usually be drivable.
However, see an authorized dealer for service as soon as
possible.
If the light is flashing when the engine is running,
immediate service is required. In this case, you may
experience reduced performance, an elevated/rough idle
or engine stall, and your vehicle may require towing.
Also, have the system checked by an authorized dealer if
the light does not come on during starting.
8. Temperature Gauge
The temperature gauge shows engine coolant tempera-
ture. Any reading within the normal range indicates that
the engine cooling system is operating satisfactorily.
174 UNDERSTANDING YOUR INSTRUMENT PANEL

The gauge pointer will likely indicate a higher tempera-
ture when driving in hot weather, up mountain grades,
or when towing a trailer. It should not be allowed to
exceed the upper limits of the normal operating range.
CAUTION!
Driving with a hot engine cooling system could
damage your vehicle. If the temperature gauge reads
“H,” pull over and stop the vehicle. Idle the vehicle
with the air conditioner turned off until the pointer
drops back into the normal range. If the pointer
remains on the “H,” and you hear a chime, turn the
engine OFF immediately and call for service.
WARNING!
A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call a service center if your
vehicle overheats. If you decide to look under the
hood yourself, refer to “Maintaining Your Vehicle”
and follow the warnings under the Cooling System
Pressure Cap paragraph.
9. Turn Signal Indicators The arrow will flash with the exterior turn signal
when the turn signal lever is operated.
NOTE:
•A continuous chime will sound if the vehicle is driven
more than 1 mile (1.6 km) with either turn signal on.
•Check for an inoperative outside light bulb if either
indicator flashes at a rapid rate.
4
