2010 DODGE CHALLENGER Owners Manual

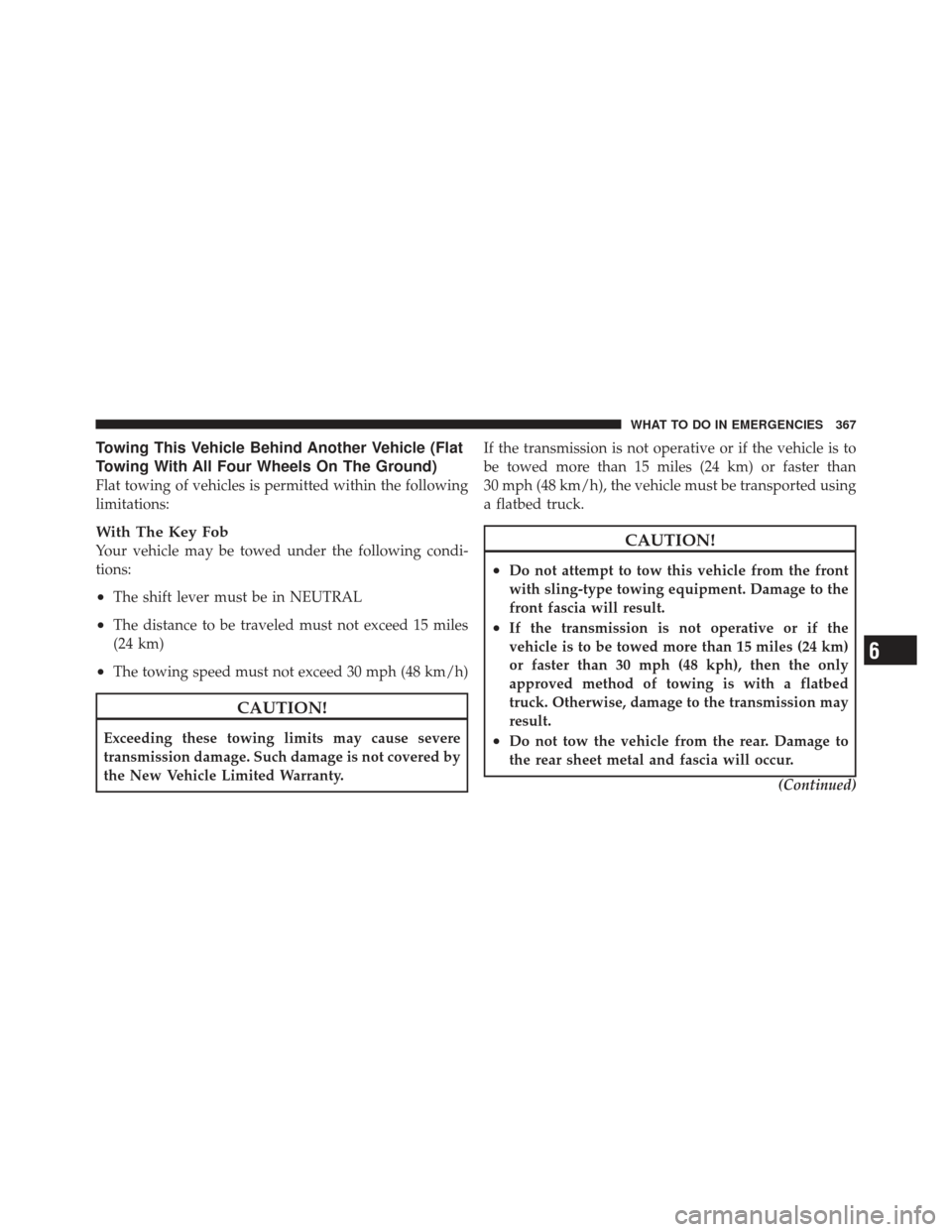

Towing This Vehicle Behind Another Vehicle (Flat
Towing With All Four Wheels On The Ground)
Flat towing of vehicles is permitted within the following
limitations:
With The Key Fob
Your vehicle may be towed under the following condi-
tions:
•The shift lever must be in NEUTRAL
•The distance to be traveled must not exceed 15 miles
(24 km)
•The towing speed must not exceed 30 mph (48 km/h)
CAUTION!
Exceeding these towing limits may cause severe
transmission damage. Such damage is not covered by
the New Vehicle Limited Warranty.If the transmission is not operative or if the vehicle is to
be towed more than 15 miles (24 km) or faster than
30 mph (48 km/h), the vehicle must be transported using
a flatbed truck.
CAUTION!
•Do not attempt to tow this vehicle from the front
with sling-type towing equipment. Damage to the
front fascia will result.
•If the transmission is not operative or if the
vehicle is to be towed more than 15 miles (24 km)
or faster than 30 mph (48 kph), then the only
approved method of towing is with a flatbed
truck. Otherwise, damage to the transmission may
result.
•Do not tow the vehicle from the rear. Damage to
the rear sheet metal and fascia will occur.
(Continued)
6
WHAT TO DO IN EMERGENCIES 367

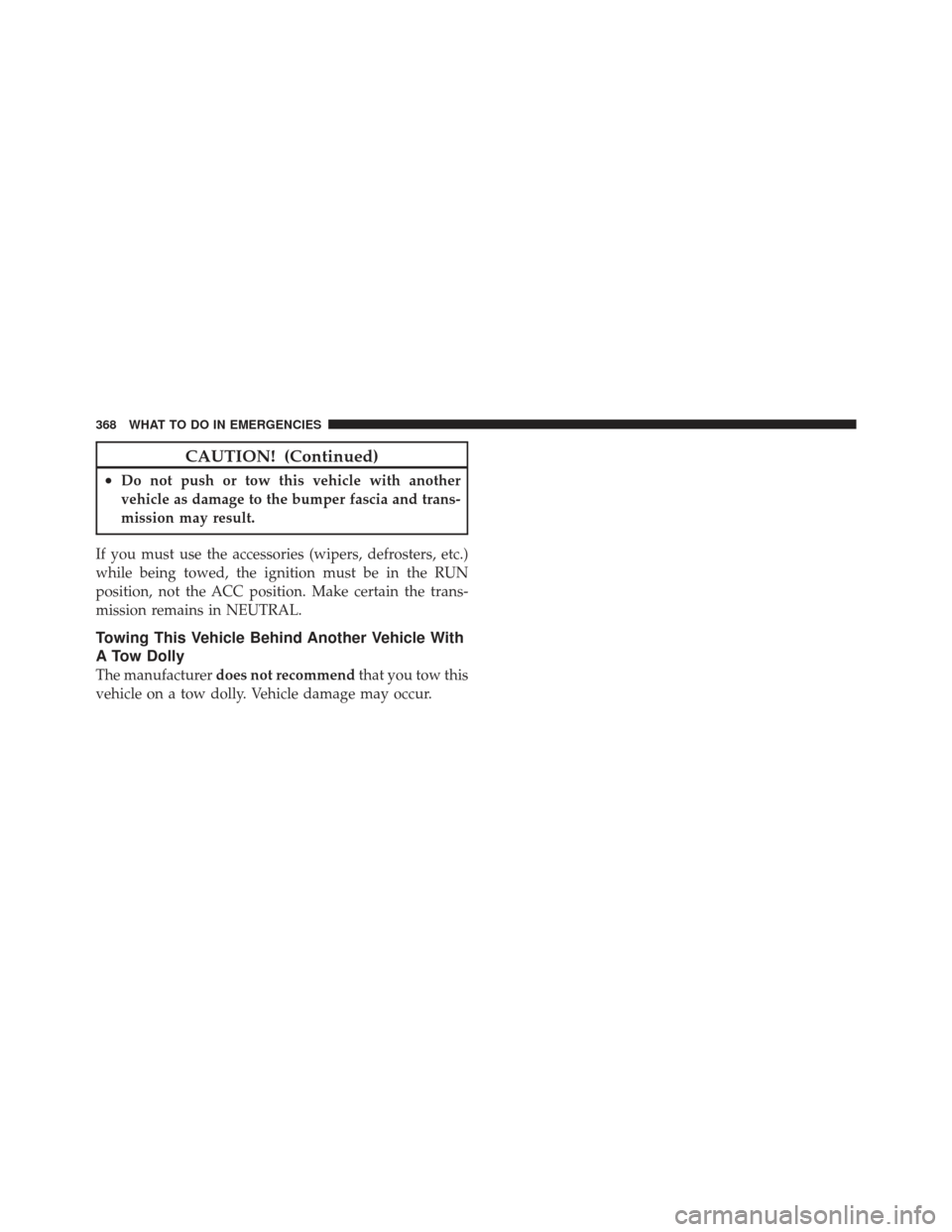

CAUTION! (Continued)
•Do not push or tow this vehicle with another
vehicle as damage to the bumper fascia and trans-
mission may result.
If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the RUN
position, not the ACC position. Make certain the trans-
mission remains in NEUTRAL.
Towing This Vehicle Behind Another Vehicle With
A Tow Dolly
The manufacturer does not recommend that you tow this
vehicle on a tow dolly. Vehicle damage may occur.
368 WHAT TO DO IN EMERGENCIES

MAINTAINING YOUR VEHICLE
CONTENTS
Engine Compartment — 3.5L ............. 372
 Engine Compartment — 5.7L ............. 373
 Onboard Diagnostic System — OBD II ...... 374
▫ Loose Fuel Filler Cap ................. 374
 Emissions Inspection And Maintenance
Programs ............................ 375
 Replacement Parts ..................... 376
 Dealer Service ........................ 377
 Maintenance Procedures ................. 377 ▫
Engine Oil ......................... 378
▫ Engine Oil Filter ..................... 381
▫ Engine Air Cleaner Filter ............... 382
▫ Maintenance-Free Battery .............. 382
▫ Air Conditioner Maintenance ............ 384
▫ Body Lubrication .................... 385
▫ Windshield Wiper Blades ............... 386
▫ Adding Washer Fluid ................. 386
7

▫Exhaust System ..................... 387
▫ Cooling System ..................... 390
▫ Brake System ....................... 395
▫ Clutch Hydraulic System – Manual
Transmission (If Equipped) ............. 398
▫ Manual Transmission – If Equipped ....... 398
▫ Automatic Transmission – If Equipped ..... 399
▫ Rear Axle .......................... 401
▫ Appearance Care And Protection From
Corrosion .......................... 401
 Fuses .............................. 407
▫ Integrated Power Module (IPM) .......... 407
▫ Rear Power Distribution Center .......... 409
 Vehicle Storage ....................... 414
Replacement Bulbs .................... 414
 Bulb Replacement ..................... 415
▫ Low Beam Headlamp, High Beam
Headlamp, Park/Turn Lamp — Models With
Halogen Headlamps — If Equipped ....... 415
▫ Low Beam Headlamp, High Beam
Headlamp, And Park/Turn Lamp — Models
With High Intensity Discharge (HID)
Headlamps — If Equipped ............. 415
▫ Front/Rear Side Marker Lamp ........... 416
▫ Tail/Turn And Stop Lamp .............. 417
▫ Center Tail/Backup Lamp .............. 419
▫ Center High-Mounted Stop Lamp
(CHMSL) .......................... 419
▫ License Lamp ....................... 420
370 MAINTAINING YOUR VEHICLE

Fluid Capacities ...................... 421
 Fluids, Lubricants, And Genuine Parts ....... 422▫
Engine ............................ 422
▫ Chassis ........................... 423
7
MAINTAINING YOUR VEHICLE 371

ENGINE COMPARTMENT — 3.5L
1 — Integrated Power Module6 — Engine Oil Fill
2 — Air Cleaner Filter 7 — Engine Oil Dipstick
3 — Brake Fluid Reservoir Access Cover 8 — Remote Jump Start (Positive Battery Post)
4 — Engine Coolant Reservoir 9 — Washer Fluid Reservoir
5 — Power Steering Fluid Reservoir
372 MAINTAINING YOUR VEHICLE

ENGINE COMPARTMENT — 5.7L
1 — Integrated Power Module6 — Air Cleaner Filter
2 — Coolant Pressure Cap 7 — Engine Oil Fill
3 — Brake Fluid Reservoir Access Cover 8 — Engine Oil Dipstick
4 — Engine Coolant Reservoir 9 — Remote Jump Start (Positive Battery Post)
5 — Power Steering Fluid Reservoir 10 — Washer Fluid Reservoir
7
MAINTAINING YOUR VEHICLE 373

ONBOARD DIAGNOSTIC SYSTEM — OBD II
Your vehicle is equipped with a sophisticated onboard
diagnostic system called OBD II. This system monitors
the performance of the emissions, engine, and automatic
transmission control systems. When these systems are
operating properly, your vehicle will provide excellent
performance and fuel economy, as well as engine emis-
sions well within current government regulations.
If any of these systems require service, the OBD II system
will turn on the “Malfunction Indicator Light” (MIL). It
will also store diagnostic codes and other information to
assist your service technician in making repairs. Al-
though your vehicle will usually be drivable and not
need towing, see your authorized dealer for service as
soon as possible.CAUTION!
•Prolonged driving with the MIL on could cause
further damage to the emission control system. It
could also affect fuel economy and drivability. The
vehicle must be serviced before any emissions
tests can be performed.
•If the MIL is flashing while the engine is running,
severe catalytic converter damage and power loss
will soon occur. Immediate service is required.
Loose Fuel Filler Cap
If the vehicle diagnostic system determines that the fuel
filler cap is loose, improperly installed, or damaged, a
”gASCAP” message will display in the odometer or a
“Check Gascap” message will display in the Electronic
Vehicle Information Center (EVIC) (if equipped). If this
occurs, tighten the fuel filler cap properly and press the
374 MAINTAINING YOUR VEHICLE
