88
22
33
1
9.25
DELETE
OK
Press the SOURCE button several times in succession and select the JUKEBOX function.
Press the LIST button.
Turn the dial to select the fi les.
Press the ESC button to return to the fi rst fi le level.
JUKEBOX
Select OK and press the dial to confi rm.
To rename the tracks of an album, follow the same procedure, selecting the tracks to be renamed. Use the ESC button to exit from the list of tracks.
Select the DELETE function to delete an album or a track from the Jukebox.
JUKEBOX
LISTENING TO THE JUKEBOX

9.26
1
22
11
33
22
CD CHANGER
On a single slot changer (MP3 compatible), press LOAD, select the number of the CD, then insert the CD, or press and hold LOAD and insert the CDs one by one.
Press the SOURCE button several times in succession and select CD CHANGER.
Press one of the buttons on the alphanumeric keypad to select the corresponding CD.
Press one of the buttons to select a track on the CD.
It is not possible to copy the fi les onto the hard disc from the CD changer.
CD CHANGER
PLAYING A CD
Press the MENU button then select the CONFIGURATIO N function, then SOUNDS, then ACTIVATE AUXILIARY SOURCE to acti vate the audio equipment auxiliary input.
Connect the portable equipment (MP3 player…) to the JACK socket or to the audio sockets (white and red, RCA type) located in the glove box using a suitable cable.
Press the SOURCE button several times in succession and select AUX.
The displaying and management of the commands take s place via the portable equipment.
It is not possible to copy the fi les onto the hard disk from the auxiliary input.
USING THE AUXILIARY INPUT (AUX)
JACK/RCA AUDIO CABLE NOT SUPPLIED

11
22
33
44
55
66
77
9.27

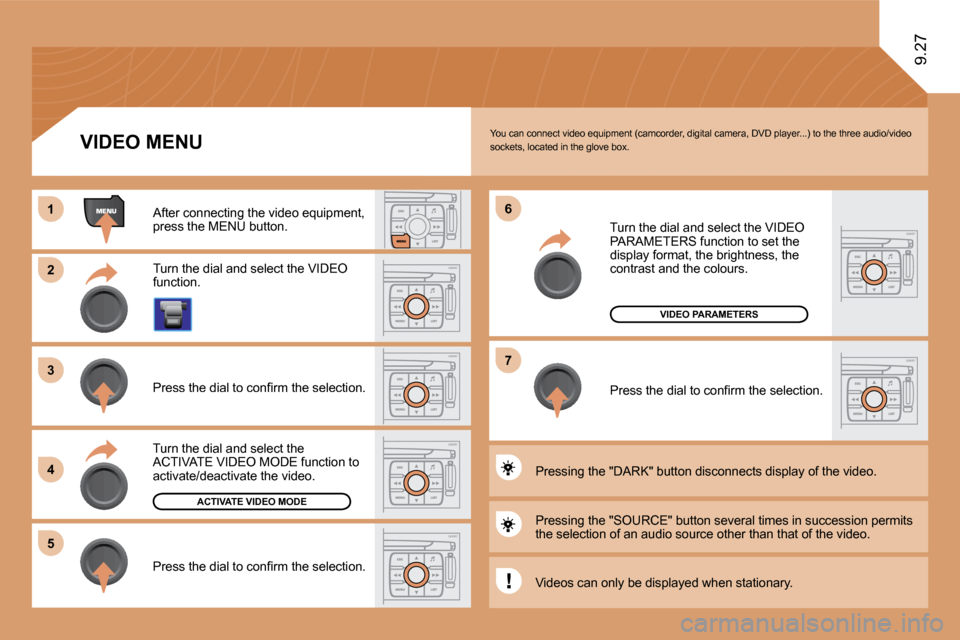

ACTIVATE VIDEO MODE
VIDEO PARAMETERS
You can connect video equipment (camcorder, digital camera, DVD player...) to the three audio/video sockets, located in the glove box.
Turn the dial and select the VIDEO function.
After connecting the video equipment, press the MENU button.
Turn the dial and select the ACTIVATE VIDEO MODE function to activate/deactivate the video.
Press the dial to confi rm the selection.
Press the dial to confi rm the selection.
Pressing the "SOURCE" button several times in succ ession permits the selection of an audio source other than that of the video.
Pressing the "DARK" button disconnects display of the video.
Turn the dial and select the VIDEO PARAMETERS function to set the display format, the brightness, the contrast and the colours.
Press the dial to confi rm the selection.
VIDEO MENU
Videos can only be displayed when stationary.

9.28
11
22
33
11
22
06 MAKING TELEPHONE CALLS
ENTERING THE PIN CODE
Access the slot by pressing the button using the tip of a pen.
Install the SIM card in the holder and then insert it in the slot.
To remove the SIM card, repeat step 1.
Your SIM card must be installed and removed with the NaviDrive audio and telematics system switched off and the ig nition off.
Enter the PIN code on the keypad.
Confi rm the PIN code by pressing button #.
PIN CODE
When entering your PIN code, tick the STORE PIN ta b to gain access to the telephone without having to enter this code when it is used subsequently.
INSTALLING YOUR SIM CARD
(NOT SUPPLIED)

33
22
11
44
06
The services offered by the telephone depend on the network, the SIM card and the compatibility of the Bluetooth equipment used. Refer to your telepho ne's manual and your operator to check which services you have access to. A list of mobile telephones which offer the best range of services is available from dealers.
BLUETOOTH TELEPHONE
CONNECTING A BLUETOOTH
TELEPHONE
For reasons of safety, the driver should only carr y out operations which require prolonged attention when the vehicle is stationary (pairing the Bluetooth mobile telephone to the hands-free kit).
Activate the telephone's Bluetooth function. The last telephone connected is reconnected automatically.
Select BLUETOOTH ACTIVATION MODE, then ACTIVATED AND VISIBLE. Press the dial to confi rm each operation.
Press the MENU button, select TELEMATICS, then BLUETOOTH FUNCTIONS. Press the dial to confi rm each operation.
On your telephone, select the name of the CITROËN audio/telephone. On your telephone, select the name
Enter the authenticationcode (0000 by default).
To fi nd and change the name of the CITROËN audio/t elephone, To fi nd and change the name of the CITROËN audio/telephone, repeat step 2 then select CHANGE AUDIO/TELEPHONPHONE NAME.
9.29

9.30
06
To change the authentication code, repeat step 2 then select AUTHENTICATION CODE and save the code of your choic e.
BLUETOOTH TELEPHONE
CONNECTING A BLUETOOTH
TELEPHONE
To change the telephone connected, repeat step 2 then select LIST OF MATCHED TELEPHONES and press OK to confi rm. The list of previously connected telephones (10 maximum) appears. Select the telephone of your choice, confi rm, then select CONNECT and press the dial to confi rm.
Once the telephone has been connected, the system catem can synchronise the address book and the call list. Repeat speat step 2 then select PHONE BOOK SYNCHRONISATION MODE. SeE. Select the synchronisation of your choice and press the dial to confi rm. synchronisation of your choice and press the dial to confi rm.
The synchronisation may take a few minutes.
The call list consists of calls made from the vehicle's audiotelephone only.

11
22
33
55
66
44
06
9.31
DIAL
MAKING TELEPHONE CALLS
CALLING A CONTACT
Turn the dial and select the DIAL function.
Press the PICK UP button to display the telephone short-cut menu.
Press the dial to confi rm the selection.
Dial the telephone number of your contact using the alphanumeric keypad.
Press the PICK UP button to call the number dialled.
Press the HANG UP button to end the call.
ACCEPTING OR REFUSING A CALL
Press the PICK UP button to accept a call.
Press the HANG UP button to refuse a call.
Press the end of the steering wheel stalk for more than 2 seconds to access the telephone menu: calls log, directory, voice mailbox.
To select the telephone used, press MENU, then select TELEMATICS, then BLUETOOTH FUNCTIONS, then BLUETOOTH ACTIVATION MODE. Then sel ect: - DEACTIVATED: to use the internal telephone, - ACTIVATED AND VISIBLE: to use the bluetooth telephone, visible to all telephones, - ACTIVATED AND NOT VISIBLE: to use the bluetoo th telephone, not visible to other telephones, it is not possible to match a new telephone.
Select CALL LIST or PHONE BOOK and press OK. Selec t the number required and confi rm to make the call.

9.32
07
1
2
2
2
126 3
9
Each press of the button permits displaying of the different trip computer data in succession, depending on the displ ay.
Zero reset When the required route is displayed, press the control for more than two seconds.
TRIP COMPUTER
VEHICLE DIAGNOSTICS
- The "vehicle" tab: The range, the current consumption and the distance remaining to the destination. - Tab "1" (route 1) with: The average speed, the average consumption and the distance travelled calculated over route "1". - Tab "2" (route 2) with the same functions for a second route.
CONTROL SHORT-CUTS
VEHICLE DIAGNOSTICS
WARNINGS LOG
STATUS OF FUNCTIONS
TYRE UNDER-INFLATION DETECTOR ZERO RESET
On-board computer
Instantaneous info.
Range miles 534
miles
l/100
